     Home >>   Rackmount Keyboard Drawer / KVM Switch / KVM Extender >>
                                           IP KVM Extender  :   Part #  LCDK1040
                                                                  IP KVM Extender




                          Supporting Software




  Features :

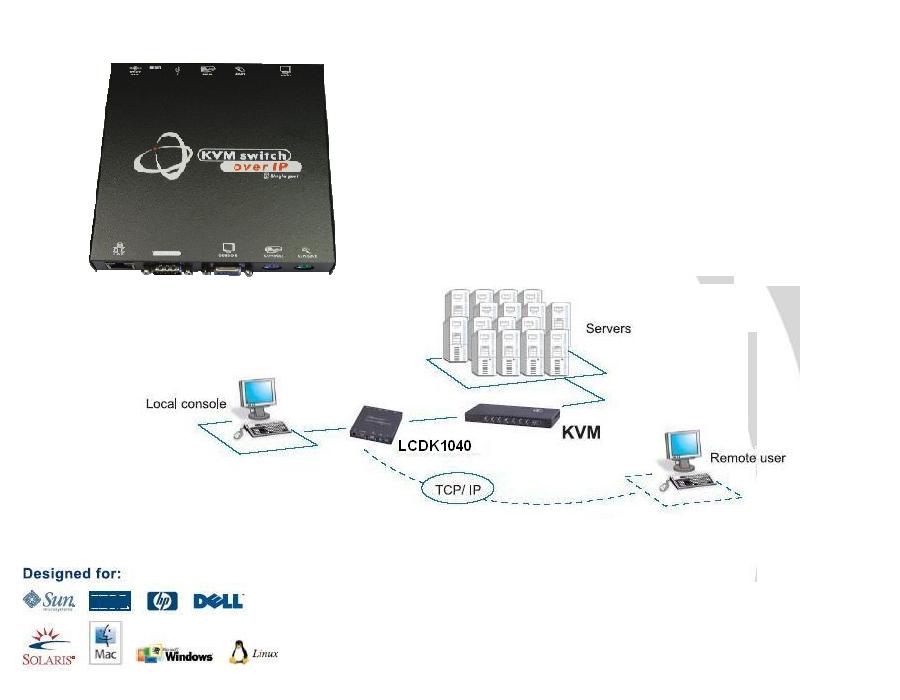

  • Remotely manage servers from anywhere through Internet using a web browser
  • Ultra small form factor (only 156mm x 139mm x 27mm)
  • Embedded processor for remote access and control software to eliminate interference with server and network operation
  • BIOS level access
  • SSL encryption
  • Upgradeable firmware
  • Automatic video resolution sensing for best possible display
  • High-performance mouse tracking and synchronization
  • Remote mass storage control through onboard USB 2.0 port
  • Onboard Serial port offers connectivity to external modems in the event of ethernet failure
  • Local console port for direct access
  • Local mouse suppression
  • Compatible with any standard KVM consoles

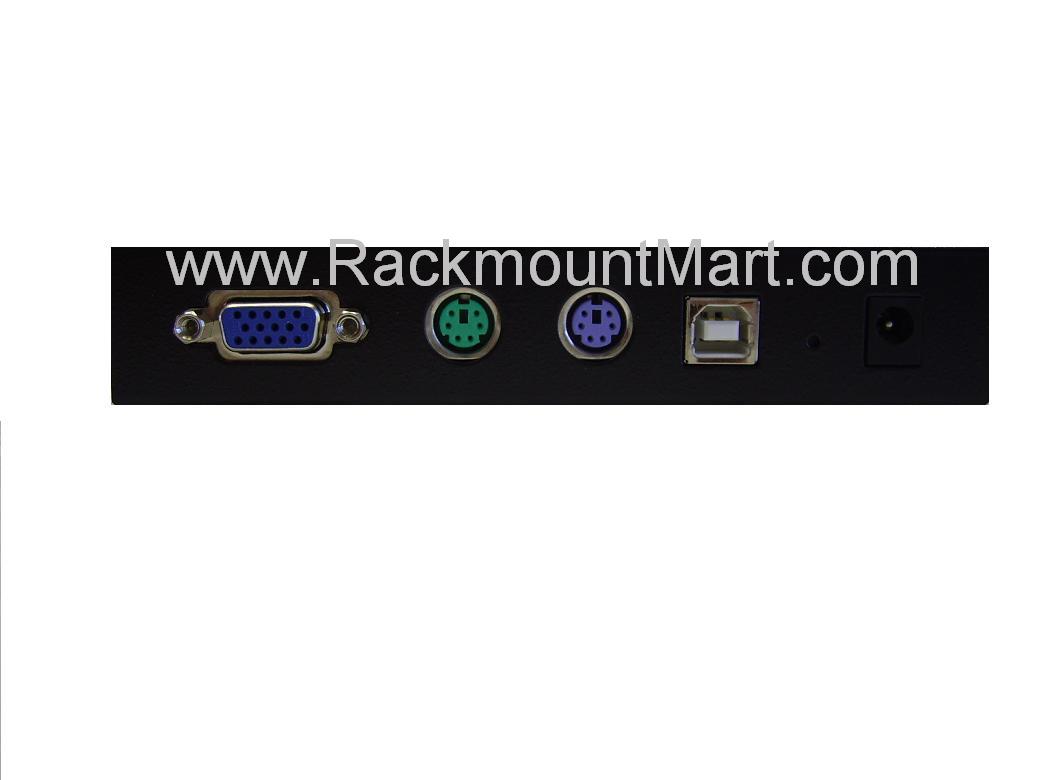

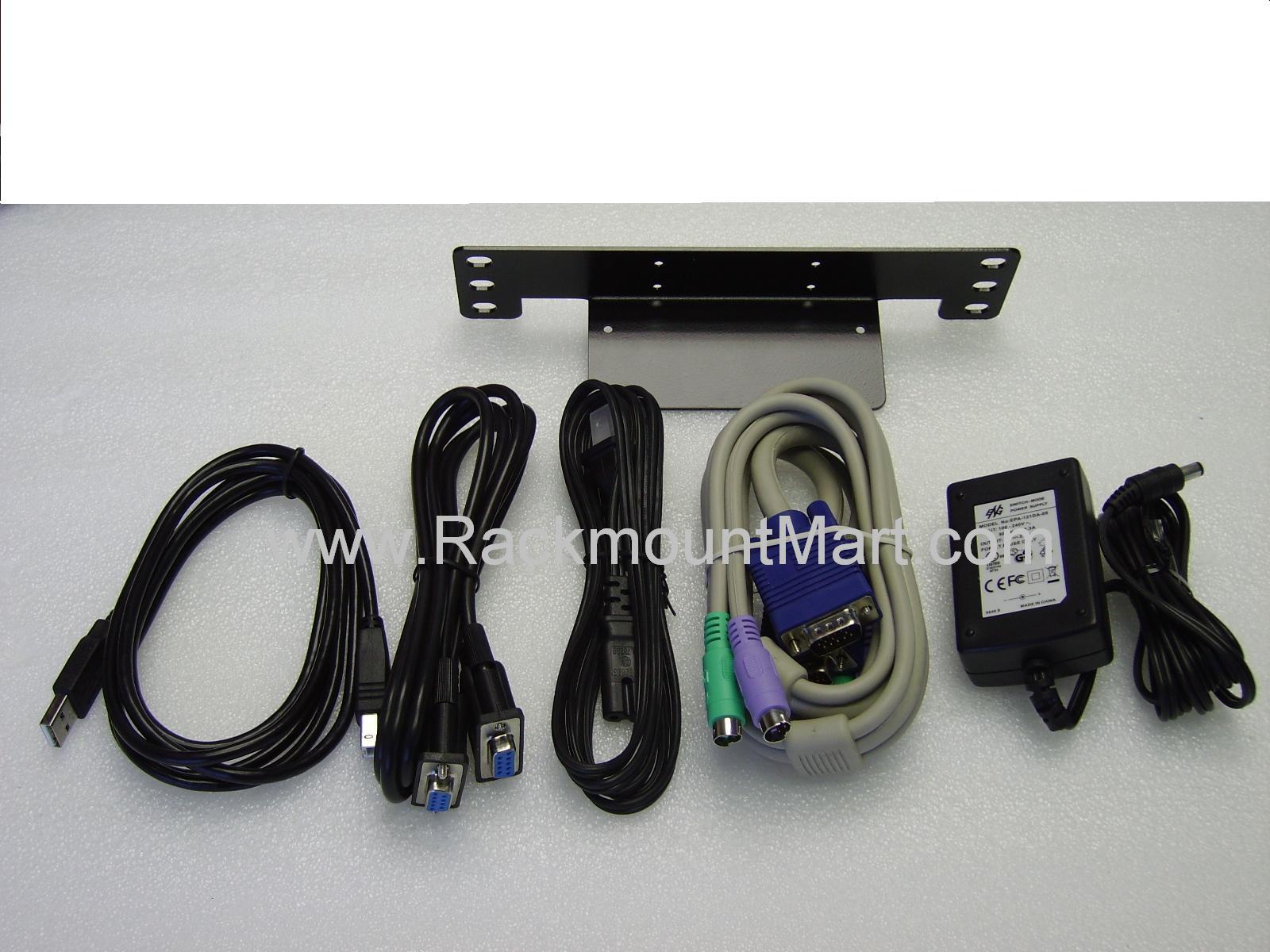

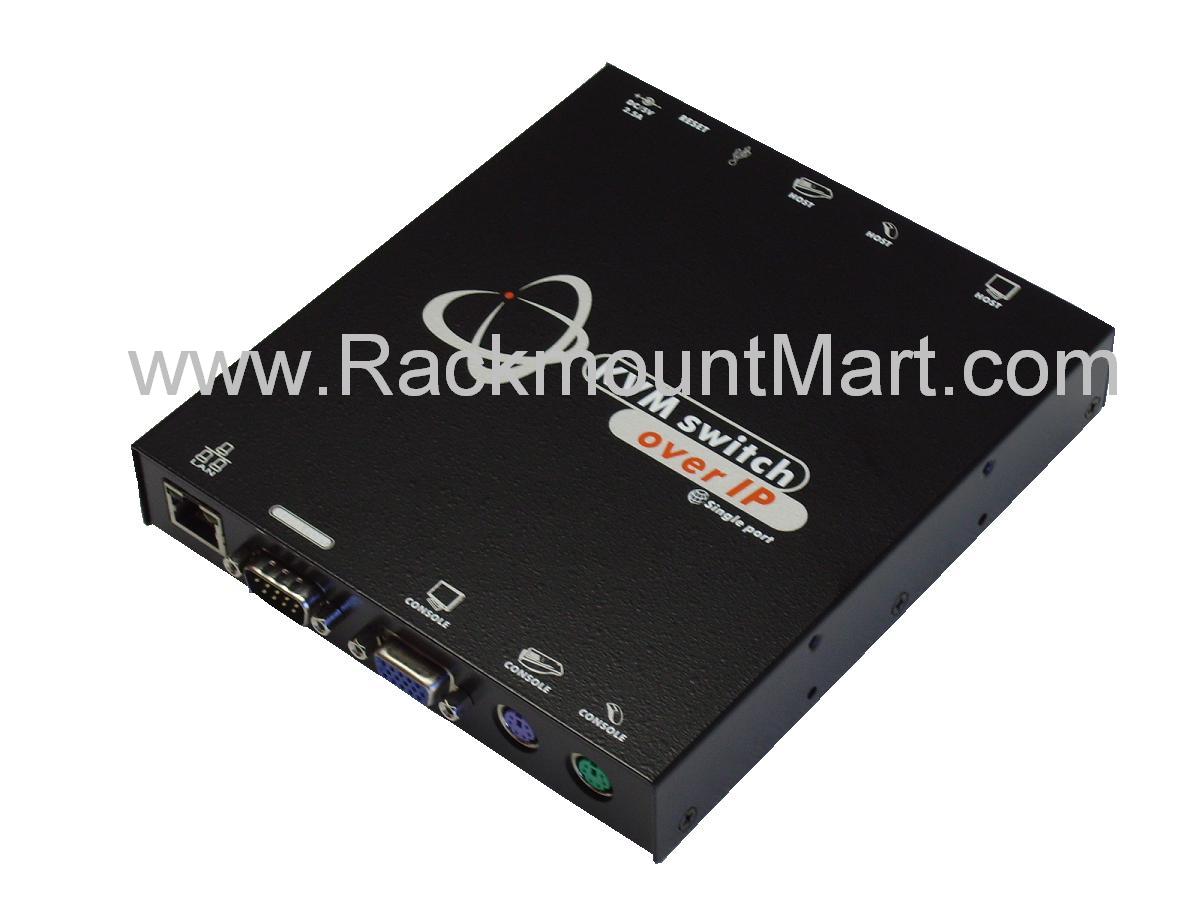

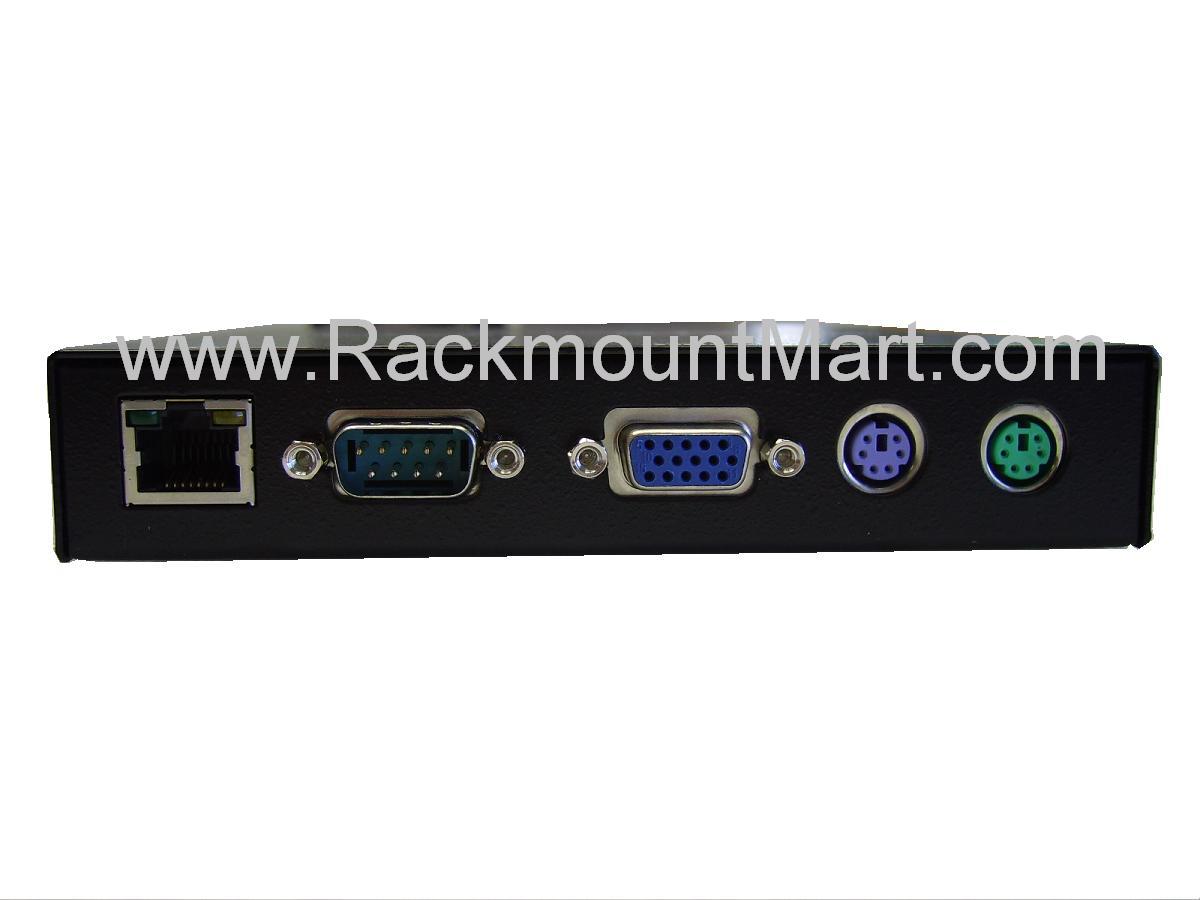

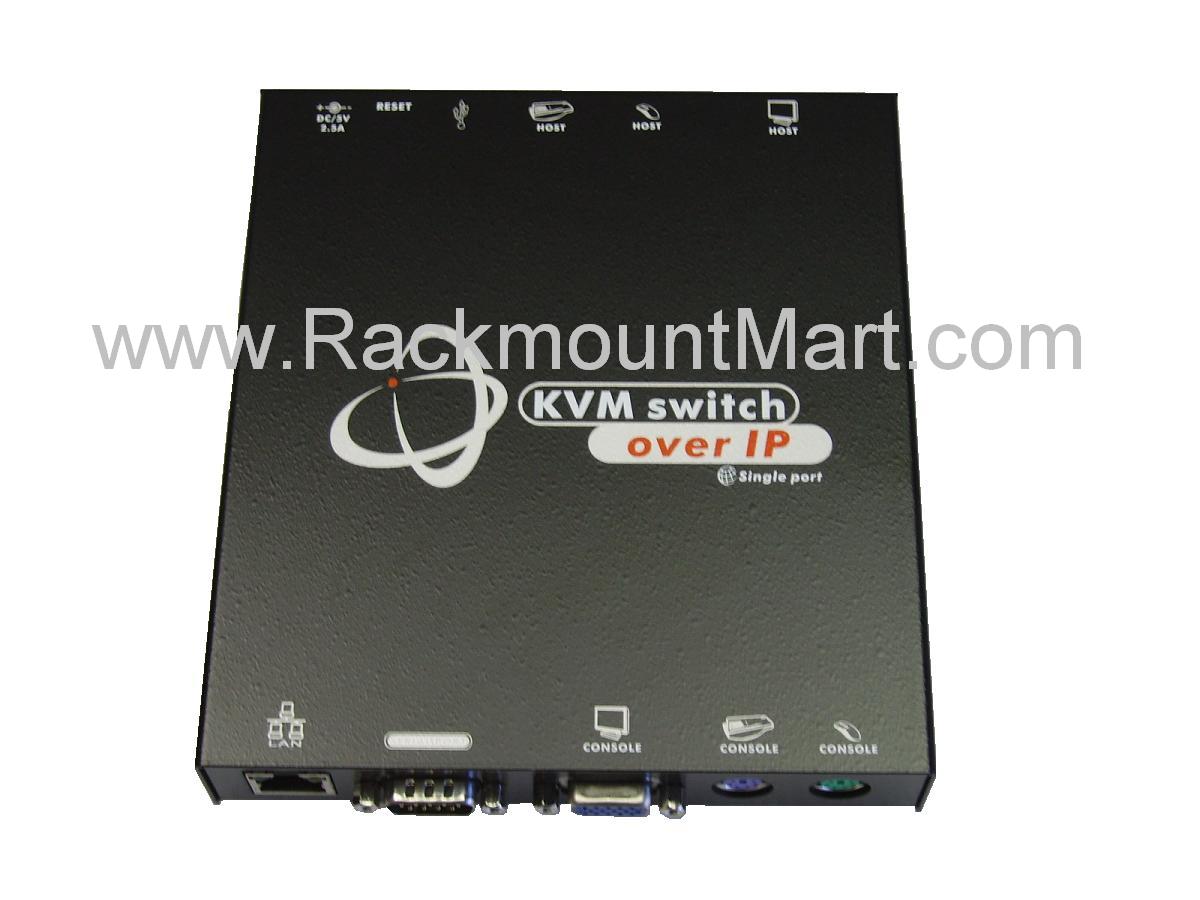

 More photos - (click on the photos for enlarged views)


Specifications
   PC Port                              Approximate 1.7 kg  / 4 lbs
   Console Port                      Approximate 1.7 kg  / 4 lbs
   PC Port Connector
   (All Female Types)
               PS/2 Keyboard Mini Din 6 pin
                                             PS/2 Mouse Mini Din 6 pin
                                             VGA HDDB 15 pin
                                             USB Type B receptacle
   Console Port Connector
   (All Female Types)
               Local Console: PS/2 Keyboard mini Din 6 pin
                                             PS/2 Mouse Mini Din 6 pin
                                             VGA HDDB 15 pin
                                             Remote Console: RJ-45 8P8C
   Serial Port                            1 (DB9 pin Male)
   1 LAN port                            (RJ-45, supporting 10/100BASE-T)
   Reset button                        Yes
   Keyboard Emulation             PS/2
   Mouse Emulation                  PS/2
   VGA Resolution (Max)            Local :I600 X1200 Remote : 1280 X1024
   Housingt                              Metal
   Power Adapter                      Approximate 1.7 kg  / 4 lbs
   Operation Temperature          0 ~ 50 C
   Storage Temperature             -20 ~ 60 C
   Humidity                               0~80%,Non-Condensing
   Weight                                  Approximate 1.7 kg  / 4 lbs
   Dimension                             156 x 139 x 27 cm / 61.4 x 54.7 x 10.6 inch (WxDxH)


 Ordering  information
Part Number  Description
 LCDK1040
 Price:$338
 IP KVM Extender
