     Home >>   Rackmount Keyboard Drawer / KVM Switch / KVM Extender >>

RACK COMBO KVM SWITCH ( USB PS2 KVM SWITCH )   :
Part#  LCDK1021


16 PORT KVM SWITCH : 1U Rack mount Single User 16 port  KVM Switch COMBO USB  PS2 KVM
with 16 x 6-ft  4-in-1  COMBO KVM cables included Optional 10-ft, 15-ft KVM cable available

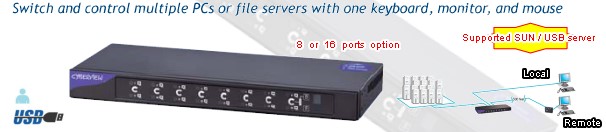

    Front View of LCDK1021

    PS/2 DB-15 KVM Benefits
  • Combo DB-15 KVM with 16 ports in 1U
  • Cascade switches up to 8 levels & Mix switches between Cat6 & Combo DB-15 KVM
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • Support native SUN 1152 x 900 resolution
  • Hot pluggable, no software or drivers required
  • Easy & quick installation
    Switch Features & Options
  • Multi lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations
  • 12V, 24V and 48V DC Power options
KVM

Number of ports

 16

Connector

 DB-15 combo connector

Connectivity

 Combo 4-in-1 KVM cable, up to 6, 10 & 15 feet

Expansion

 Up to 128 servers by 8-level cascade

Local Console

Graphic connector

 1 x DB-15 VGA

Resolution

 Up to 1600 x 1200

Input device

 2 x USB type A for keyboard & mouse

Management

OSD

 English, France, German, Spanish, Italian,
 Russian, Simplified Chinese, Japanese

Hotkey combination

 Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win

Security

 Password enable & disable, up to 8 users
 profile for port access

PC Selection

 Front button, OSD menu & hotkey

Compatibility
Multi-platform

 Mix PCs, SUN and Mac G3 / G4 Mac / iMac

Support  Windows 7 / Vista / 2003 / XP, Linux, Unix
Power
Input  100 or 240V AC at 50 / 60 Hz via IEC type cord
Consumption  Max. 12 Watt, Standby 5 Watt
Option DC  12V / 24V / 48V DC input
Regulatory Approval
   cUL, FCC, CE
Environmental
Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 65 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration   (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration
Mechanical

Dimension

 443 x 171 x 43.6 mm / 17.4 x 6.7 x 1.72 inch

Weight  Approximately 6.5 lbs / 3kg

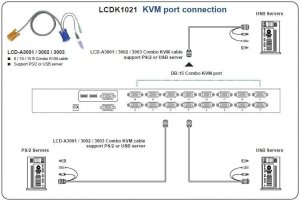

    KVM port connection

*click on above pictures for enlarged view

    KVM Cascade

*click on above pictures for enlarged view

 Download Product Sheet
 Download User Manual



More Photos, click on the following for enlarged view:



Optional Peripheral & Accessory
- Cable and Dongle - DC Power Input ( 12V / 24V / 48V )
Customer who ordered this product may also order these :
- Rack Keyboard - Wall Rack Mount
- KVM Switch - Rack Shelves
- PDU (Power Distribution Unit ) - Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan



Ordering  information

Part Number  Description
LCDK1021
Price : $549
 1U Rack mountable Single user  16 port  Combo KVM Switch ( USB PS2  KVM Switch
 with 16  x 6-ft  4 in 1 COMBO PS2 /USB KVM  cable
Optional DC Input Power
-DC12
Price : $171
Add 12V DC power supply
-DC24
Price : $171
Add 24V DC power supply
-DC48
Price : $171
Add 48V DC power supply
-DC110
Price : $357
Add 110V DC power supply
-DC125
Price : $357
Add 125V DC power supply
