2U Rackmount Monitor Keyboard Drawer and KVM Switch :
Part # LCD2U19-03

2U Dual Slides SUN Solaris Compatible Rackmount 19" TFT LCD Monitor KB Drawer w/ Matrix KVM
Optional 8 port / 16 port / 32 port Multi-User DB-15 / CAT6 KVM

Space Saving: Separate Slides for LCD & Keyboard enable viewing through closed glass door of Rack

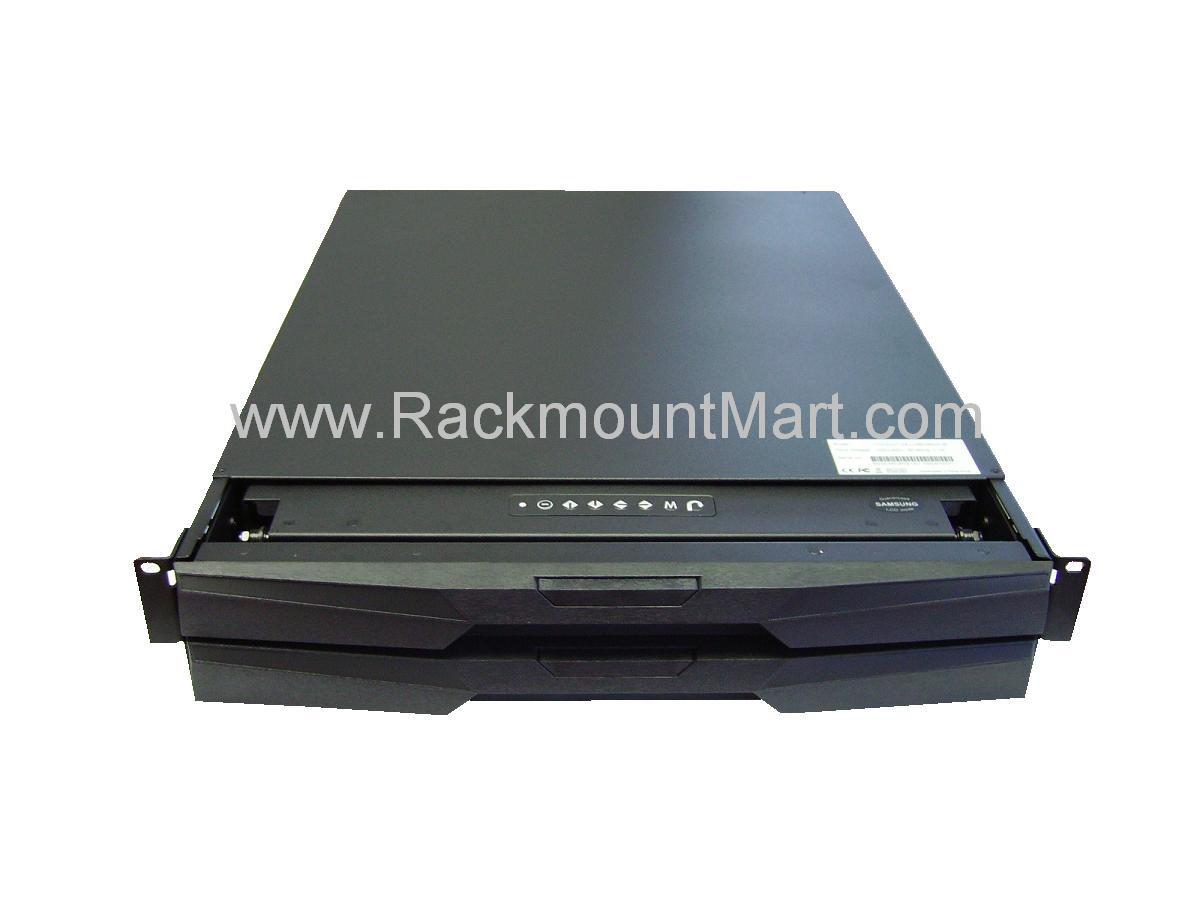

Front View of LCD2U19-03

* Available in black only *click on photo for enlarged view

SUN Solaris Compatible Rack Console Benefits

Rugged 19" SAMSUNG SUN Compatible Rack Console
Direct support for SUN Micro 1152 x 900 native resolution
SUN key support including Stop, Cut, Paste, Composes etc
Optional Cost Efficient built in KVM with various choices:
- Connector : Cat5 KVM ( Cat6 KVM )
- KVM Type : USB KVM / Multi-User Matrix KVM
Secure remote user access across the internet via optional IP console (KVM Over IP )
Mix USB & SUN with Multi-Platform switch capability
"One Man" installation slides for easy and quick installation
High Scalability : Interchangeable KVM, & Keyboard & mouse modules
Slide rails with fixed positions to prevent drawer movement when typing
Optional DVI-D and DC Input Power
2 year Warranty

              Compatibility with the following SUN Servers & Solaris Servers have been certified by SUN-Microsystems :
                           SUN Server -       Entry Level Server - V100 , V120, V240 & V440 , Middle Lever Server - V890
                           Solaris Server -   8, 9 & 10 Operating Systems

                     General Information

Form Factor

2U Rack mounting on slide-out rails

Compatibility

Multi-platforms - Mix PCs, IBM, SUN, HP , DELL, Linux , Windows

                          LCD Screen

LCD Type

Grade A Industrial monitor 19 inch Active Matrix TFT LCD Panel

Display Size

19 inch diagonal

Resolutions

-1280 x 1024 native graphic resolution
-Screen will sync with mist SUN resolution including
1152 x 900 @66 or 76Hz

Response time

Tr =1.3ms / Tf =3.7ms

Contrast ratio

1000 : 1

Brightness

300 cd/ m2

Pixel pitch

0.294mm (H) x 0.294mm (W)

Panel color

16.7 million display colors

Viewing angle

160 / 160 (Horiz. / Vert.)

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune, Recall & Language

Signal Input

VGA, Analog RGB

Optional Video Input

S-video & Composite (BNC or RCA ),
DVI-D    ...More Video Input Details

LCD MTBF

50,000 hrs

                          Keyboard & Pointing Device

Model n

Notebook type KB w/ Numeric Keypad & Touchpad

Model b

Notebook type KB w/ Numeric Keypad & Trackball   ...More Keyboard Details

                          KVM ( Keyboard Video Mouse )

Connector

               KVM Version

DB-15

* DB-15 No KVM

* DB-15 Combo KVM ( USB PS2 KVM )

No. of Console No of KVM port

1 ( Local only ) 8 or 16

2 ( 1 x local + 1 x remote ) 8 or 16

2 ( 1 x local + 1 x IP ) 8 or 16

* DB-15 Matrix KVM

No. of Console No. of KVM port

2 ( 1 x local + 1 x remote ) 8 or 16

3 ( 1 x local + 2 x remote ) 8 or 16

3 (1x local +1x remote +1x IP ) 8 or 16

4 ( 1 x local + 3 x remote ) 8 or 16

4 (1x local +1x remote +2x IP ) 8 or 16

4 (1x local +2x remote +1x IP ) 8 or 16

CAT6

* CAT6 Combo KVM ( USB PS2 KVM )

No. of Console No. of KVM port

1 ( Local only ) 8 or 16 or 32

2 ( 1 x local + 1 x remote ) 8 or 16 or 32

2 ( 1 x local + 1 x IP ) 8 or 16 or 32

* CAT6 Matrix KVM

No. of Console No. of KVM port

2 ( 1 x local + 1 x remote ) 16 or 32

3 ( 1 x local + 2 x remote ) 16 or 32

3 (1x local +1x remote +1x IP ) 16 or 32

4 ( 1 x local + 3 x remote ) 16 or 32

4 (1x local +1x remote +2x IP ) 16 or 32

4 (1x local +2x remote +1x IP ) 16 or 32

                          Power Supply

Internal Power Supply : 110V - 220 V AC Input , 12V 5A Output

                     Environmental

   Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)

Relative Humidity 5~90%, non condensing

Shock 10G peak acceleration
(11ms duration)

Vibration 5~500Hz, 1G RMS random vibration
                        Mechanical

Product Dimension

(W x D x H )
442 x 600 x 88 mm /17.4 x 23.6 x 3.5 inch

Product Weight Approximately 40 lbs / 18kg

Relative Humidity 90%, non condensing

                              Regulatory Approval

     FCC , CE , VCCI , 3C*



     Dimension


      *click on above pictures for enlarged views

Rear Views for various versions of LCD2U19-03



       *click on above picture for enlarged view



Product Sheet

Product Sheet

User Manual

General User Manual

KVM Support

DB-15 KVM

DB-15 PS2 kvm Local console

DB-15 USB kvm Local console

DB-15 USB kvm Local + remote console

DB-15 USB kvm Local + IP console

CAT5 / CAT6 KVM

Cat5 / Cat6 USB kvm Local console

Cat5 / Cat6 USB kvm Local + remote console

Cat5 / Cat6 USB kvm Local + IP console

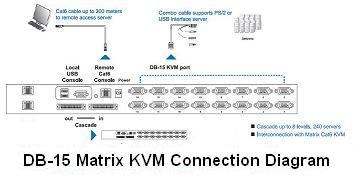

Matrix KVM

DB-15 Matrix USB kvm Local + remote console

DB-15 Matrix USB kvm Local + IP console

Cat5 / Cat6 Matrix USB kvm Local + remote console

Cat5 / Cat6 Matrix USB kvm Local + IP console

Optional Peripheral & Accessory

- DVI-D

- HDMI

- DC Power Input ( 12V / 24V / 48V )

- KVM Cables & Cascade Cables in Various Length

- USB & PS/2 Dongles

- KVM Extender        -IP KVM Extender

Free Ground Shipping( A $55 Value) *Click for details


Customer who ordered this product may also order these :

- KVM Switch

- PDU ( Power Distribution Unit )

- Server Rack Cabinet

- 4 Post Rack

- Wall Rack Mount

- Rack Shelves

- Rack Drawer

- Power Strips

- Rack Cooling Fan

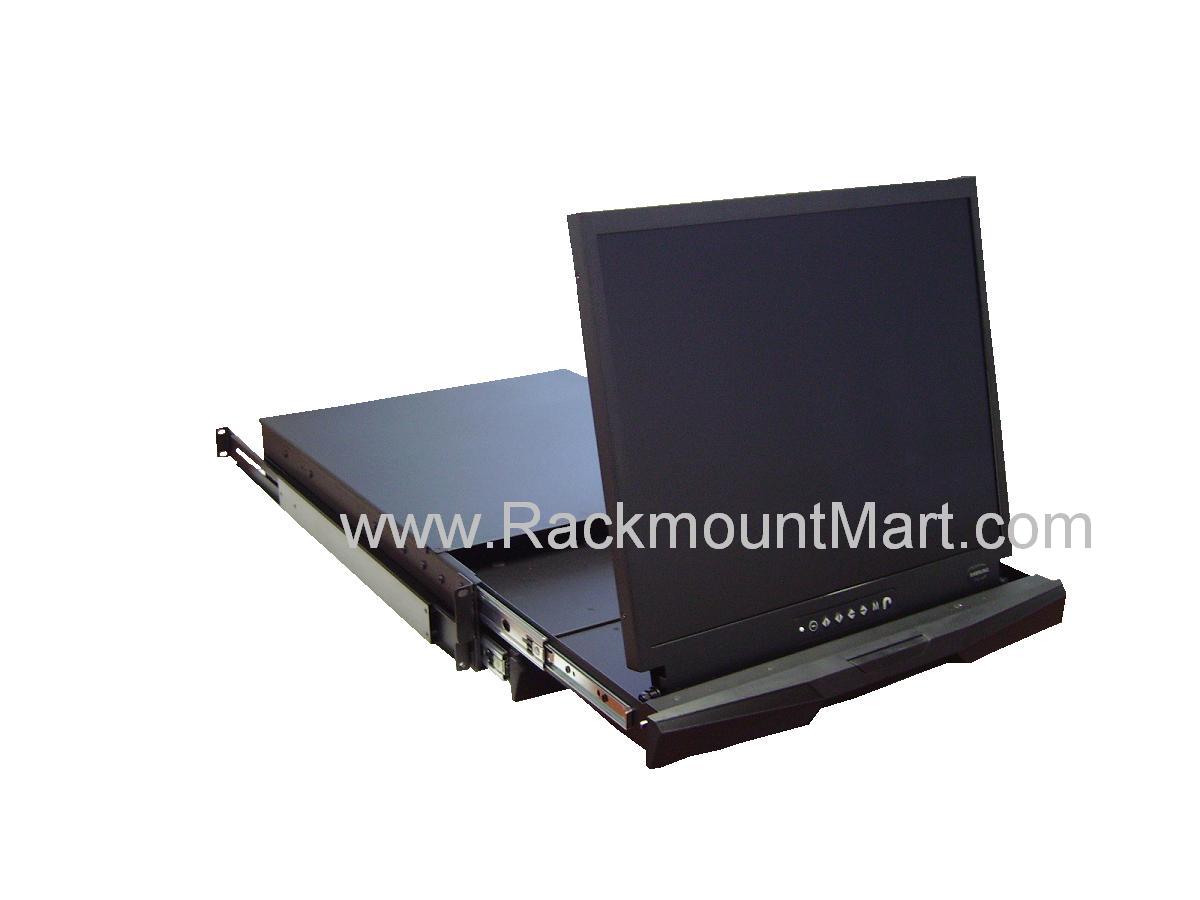

More photos - (click on the photos for enlarged views)

LCD Drawer & KVM Benefits :

Separate sliding LCD & keyboard allowing LCD to remain open when the rack door is closed
High Density Cat5 KVM with either 16 or 32 ports in 2U of rack space
Cost efficient DB-15KVM integration
Direct support for SUN Micro 1152 x 900 native resolution
Video auto-adjust for optimum image
104 key notebook keyboard with full numerical pad and SUN function
Mix PS/2 , USB & SUN with Multi-Platform switch capability
Secure remote user access across the web wide web via optional IP console

Features :

2U rackmount drawer with SAMSUNG Grade A 19" LCD Panel
Slide rails with fixed positions to prevent keyboard movement while typing
Built in on screen display controlled by integral membrane switches , Multi lingual on screen display menu
Directly compatible with SUN & USB server
Automatic detection of SUN Server resolution 1152 x 900 @ 66 or 76Hz
SAMSUNG 17" Grade A LCD Panel
Compatible with SUN, Apple, IBM, Dell, HP and USB Server
104-key Sun Compatible keyboard with 3-button trackball support SUN keys including STOP, HELP, AGAIN, PROPS, UNDO, FIND, OPEN, CUT, PASTE and FRONT KEY
Fits all current SUN racks. Adjustable mounting brackets compatible with SUN rack depths of 24" to 36"
Easy operation : Simply connect the USB keyboard, mouse and VGA monitor to servers with USB cables
Unique mechanical design to maximize rack mountable space
Adjustable mounting bracket from 15.4"(390mm) to 31.1"(790mm)(front to rear 19" mounts), fits any standard 19" server rack
Anodized aluminum front panel
Sliding rails will self-lock when pulled all the way out
Built in on screen display controlled by integral membrane switches
Built-in thumb screws securing the machine when it is folded or pushed all the way in
Allow adding or removing connected PCs without powering down the USB KVM switch of the PCs
Power saving feature for prolonging the lift of LCD panel
Standard D-sub 15-pin VGA input connector
12V 5A remote power adapter (Single power source)
EMC shielding around the monitor housing to minimize interference
All mounting hardware included
Optional : S-Video and Composite video input / Touch Screen, , 12V/24V/ 48V DC input adaptor ,
Speaker / DVI Input / Micro switch / LCD Membrane / Front Panel / Internal Power Supply

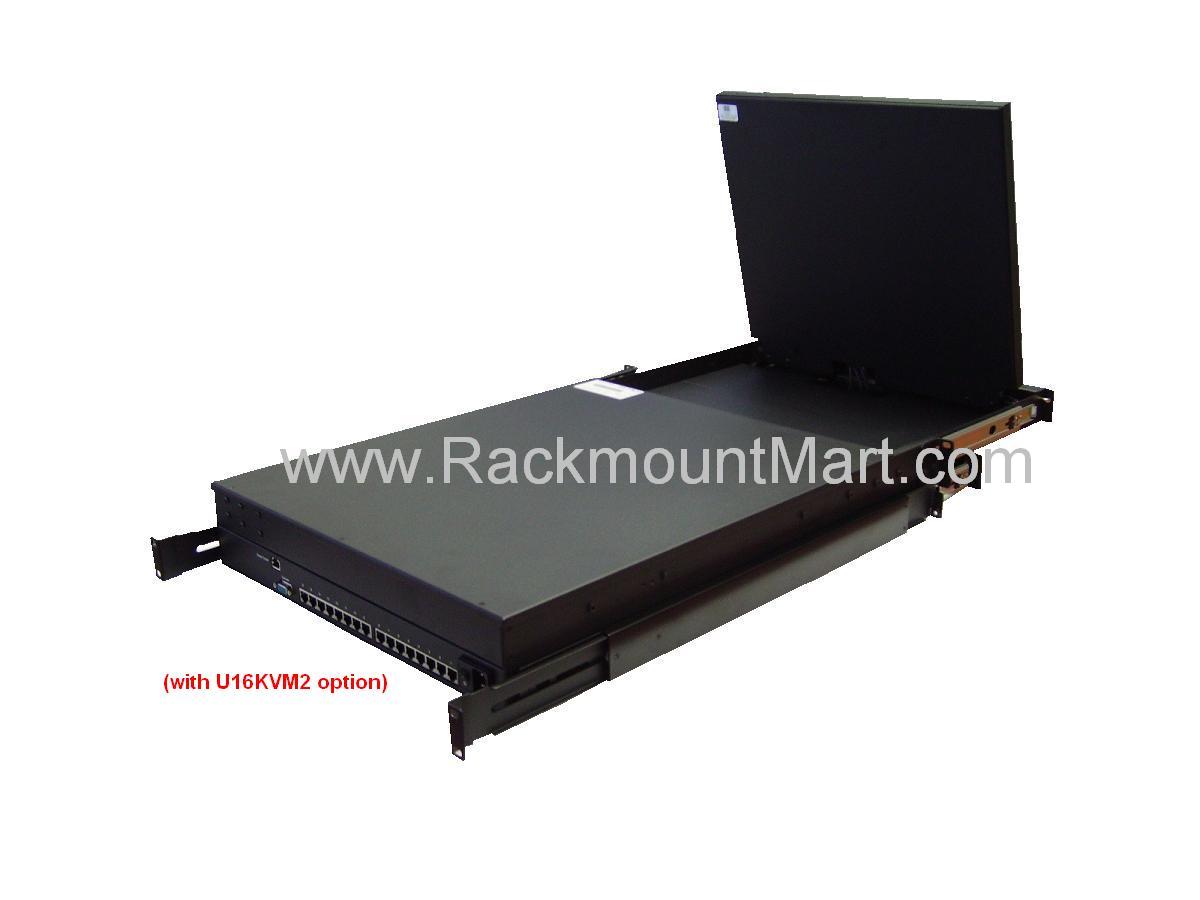

More photos - (click on the photos for enlarged views)

                                                                       USB KVM cable           Rear View with DB-15 USB KVM switches

Features of Optional KVM :

Connector

KVM Version

Number of KVM port

Cascade Capacity

Capability / KVM Technical Specifications

CAT6

USB KVM

8 / 16 / 32 port

Up to 8 Levels / 256 Servers

Capability

CAT6 USB KVM hooks up 8 , 16 or 32 servers with multi-platforms and multi-operating systems. Offers flexible solutions for the VGA-USB , VGA-PS/2 interface and DVI-USB up to 130 feet distance as well. With the remote console, user can remote access up to 1,000 feet distance via CAT6 cable while with the IP console, user can remote access via internet without distance limitation. This model supports servers with either USB or PS/2 interface.

Link to KVM Technical Specification

* CAT6 1 Console 8 Port USB KVM
* CAT6 1 Console 16 Port USB KVM
* CAT6 1 Console 32 Port USB KVM
* CAT6 2 Console (Local + Remote) 8 Port USB KVM
* CAT6 2 Console (Local + Remote) 16 Port USB KVM
* CAT6 2 Console (Local + Remote) 32 Port USB KVM
* CAT6 2 Console (Local + IP) 8 Port USB KVM
* CAT6 2 Console (Local + IP) 16 Port USB KVM
* CAT6 2 Console (Local + IP) 32 Port USB KVM

CAT6

Matrix KVM

8 / 16 / 32 port

Up to 8 Levels / 256 Servers

Capability

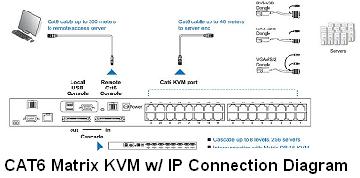

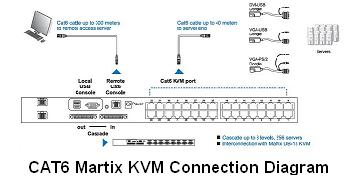

CAT6 Matrix kvm allows maximum of 4 users. With the remote console, user can remote access up to 1,000 feet distance via CAT6 cable while with the IP console, user can remote access via internet without distance limitation. Offers flexible solutions for the VGA-USB , VGA-PS/2 interface and DVI-USB up to 130 feet distance as well. Respective dongles included.

Link to Technical Specification

* CAT6 2 Console (Local + Remote) 8 /16/32 Port Matrix KVM
*CAT6 3-4 Console(Local+Remote+IP)8/16/32 Port Matrix KVM

Back to top

Click on the following photos for more details :

Click the Photo for more Details	Click the Photo for more Details
Click the Photo for more Details	Click the Photo for more Details

Back to top

ORDERING INFORMATION FOR LCD2U19-03 - 2U SAMSUNG 19" LCD SUN COMPATIBLE
RACK CONSOLE

DB15 KVM

CAT5 KVM /
CAT6 KVM

Matrix KVM

DB-15 Matrix KVM
KVM Port	KVM Console	Keyboard Type	Part #	Description
8 Port KVM Switch	2 console (1x Local + 1x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-M82-n Price: $2152	2U 19" (1x Local + 1x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 2-in-1 USB KVM cable included, Black
	2 console (1x Local + 1x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-M82-b Price: $2152	2U 19" (1x Local + 1x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 2-in-1 USB KVM cable included, Black
	3 console (1x Local + 2x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-M83-n Price: $2379	2U 19" (1x Local + 2x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 2-in-1 USB KVM cable included, Black
	3 console (1x Local + 2x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-M83-b Price: $2379	2U 19" (1x Local + 2x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 2-in-1 USB KVM cable included, Black
	4 console (1x Local + 3x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-M84-n Price: $2606	2U 19" (1x Local + 3x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 2-in-1 USB KVM cable included, Black
	4 console (1x Local + 3x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-M84-b Price: $2606	2U 19" (1x Local + 3x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 2-in-1 USB KVM cable included, Black
16 Port KVM Switch	2 console (1x Local + 1x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-M162-n Price: $2561	2U 19" (1x Local + 1x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 2-in-1 USB KVM cable included, Black
	2 console (1x Local + 1x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-M162-b Price: $2561	2U 19" (1x Local + 1x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 2-in-1 USB KVM cable included, Black
	3 console (1x Local + 2x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-M163-n Price: $2788	2U 19" (1x Local + 2x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 2-in-1 USB KVM cable included, Black
	3 console (1x Local + 2x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-M163-b Price: $2788	2U 19" (1x Local + 2x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 2-in-1 USB KVM cable included, Black
	4 console (1x Local + 3x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-M164-n Price: $3015	2U 19" (1x Local + 3x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 2-in-1 USB KVM cable included, Black
	4 console (1x Local + 3x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-M164-b Price: $3015	2U 19" (1x Local + 3x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 2-in-1 USB KVM cable included, Black

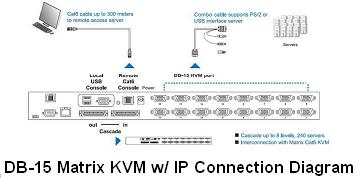

DB-15 Matrix KVM With IP Remote
KVM Port	KVM Console	Keyboard Type	Part #	Description
8 Port KVM Switch	3 console (1x Local + 1x Remote + 1x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-M83IP-n Price: $2538	2U 19" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 2-in-1 USB KVM cable included, Black
	4 console (1x Local + 2x Remote + 1x IP)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-M84IP-b Price: $2538	2U 19" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 2-in-1 USB KVM cable included, Black
	4 console (1x Local + 2x Remote + 1x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-M84IP-n Price: $2765	2U 19" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 2-in-1 USB KVM cable included, Black
	4 console (1x Local + 2x Remote + 1x IP)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-M84IP-b Price: $2765	2U 19" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 2-in-1 USB KVM cable included, Black
	4 console (1x Local + 1x Remote + 2x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-M84IP2-n Price: $2924	2U 19" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 2-in-1 USB KVM cable included, Black
	4 console (1x Local + 1x Remote + 2x IP)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-M84IP2-b Price: $2924	2U 19" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and DB-15 8 Port KVM switch, 8 X 6-ft long 2-in-1 USB KVM cable included, Black
16 Port KVM Switch	3 console (1x Local + 1x Remote + 1x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-M163IP-n Price: $2947	2U 19" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 2-in-1 USB KVM cable included, Black
	3 console (1x Local + 1x Remote + 1x IP)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-M163IP-b Price: $2947	2U 19" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 2-in-1 USB KVM cable included, Black
	4 console (1x Local + 2x Remote + 1x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-M164IP-n Price: $3174	2U 19" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 2-in-1 USB KVM cable included, Black
	4 console (1x Local + 2x Remote + 1x IP)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-M164IP-b Price: $3174	2U 19" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 2-in-1 USB KVM cable included, Black
	4 console (1x Local + 1x Remote + 2x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-M164IP2-n Price: $3333	2U 19" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 2-in-1 USB KVM cable included, Black
	4 console (1x Local + 1x Remote + 2x IP)	104 KB wTrackBall & Numeric Keypad	LCD2U19-03-M164IP2-b Price: $3333	2U 19" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and DB-15 16 Port KVM switch, 16 X 6-ft long 2-in-1 USB KVM cable included, Black
CAT6 Matrix KVM
KVM Port	KVM Console	Keyboard Type	Part #	Description
16 Port KVM Switch	2 console (1x Local + 1x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-MU162-n Price: $2379	2U 19" (1x Local + 1x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and CAT6 16 Port KVM switch (AND 8 pcs of customer's choice of PS2/USB dongles), Black Details->
	2 console (1x Local + 1x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-MU162-b Price: $2379	2U 19" (1x Local + 1x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and CAT6 16 Port KVM switch (AND 8 pcs of customer's choice of PS2/USB dongles), Black Details->
	3 console (1x Local + 2x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-MU163-n Price: $2606	2U 19" (1x Local + 2x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and CAT6 16 Port KVM switch (AND 8 pcs of customer's choice of PS2/USB dongles), Black Details->
	3 console (1x Local + 2x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-MU163-b Price: $2606	2U 19" (1x Local + 2x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and CAT6 16 Port KVM switch (AND 8 pcs of customer's choice of PS2/USB dongles), Black Details->
	4 console (1x Local + 3x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-MU164-n Price: $2833	2U 19" (1x Local + 3x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and CAT6 16 Port KVM switch (AND 8 pcs of customer's choice of PS2/USB dongles), Black Details->
	4 console (1x Local + 3x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-MU164-b Price: $2833	2U 19" (1x Local + 3x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and CAT6 16 Port KVM switch (AND 8 pcs of customer's choice of PS2/USB dongles), Black Details->
32 Port KVM Switch	2 console (1x Local + 1x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-MU322-n Price: $2985	2U 19" (1x Local + 1x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and CAT6 32 Port KVM switch (AND 16 pcs of customer's choice of PS2/USB dongles), Black Details->
	2 console (1x Local + 1x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-MU322-b Price: $2985	2U 19" (1x Local + 1x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and CAT6 32 Port KVM switch (AND 16 pcs of customer's choice of PS2/USB dongles), Black Details->
	3 console (1x Local + 2x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-MU323-n Price: $3212	2U 19" (1x Local + 2x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and CAT6 32 Port KVM switch (AND 16 pcs of customer's choice of PS2/USB dongles), Black Details->
	3 console (1x Local + 2x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-MU323-b Price: $3212	2U 19" (1x Local + 2x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and CAT6 32 Port KVM switch (AND 16 pcs of customer's choice of PS2/USB dongles), Black Details->
	4 console (1x Local + 3x Remote)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-MU324-n Price: $3439	2U 19" (1x Local + 3x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and CAT6 32 Port KVM switch (AND 16 pcs of customer's choice of PS2/USB dongles), Black Details->
	4 console (1x Local + 3x Remote)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-MU324-b Price: $3439	2U 19" (1x Local + 3x Remote) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and CAT6 32 Port KVM switch (AND 16 pcs of customer's choice of PS2/USB dongles), Black Details->
CAT6 Matrix KVM With IP Remote
KVM Port	KVM Console	Keyboard Type	Part #	Description
16 Port KVM Switch	3 console (1x Local + 1x Remote + 1x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-MU163IP-n Price: $2765	2U 19" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and CAT6 16 Port KVM switch (AND 8 pcs of customer's choice of PS2/USB dongles), Black Details->
	3 console (1x Local + 1x Remote + 1x IP)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-MU163IP-b Price: $2765	2U 19" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and CAT6 16 Port KVM switch (AND 8 pcs of customer's choice of PS2/USB dongles), Black Details->
	4 console (1x Local + 2x Remote + 1x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-MU164IP-n Price: $2992	2U 19" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and CAT6 16 Port KVM switch (AND 8 pcs of customer's choice of PS2/USB dongles), Black Details->
	4 console (1x Local + 2x Remote + 1x IP)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-MU164IP-b Price: $2992	2U 19" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and CAT6 16 Port KVM switch (AND 8 pcs of customer's choice of PS2/USB dongles), Black Details->
	4 console (1x Local + 1x Remote + 2x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-MU164IP2-n Price: $3152	2U 19" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and CAT6 16 Port KVM switch (AND 8 pcs of customer's choice of PS2/USB dongles), Black Details->
	4 console (1x Local + 1x Remote + 2x IP)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-MU164IP2-b Price: $3152	2U 19" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and CAT6 16 Port KVM switch (AND 8 pcs of customer's choice of PS2/USB dongles), Black Details->
32 Port KVM Switch	3 console (1x Local + 1x Remote + 1x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-MU323IP-n Price: $3371	2U 19" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and CAT6 32 Port KVM switch (AND 16 pcs of customer's choice of PS2/USB dongles), Black Details->
	3 console (1x Local + 1x Remote + 1x IP)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-MU323IP-b Price: $3371	2U 19" (1x Local + 1x Remote + 1x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and CAT6 32 Port KVM switch (AND 16 pcs of customer's choice of PS2/USB dongles), Black Details->
	4 console (1x Local + 2x Remote + 1x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-MU324IP-n Price: $3598	2U 19" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and CAT6 32 Port KVM switch (AND 16 pcs of customer's choice of PS2/USB dongles), Black Details->
	4 console (1x Local + 2x Remote + 1x IP)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-MU324IP-b Price: $3598	2U 19" (1x Local + 2x Remote + 1x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and CAT6 32 Port KVM switch (AND 16 pcs of customer's choice of PS2/USB dongles), Black Details->
	4 console (1x Local + 1x Remote + 2x IP)	104 KB w/ TOUCHPAD & Numeric Keypad	LCD2U19-03-MU324IP2-n Price: $3758	2U 19" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, touchpad & numeric pad and CAT6 32 Port KVM switch (AND 16 pcs of customer's choice of PS2/USB dongles), Black Details->
	4 console (1x Local + 1x Remote + 2x IP)	104 KB w/ TrackBall & Numeric Keypad	LCD2U19-03-MU324IP2-b Price: $3758	2U 19" (1x Local + 1x Remote + 2x IP) Samsung Panel w/ SUN & Solaris compatible keyboard, trackball & numeric pad and CAT6 32 Port KVM switch (AND 16 pcs of customer's choice of PS2/USB dongles), Black Details->

Option
-12VDC Price : $171		Add 12V DC power input (the Depth will be extended from 480mm to 530mm)
-24VDC Price : $171		Add 24V DC power input (the Depth will be extended from 480mm to 530mm)
-48VDC Price : $171		Add 48V DC power input (the Depth will be extended from 480mm to 530mm)
-BNC Price : $114		Add Composite Video (BNC) + S-video
-AV Price : $114		Add Composite Video (RCA ) + S-video
-HDMI Price : $114		Add HDMI Input with built in Speaker
-DVI Price : $64		Add DVI-D Input
-SPK Price : $114		Add speaker

Back to top

Toll Free : 1-888-865-6888 Fax : 510-226-8968 Email : sales@RackmountMart.com

Home | Buy Online | About Us | Contact Us | Site Map

Product images may be generic and may not reflect actual item purchased. Synergy Global Technology Inc is not responsible for any typographical errors. Specifications subject to change without notice. Legal.
