2U Dual Slide   SUN KVM   Rack Console with Industrial LCD Monitor Keyboard   :
Model # LCD2U17-04


NOVA 2U Rack Dual Slide Rail SUN Solaris KVM with 17" Industrial Grade Monitor Keyboard
TAA Compliant

           Optional DB-15 KVM / CAT6 KVM / DVI KVM / Multi-User Matrix KVM
           Optional 1 / 2 / 3 / 4 Simultaneous Users by Local / Remote Access VIA CAT6 or Over IP

         Space saving design : Dual Slides enable viewing through closed glass doors of Rack Enclosure

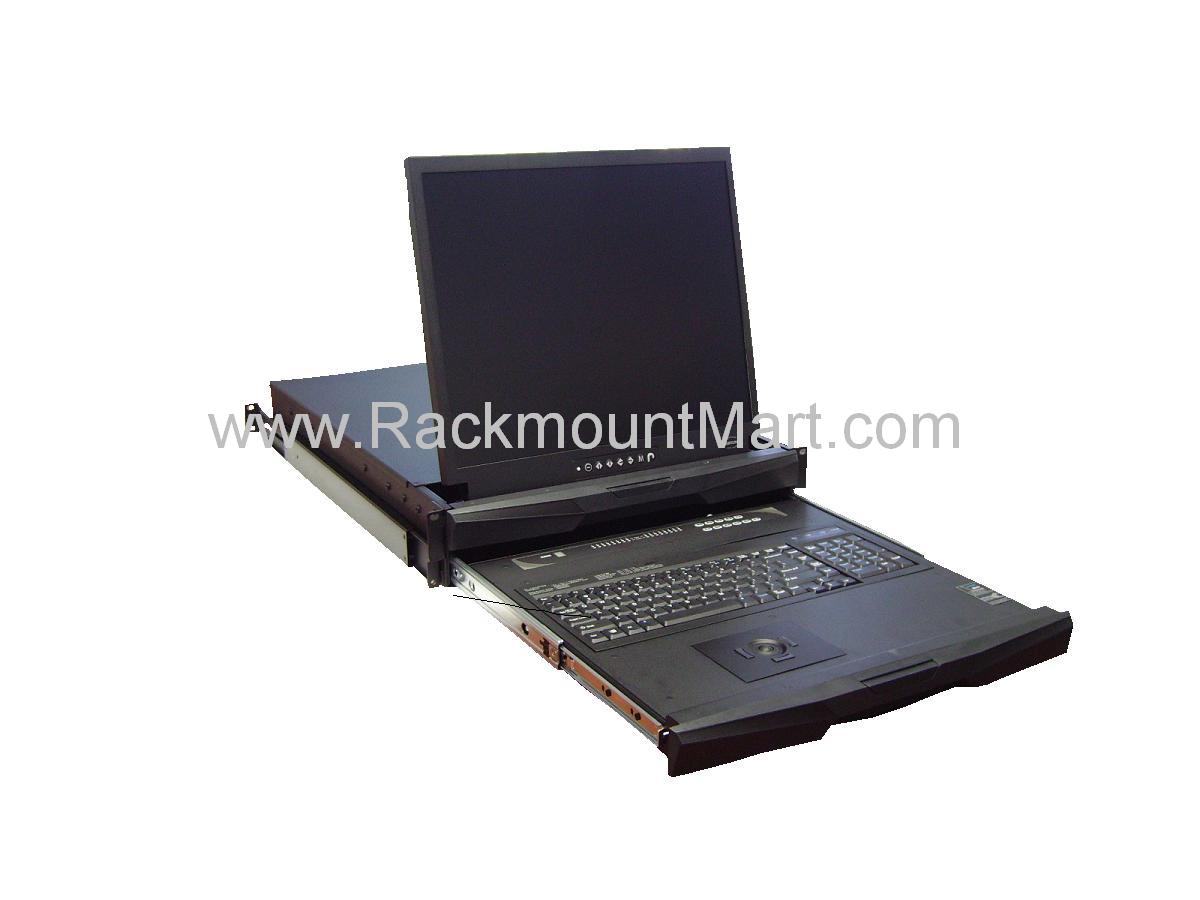

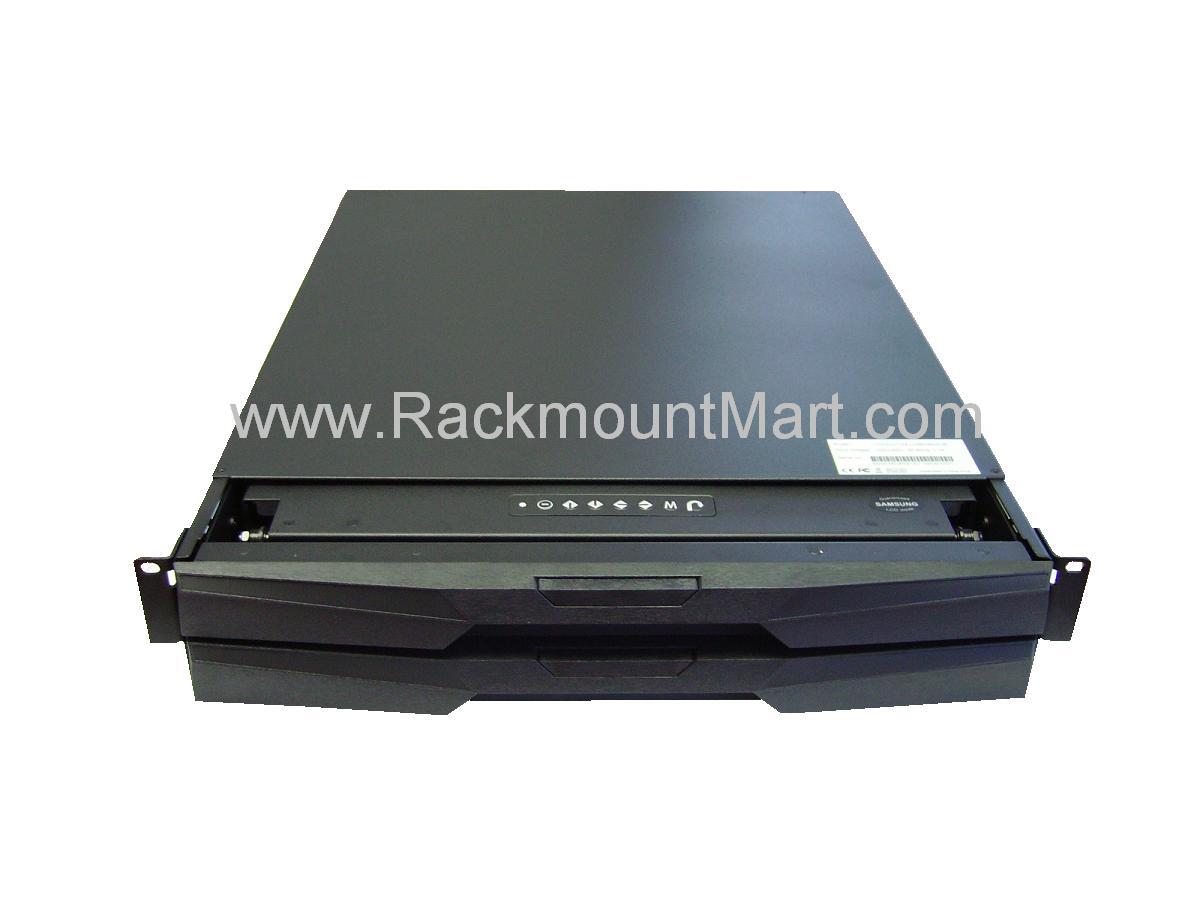

   Dual Slide Rail Rack Console LCD2U17-04


*click on photo for enlarged view

    Drawer Features & Display Benefits
  • 2U dual slide rail 17" industrial Grade LCD console drawer
  • Go Green : LED-backlit Technology
  • Direct Support for SUN Micro 1152 x 900 native resolution

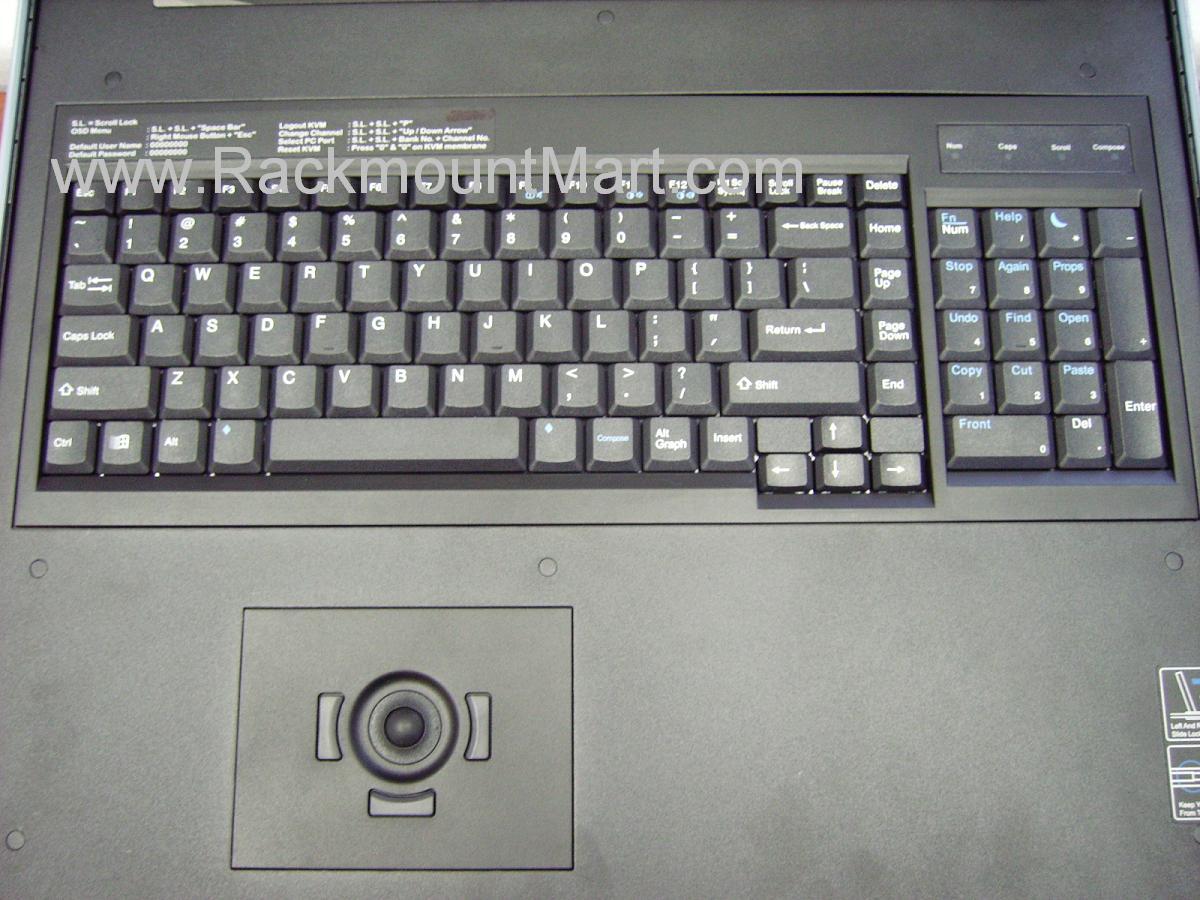

  • 104-key keyboard with SUN hotkeys
  • Short depth design of 480mm ( 18.9" )
  • New enhanced aesthetics with molded front handle
  • TAA Compliant
   Options
  • DVI-D, S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D ( either one )
  • Touch Screen
  • 250V , 110V ~ 125V , 48V, 24V or 12V DC power
                     General Information

Form Factor

2U Rack mounting on slide-out rails

                          LCD Screen

LCD Type

Industrial Grade TFT LCD Panel

Display Size

 17 inch diagonal

Resolutions

-1280 x 1024 ( Native )
-1152 x 900 ( Direct )

Contrast ratio

1000 : 1
Backlight LED

Brightness

250 cd/ m2

Panel color

16.7 M

Viewing angle

160 x 160
Active area 338 x 270 (mm)
Signal Input VGA

LCD MTBF

50,000 hrs

                          Keyboard & Pointing Device

Model Sn / Sb
(SUN)

Sun Keyboard and Hot-Keys w/ Numeric Keypad OR Trackball

                          Power Supply
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption Max. 48 Watt, Standby 5 Watt
                     Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock 10G peak acceleration (11ms duration)
Vibration 5~500Hz, 1G RMS random vibration
                          Mechanical
Product Dimension
( W x D x H )
Single Port KVM Console :
441.6 (W) x 480(D) x 88(H) mm /
17.4(W) x 18.1(D) x 3.5(H) inch
Product Weight Single Console : 43lbs / 19.5kgs
KVM Integration : 45lbs / 20.5kgs
                           Regulatory Approval
  FCC, CE, RoHS Compliant , REACH, TAA Compliant
    Dimension


*click on above picture for enlarged view

     Construction


*click on above picture for enlarged view

  Product Sheet
Download Product Sheet
  User Manual
Download User Manual
Free Ground Shipping *Click for details

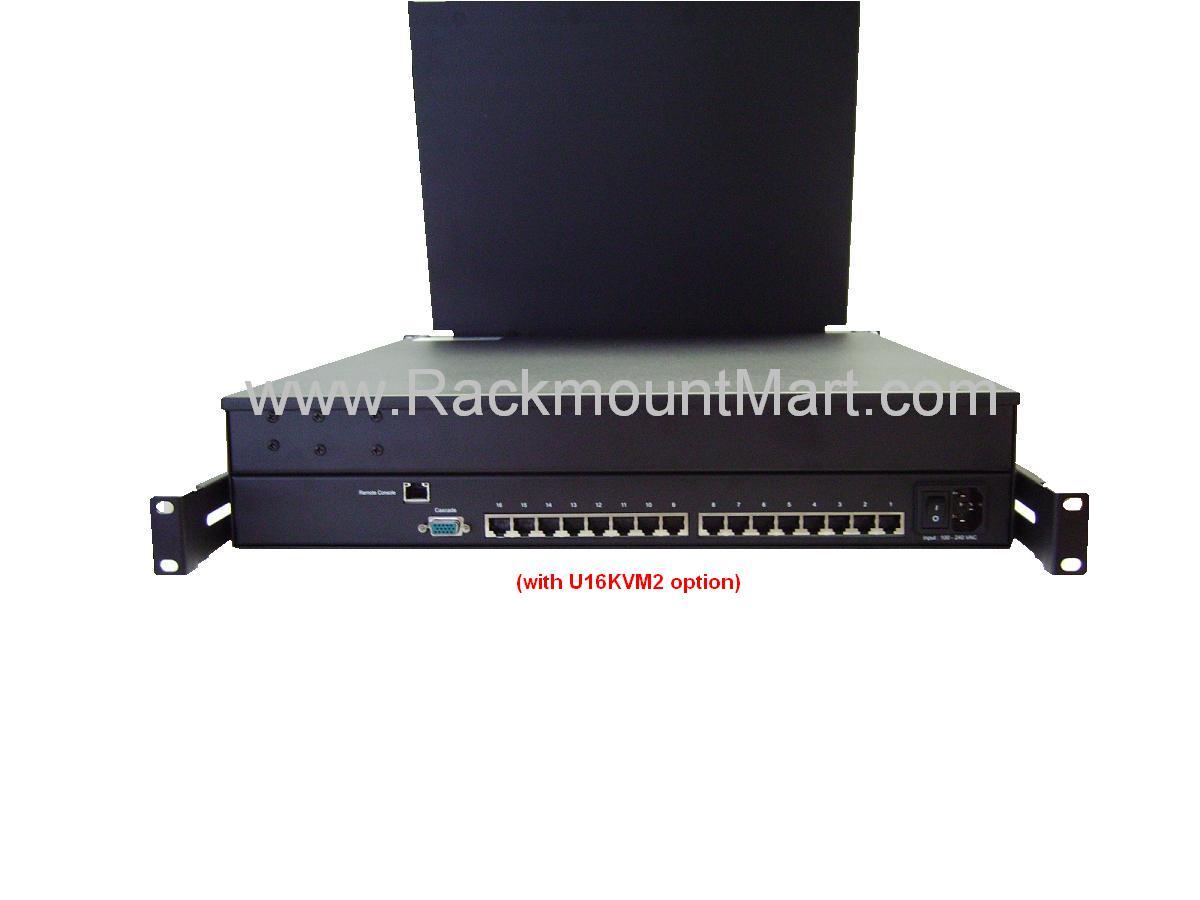

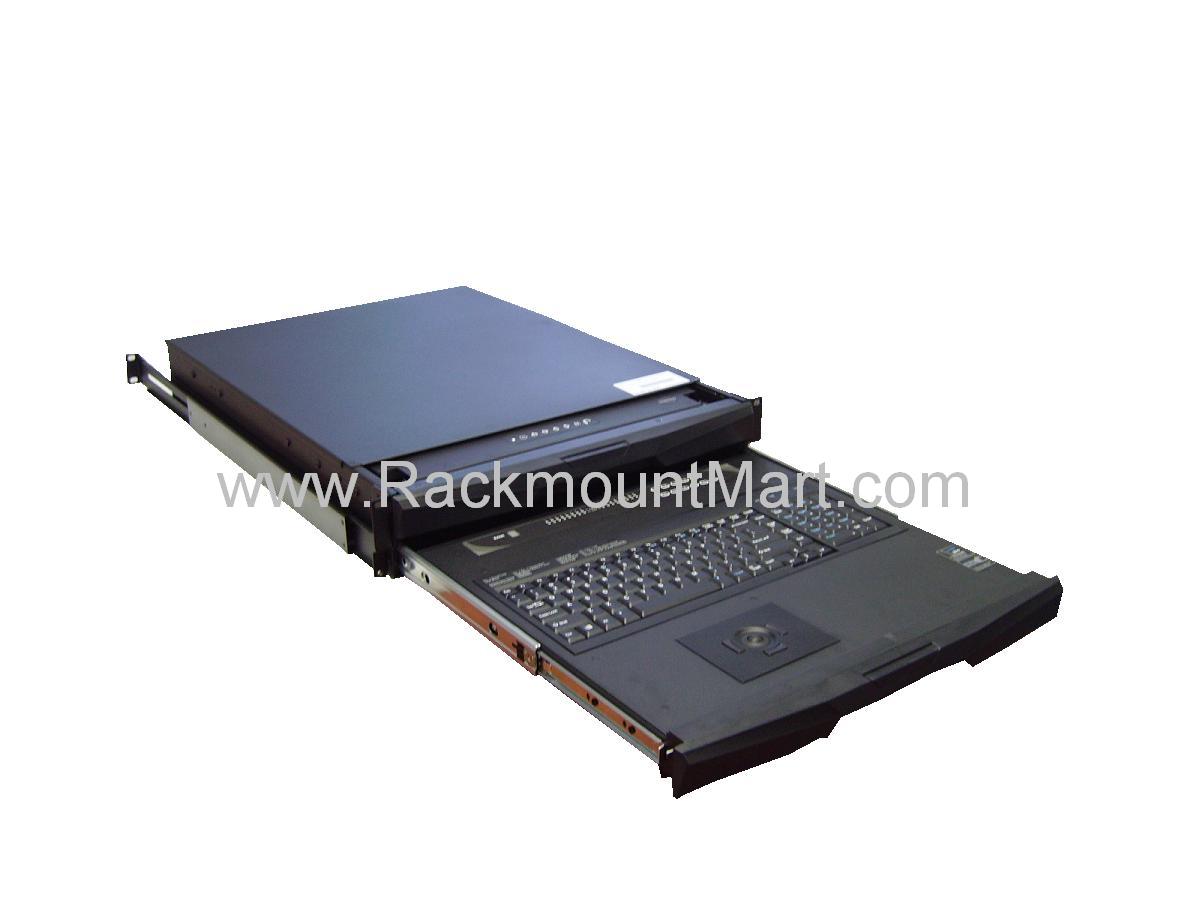

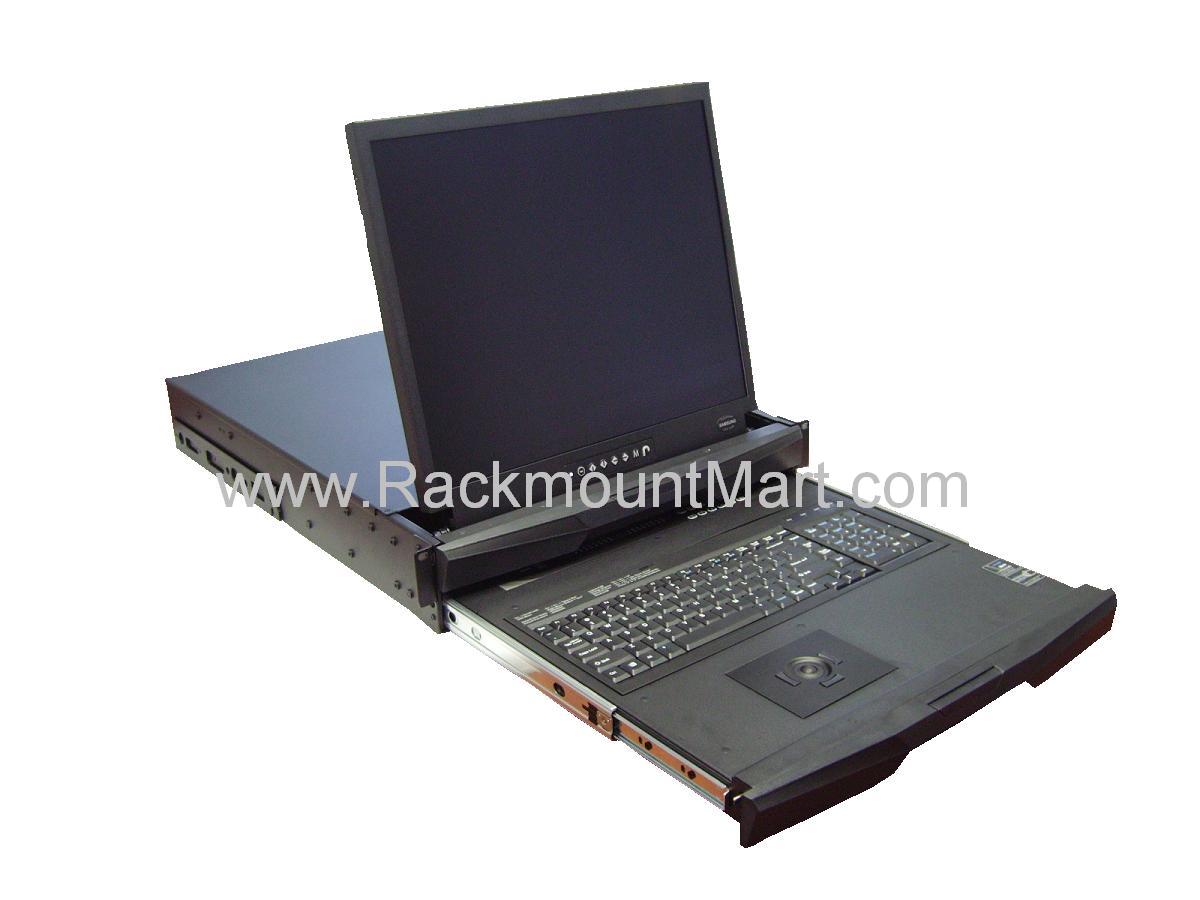

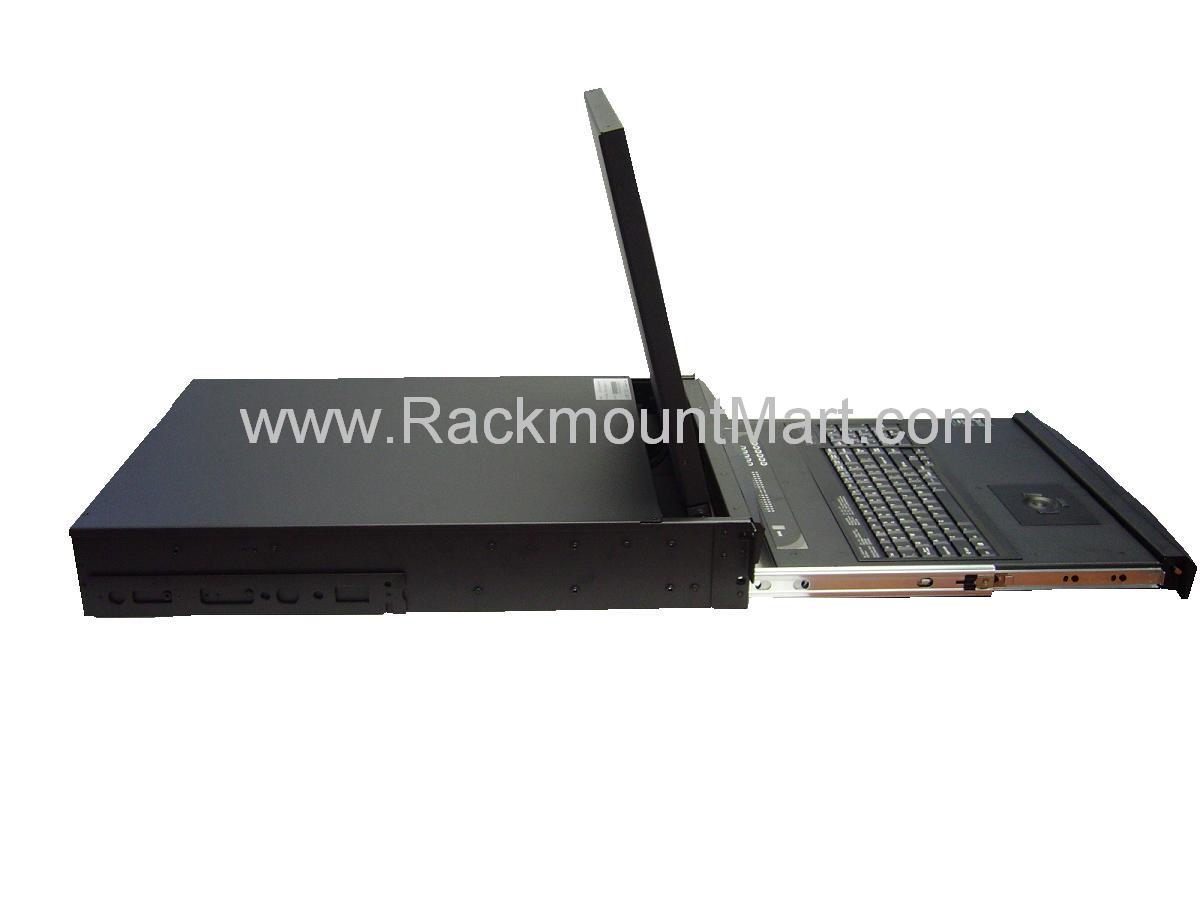

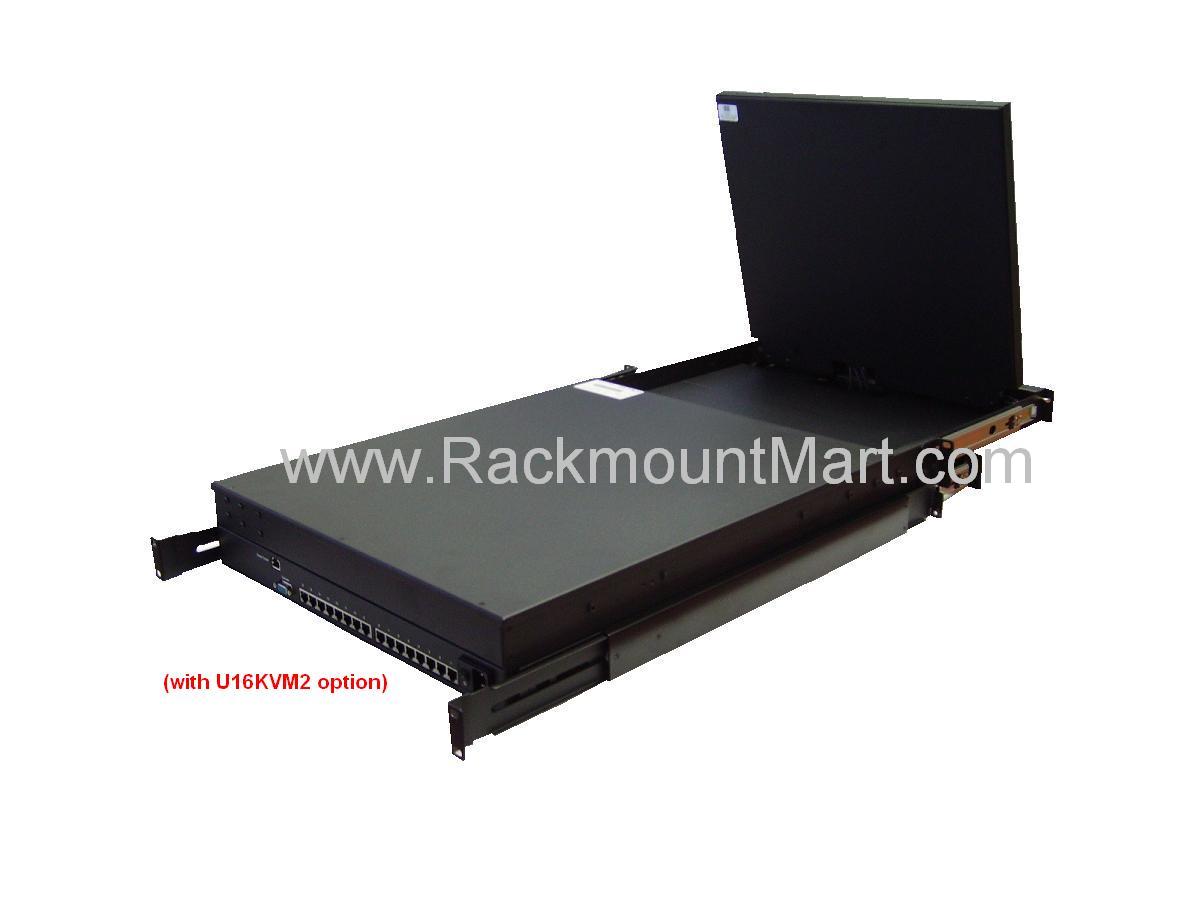

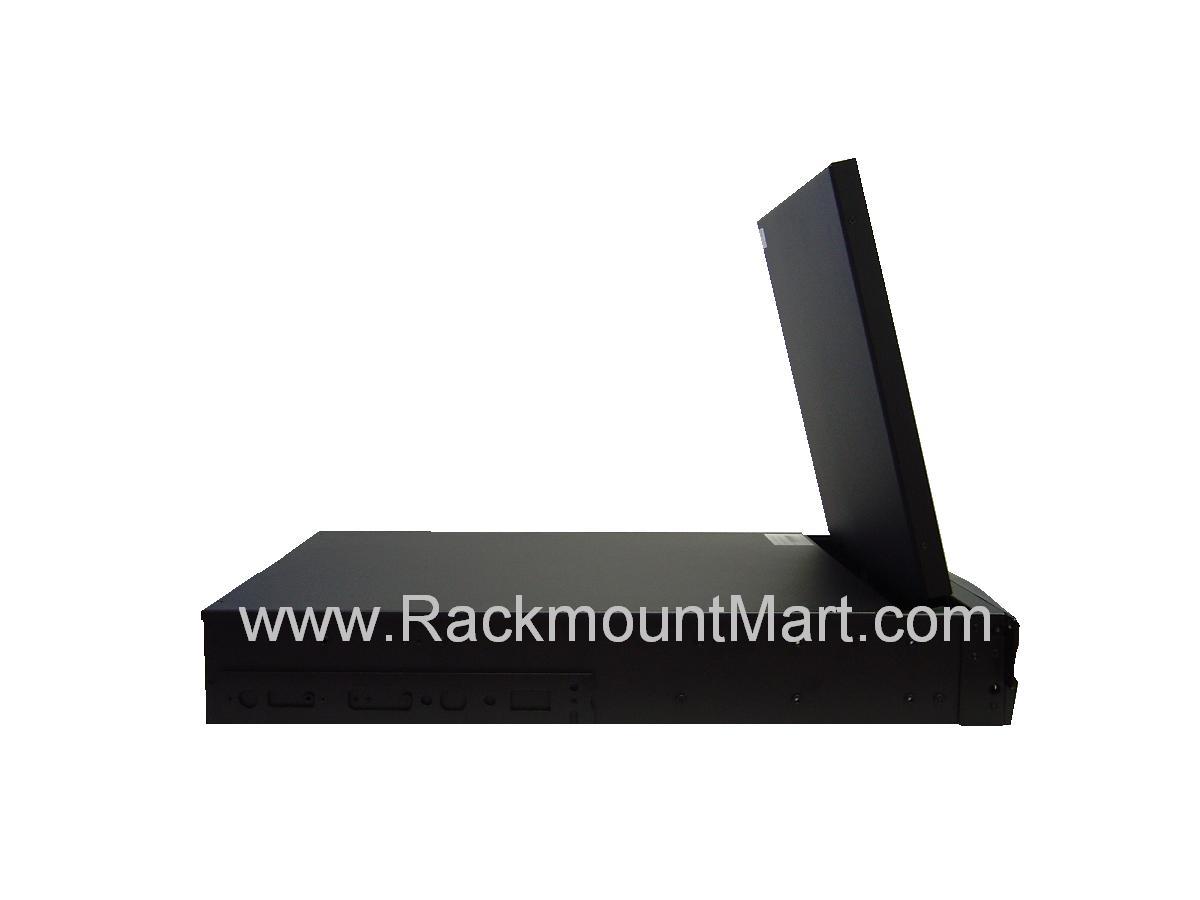

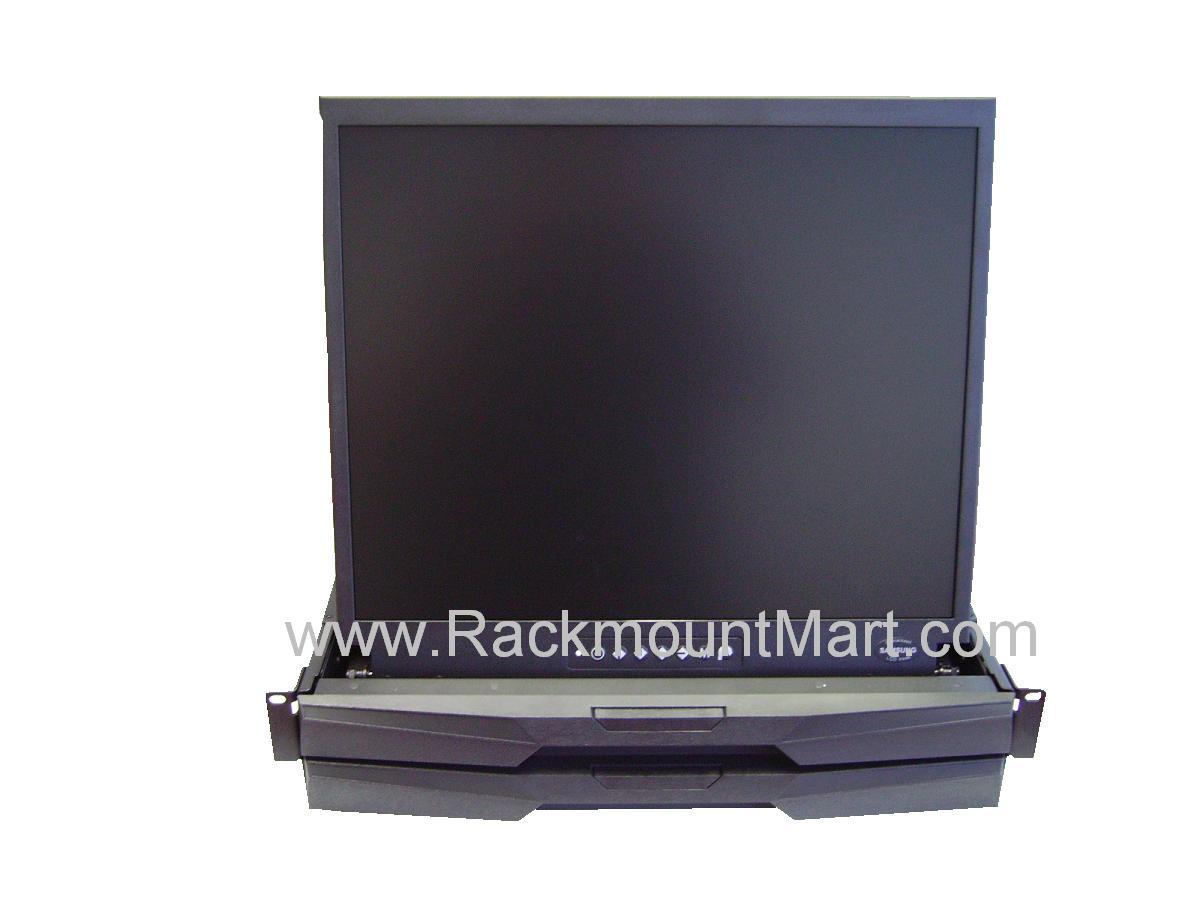

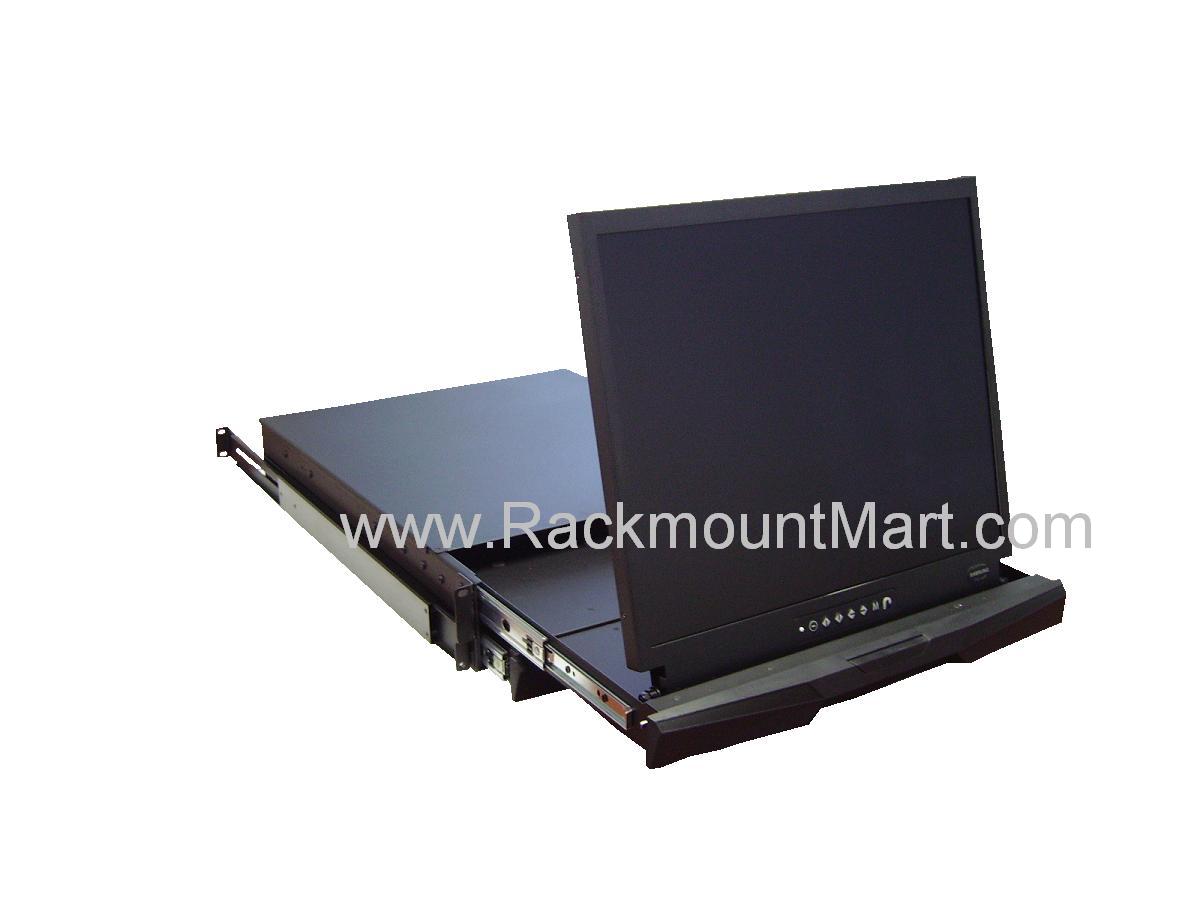

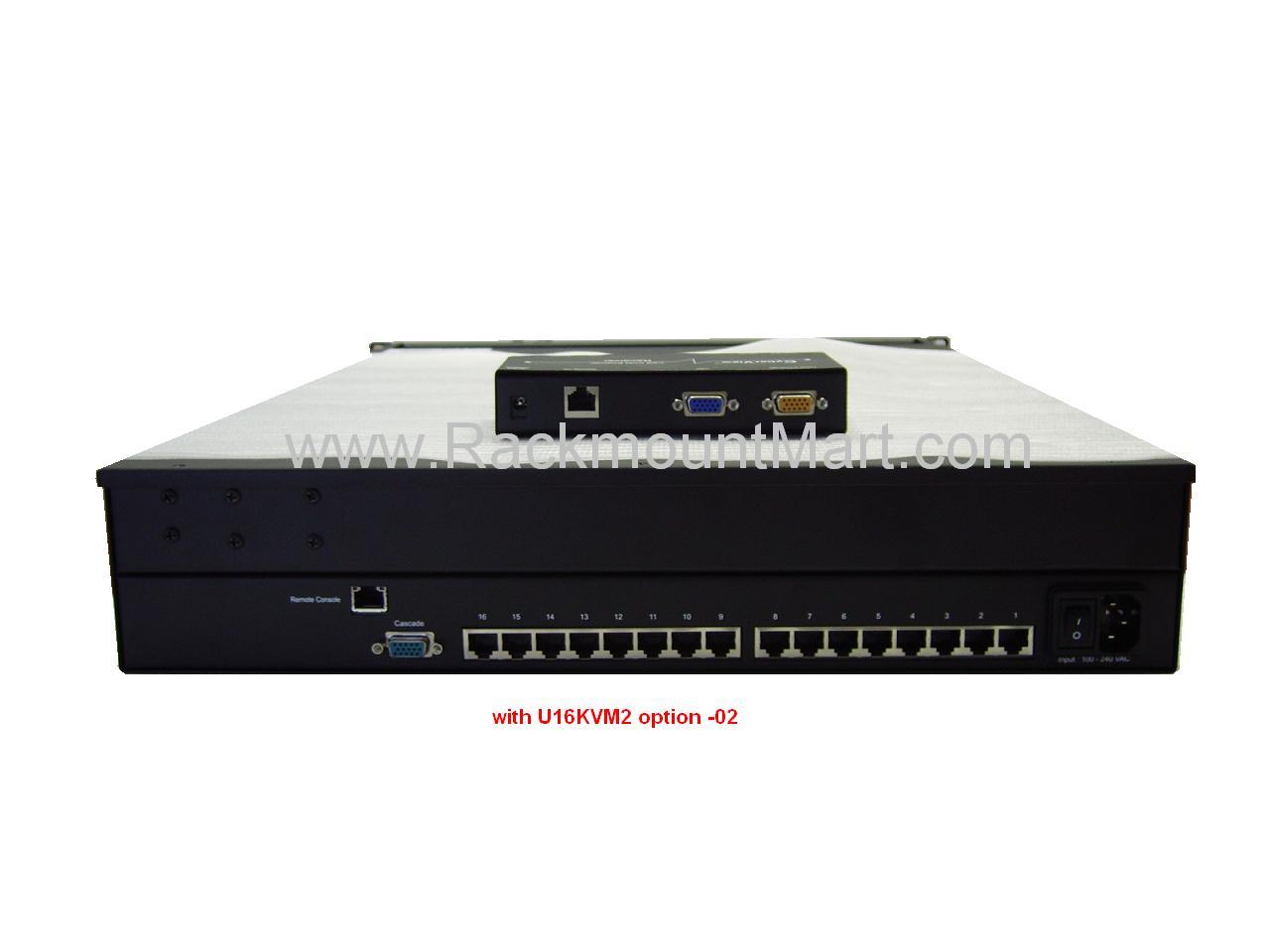

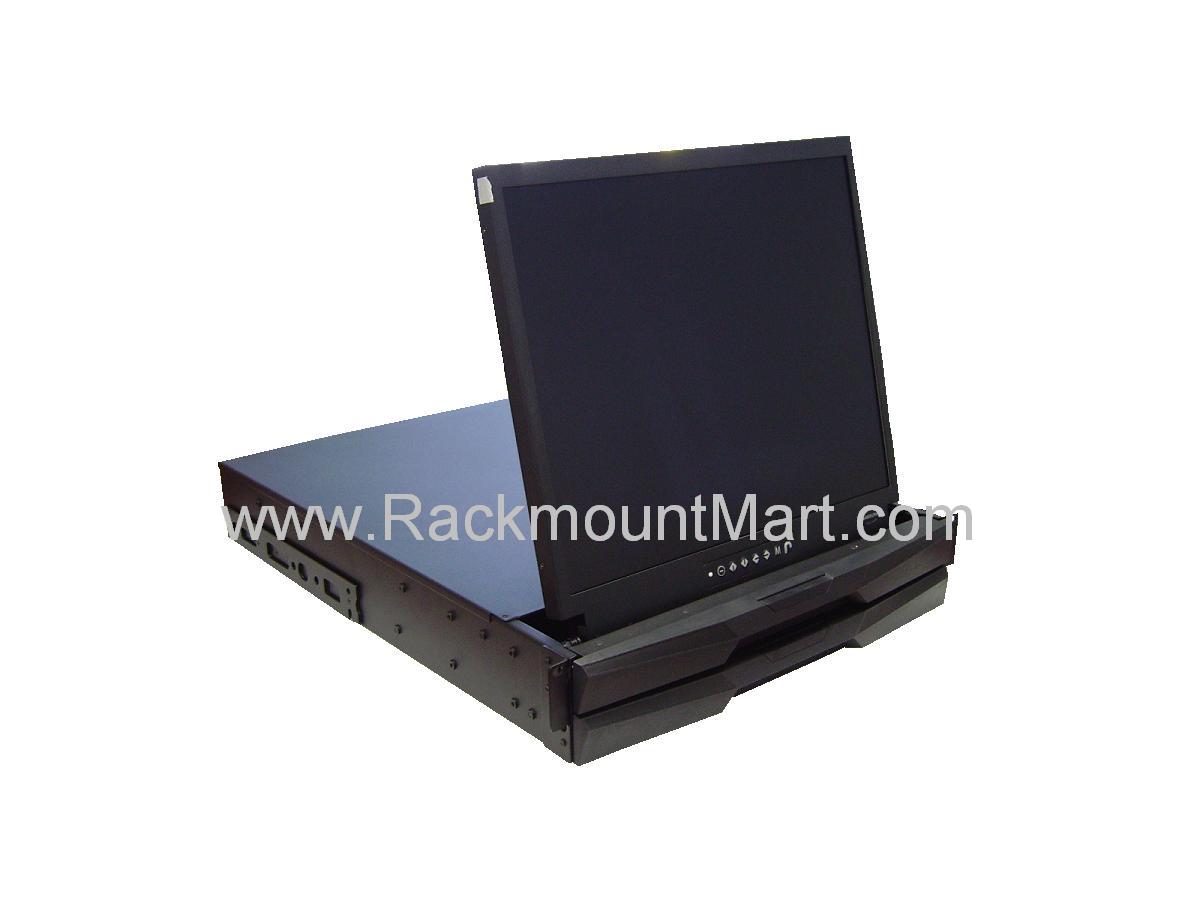

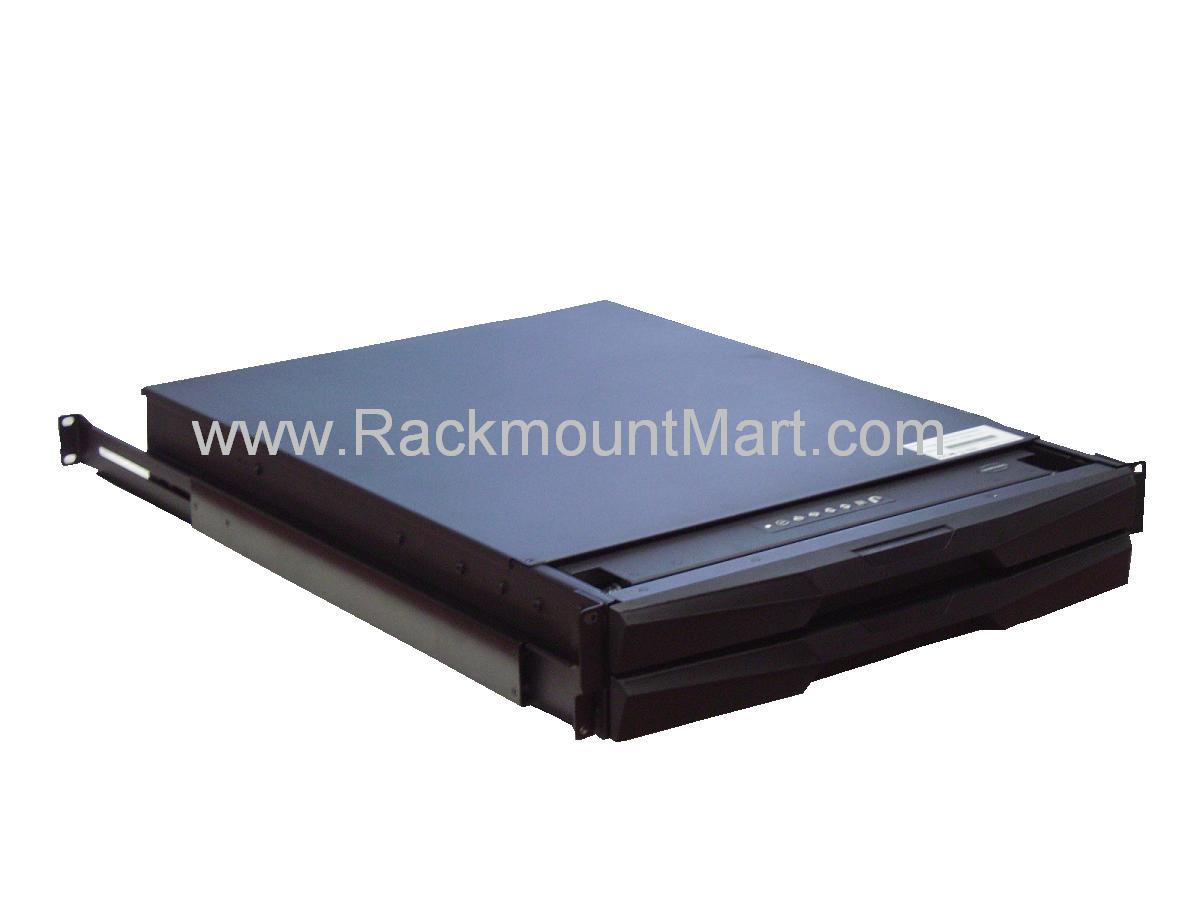

More Photos, click on the following for enlarged view:




Port Type KVM Version No. of Port Cascade Capacity No. of Console User Manual
DB-15 KVM ( 1 Active User )
DB-15 USB KVM 8 / 16 Up to 8 level 1 x Local Console User Manual
DB-15 USB KVM 8 / 16 Up to 8 level 1 x Local Console +
  1 x Remote Console ( Via CAT6 )
User Manual
DB-15 USB KVM 8 / 16 Up to 8 level 1 x Local Console +
  1 x Remote Console ( Over IP )
User Manual
CAT6 KVM ( 1 Active User )
Cat6 CAT6 KVM 8/16/32 Up to 8 level 1 x Local Console User Manual
Cat6 CAT6 KVM 8/16/32 Up to 8 level 1 x Local Console +
  1 x Remote Console( Via CAT6 )
User Manual
Cat6 CAT6 KVM 8/16/32 Up to 8 level 1 x Local Console +
  1 x Remote Console ( Over IP )
User Manual
DVI-D KVM ( 1 Active User )
DVI-D USB & Audio KVM
**External Speakers Only**
12 1 level 1 x Local Console User Manual
Matrix KVM ( 2 ~ 4 Active Users )
DB-15 Matrix DB-15 KVM 8 / 16 Up to 8 level 1 x Local Console +
(1, 2 or 3) x Remote Console ( Via CAT 6
)
User Manual
DB-15 Matrix DB-15 KVM 8 / 16 Up to 8 level 1 x Local Console +
( 1 or 2 ) x Remote Cosnole ( Via CAT 6 ) +
( 1 or 2 ) x Remote Console ( Over IP )
User Manual
Cat6 Matrix CAT 6 KVM 16/32 Up to 8 level 1 x Local Console +
(1, 2 or 3) x Remote Console
(Via CAT6 )
User Manual
Cat6 Matrix CAT 6 KVM 16/32 Up to 8 level 1 x Local Console +
( 1 or 2 ) x Remote Cosnole ( Via CAT 6 ) +
( 1 or 2 ) x Remote Console ( Over IP )
User Manual

Back to top



Optional Peripheral & Accessory
- S-Video + Composite Video (BNC or RCA) / DVI-D - Cables & Dongles
- DC Power Input ( 12V / 24V / 48V / 110V / 125V / 250V )
Customer who ordered this product may also order these :
- Server Rack Cabinet                  - Wall Mount Rack - KVM Switch                - Rack Mount Keyboard
- 2 Post / 4 Post Steel Rack - Rack Shelf                  - Rack Light
- 2 Post / 4 Post Aluminum Rack - Intellignet Rack Cabinet Door Lock Handle
- PDU / Power Distribution Unit - Remote / Network Control for Rack Cabinet Access
- Rack / Cabinet / Wall Mount Cooling Fans - Data Center Environmental Monitoring

Back to top

 ORDERING INFORMATION FOR NOVA  LCD2U17-04  :
DUAL SLIDE RAIL 2U RACK SUN SOLARIS KVM CONSOLE WITH 17" INDUSTRIAL GRADE LCD  AND VARIOUS KVM OPTIONS


DB-15 KVM : 1 Active User
Local Console & Optional Remote Console ( either Via CAT6 or Over IP)
 LOCAL CONSOLE ONLY
No. of Console /
KVM Choice
No. of
KVM port
KVM Cable Keyboard Part Number Price
1 Local Console / Single Port KVM 1
1 x USB KVM cable
Touchpad LCD2U17-04-n $1023
Trackball LCD2U17-04-b
1 Local Console / MultiPort KVM 8
8 x USB KVM cable
Touchpad LCD2U17-04-8KVM-n-u $1383
Trackball

LCD2U17-04-8KVM-b-u

16
16 x USB KVM cable
Touchpad LCD2U17-04-16KVM-n-u $1572
Trackball

LCD2U17-04-16KVM-b-u

 LOCAL CONSOLE + REMOTE CONSOLE ( Either Via CAT6 or Over IP )
No. of Console /
KVM Choice
No. of
KVM port
 KVM Cable Keyboard Part Number Price
1 Local Console + 1 Remote Console (Via CAT6 ) / MultiPort KVM 8
8 x USB KVM cable
Touchpad LCD2U17-04-8KVM2-n $1597
Trackball LCD2U17-04-8KVM2-b
16
16 x USB KVM cable
Touchpad LCD2U17-04-16KVM2-n $1786
Trackball LCD2U17-04-16KVM2-b
1 Local Console + 1 Remote Console (Over IP) /
MultiPort KVM
8
8 x USB KVM cable
Touchpad LCD2U17-04-8KVM2IP-n $1747
Trackball LCD2U17-04-8KVM2IP-b
16
16 x USB KVM cable
Touchpad LCD2U17-04-16KVM2IP-n $1936
Trackball LCD2U17-04-16KVM2IP-b
CAT 6 KVM : 1 Active User
Local Console & Optional Remote Console ( either Via CAT6 or Over IP)
 LOCAL CONSOLE ONLY
No. of Console /
KVM Choice
No. of
KVM port
Dongle Keyboard Part Number Price
1 Local Console / MultiPort CAT6 KVM 8
Optional
Touchpad LCD2U17-04-U8KVM-n $1359
Trackball LCD2U17-04-U8KVM-b
16
Optional
Touchpad LCD2U17-04-U16KVM-n $1437
Trackball

LCD2U17-04-U16KVM-b

32
Optional
Touchpad LCD2U17-04-U32KVM-n $1630
Trackball

LCD2U17-04-U32KVM-b

 LOCAL CONSOLE + REMOTE CONSOLE ( Either Via CAT6 or Over IP )
No. of Console /
KVM Choice
No. of
KVM port
Dongle Keyboard Part Number Price
1 Local Console + 1 Remote Console (Via CAT6 ) / MultiPort KVM 8
Optional
Touchpad LCD2U17-04-U8KVM2-n $1573
Trackball LCD2U17-04-U8KVM2-b
16
Optional
Touchpad LCD2U17-04-U16KVM2-n $1652
Trackball

LCD2U17-04-U16KVM2-b

32
Optional
Touchpad LCD2U17-04-U32KVM-n $1844
Trackball

LCD2U17-04-U32KVM2-b

1 Local Console + 1 Remote Console (Over IP) /
MultiPort KVM
8
Optional
Touchpad LCD2U17-04-U8KVM2IP-n $1723
Trackball LCD2U17-04-U8KVM2IP-b
16
Optional
Touchpad LCD2U17-04-U16KVM2IP-n $1802
Trackball

LCD2U17-04-U16KVM2IP-b

32
Optional
Touchpad LCD2U17-04-U32KVM2IP-n $1994
Trackball

LCD2U17-04-U32KVM2IP-b

DVI KVM : 1 Active User
 LOCAL CONSOLE ONLY
No. of Console /
KVM Choice
No. of
KVM port
KVM Cable Keyboard Part Number Price
1 Local Console / MultiPort DVI-D KVM 12
 6 x  DVI-D KVM cable
Touchpad LCD2U17-04-12DVI-n $1800
Trackball LCD2U17-04-12DVI-b
Matrix DB-15 KVM : 2~4 Active Users
Local Console & Remote Consoles ( either Via CAT6 or Over IP)
 2 ACTIVE USERS
No. of Console /
KVM Choice
No. of
KVM port
 KVM Cable Keyboard Part Number Price
1 Local Console + 1 Remote Console (Via CAT6 ) /
Matrix DB-15 KVM
8
8 x USB KVM cable
Touchpad LCD2U17-04-M82-n Call for price
Trackball LCD2U17-04-M82-b
16
16 x USB KVM cable
Touchpad LCD2U17-04-M162-n Call for price
Trackball LCD2U17-04-M162-b
 3 ACTIVE USERS
No. of Console /
KVM Choice
No. of
KVM port
 KVM Cable Keyboard Part Number Price
1 Local Console + 2 Remote Consoles (Via CAT6 ) /
Matrix DB-15 KVM
8
8 x USB KVM cable
Touchpad LCD2U17-04-M83-n Call for price
Trackball LCD2U17-04-M83-b
16
16 x USB KVM cable
Touchpad LCD2U17-04-M163-n Call for price
Trackball LCD2U17-04-M163-b
1 Local Console + 1 Remote Console (Via CAT6 ) + 1 Remote Console (Over IP) /
Matrix DB-15 KVM
8
8 x USB KVM cable
Touchpad LCD2U17-04-M83IP-n Call for price
Trackball LCD2U17-04-M83IP-b
16
16 x USB KVM cable
Touchpad LCD2U17-04-M163IP-n Call for price
Trackball LCD2U17-04-M163IP-b
 4 ACTIVE USERS
No. of Console /
KVM Choice
No. of
KVM port
 KVM Cable Keyboard Part Number Price
1 Local Console + 3 Remote Consoles (Via CAT6 ) /
Matrix DB-15 KVM
8
8 x USB KVM cable
Touchpad LCD2U17-04-M84-n Call for price
Trackball LCD2U17-04-M84-b
16
16 x USB KVM cable
Touchpad LCD2U17-04-M164-n Call for price
Trackball LCD2U17-04-M164-b
1 Local Console + 2 Remote Consoles (Via CAT6 ) + 1 Remote Console (Over IP) /
Matrix DB-15 KVM
8
8 x USB KVM cable
Touchpad LCD2U17-04-M84IP-n Call for price
Trackball LCD2U17-04-M84IP-n
16
16 x USB KVM cable
Touchpad LCD2U17-04-M164IP-n Call for price
Trackball LCD2U17-04-M164IP-b
1 Local Console + 1 Remote Console (Via CAT6 ) + 2 Remote Consoles (Over IP) /
Matrix DB-15 KVM
8
8 x USB KVM cable
Touchpad LCD2U17-04-M84IP2-n Call for price
Trackball LCD2U17-04-M84IP2-b
16
16 x USB KVM cable
Touchpad LCD2U17-04-M164IP2-n Call for price
Trackball LCD2U17-04-M164IP2-b
Matrix CAT6 KVM : 2~4 Active Users
Local Console & Remote Consoles ( either Via CAT6 or Over IP)
 2 ACTIVE USERS
No. of Console /
KVM Choice
No. of
KVM port
Dongle Keyboard Part Number Price
1 Local Console + 1 Remote Console (Via CAT6 ) /
Matrix CAT6 KVM
16
Optional
Touchpad LCD2U17-04-MU162-n Call for price
Trackball LCD2U17-04-MU162-b
32
Optional
Touchpad LCD2U17-04-MU322-n Call for price
Trackball LCD2U17-04-MU322-b
 3 ACTIVE USERS
No. of Console /
KVM Choice
No. of
KVM port
Dongle Keyboard Part Number Price
1 Local Console + 2 Remote Consoles (Via CAT6 ) /
Matrix CAT6 KVM
16
Optional
Touchpad LCD2U17-04-MU163-n Call for price
Trackball LCD2U17-04-MU163-b
32
Optional
Touchpad LCD2U17-04-MU323-n Call for price
Trackball LCD2U17-04-MU323-b
1 Local Console + 1 Remote Console (Via CAT6 ) + 1 Remote Console (Over IP) /
Matrix CAT6 KVM
16
Optional
Touchpad LCD2U17-04-MU163IP-n Call for price
Trackball LCD2U17-04-MU163IP-b
32
Optional
Touchpad LCD2U17-04-MU323IP-n Call for price
Trackball LCD2U17-04-MU323IP-b
 4 ACTIVE USERS
No. of Console /
KVM Choice
No. of
KVM port
Dongle Keyboard Part Number Price
1 Local Console + 3 Remote Consoles (Via CAT6 ) /
Matrix CAT6 KVM
16
Optional
Touchpad LCD2U17-04-MU164-n Call for price
Trackball LCD2U17-04-MU164-b
32
Optional
Touchpad LCD2U17-04-MU324-n Call for price
Trackball LCD2U17-04-MU324-b
1 Local Console + 2 Remote Consoles (Via CAT6 ) + 1 Remote Console (Over IP) /
Matrix CAT6 KVM
16
Optional
Touchpad LCD2U17-04-MU164IP-n Call for price
Trackball LCD2U17-04-MU164IP-b
32
Optional
Touchpad LCD2U17-04-MU324IP-n Call for price
Trackball LCD2U17-04-MU324IP-n
1 Local Console + 1 Remote Console (Via CAT6 ) + 2 Remote Consoles (Over IP) /
Matrix CAT6 KVM
16
Optional
Touchpad LCD2U17-04-MU164IP2-n Call for price
Trackball LCD2U17-04-MU164IP2-b
32
Optional
Touchpad LCD2U17-04-MU324IP2-n Call for price
Trackball LCD2U17-04-MU324IP2-b
Optional DC Power
-DC12
Price : $171
Add 12V DC power supply
-DC24
Price : $171
Add 24V DC power supply
-DC48
Price : $171
Add 48V DC power supply
-DC110
Price : $357
Add 110V DC power supply
-DC125
Price : $357
Add 125V DC power supply
-DC250
Call for pricing
Add 250V DC power supply
Optional Dongles
LCD-A2001
Price : $43
VGA-USB Dongle
LCD-A2002
Price : $43
VGA-PS/2 Dongle
LCD-A2003
Price : $68
DVI-USB Dongle
Optional Cables
LCD-A3004
Price : $20
6-ft DVI Console Cable
(Server side : DVI-D + USB , KVM Console side : DVI-D + DB-15 (Keyboard + Mouse) without audio function)
LCD-A3005
Price : $20
6-ft DVI KVM Cable
(Server side : DVI-D + USB + audio , KVM Console side : DVI-D + USB)
LCD-A3006
Price : $29
15-ft DVI KVM Cable
LCD-A3001
Price : $13
6-ft Combo PS/2 USB KVM Cable
LCD-A3002
Price : $20
10-ft Combo PS/2 USB KVM Cable
LCD-A3003
Price : $26
15-ft Combo PS/2 USB KVM Cable
LCD-A1014
Price : $13
6-ft USB 3-in-1 KVM Cable
LCD-A1015
Price : $20
10-ft USB 3-in-1 KVM Cable
LCD-A1016
Price : $26
15-ft USB 3-in-1 KVM Cable
LCD-A1004
Price : $13
6-ft PS/2 3-in-1 KVM Cable
LCD-A1005
Price : $20
10-ft PS/2 3-in-1 KVM Cable
LCD-A1006
Price : $26
15-ft PS/2 3-in-1 KVM Cable

Back to top




Toll Free : 1-888-865-6888    Fax : 510-226-8968    Email :  sales@RackmountMart.com




Home    |   Buy Online    About Us  |    Contact Us    |    Site Map

Product images may be generic and may not reflect actual item purchased. Synergy Global Technology  Inc is not responsible for any typographical errors. Specifications subject to change without notice.  Legal.
