1U Rackmount KVM Tray with Keyboard , Video Monitor and Mouse :  Part # LCD1U20-04


NOVA 1U Rackmount 20.1" TFT LCD Monitor Keyboard Drawer
with Combo PS2 & USB interface, VGA and DVI-D Input, Speaker

TAA Compliant
Optional SUN Hotkey / Cherry KB Trackball and Various KVM options

                                      General Information

Form Factor

1U Rack mounting on slide-out rails

Options

- Color ( Beige / OEM color)
-
DC power (125V , 110V , 48B , 24V ,12 V)
SUN Hotkeys
-
Rear bracket extension up to 1030mm
-
Detachable keyboard plate
-
Signal cable 1.8m / 3.0m / 5.0m
-
Audio function

                                                  LCD Screen

LCD Type

 20.1" Active Matrix TFT LCD

Display Size

 20.1 inch diagonal

Resolutions

Max Resolution up to 1600 x 1200 (UXGA) , support SUN native solution

Response time

Rising Time 7 ms, Decay Time 9 ms

Contrast ratio

700 : 1

Brightness

300 cd/ m2

Pixel pitch

0.255mm (H) x 0.255mm (W)

Panel color

16.7 million display colors (RGB 8-bit data)

Back Light

Six Lamps for Back Light

Viewing angle
(CR >10)

Right-Left view 178° (Typ)
Up-Down View 178° (Typ)

                                     Keyboard & Pointing Device

Keyboard Type

106 key PS2 Keyboard with Touchpad &
Numerical key pad

OR
Optional Cherry Trackball Keyboard

                                  Other Features

Support Platform

Dos, Windows (3.1, 9x, 2000, NT4, ME, XP,
2003 Server) Linux, Novell 3.12-6, HP UX, SUN

System Cables

 VGA + Combo PS2 & USB cable

Sync

 45 ~ 80 KHz

                                Power Supply



-Power Source : 100-240 VAC input
-Power Consumption :
35W
                                  Environmental
   Temperature Operate 0~ 50C / 32~ 122F
Storage-20~ 60C / -4~ 140F
 Humidity 10 % ~ 90 % RH
                                  Mechanical Dimension
Single port 527.2(D) x 436.4(W) x 43.8(H) mm /
20.8(D) x 17.2(W) x 1.7(H) inches
*** Standard 26.5"deep with rails *** /
*** Optional 24" deep with rails ***
        8  port 640.8(D) x 436.4(W) x 43.8(H) mm /
25.2(D) x 17.2(W) x 1.7(H) inches
*** 26.5" deep with rails ***
      16  port 640.8(D) x 436.4(W) x 43.8(H) mm /
25.2(D) x 17.2(W) x 1.7 inches
*** 26.5"deep with rails ***

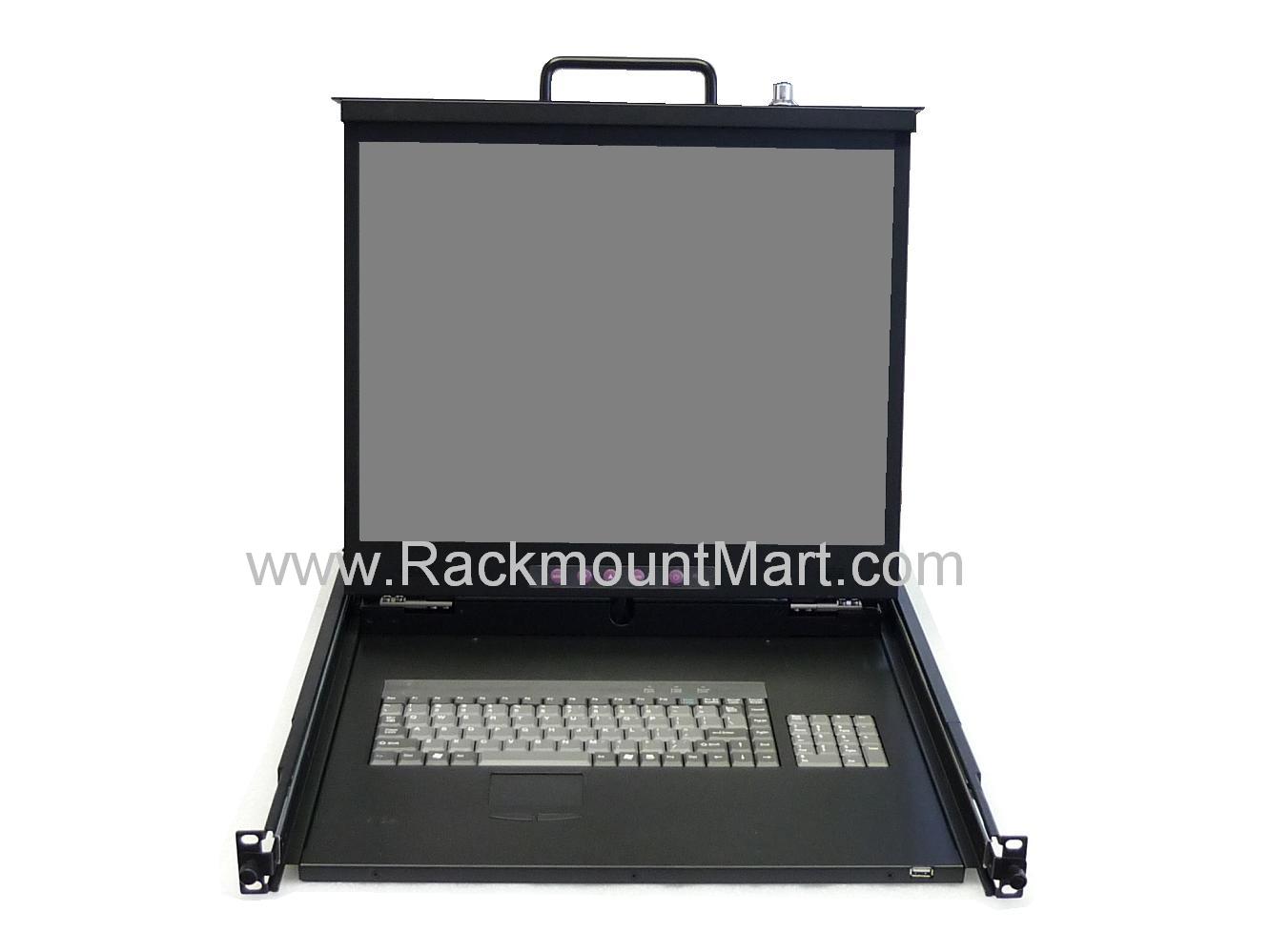

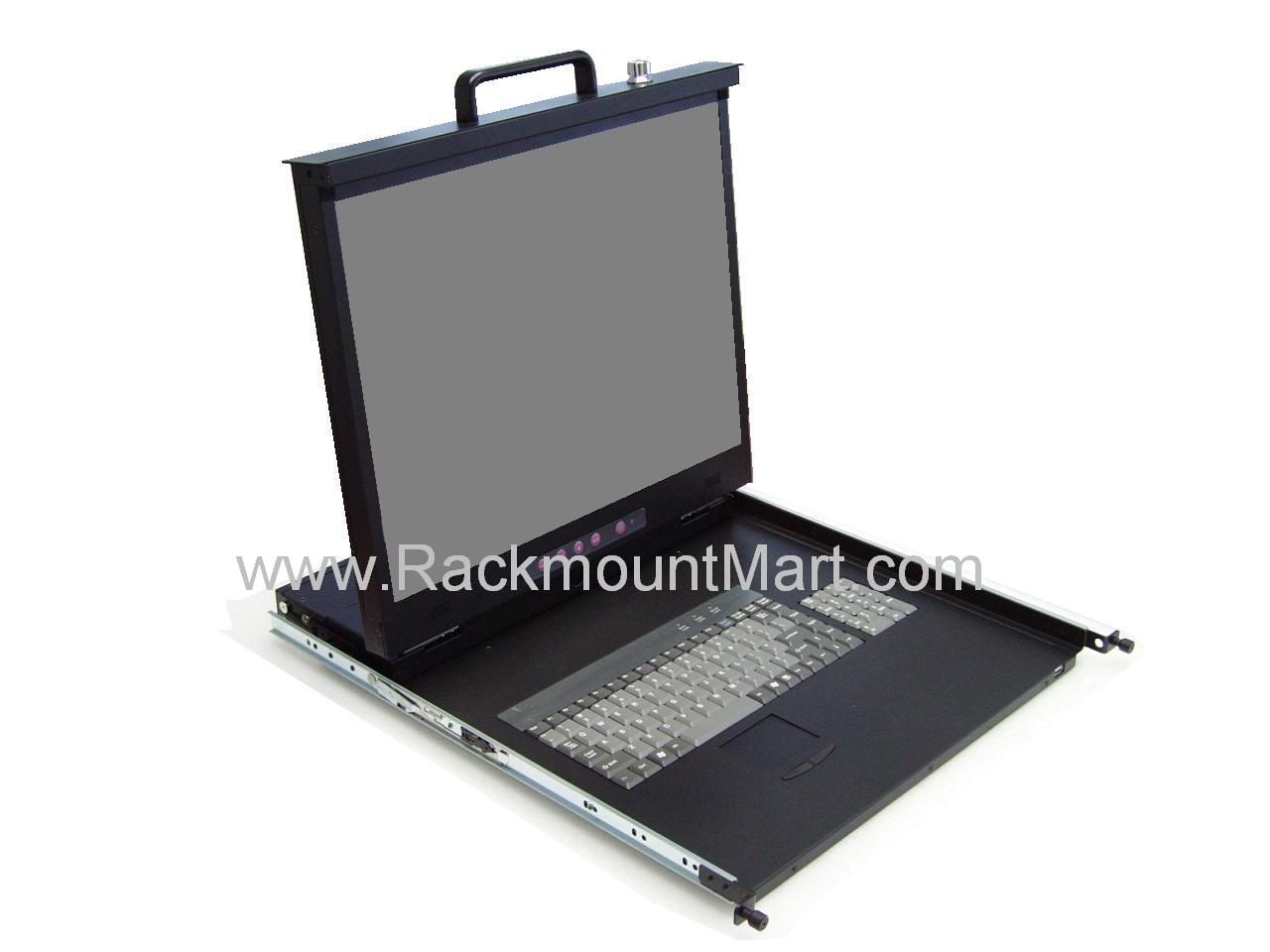

  Front View of LCD1U20-04


*click on photo for enlarged view

     Dimension

*click on above picture for enlarged view

  Product Sheet
            Download Product Sheet
  User Manual
            Download User Manual
            Download Hot key Command List
            Download Installation Guide
            Download IP KVM Manual
            Download KVM Quick Setting Guide
Free Ground Shipping *Click for details

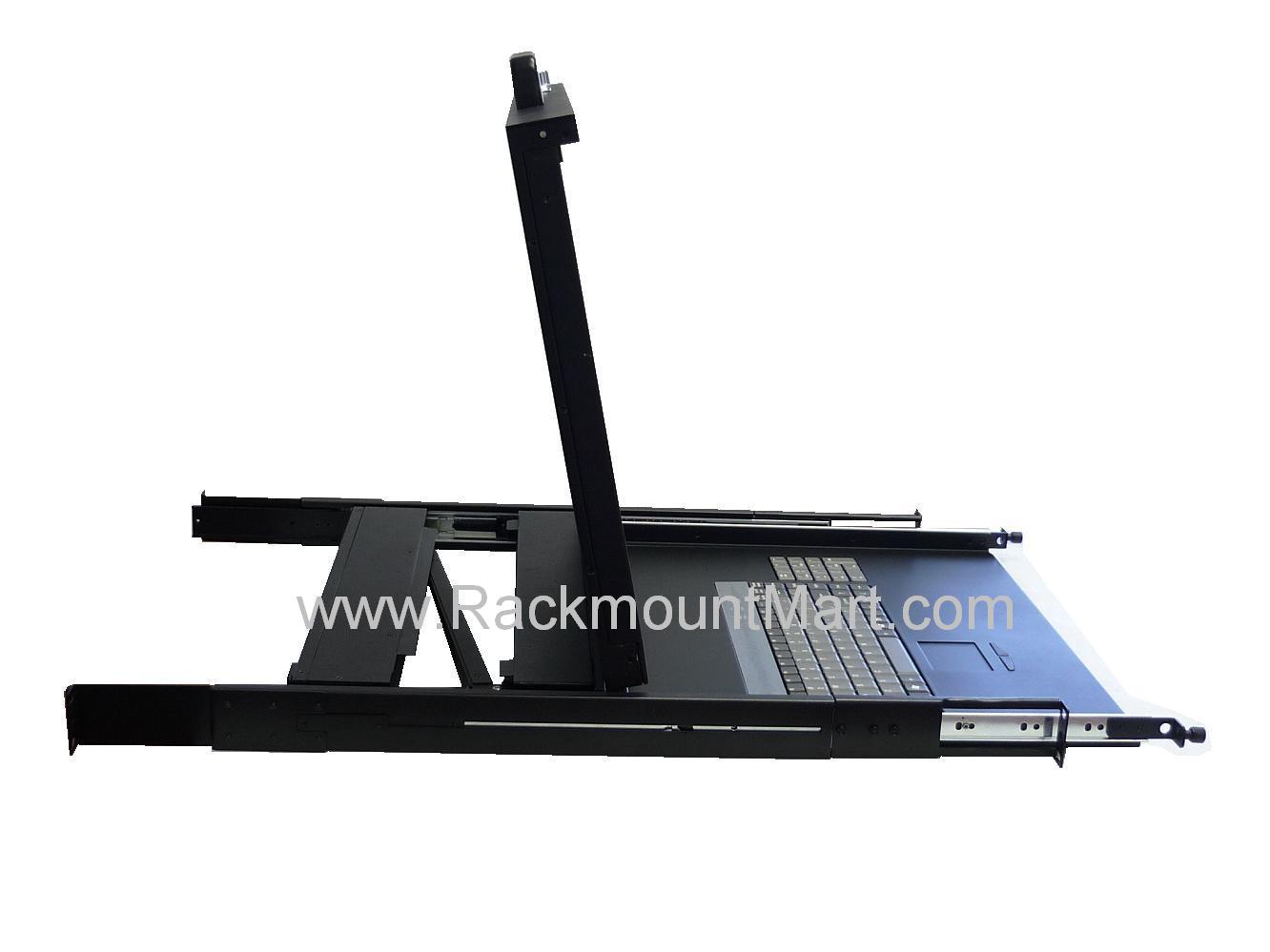

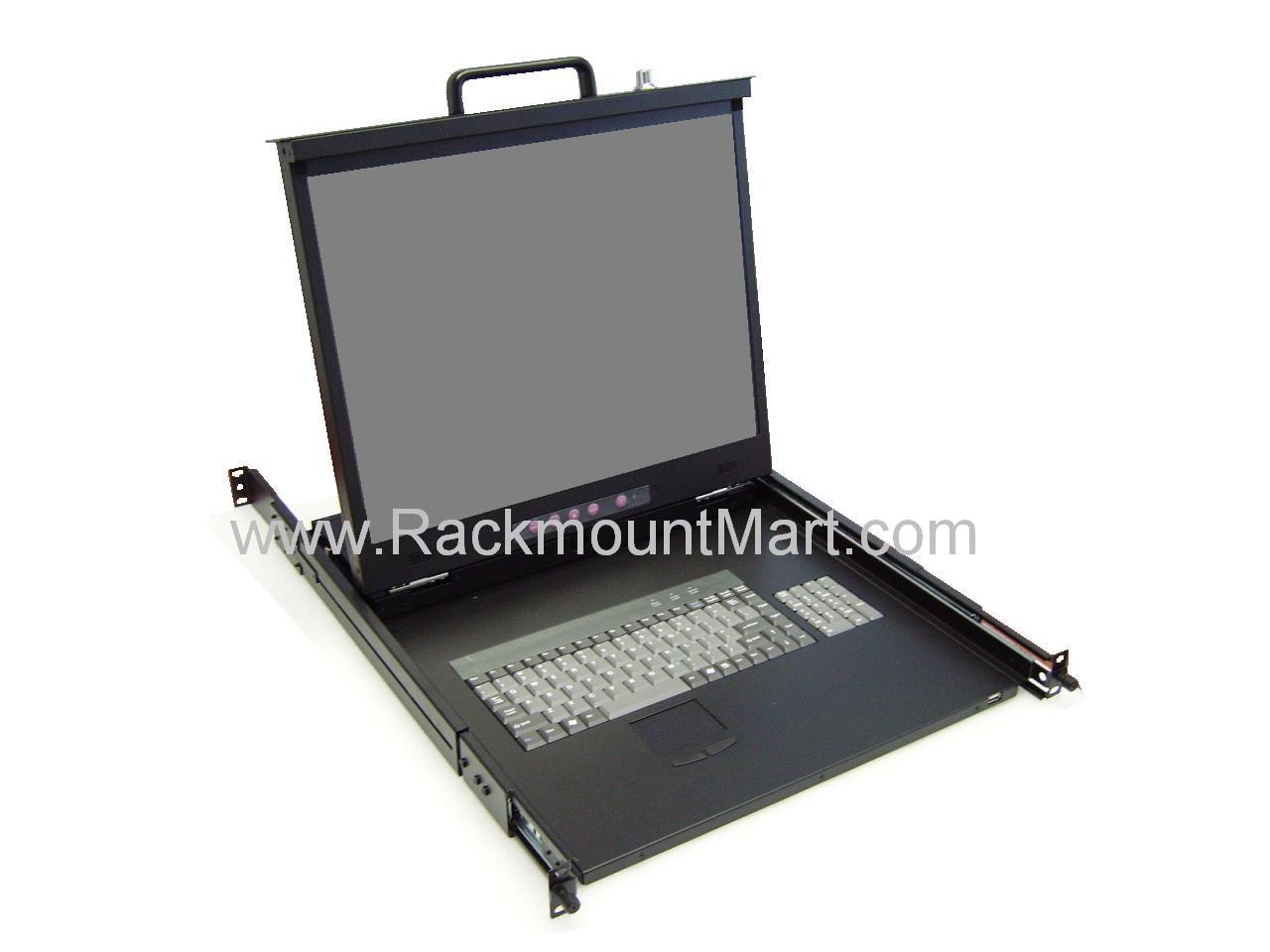

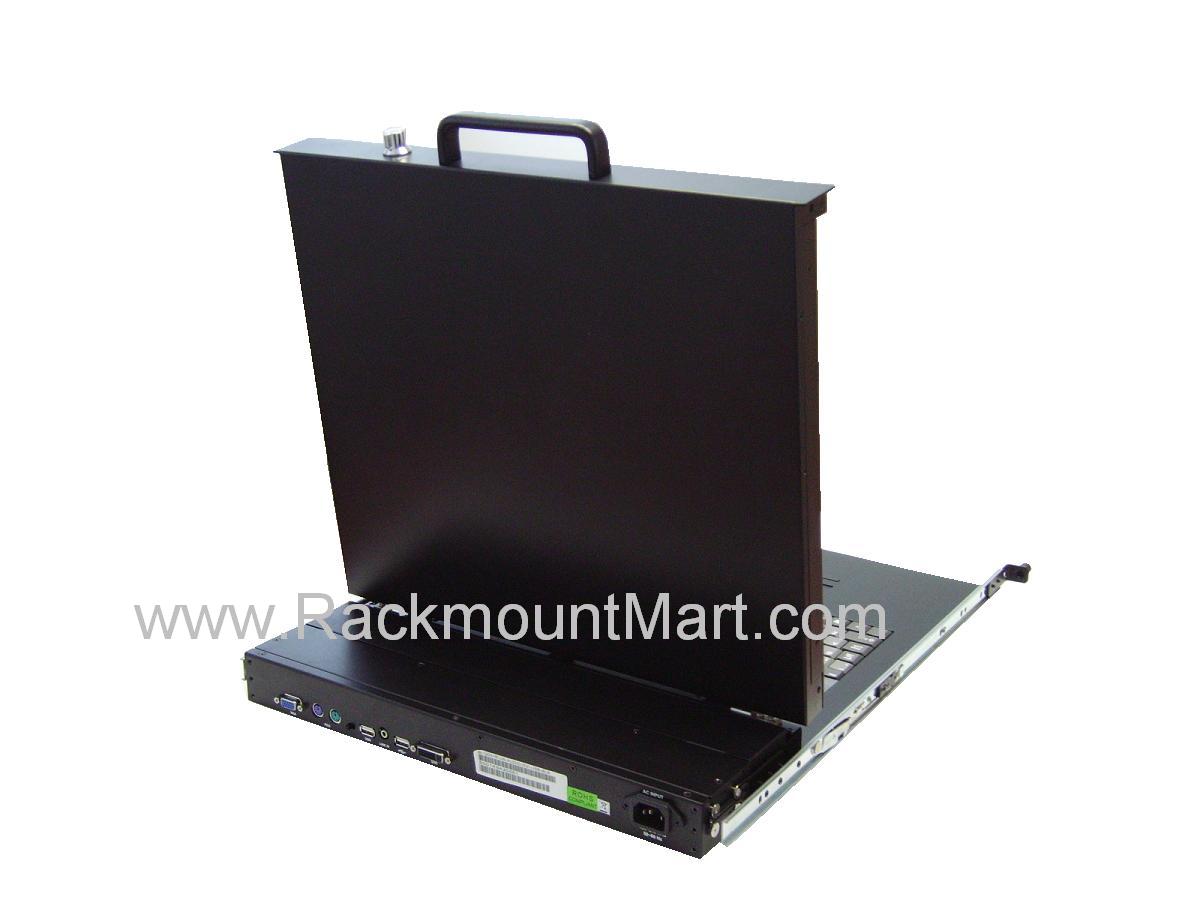

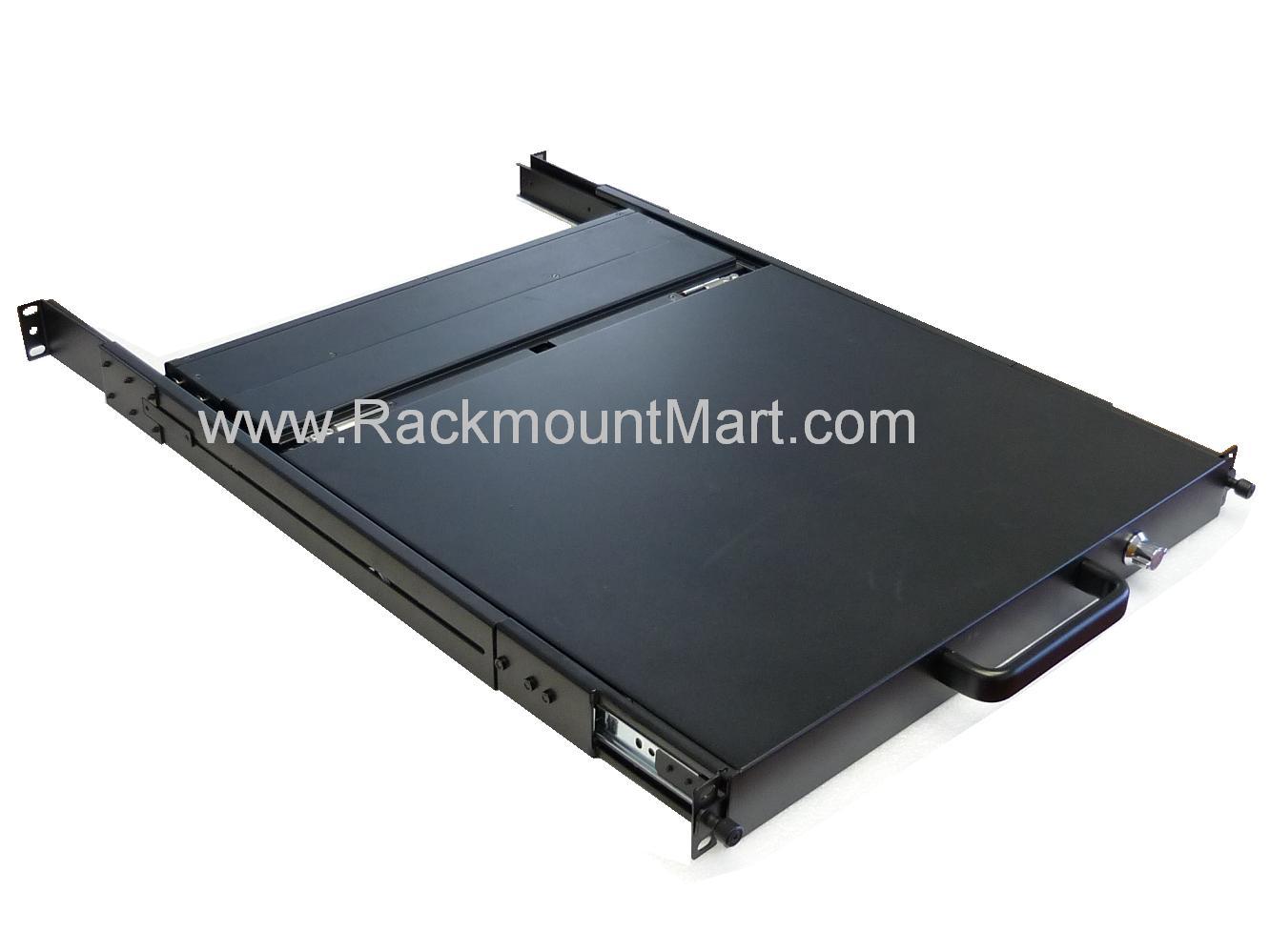

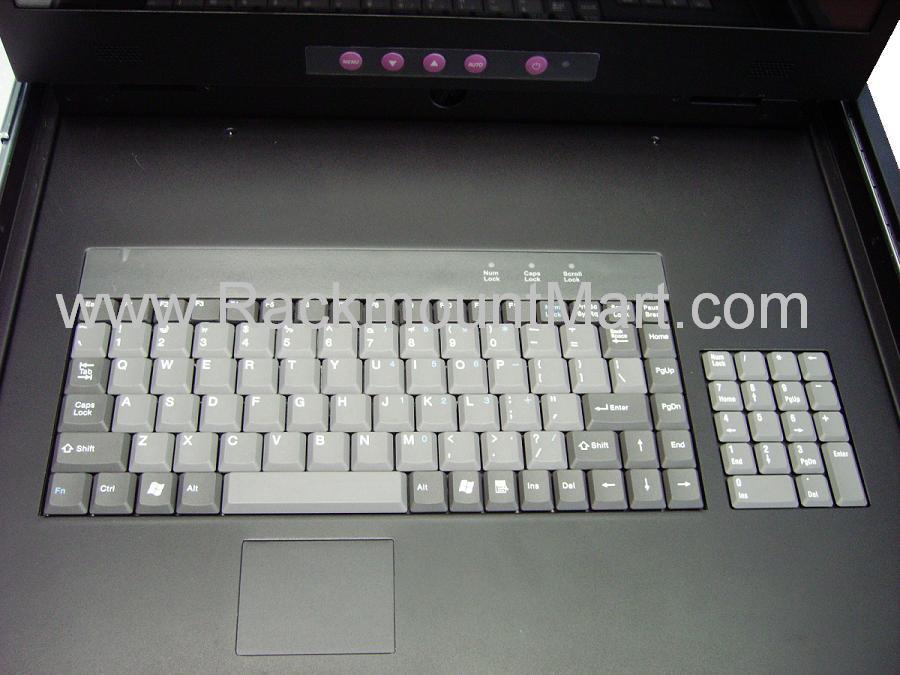

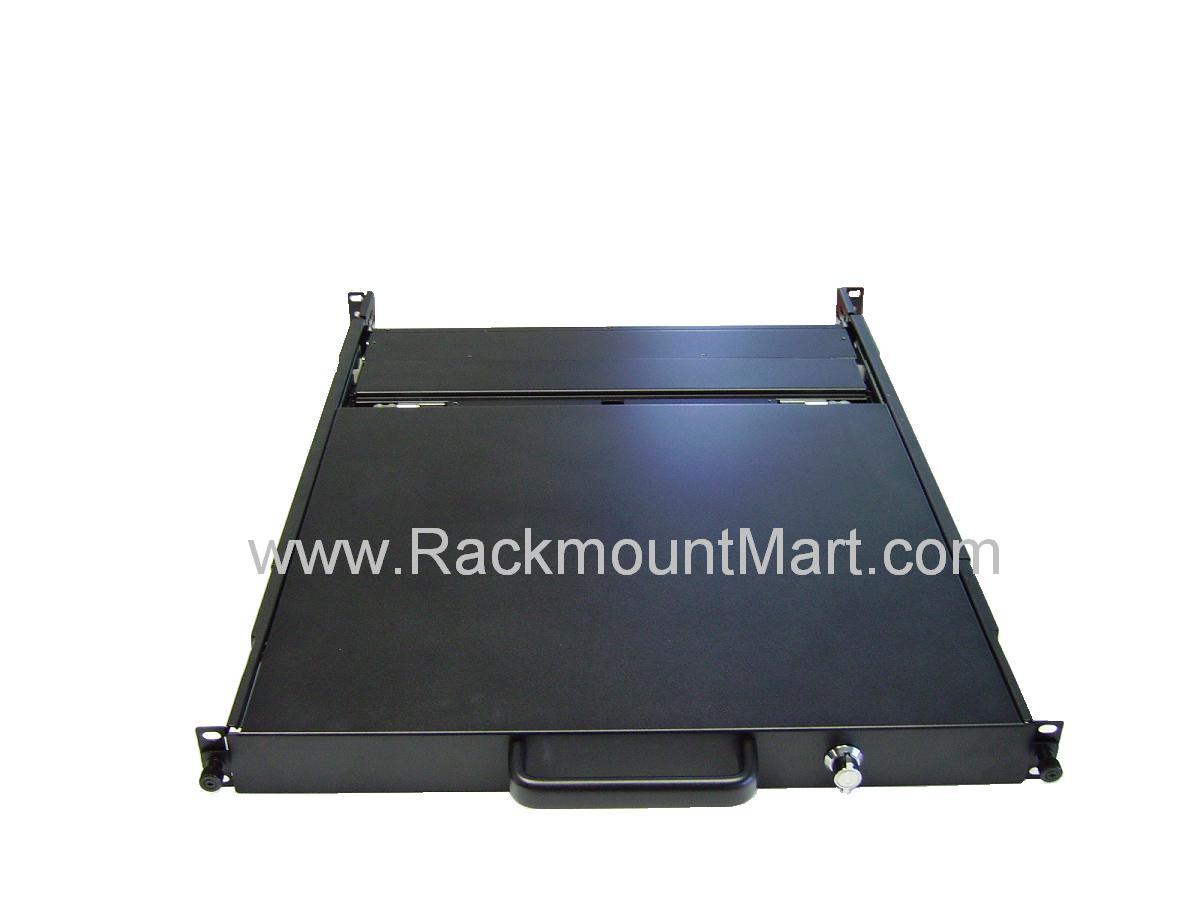

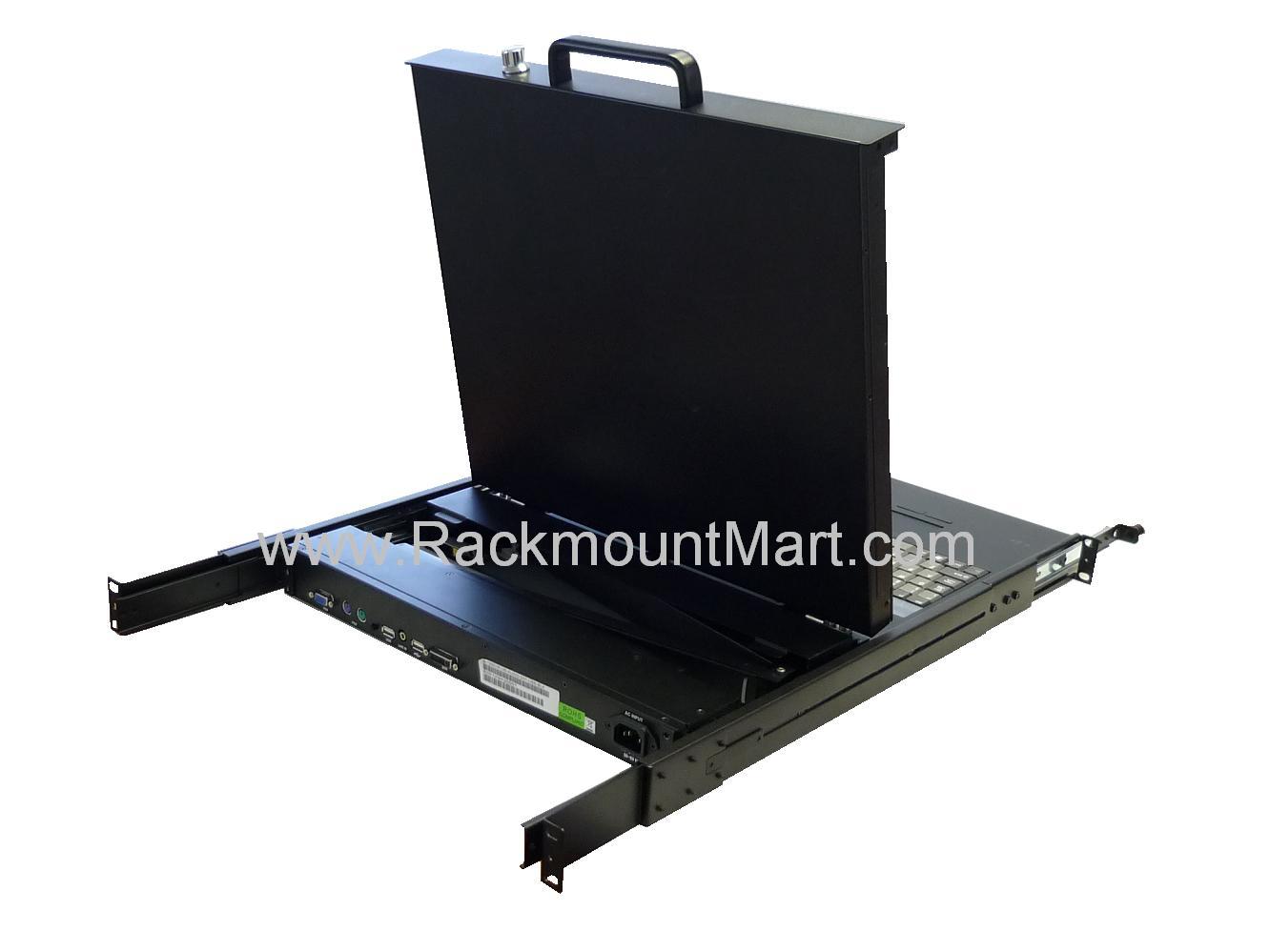

 More photos - (click on the photos for enlarged views)








FEATURES :
  • Single rail easy to install and use
  • Support Sun native resolution
  • Standard is US English keyboard , optional 17 various keyboard languages. Call for details.
  • Optional 8 / 16 / 32 port Combo USB/PS2 KVM / CAT5 KVM / IP KVM / 8 port DVI KVM switch
  • Bright Active Matrix TFT display
  • OSD function (On Screen Display) for LCD display
  • TAA Compliant
  • Heavy duty steel materials. Standard Black in color
  • Durable keyboards with touchpad in 1U , optional cherry trackball with height extended to 1.5U
  • Panel protected by tempered glass

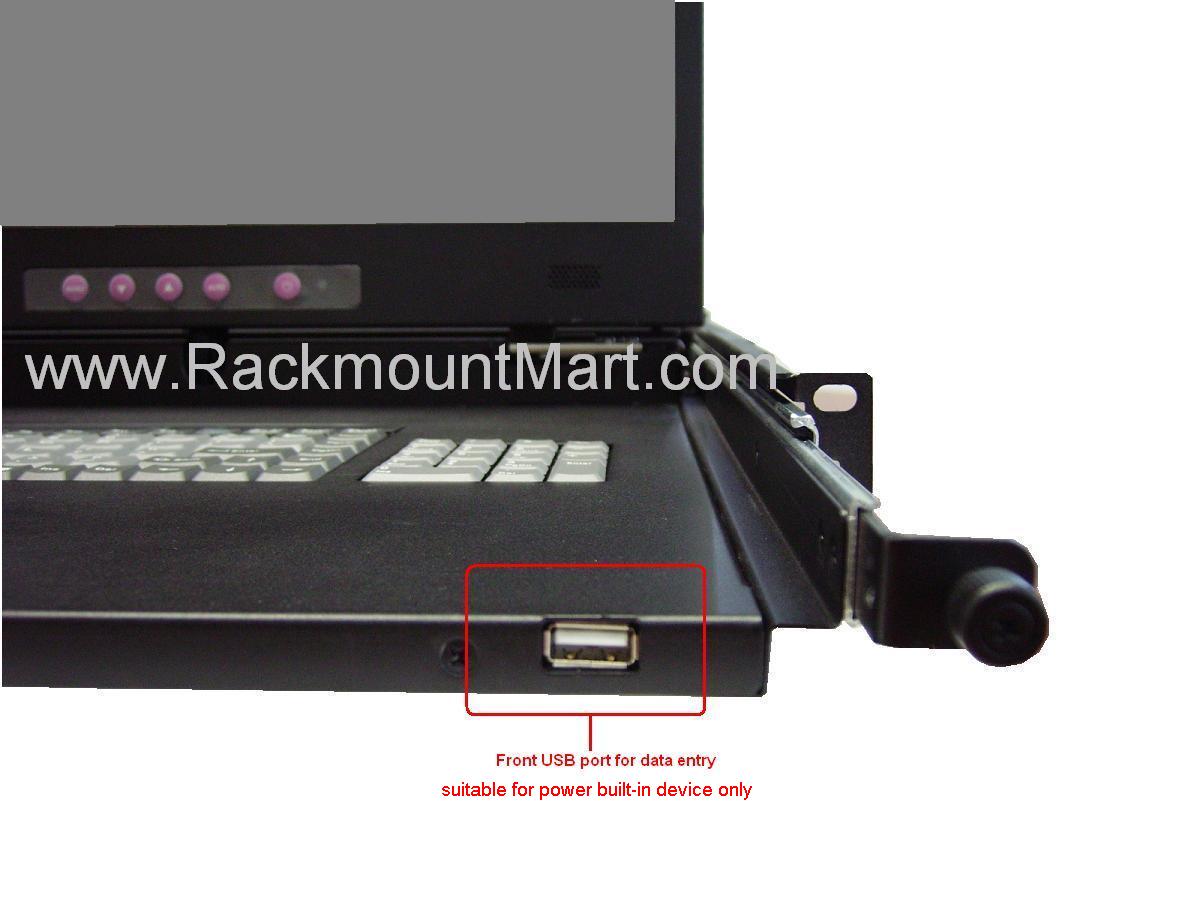

  • Front USB port for easy use (Available in single port model and for power built-in device only )

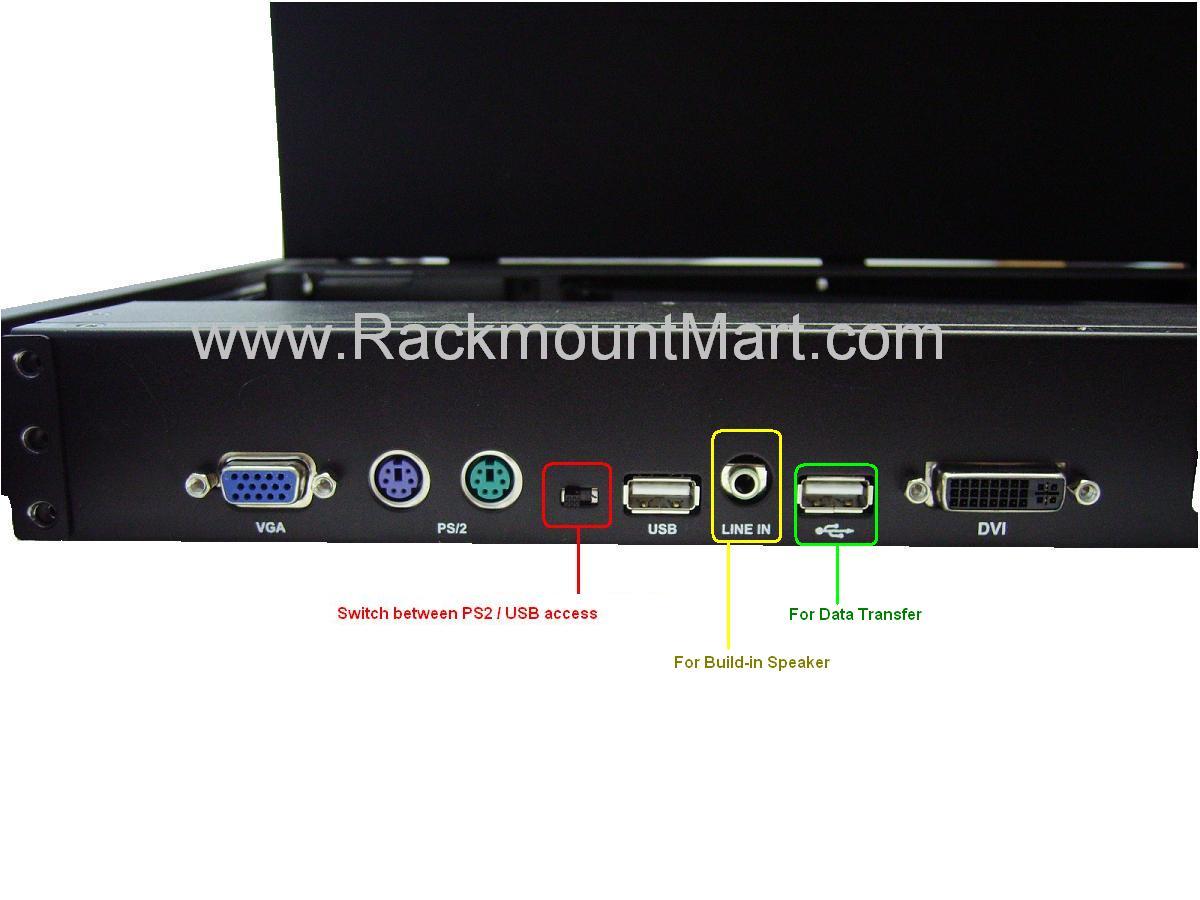

  • Support combo PS2 / USB and DVI-D interface (Single port only)

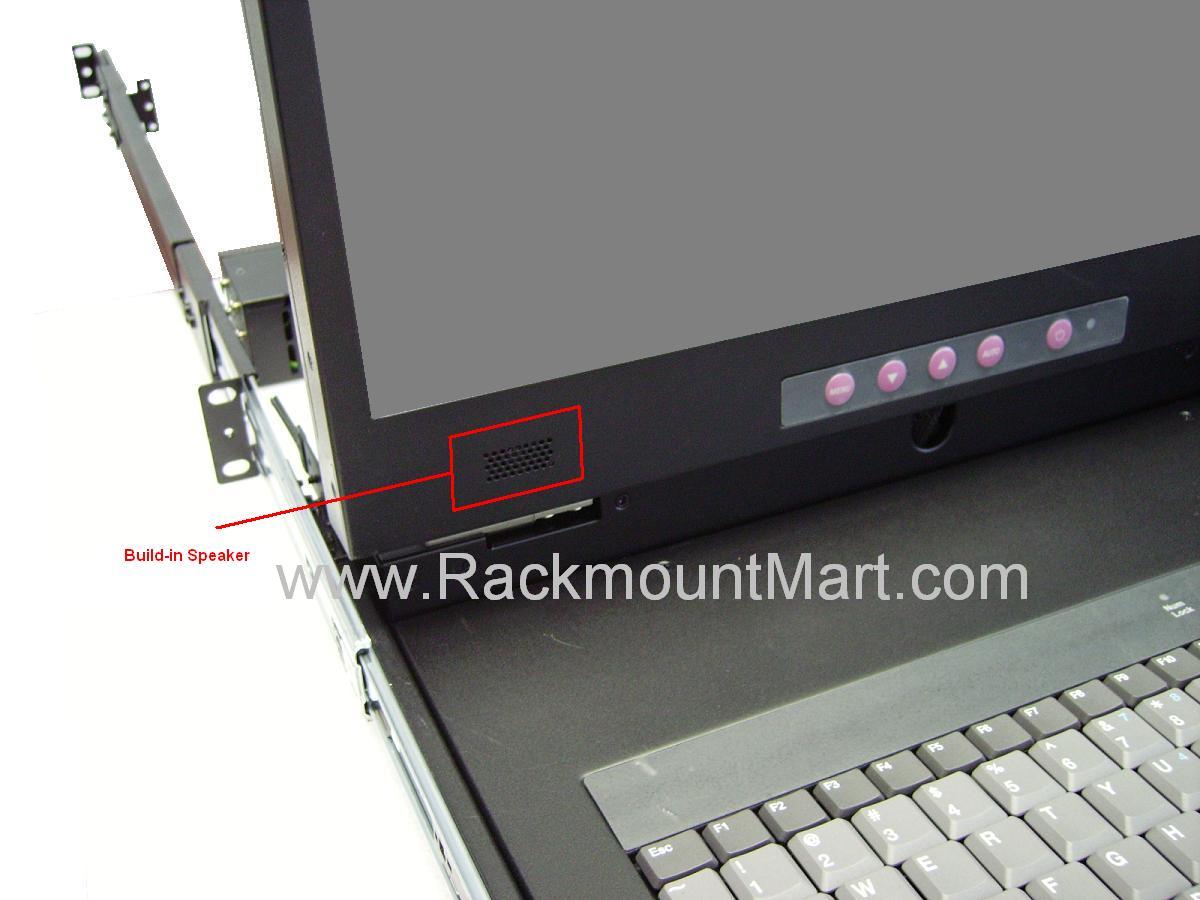

  • Audio function ( Single port only)

Ordering information :

  Single Port combo KVM PS2 & USB Combo interface
  Part # Description
 LCD1U20-04-n-co
 Price:$1,444.00
1U Rack monitor 20.1" TFT LCD Monitor Keyboard Drawer with VGA + **DVI input + **Speaker + **Front USB port ( for power built-in device only ), touchpad mouse and COMBO PS2 / USB single port KVM and 1 x 6-ft PS2 KVM cable & 1 x USB cable included, Black
 LCD1U20-04-n-co-ps2
 Price:$1,444.00
1U Rack monitor 20.1" TFT LCD Monitor Keyboard Drawer with VGA + **DVI input + **Speaker + **Front USB port ( for power built-in device only ), touchpad mouse and COMBO PS2 / USB single port KVM and 1 x 6-ft PS2 KVM cable included, Black
 LCD1U20-04-n-co-usb
 Price:$1,444.00
1U Rack monitor 20.1" TFT LCD Monitor Keyboard Drawer with VGA + **DVI input + **Speaker + **Front USB port ( for power built-in device only ), touchpad mouse and COMBO PS2 / USB single port KVM and 1 x 6-ft PS2 KVM cable & 1 x USB cable included, Black
  8 Port  PS2 & USB Combo / CAT5 / DVI-USB interface
  Part # Description
 LCD1U20-04-8KVM-n-co
 Price:$1,660.60
1U Rack monitor 20.1" TFT LCD Monitor Keyboard Drawer with touchpad mouse and 8 port Combo PS2 / USB KVM and total of 8 x customer's choice of PS2 and USB 6-ft KVM cable included, Black
 LCD1U20-04-U8KVM-n-co
 Price:$1,639.00
1U Rack monitor 20.1" TFT LCD Monitor Keyboard Drawer with touchpad mouse & 8 port Combo CAT5 KVM, Black RoHS Compliant. Dongles not included.
 LCD1U20-04-8DVI-n
 Price:$1,902.50
1U Rack monitor 20.1" TFT LCD Monitor Keyboard Drawer with touchpad mouse & 8 port DVI KVM switch & USB INTERFACE and 8 x DVI & USB cables included, Black RoHS Compliant
  16 Port  PS2 & USB Combo / CAT5 interface
  Part # Description
 LCD1U20-04-16KVM-n-co
 Price:$1,788.40
1U Rack monitor 20.1" TFT LCD Monitor Keyboard Drawer with touchpad mouse and 16 port Combo PS2 / USB KVM and total of 8 x customer's choice of PS2 and USB 6-ft KVM cable included, Black
 LCD1U20-04-U16KVM-n-co
 Price:$1,788.10
1U Rack monitor 20.1" TFT LCD Monitor Keyboard Drawer with touchpad mouse & 16 port Combo CAT5 KVM, Black RoHS Compliant. Dongles not included.
  32 Port  PS2 & USB Combo / CAT5 interface
  Part # Description
 LCD1U20-04-U32KVM-n-co
 Price:$1,923.10
1U Rack monitor 20.1" TFT LCD Monitor Keyboard Drawer with touchpad mouse & 32 port Combo CAT5 KVM, Black RoHS Compliant. Dongles not included.
  PS2 & USB Combo / CAT5 KVM over-IP interface (Local + IP remote consoles)
  Part # Description
 LCD1U20-04-8KVM2IP-n-co
Price: $2,078
1U Rack monitor 20.1" TFT LCD Monitor Keyboard Drawer w/ Notebook KB & touchpad & 2 consoles (Local + IP) Combo 8 port KVM & KVM Over IP , 8 x Combo PS2/USB 6-ft KVM cables included, Black RoHS Compliant
 LCD1U20-04-16KVM2IP-n-co
Price: $2,190
1U Rack monitor 20.1" TFT LCD Monitor Keyboard Drawer w/ Notebook KB & touchpad & 2 consoles (Local + IP) DB-15 16 port KVM & KVM Over IP , 16 x Combo PS2/USB 6-ft KVM cables included, Black RoHS Compliant
 LCD1U20-04-U8KVM2IP-n-co
Price: $2,158
1U Rack monitor 20.1" TFT LCD Monitor Keyboard Drawer w/ Notebook KB & touchpad & 2 consoles (Local + IP) 8 port CAT5 KVM & KVM Over IP, Black RoHS Compliant. Dongles not included.
 LCD1U20-04-U16KVM2IP-n-co
Price: $2,289
1U Rack monitor 20.1" TFT LCD Monitor Keyboard Drawer w/ Notebook KB & touchpad & 2 consoles (Local + IP) 16 port CAT5 KVM & KVM Over IP,, Black RoHS Compliant. Dongles not included.
 LCD1U20-04-U32KVM2IP-n-co
Price: $2,439
1U Rack monitor 20.1" TFT LCD Monitor Keyboard Drawer w/ Notebook KB & touchpad & 2 consoles (Local + IP) 32 port CAT5 KVM & KVM Over IP,, Black RoHS Compliant. Dongles not included.
Optional Input
 -DVI
 Price:$50
Add 1 x DVI-D Input
Optional Hot Key
 -S
 Price:$80
Add SUN Hot Keys to Keyboard
Optional Keyboard
 -C
 Price:$200
Add Cherry Trackball Keyboard ( Height extended to 1.5U )
Optional DC power
-DC12
 Price:$130
Add 12V DC power supply        DC sheet
-DC24
 Price:$130
Add 24V DC power supply        DC sheet
-DC48
 Price:$130
Add 48V DC power supply        DC sheet
-DC125
Call for pricing
Add 125V DC power supply
-DC250
Call for pricing
Add 250V DC power supply
Optional Cable
 LCD-A2001
 Price:$43
Add VGA-USB dongle
 LCD-A2002
 Price:$43
Add VGA-PS2 dongle
 LCD-A2003
 Price:$68
Add DVI-USB dongle
 LCD-A4001
 Price:$13
Add 6 ft PS2 Cable + USB adapter
 LCD-A4002
 Price:$21
Add 10 ft PS2 Cable + USB adapter
 LCD-A4003
 Price:$35
Add 15 ft PS2 Cable + USB adapter
 LCD-A4011
 Price:$13
Add 6 ft USB Cable
 LCD-A4012
 Price:$20
Add 10 ft USB Cable
 LCD-A4013
 Price:$26
Add 15 ft USB Cable
Optional Bracket
 -SBK
 Price:$80
Upgrade to 24 mounting brackets. For single-port model only.
