  1U SUN Rack Console with Monitor Keyboard and Optional KVM  :  Part #   LCD1U19-19
       NOVA SUN Rack Console : 1U SUN Rack mounted  with 19" TFT LCD Monitor Keyboard Drawer

(  TAA compliant, UL Listed ) with Combo PS2 & USB interface
                                            Optional  8 Port KVM or 16 port KVM  /  DVI Input / DVI KVM

                                      General Information

Form Factor

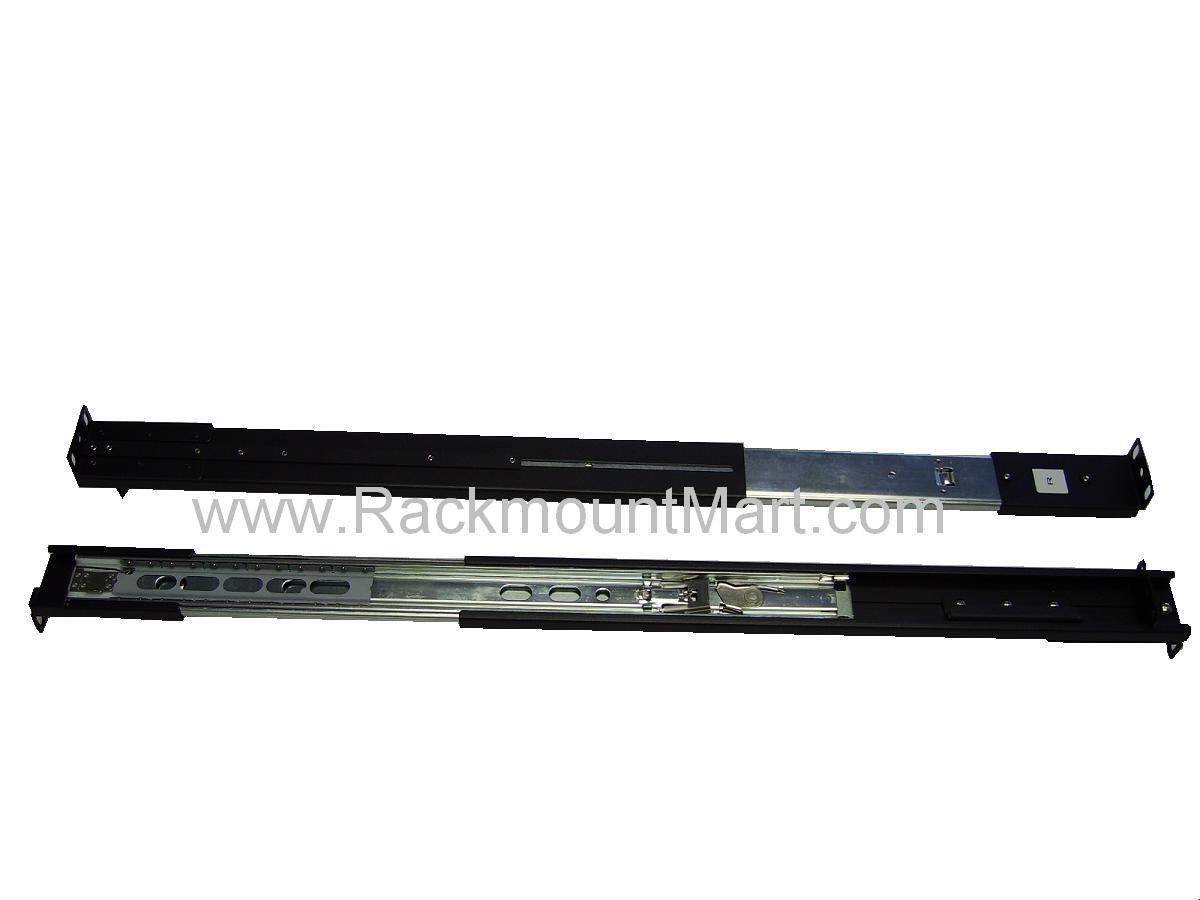

1U Rack mounting on slide-out rails

Compatibility

Multi-platform : Support PS/2, SUN and USB

                                                  LCD Screen

LCD Type

 19" Active Matrix TFT LCD

Display Size

 19 inch

Resolutions

Max Resolution up to 1152 x 900 @ 66/76 Hz

Response time

Rising Time 1.3 ms, Falling Time 3.7 ms

Contrast ratio

1000 : 1

Brightness

250 cd/ m2

Pixel pitch

0.098mm  x 0.294mm

Panel color

16.7 million display colors (8-bit with FRC)

Back Light

Dual Lamps for Back Light

Viewing angle (CR >10)

 Right-Left view 170° (Typ)
 Up-Down View 160° (Typ)

                                     Keyboard & Pointing Device

Keyboard Type

106 key PS/2 Keyboard with Touchpad &
Numerical key pad


                                  Other Features

System Cables

 VGA + Combo PS2 & USB cable

Sync

 45 ~ 80 KHz

                                Power Supply



-Power Source : 100-240 VAC input
-Power Consumption :
13.6W for Panel
                                KVM

Port connection (All Female Type)

 D-Sub 15

Number of Port

 0 / 8 / 16

Max. Distance (KVM switch - Host )

 5m (15ft )

Daisy Chain Port

Support Daisy Chain function with 8-layer Bus topologies Connector DB15 (Female Type)

PC Selection

On Screen Display (OSD) Menu, Hot Key, Push Button

Security

Provide ACL (Access Control List) security function, store up to 8 independent controllable PC lists

Multi-Lingual OSD

Pr8 languages (English, France, Germen, Spanish, Italian, Russian, Japanese, Chinese)

Keyboard / Mouse Emulation

 PS/2 or USB

                                  OPTIONS



- Color (Black / Beige / OEM color)
- 8 port or 16 port KVM
-
DC power (-48V ~ +48V / + - 12V )
DVI Input
- SUN Hotkeys
- Touch Screen

-
Rear bracket extension up to 1030mm
-
Detachable keyboard plate
-
Signal cable 1.8m / 3.0m / 5.0m
-
Audio function

                                  Environmental
   Temperature Operate 0°~ 50°C / 32°~ 122°F
Storage-20°~ 60°C / -4°~ 140°F
 Humidity  10 % ~ 90 % RH
                                  Mechanical Dimension
Single port 482 x 554x 44 mm / 19 x 21.8 x 1.7 inches
8/16 port KVM 482 x 664 x 44 mm / 19 x 26.1 x 1.7 inches
                              Regulatory Approval
  CE /FCC, UL /CUL /C-Tick / TAA

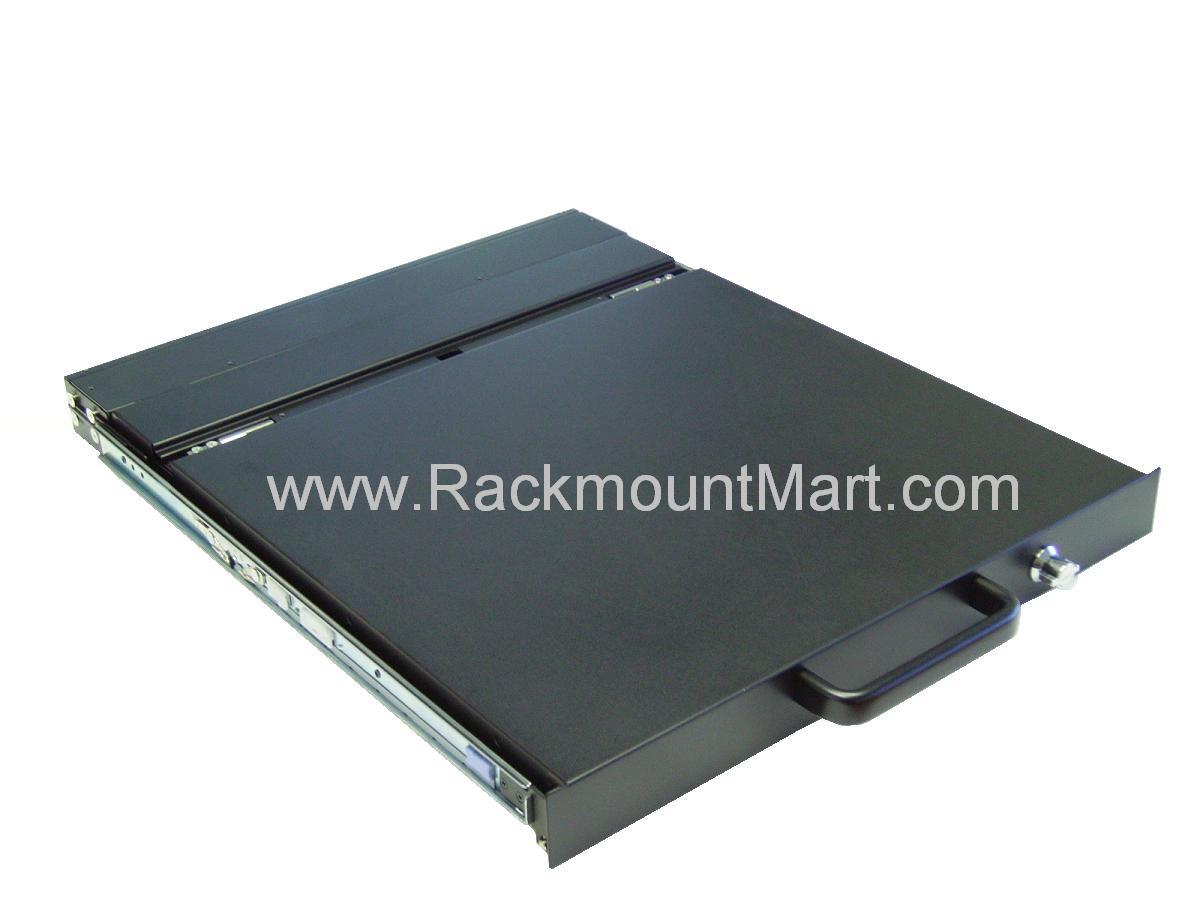

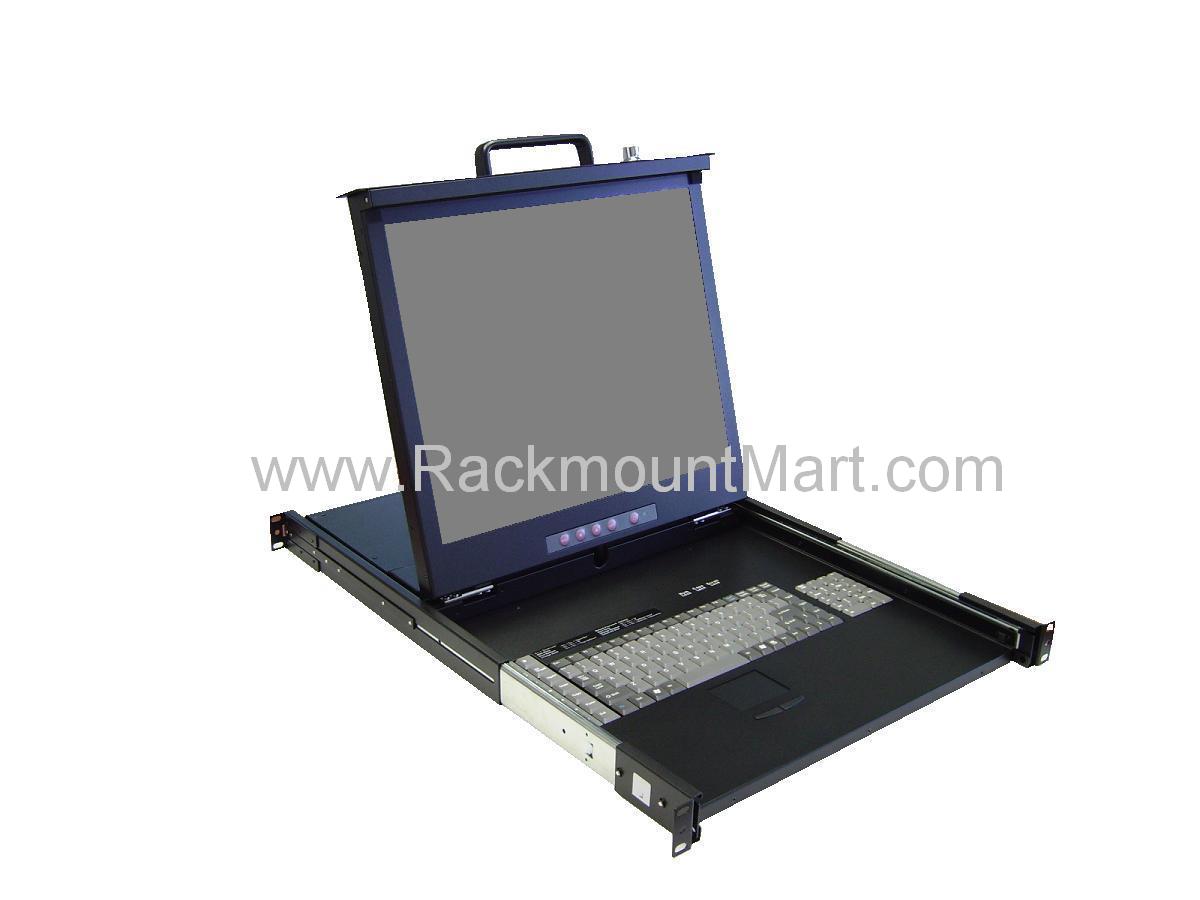

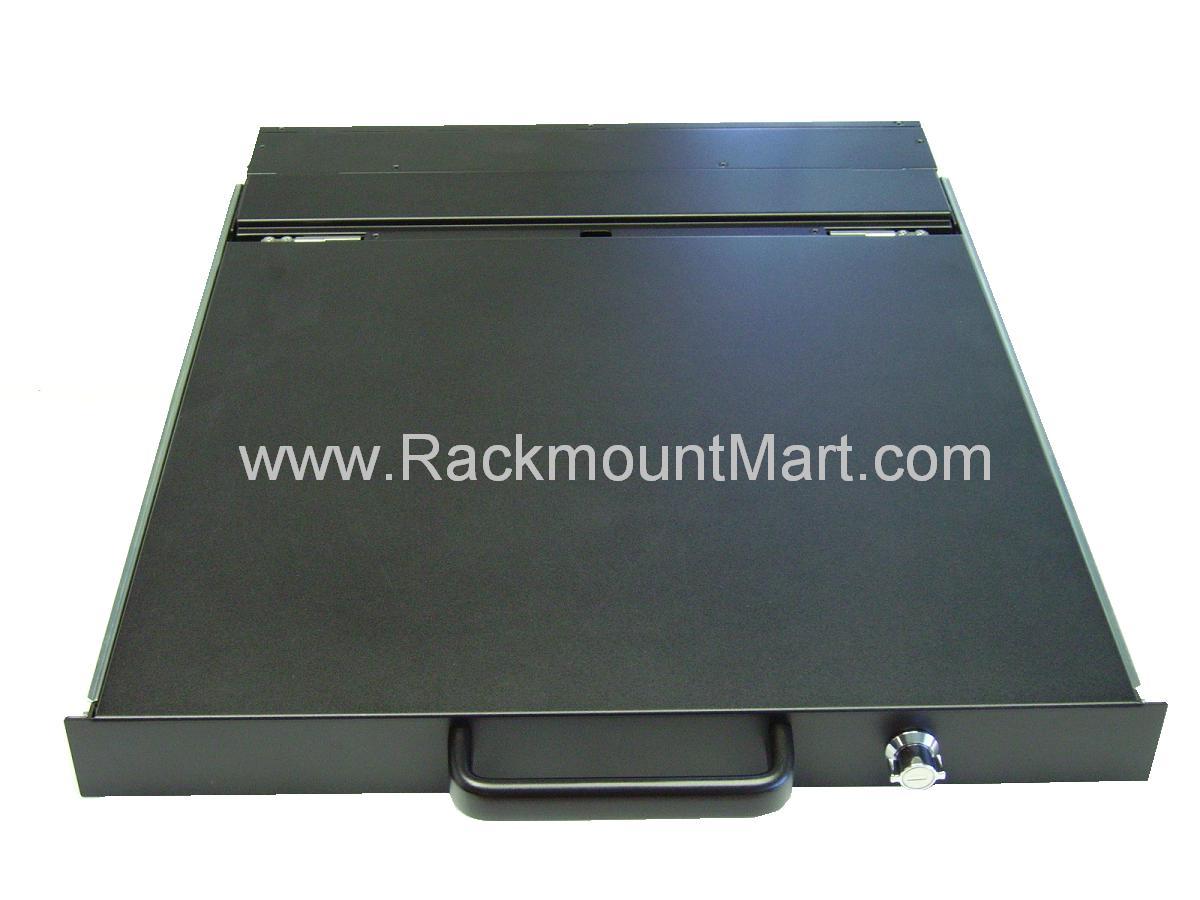

  LCD1U19-19 and Built in SUN Hot Keys



   *click on photos for enlarged view

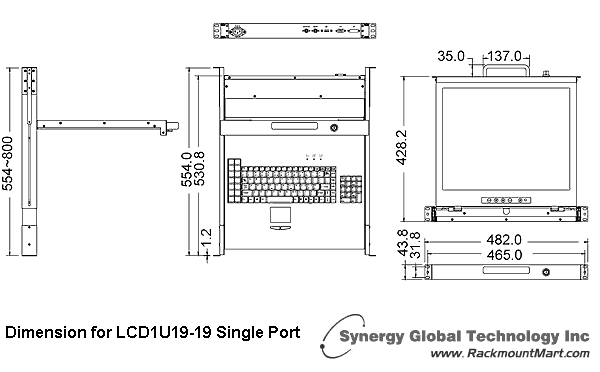

Dimension for Single Port model

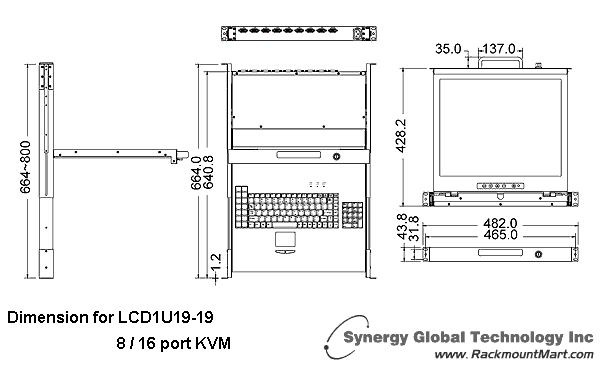

Dimension for 8 / 16 Port KVM model

      *click on above picture for enlarged view



           Download Product Sheet

           Download User Manual

           Download Installation Guide

           Download Hot key Command List

Free Ground Shipping*Click for details

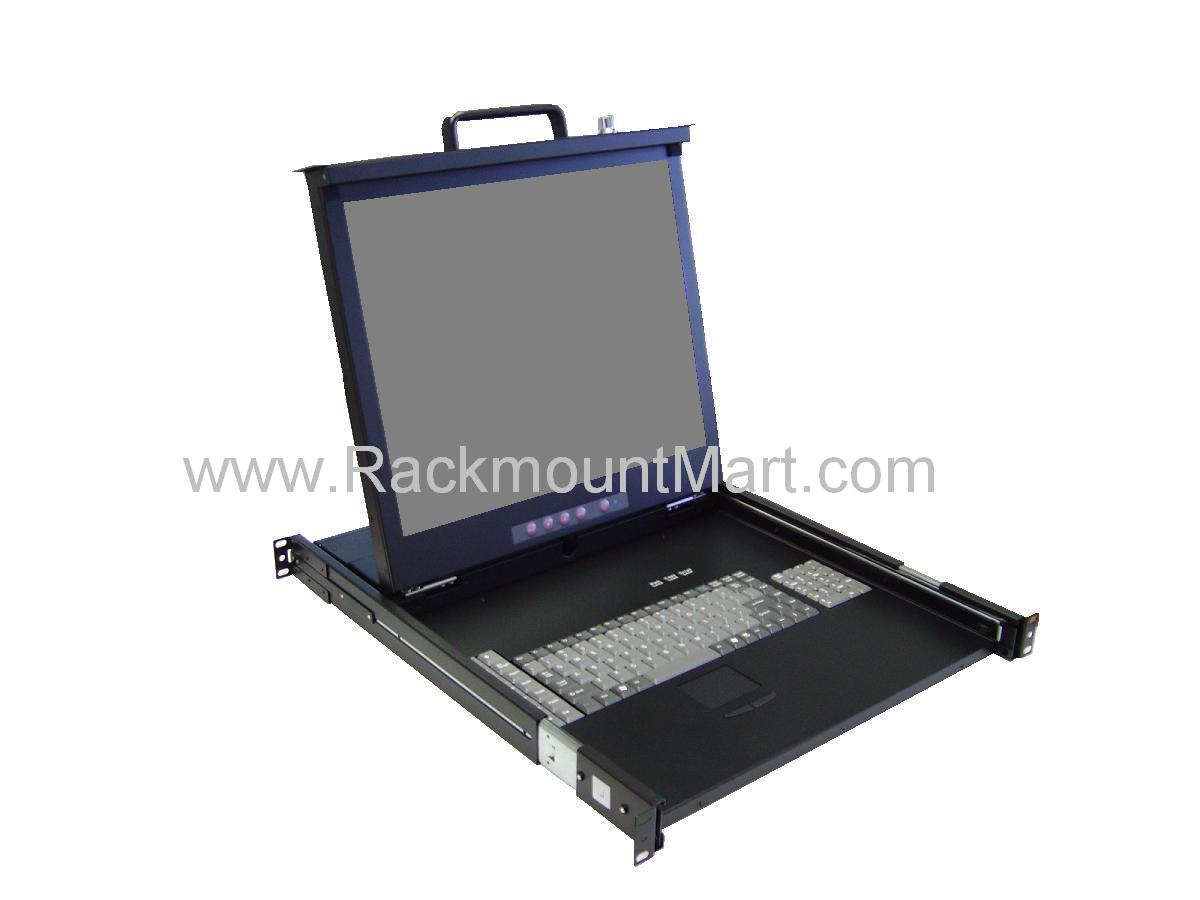

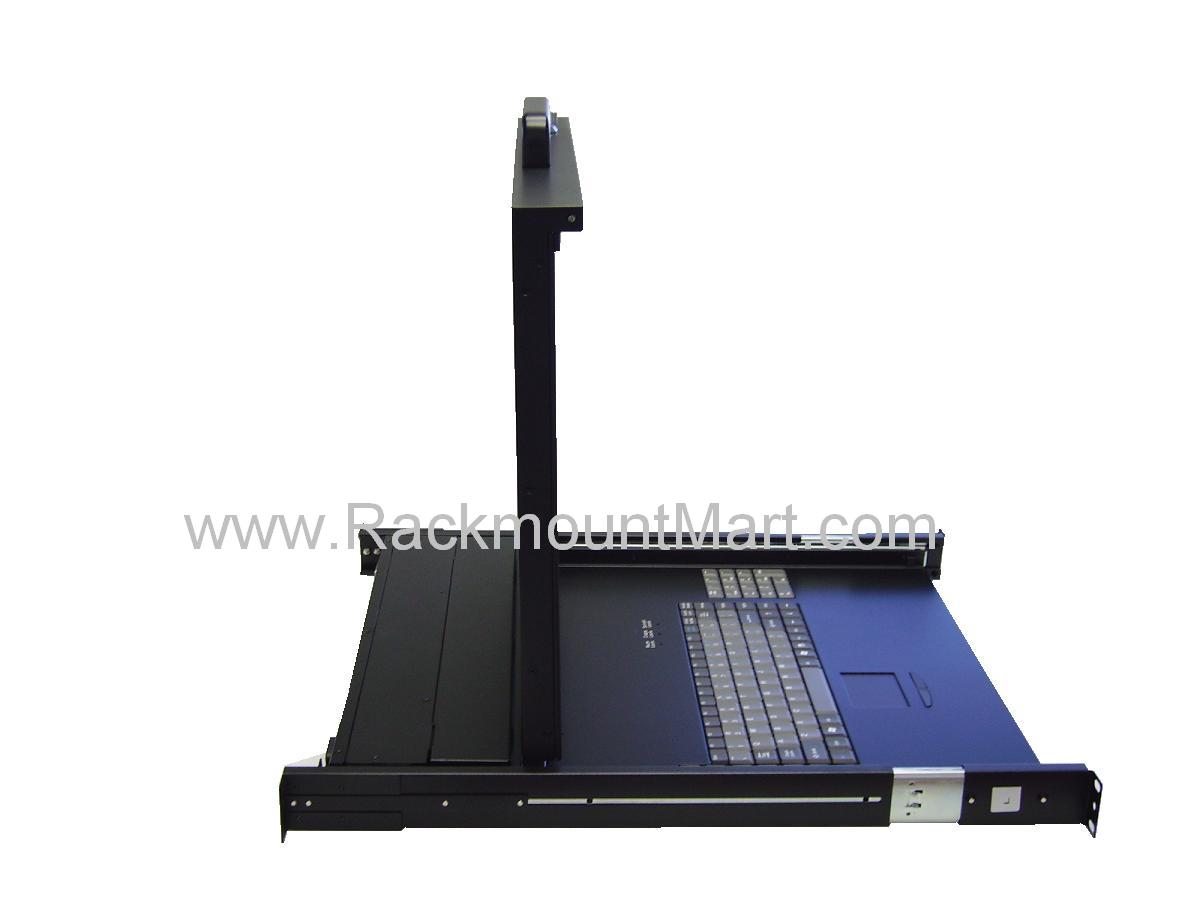

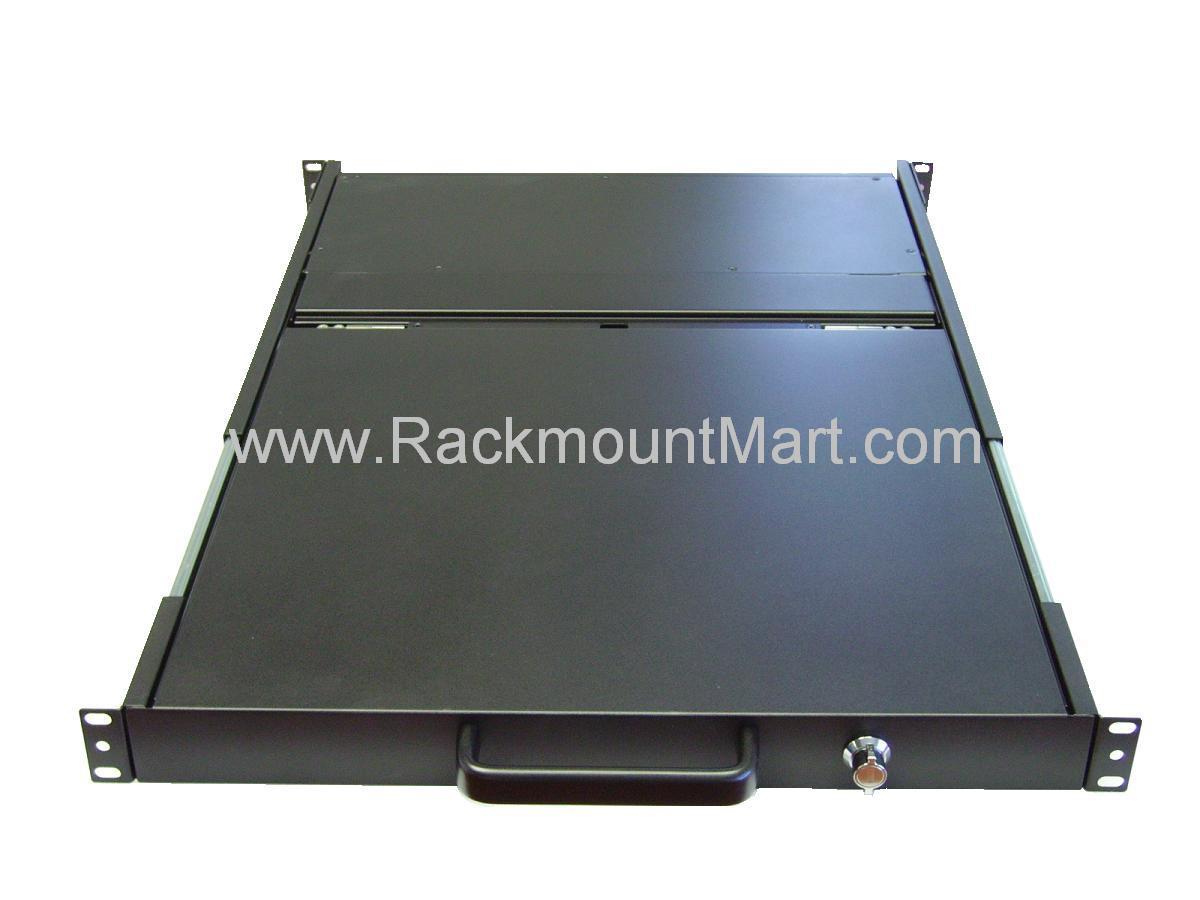

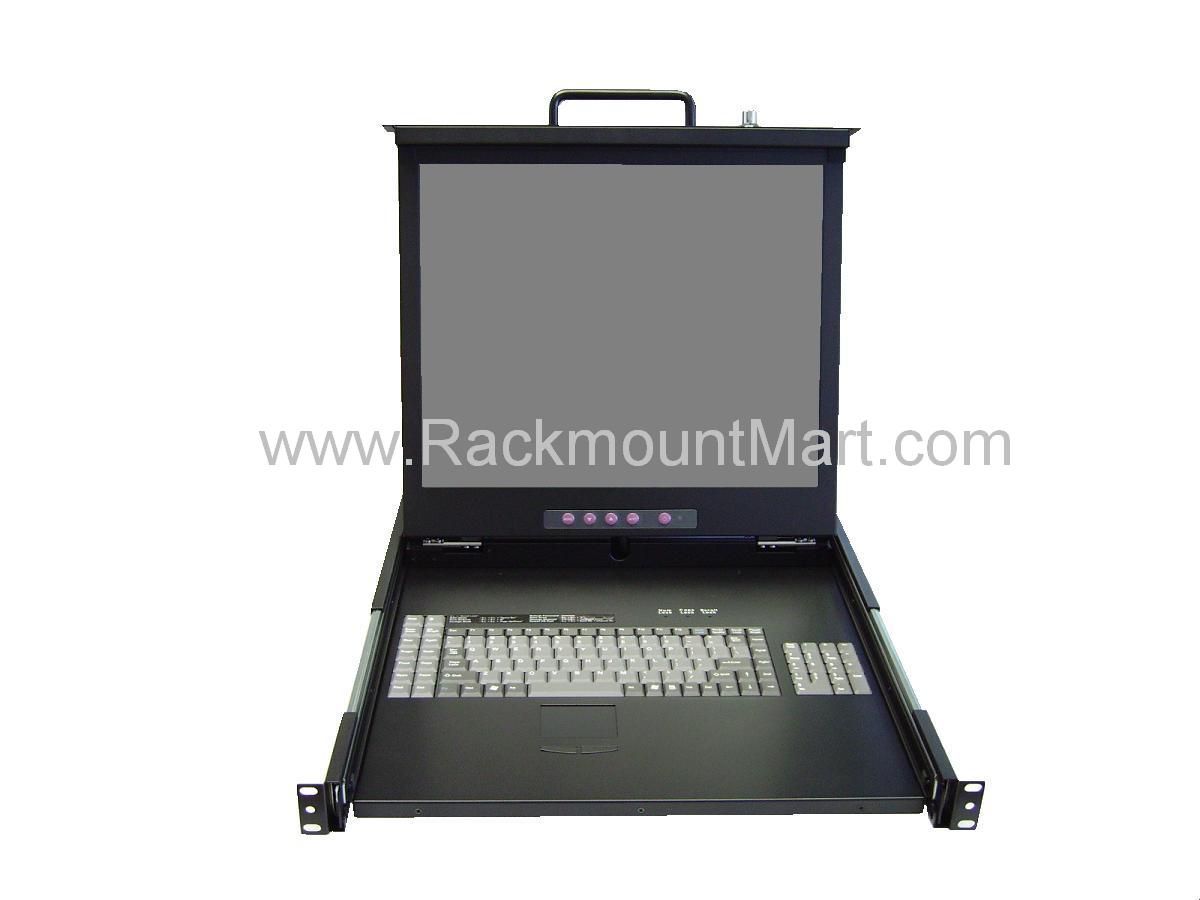

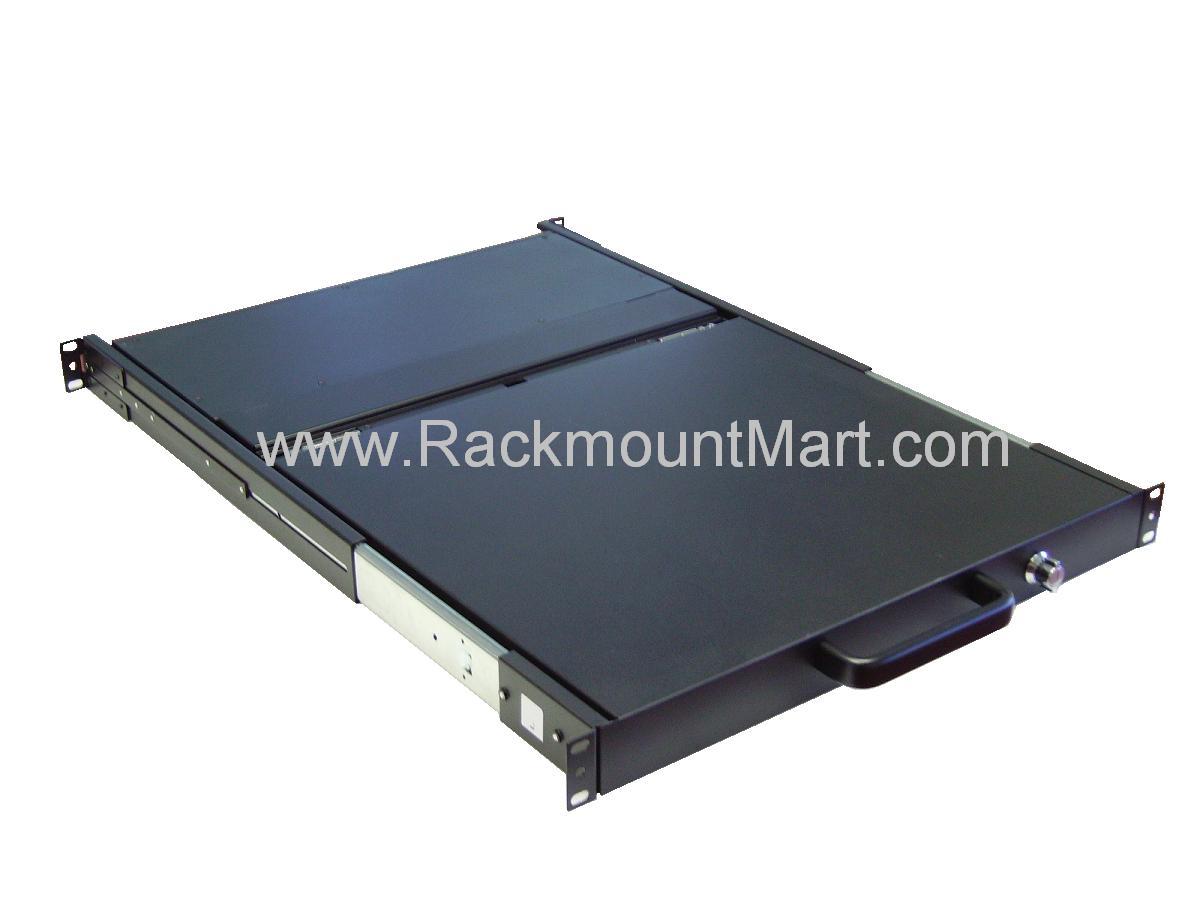

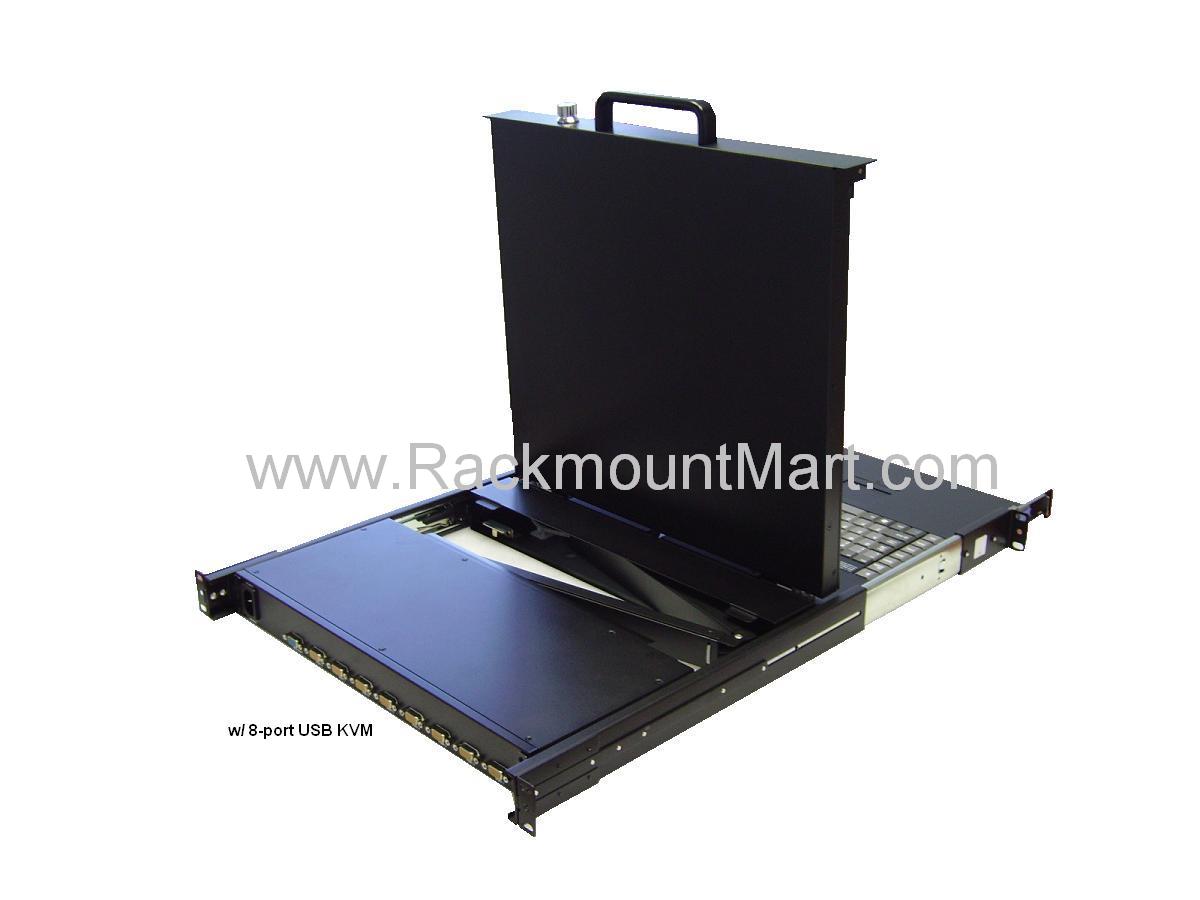

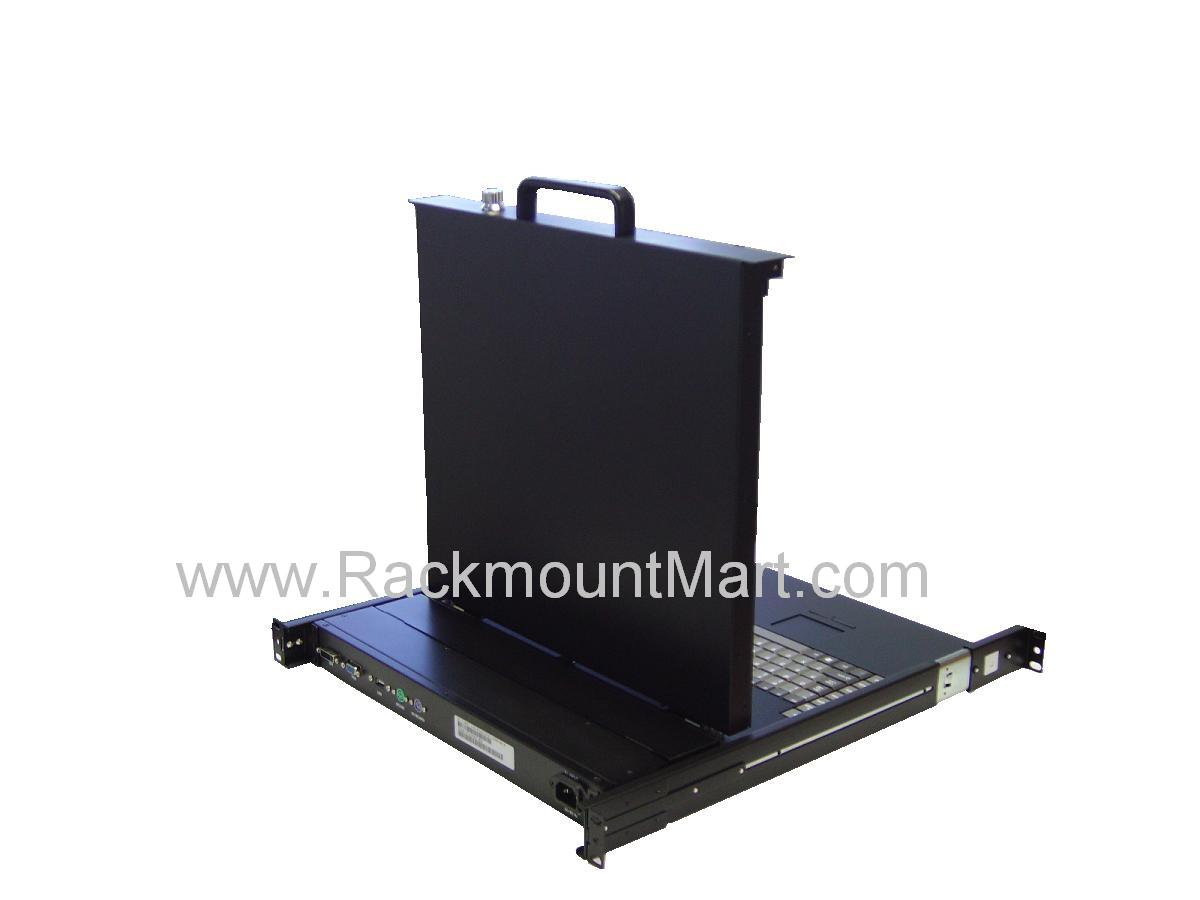

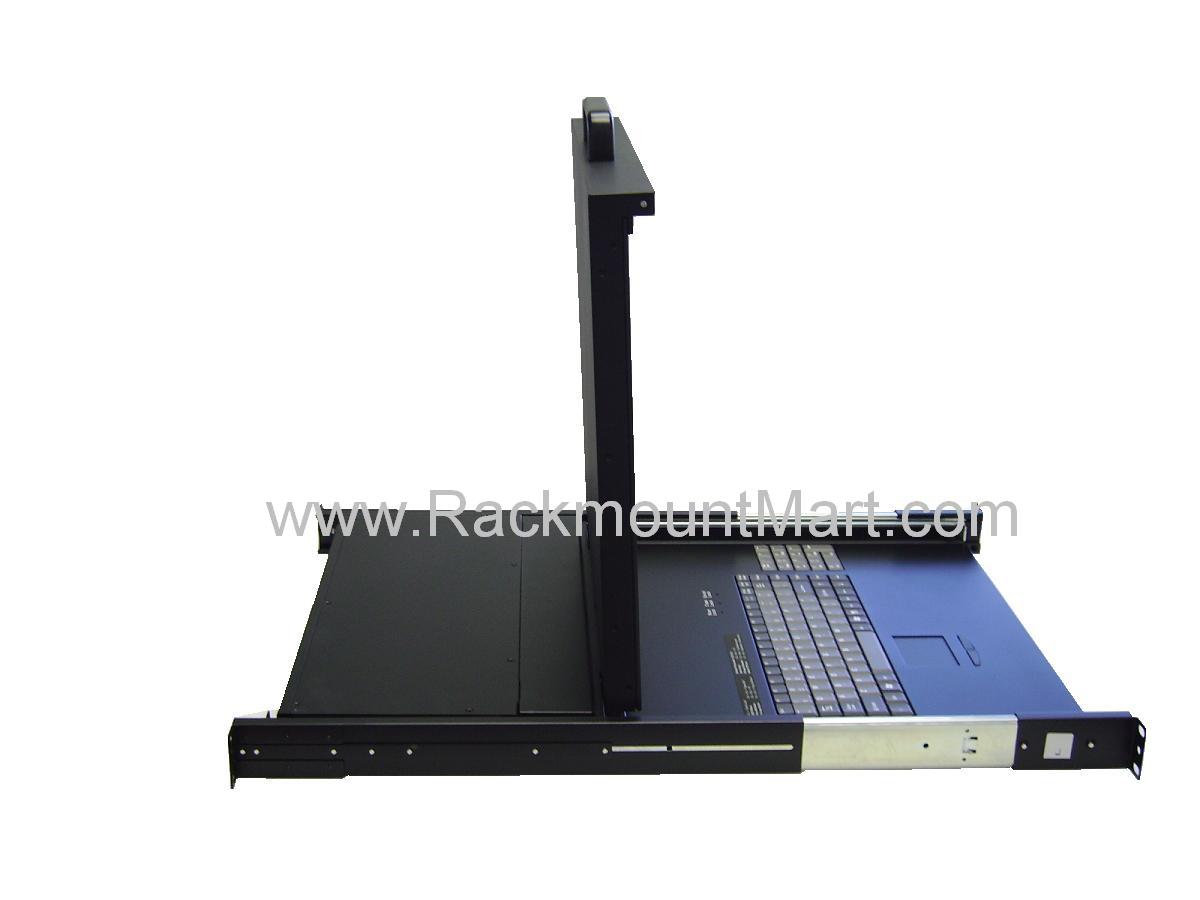

  More photos (click to enlarge )




FEATURES :
  • Panel protected by tempered glass
  • TAA compliant , UL listed and RoHS compliant
  • OSD function (On Screen Display) for LCD display
  • Heavy duty steel materials

 KVM INFORMATION :

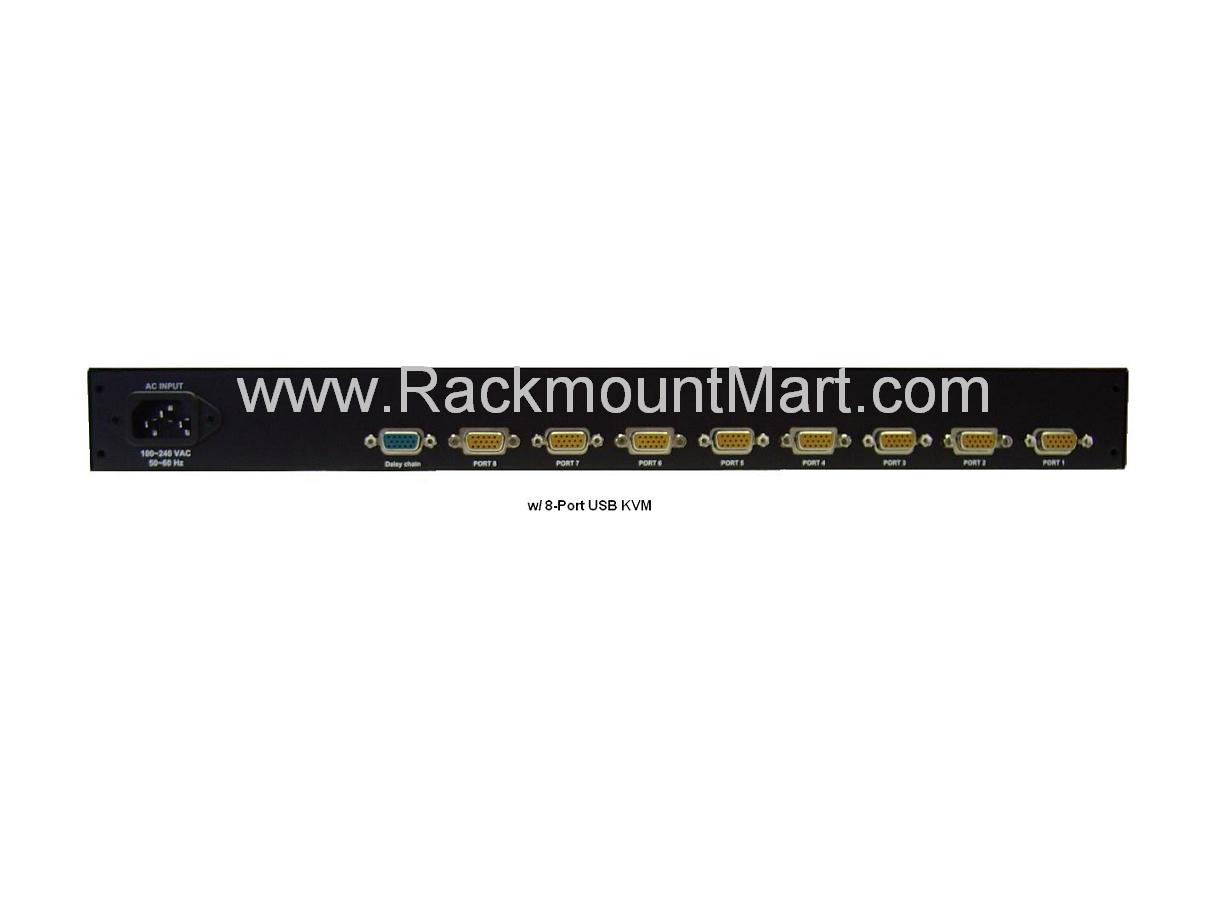

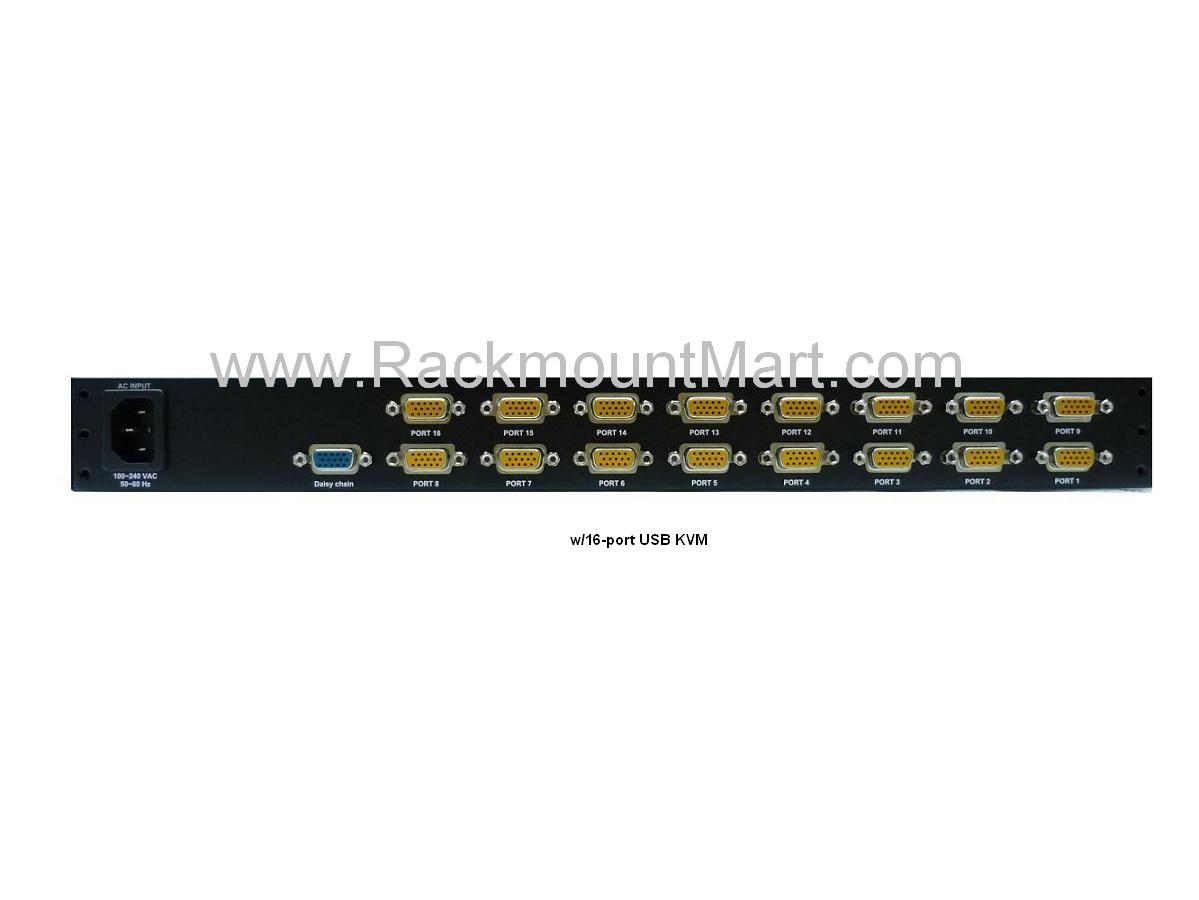

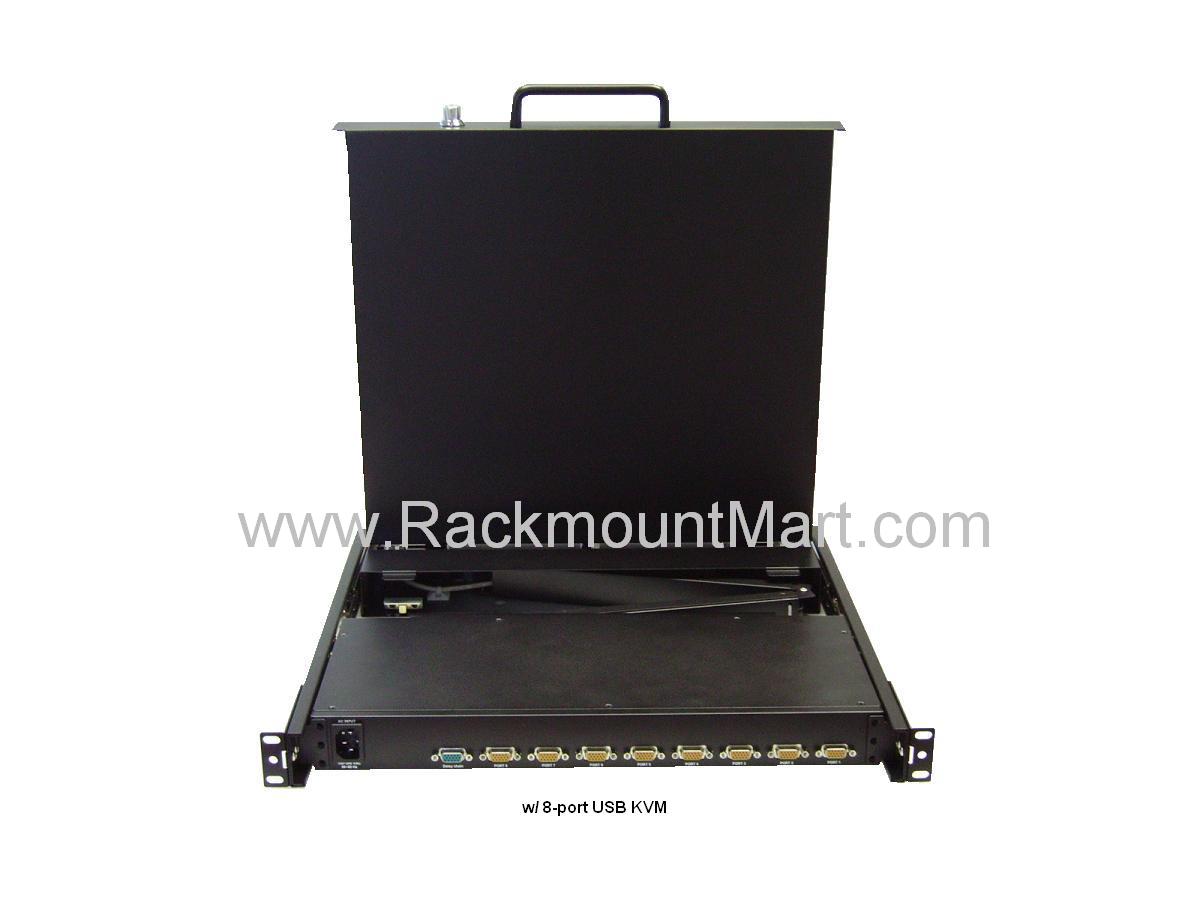

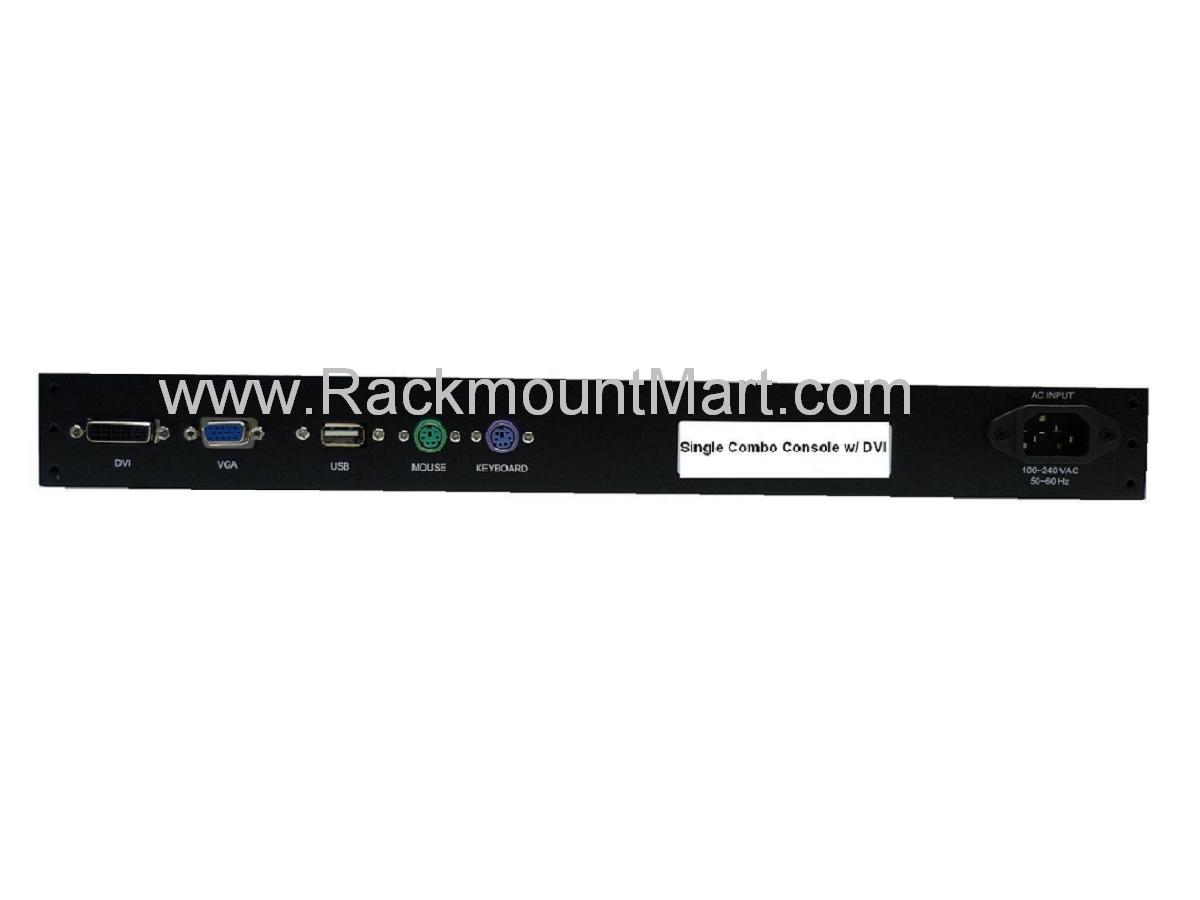

  KVM Rear View and Connection Diagram


 8-DVI Rear View (Click to enlarge)

Ordering information :

  Single Port combo KVM
  Part # Description
 LCD1U19-19-n

1U SUN Rack monitor 19" TFT LCD Monitor Keyboard Drawer with VGA + **DVI input, SUN hot-key, touchpad and *1 USB 6-ft cable included, Black
  8 Port  KVM / PS2 or Optional PS2 & USB Combo interface
  Part # Description
 LCD1U19-19-8KVM-n
1U SUN Rack monitor 19" TFT LCD Monitor Keyboard Drawer with SUN hot-key, touchpad & 8 port USB KVM and total of 8 x USB 6-ft KVM cables included, Black. RoHS Compliant
 LCD1U19-19-8DVI-n
1U SUN Rack monitor 19" TFT LCD Monitor Keyboard Drawer with SUN hot-key, touchpad & 8 port DVI KVM and total of 8 x DVI & USB KVM cables included, Black. RoHS Compliant
  16 Port  KVM / PS2 or Optional PS2 & USB Combo interface
  Part # Description
 LCD1U19-19-16KVM-n
1U SUN Rack monitor 19" TFT LCD Monitor Keyboard Drawer with SUN hot-key, touchpad & 16 port USB KVM and total of 8 x USB 6-ft KVM cables included, Black. RoHS Compliant
  Options
  Part # Description
 -DVI
Add 1 x DVI-D Input
-DC12
Add 12V DC power supply        DC sheet
-DC24 Add 24V DC power supply        DC sheet
-DC48
Add 48V DC power supply        DC sheet
-DC125
Add 125V DC power supply
