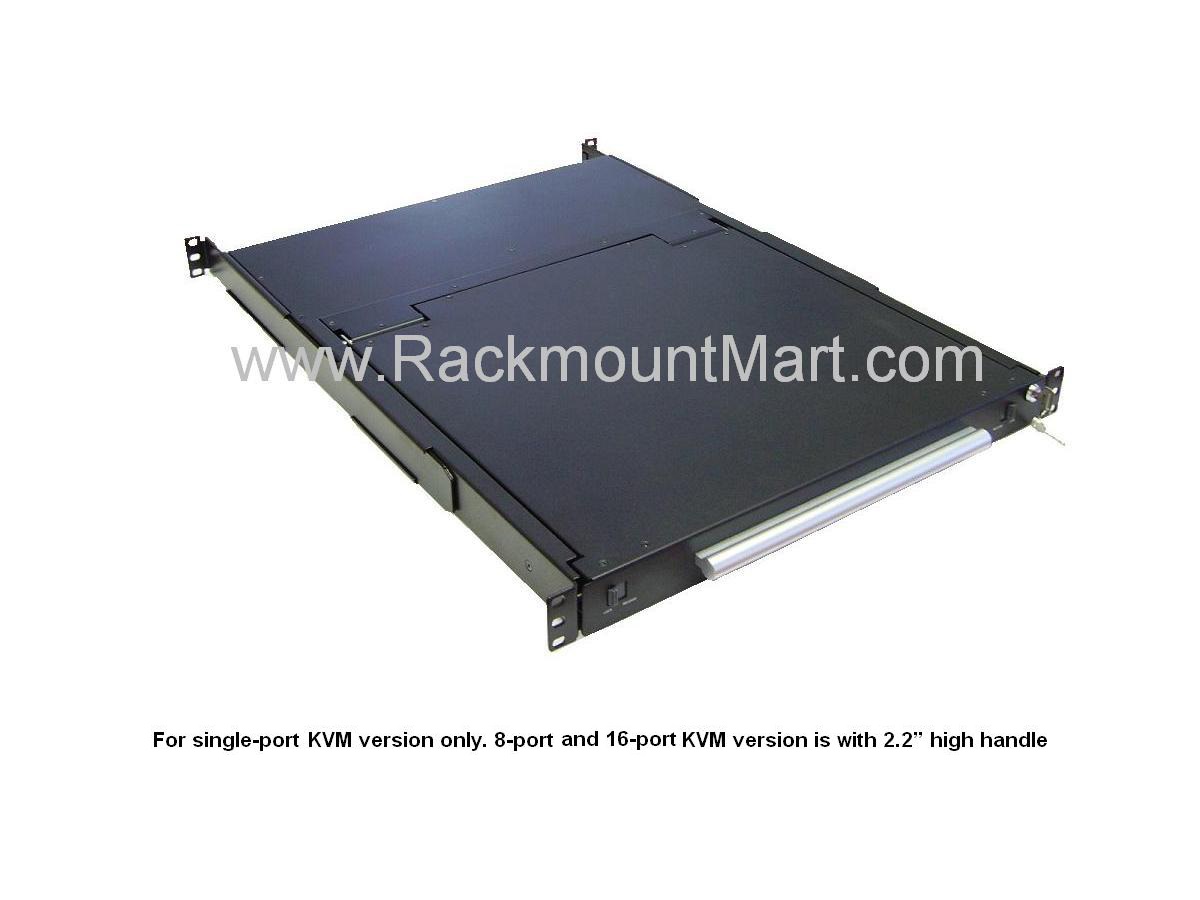

1U Rack Mount LCD Monitor Keyboard Tray with 8-port or 16-port KVM Switch option
Model LCD1U19-17

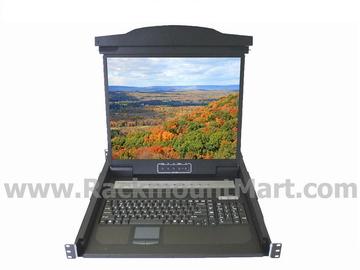

NOVA 1U Rack Mounted 19" TFT LCD Monitor Keyboard Drawer with COMBO PS2 / USB input
Short Dept : 22.9" / 582mm only, CE & FCC approved

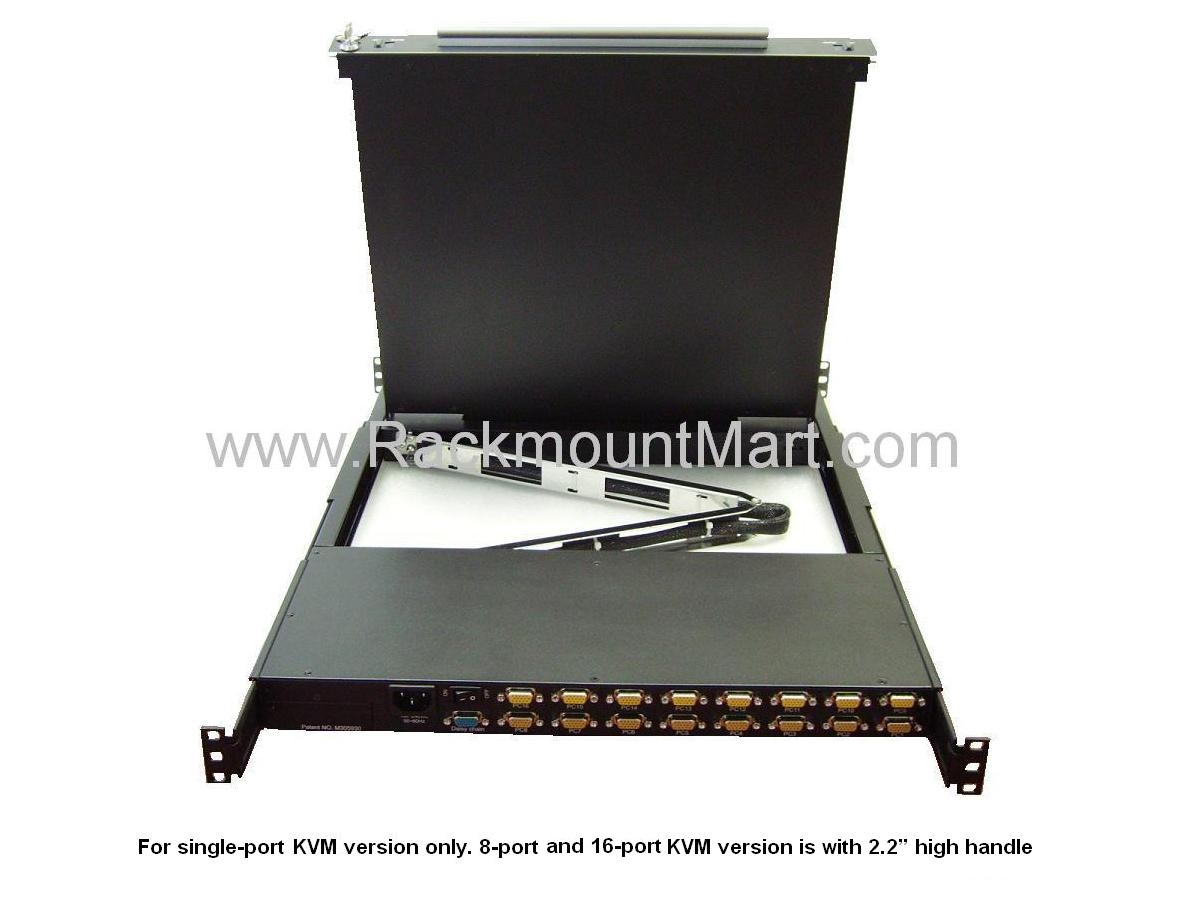

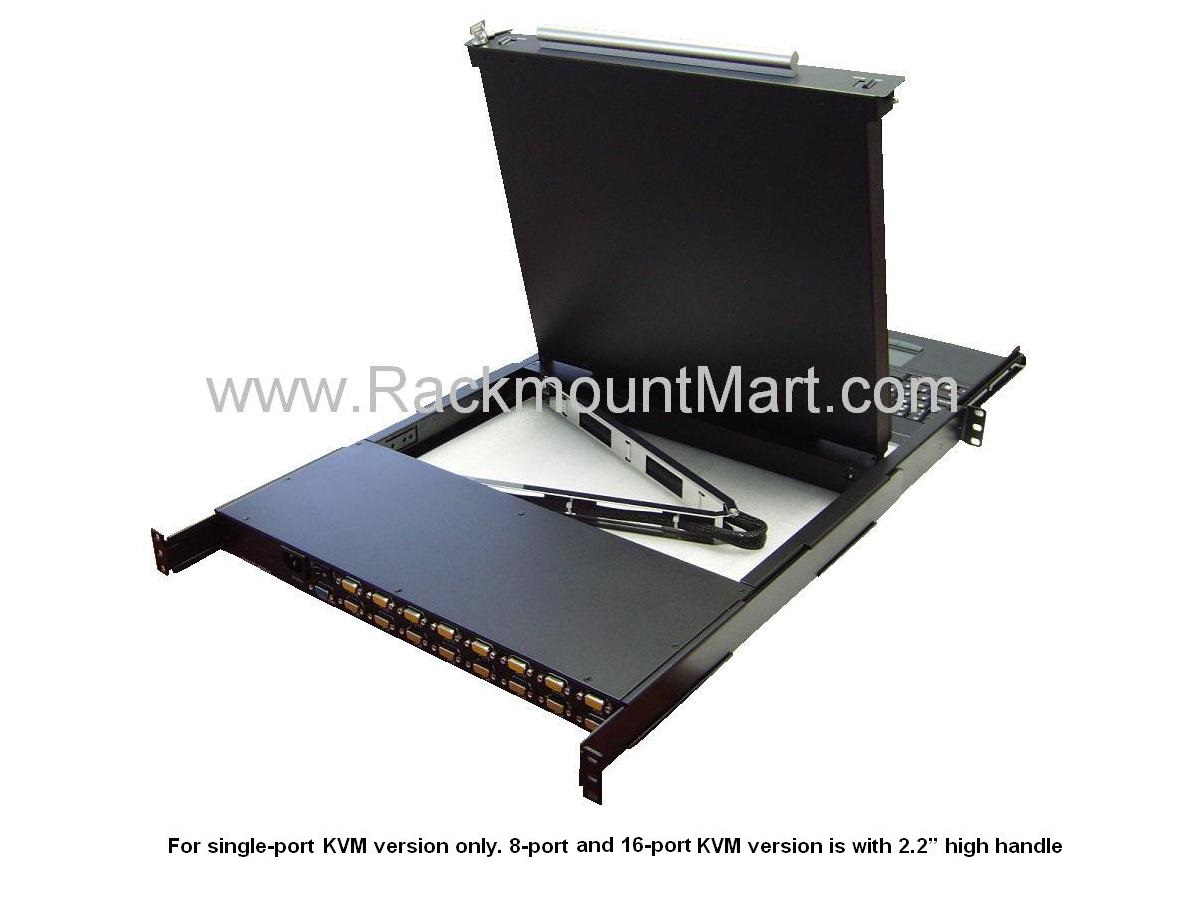

Optional 8 port / 16 port COMBO PS2 / USB KVM

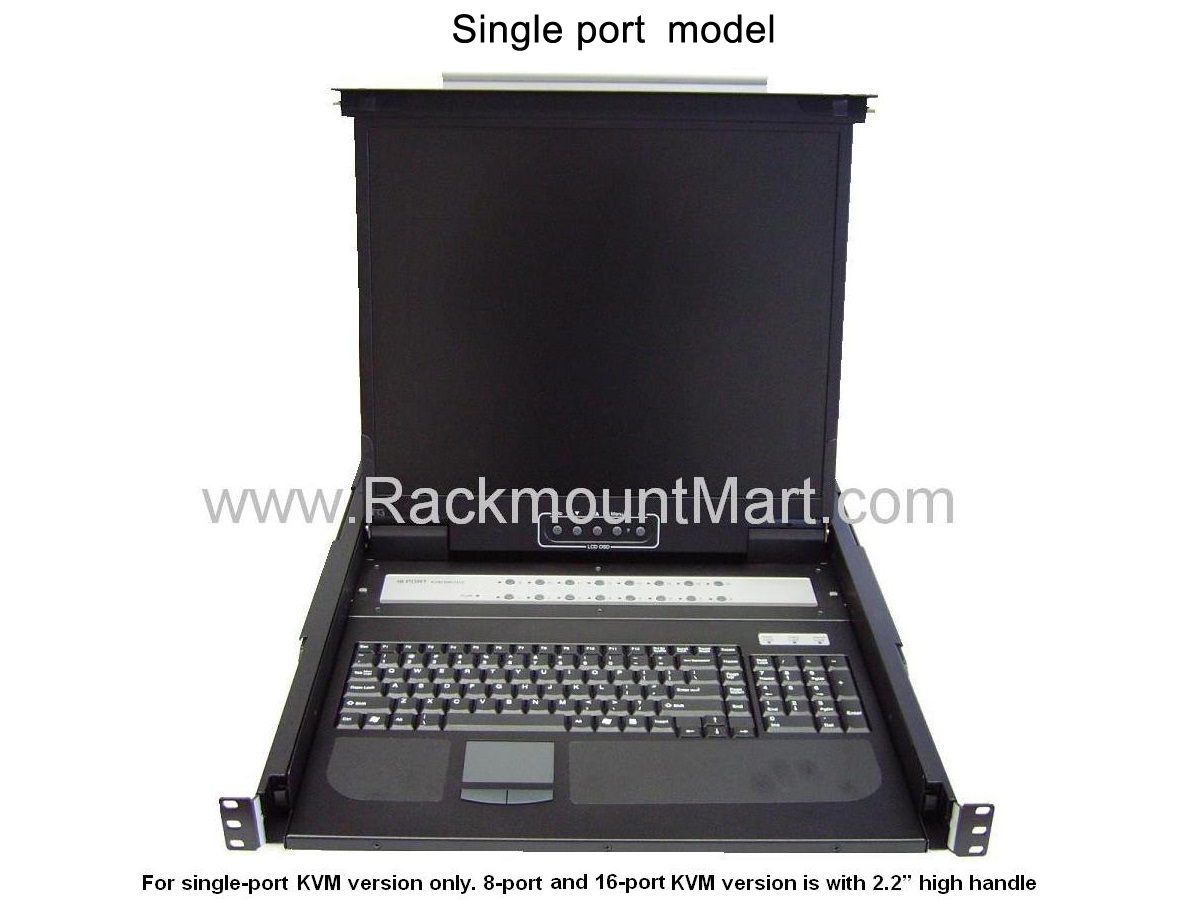

Single port
8 port model & 16 port model
Data Sheet    Diagram
User Manual
 Free Ground Shipping. Learn More.

Gallery





  • CE & FCC Approved
  • 19" 1U Rack LCD Monitor single port, 8 ports KVM Console, 16 ports KVM Console

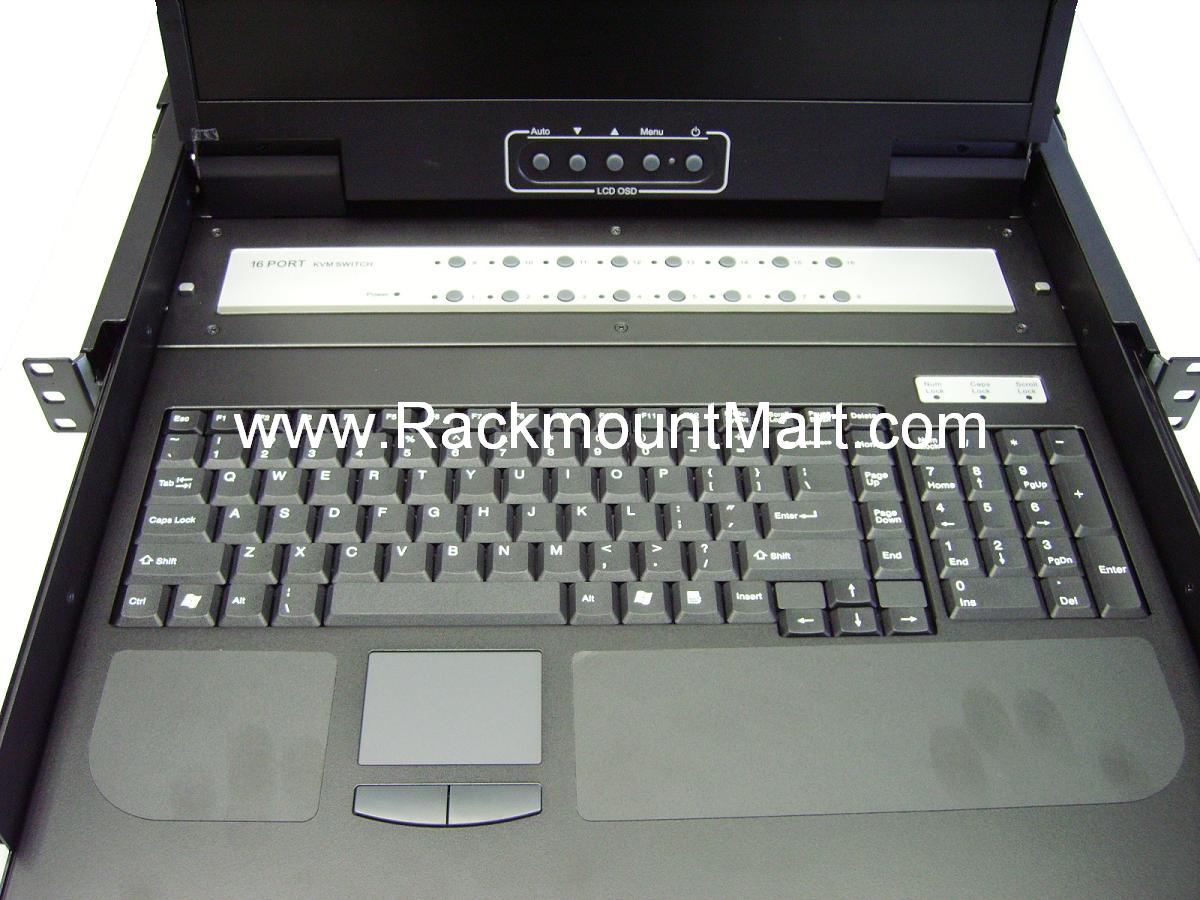

  • 103-key keyboard and integrated Touch Pad

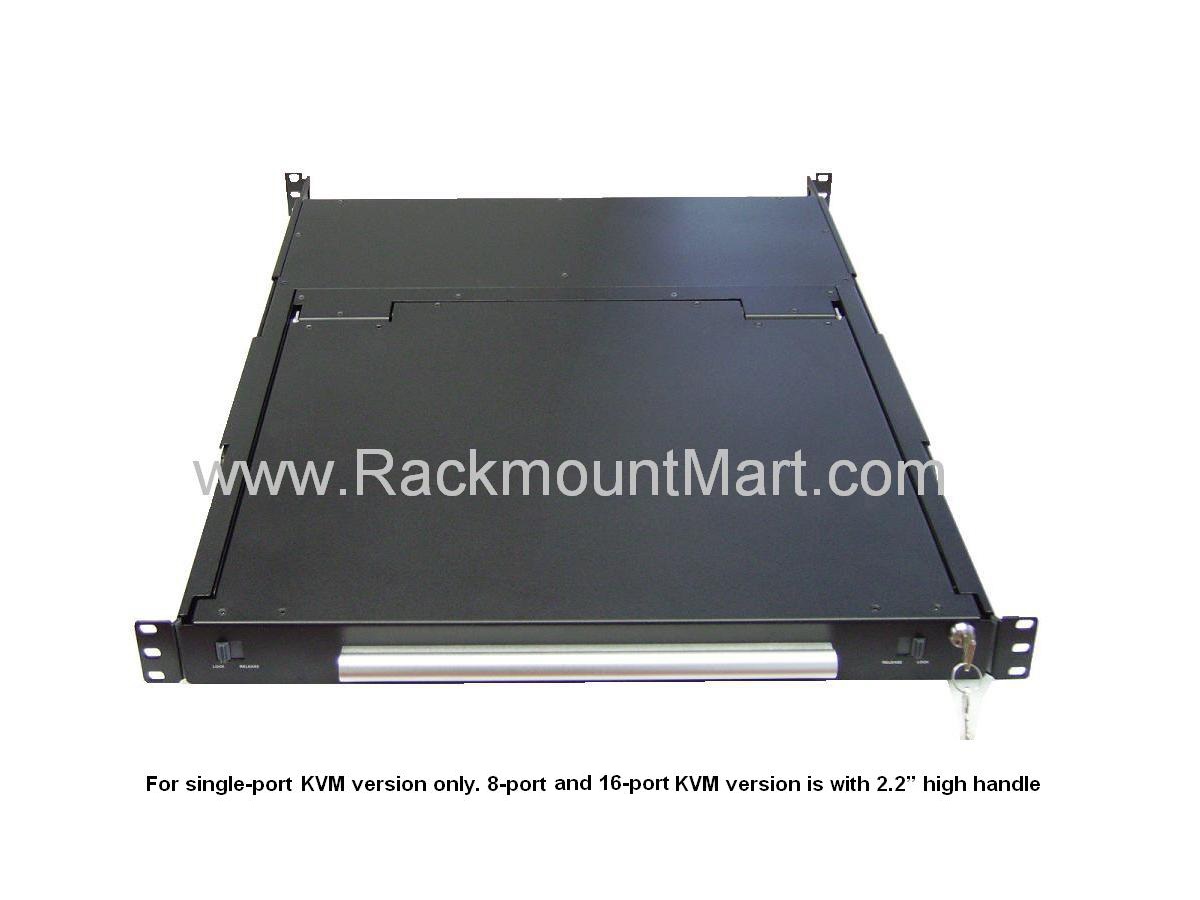

  • Built-in Rail Self-locking device
  • Support combo (PS/2 & USB) interface for connecting to computer ports conveniently
  • One optional remote console (Insertion Card : CAT.5 or IP Module)
  • Support Daisy chain(8-layer) & Cascade(2-layer) function

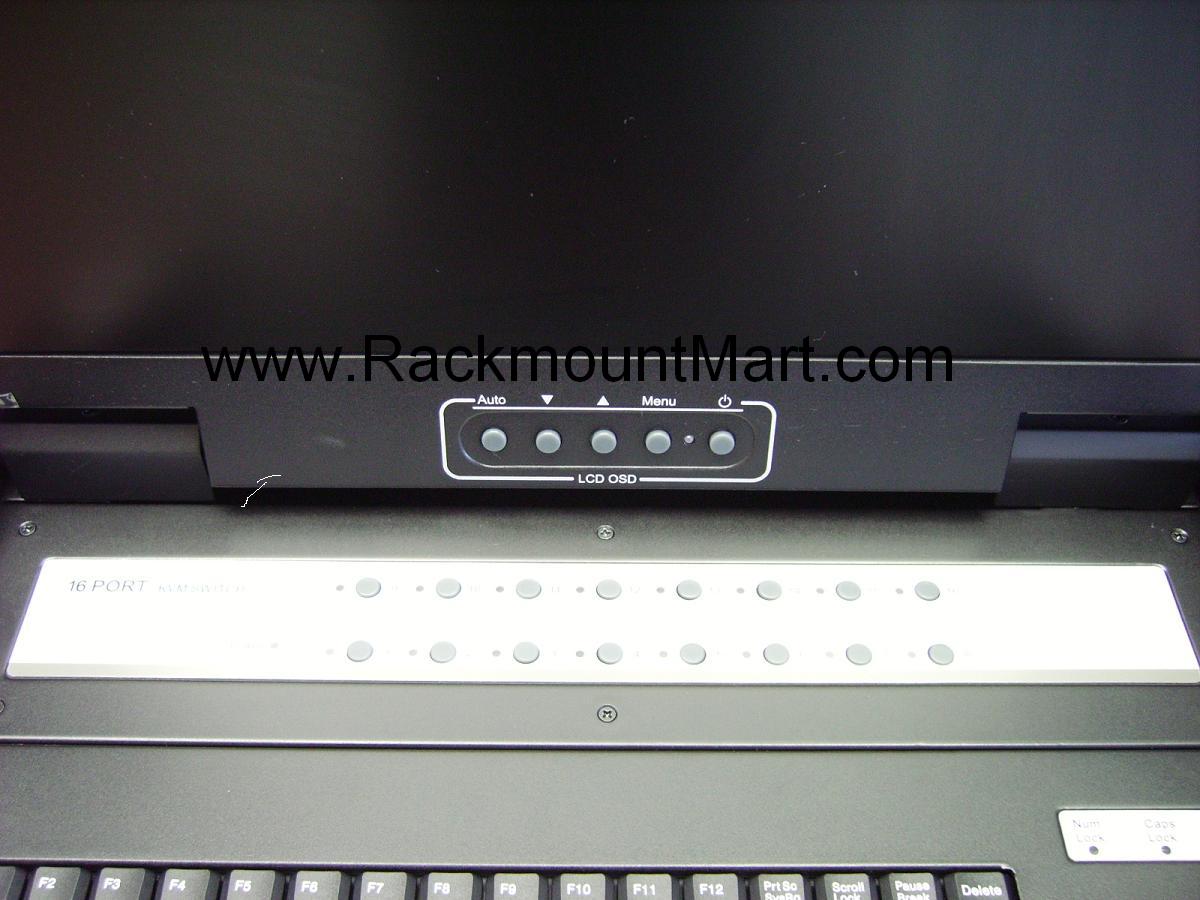

  • No Software Required --- easy computer selection via On Screen Display (OSD) Menu, Push Buttons, and Hotkeys
  • Provide various Hotkey (Scroll-Lock/ Cap-Lock/ Num-Lock/ L-Alt/ L-Ctrl/ L-Win/ R-Alt/ R-Ctrl/ R-Win) for switching computer port and other control functions, so Hotkey function can be used in various types of keyboards, and to avoid Hotkey duplicate problem
  • Operating system independent, transparent to all applications
  • Provide ACL (Access Control List) security function. Store up to 8 independent user accounts
  • Hot Plug --- add or remove connected computers without powering off the LCD Drawer
  • Support two user layers, and search computer/server name
  • Keyboard status restored when switching computer
  • Standard 19 inches rack mounting design
  • Max. Distance (LCD Drawer to Server):16 feet (5m)
  • CAT.5 - Based (Optional) Remote Console Module:RJ-45 Connector, CAT.5 console up to 1000 feet away from Drawer with superior, auto-adjust RGB gain/delay control capability
  • Over IP -Based (Optional) Remote Module: RJ - 45 8P8C for 10/100 M Ethernet, DB9 male for Modem, Null modem and serial power control, Mini USB 2.0 receptacle
  • Security: Provide ACL (Access Control List) security function, store up to 8 independent controllable Computers lists
  • Multilingual OSD (On Screen Display) control:8 Languages (English, France, Germen, Spanish, Italian, Russian, Japanese, Simplified Chinese)

I
II
III
Model No
LCD1U19-17
LCD1U19-17-8KVM
LCD1U19-17-16KVM
Certification

   CE & FCC Approved

Ports switch for PC
Single port
8 ports
16 ports
Dimension
483 × 582 × 44mm /
19.0" x 22.9" x 1.73"
(W x D x H)
483 × 582 × 44mm /
19.0" x 22.9" x 1.73"
(W x D x H)
483 × 582 × 44mm /
19.0" x 22.9" x 1.73"
(W x D x H)
Power Supply
AC 100-240V Universal
25W
AC 100-240V Universal
25W
AC 100-240V Universal
25W
KVM Cable
1
8
16

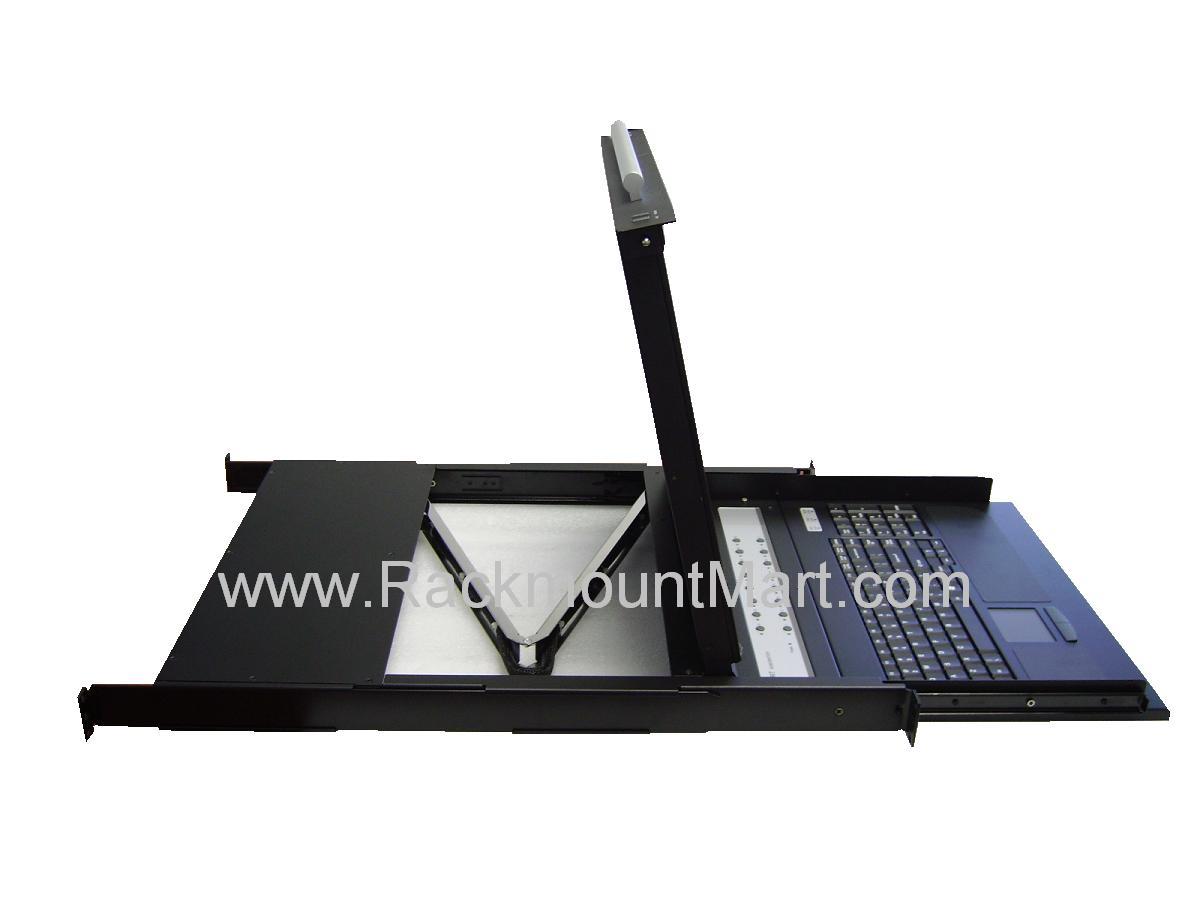

Extension Rail
Up to 35.4" (900mm)
Up to 35.4" (900mm)
Up to 35.4" (900mm)
Chassis
Heavy-duty Steel
Keyboard
Mechanical 103-key keyboard and integrated Touch Pad
Language
US (standard), Optional : UK, Chinese etc
Color
Black
Protection
Anti-glare Tempered glass
Auto Power Switch
                          LCD back-light will automatically shut off when the screen set fold
Security Lock
Thumb screw x 2
Environmental Consideration
0°C~50°C in operating; -20°C~60°C in storage

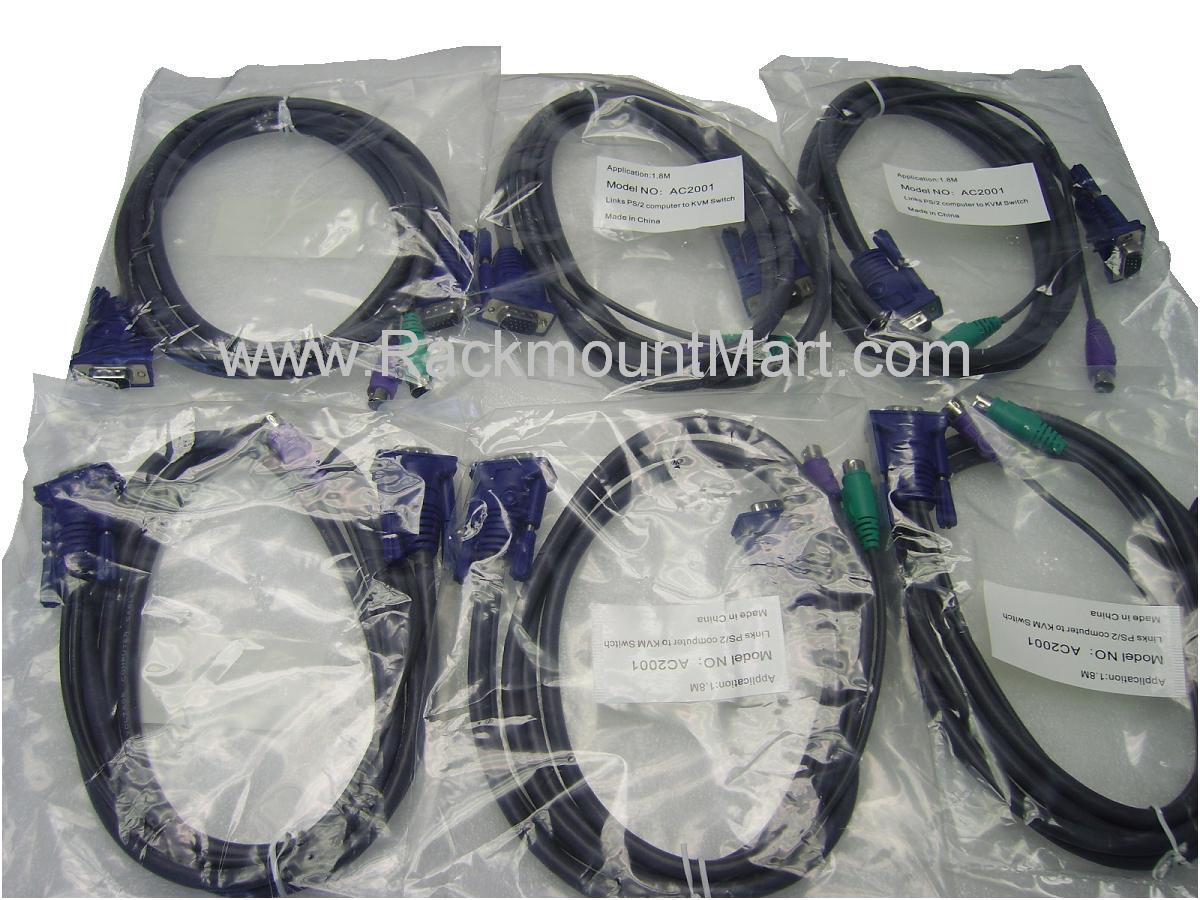

Cable Set

15 pin to 15 pin D-sub cable, PS2 keyboard & mouse detachable

Display
Diagonal
19" DISPLAY
Pixel Pitch
0.294 (H) x0.294 (V)
Resolution
Standard : 1280 x 1024
** Up to 1600 x 1200 for Windows XP ONLY **
Display Area
386.4 (H) x289.8 (V) (19.0-inch diagonal)
Brightness
300
Contrast Ratio
1000: 1
1000: 1
1000:1
Viewing Angle
170 / 170
Backlight MTBF
LCD MTBF>50000H, Backlight MTBF>30000H
Number of Color
16.7 M
Input Signal
Analog : 0.7Vp-p / 75 Ohms
Response Time
7 msec
Humidity
10~85% in operating; 10-90% in storage
Frame Rate
60Hz(typ), 75Hz (Max)
KVM Switch
KVM Switch Port
1
8
16
Hot Plug
N/A
Add PCs or Remove Connected PCs for Maintenance
without powering down the KVM switch for PCs
Video Quality
N/A
Up to 1600 x 1200 with 200 MHz bandwidth
Auto Scan Mode
N/A
5s - 99s

  Ordering Information

  Part # Description
LCD1U19-17-n-co-ps2

1U 19" Rack mounted monitor ( TFT LCD) Keyboard Drawer with touchpad & single port combo PS2 /USB KVM, 1 x PS2 KVM cable included
LCD1U19-17-n-co-usb

1U 19" Rack mounted monitor ( TFT LCD)  Keyboard Drawer with touchpad & & single port combo PS2 /USB KVM, 1 x USB KVM cable included
LCD1U19-17-8KVM-co
1U Rack mounted 19" TFT LCD Monitor Keyboard Drawer with touchpad & 8 port combo PS2/USB KVM switch and customer's choice of combination of 8 USB / PS2 KVM cables included
LCD1U19-17-16KVM-co
1U Rack mounted 19" TFT LCD Monitor Keyboard Drawer with touchpad & 16 port combo PS2/USB KVM switch and  customer's choice of combination of 16 USB / PS2 KVM cable included
