1U Rack
Console Wide Screen Drawer with Quad Displays :
Part
# LCD1U19-017
1U Rack
Console
19" SAMSUNG Widescreen LCD Quad Displays
With RS-232 / Alarm I/O / VCR in & out / S-Video / VGA
Optional DC Input Power
|
Panel: SAMSUNG 19" Widescreen LCD panel |
|
Display
type
|
Active
Matrix TFT
|
|
Resolutions
|
1440 x 900 |
|
Response
time
|
Tr
=1.3 ms / Tf =3.7 ms
(Typ.) |
|
Contrast
ratio
|
1000 : 1 typical
|
|
Brightness
|
300 cd/
m2 typical
|
|
Pixel
pitch
|
0.284mm
(H) x 0.284mm (W)
|
|
Panel
color
|
16.7
million display colors
|
|
Viewing
angle
|
160 ē
(Horiz.) / 160
ē
(Vert.)
|
|
Video: |
Horizontal Synchronization :
50 KHz(Typ)
Vertical Synchronization :
60 Hz(Typ)
Input Signal : Analog RGB 0.7Vp-p |
|
OSD Control |
Brightness, Contrast, Colour, Clock,
H.Position, V.Position, Phase, Scaling,
Auto config, Input select, Multi window,
Clear EEPROM, OSD adjust, Save |
|
|
External Connection |
| Power Input |
12V/5A DC adapter |
| Video Input |
15-pin D-Sub connector |
|
|
Product Dimension
|
445(W) x 44(H)
x 650(D)mm /
17.5" x 1.73" x 25.6" |
|
Storage
temp.
|
-5ēC to 60ēC
|
|
Operating
temp.
|
0ēC to 50ēC |
|
Relative Humidity
|
5 ~90%, non condensing
|
|
Shock
|
10G peak acceleration (11ms duration) |
|
Vibration
|
5~500Hz 1G RMS random vibration |
|
Safety
Approval
|
FCC,
CE
|
|
| Front View of Rack
Console
*click on photo
for enlarged view

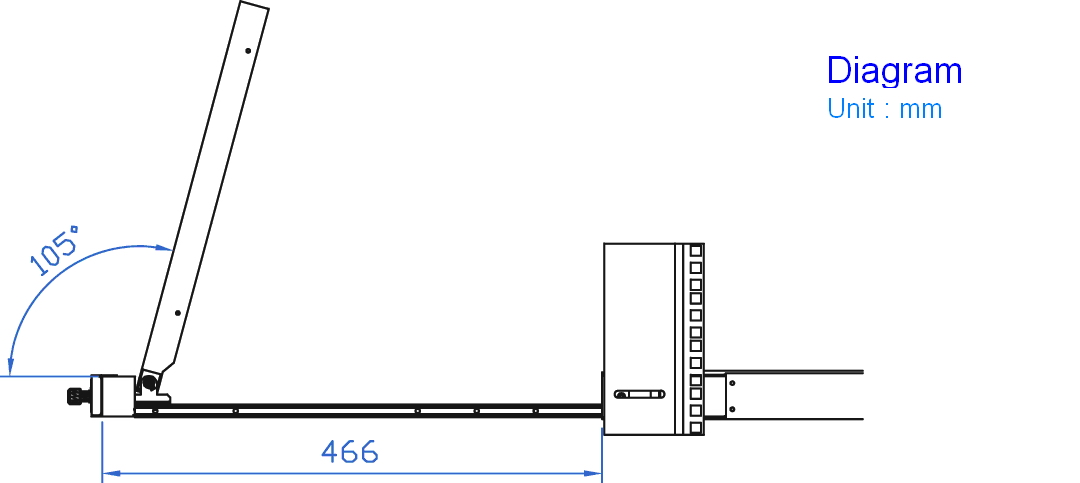

Rear View
Diagram
*click on photo
for enlarged view |
Product Sheet
User Manual
Free Ground Shipping
*Click for details
 |
|
|
Features :
Rack Console with built-in Quad Display
Ideal for CCTV security &industrial control
High resolution 1440 x 900, 19" Widescreen LCD in 1U Drawer
Sliding LCD allowing LCD to remain open when the rack door is closed
Standard D-sub 15-pin VGA input connector
Built-in RS-232, Alarm I/O, VCR in/out, S-Video
Optional
DC Power Supply
Side to side wide-angle viewing .
Built in On Screen Display controlled by integral membrane
switches
Four camera outputs can be combined into one video signal for simultaneous display & recording
User selected video display mode including Quad Display mode (Cameras 1-4) & full screen sequential switching
One screen TIME, TITLE display for each channel & on-screen setup menu
Alarm detection for sensor contact closure & video loss in camera inputs
Built-in buzzer for alarm detection acknowledgement
Freeze of last picture before video loss
Power supply :
- Remote adapter : 110V - 220 V
AC Input
- Optional 48V / 24V / 12V DC
input power adapter available
 |
|
Front QD membrane button
|
 |
-On-screen menu setup in Quad mode
-LCD on-screen menu setup |
Specifications
| Item |
Description |
| Model Number |
QD (NTSC) |
QD (PAL) |
| Number of Colour |
16.7 Mil |
16.7 Mil |
| Imaging System |
NTSC |
PAL |
| Resolution |
1024 x 525 |
1024 x 625 |
| Refresh Rate |
60 |
50 |
| Video Input |
Camera Input |
1.0 Vpp, 75 Ohm x 4 |
| VCR Input |
1.0 Vpp, 75 Ohm x 1 |
| Video Output |
Live Monitor |
1.0 Vpp, 75 Ohm x 1 |
| Loop Through Out |
1.0 Vpp, 75 Ohm x 4 |
| VCR Output |
1.0 Vpp, 75 Ohm x 1 |
| Auto Gain Control |
Yes |
| Time / Date |
Yes |
| On Screen Display |
Yes |
| Camera Title |
8 Character Title |
| Display Format |
2 x Zoom on Playback |
Yes |
| QUAD |
Yes |
| FULL |
Yes |
| SEQUENCY |
Yes |
| Dwell Time |
0 to 99 Sec Adjustable |
| Built-in Buzzer |
Yes |
| Key Lock |
Yes |
Back to top
Ordering
information
| Part
Number |
Description |
LCD1U19-017
Price : $1235 |
1U
Rack console : 19" SAMSUNG Widescreen LCD QUAD Display Drawer |
-12VDC
Price : $171
|
Add 12V DC power adapter |
-24VDC
Price : $171
|
Add 24V DC power adapter |
-48VDC
Price : $171
|
Add 48V DC power adapter |
