Rack Mount LCD Drawer
Part # LCD1U19-011


                                         1U LCD : Rack Mount 19" TFT LCD Drawer with VGA & DVI
                                 Optional  S-Video & Composite Video , Audio , HDMI,  DC Input Power , Touch Screen
   1U LCD Drawer LCD1U19-011

    Drawer Features & Display Benefits
  • 1U 19" LCD drawer
  • Short depth design of 500mm ( 19.7" )
  • Depth will suit a 600mm rack application
  • Sliding LCD allowing LCD to remain open when the rack door is closed
  • Installation slides for easy, quick installation
  • Enhanced aesthetics with molded front panel and two point lock
    Options
  • 19" Touchscreen : Capacitive, Resistive
  • S-Video + Composite ( BNC )
  • HDMI or Audio input
  • DC power : 12V / 24V / 48V / 110 ~ 125V

                     General Information

Form Factor

1U Rack mounting on slide-out rails

                          LCD Screen

LCD Type

Grade A Industrial monitor 19 inch TFT LCD Panel

Backlight

LED

Display Size

19 inch diagonal

Resolutions

1280 x 1024

Contrast ratio

1000 : 1

Brightness

250 cd/ m2

Active area

376 x 301 (mm)

Panel color

16.7 M

Viewing angle

170° x 160°

Signal Input

VGA / DVI-D

LCD MTBF

30,000 hrs

                          Power Supply
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption Screen on : Max. 25 Watt
Power saving mode : Max 4 Watt
Power button on : Max 1 Watt
                     Environmental

Storage temp.

-20ēC to 60ēC

Operating temp.

0ēC to 55ēC

Relative Humidity

5 ~90%, non condensing

Shock

10G peak acceleration (11ms duration)

Vibration

5~500Hz 1G RMS random vibration

Package Content

LCD1U19-011 unit X 1 , 6ft VGA cable X 1, Power cord X 1 , M6 screw, cage nut & cup washer X 8
                          Mechanical
Dimension: 441.6 x 500 x 44 mm / 17.4 x 19.7 x 1.73 inch
Product Weight 12.5 kgs / 27.5 lbs
                              Regulatory Approval
  FCC, CE, RoHS2 & REACH compliant
                                           Remarks
LCD1U19-013 is the SUN Solaris Compatible version of the current model LCD1U19-011 , click this link for details
    Dimension

*click on above pictures for enlarged view

    Construction

*click on above pictures for enlarged view

 Download Product Sheet
 Download User Manual

Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7

        Free Ground Shipping *Click for details

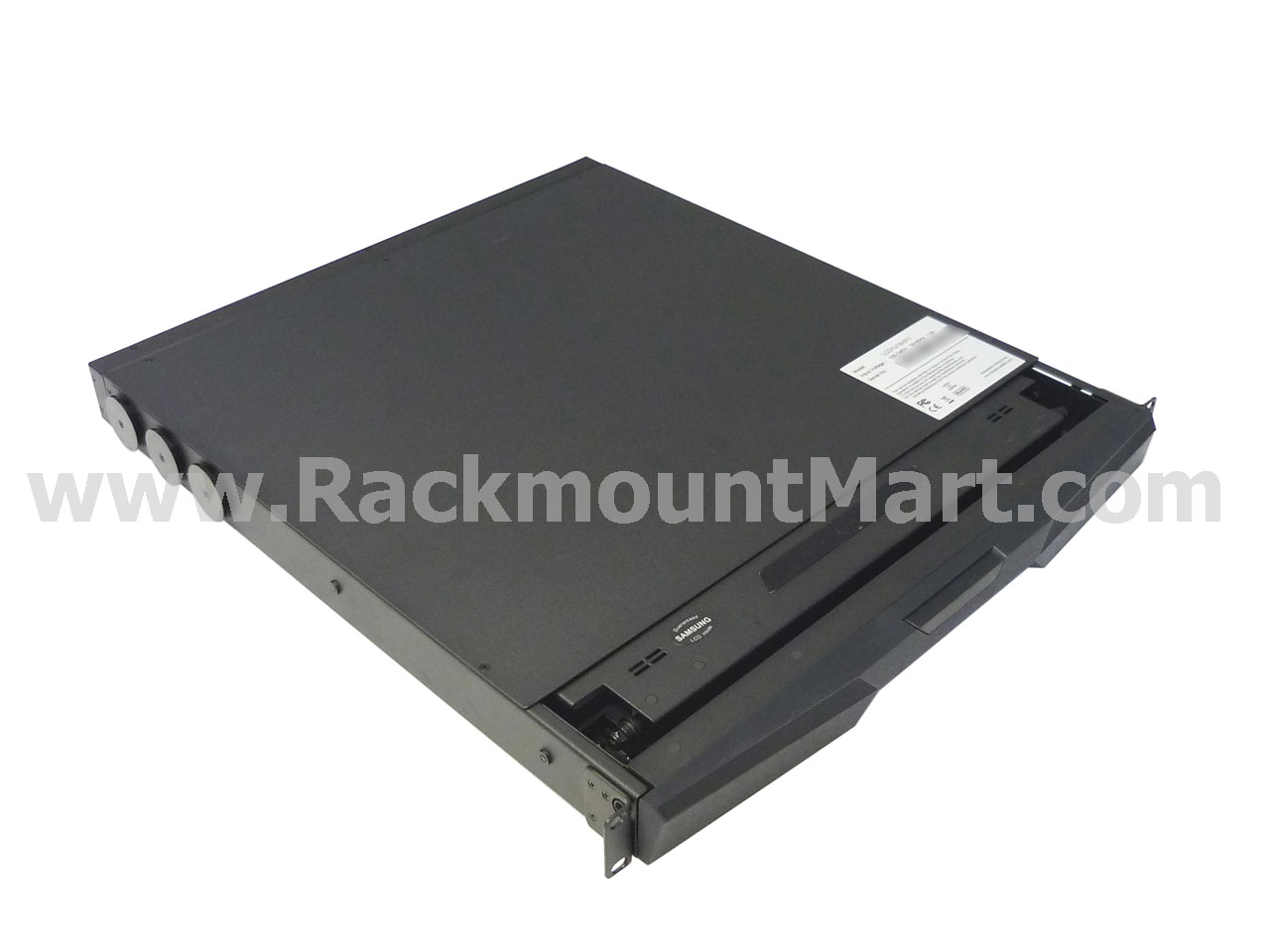

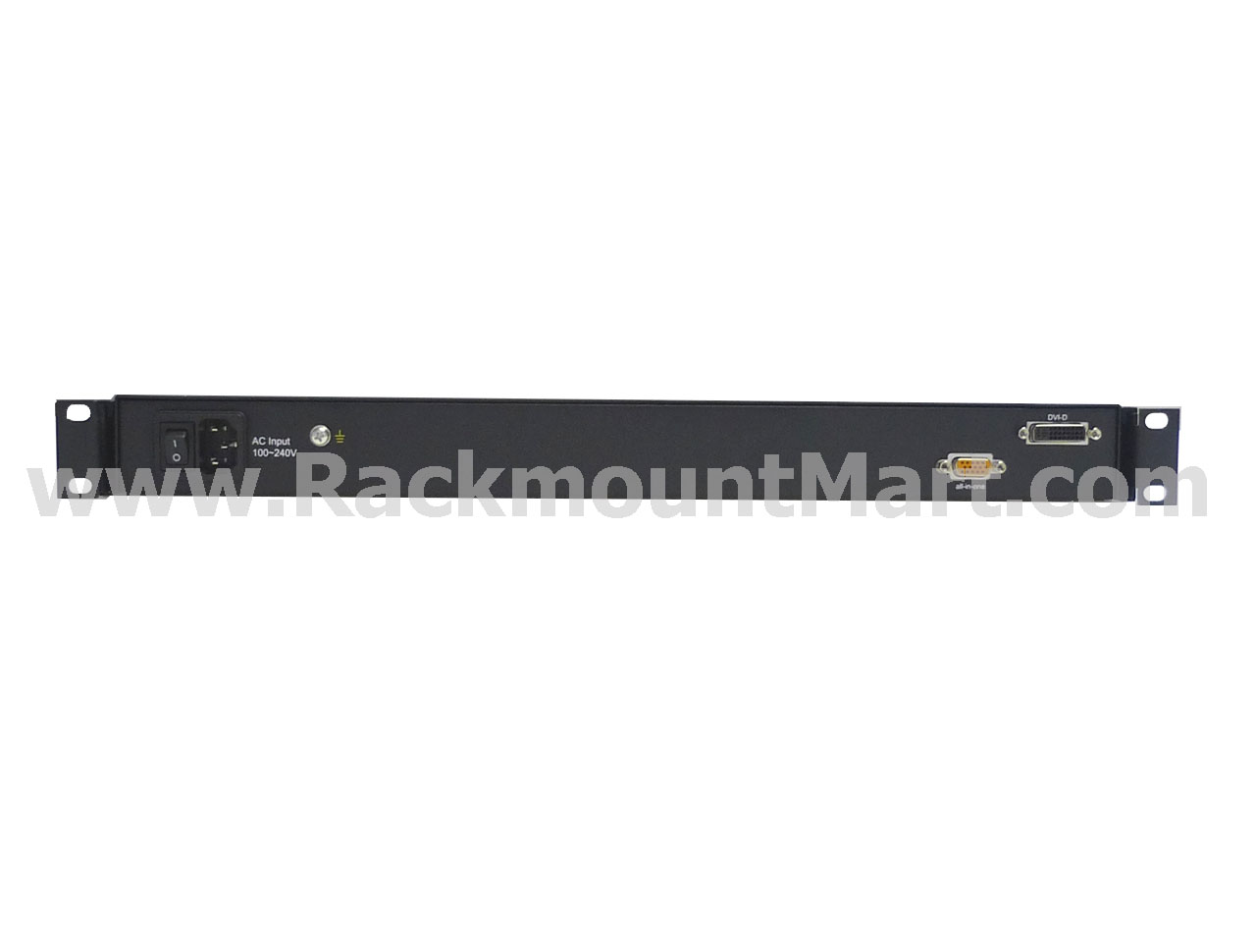

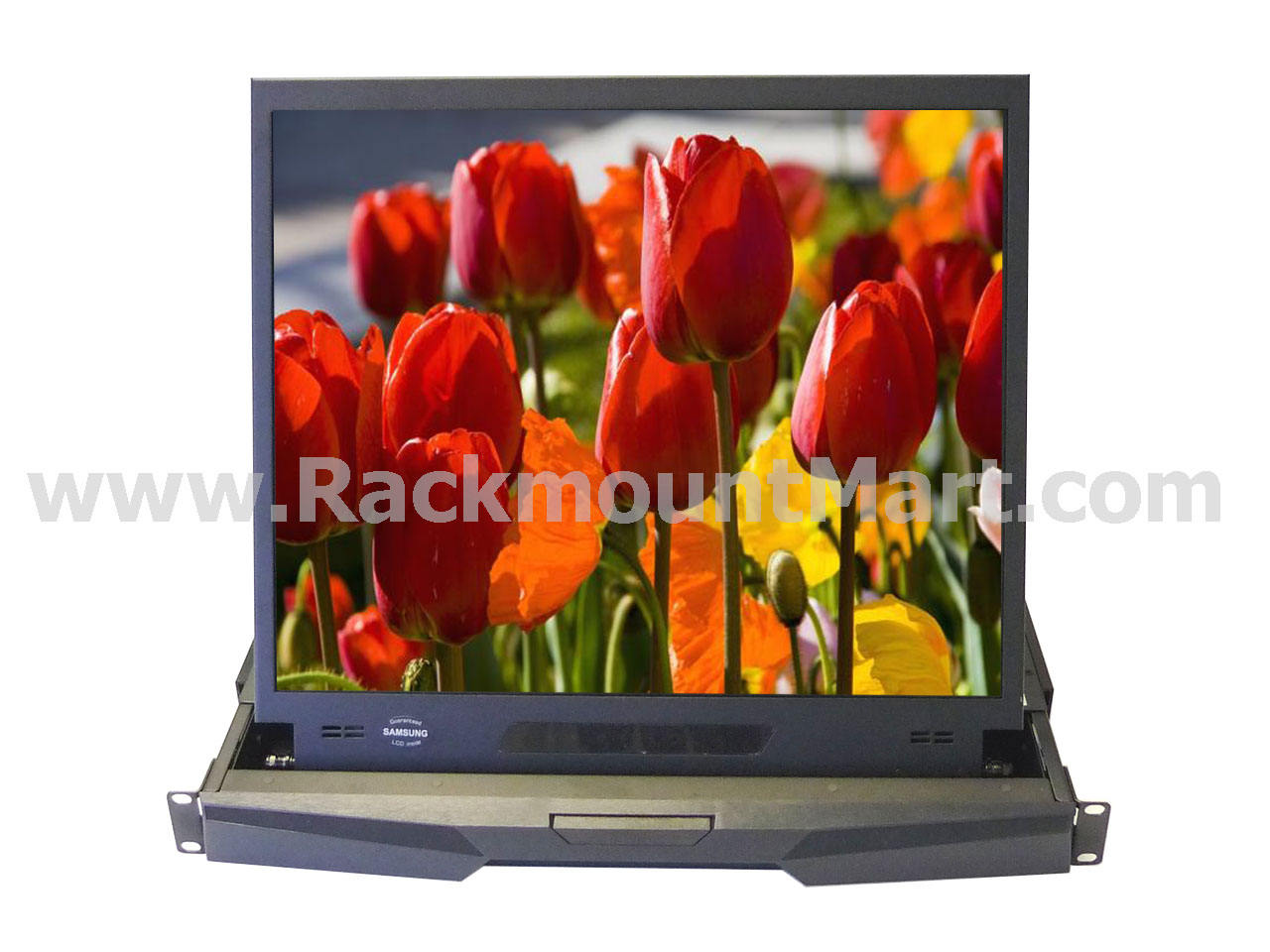

More Photos, click on the following for enlarged view:




Back to top

Optional Peripheral & Accessory
- S-Video + Composite Video (BNC or RCA) / DVI-D - HDMI
- Touch screen - DC Power Input ( 12V / 24V / 48V )
 Customer who ordered this product may also order these :
- KVM Switch - Rack Shelves
- Rack Mount Keyboard - Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan
- Wall Rack Mount

 ORDERING INFORMATION FOR LCD1U19-011  - 1U 19" INDUSTRIAL LCD MONITOR DRAWER

Part Number  Description
LCD1U19-011
Price : $682
 1U Rack-mount 19" TFT LCD  Monitor Drawer with VGA & DVI-D, one 6-ft long VGA cable included ( Video signal Inputs only )
LCD1U19-011-HDMI
Price : $796
 1U Rack-mount 19" TFT LCD  Monitor Drawer with VGA & HDMI with Speakers, one 6-ft long VGA cable included  ( Video  & Audio signal Inputs included , No DVI-D  )
(Depth will be 570mm/22.4")
Optional Video/Audio signal input
-AV
Price : $114
With VGA + DVI-D + S-Video &  BNC Composite Video input with RCA adapter (Depth will be 570mm/22.4")
-BNC
Price : $114
With VGA + DVI-D + BNC + S-Video (Depth will be 570mm/22.4")
-SPK
Price : $114
With VGA + DVI-D + audio (Depth will be 570mm/22.4")
-AV3.0
Price : $171
With VGA + DVI-D + HDMI w/ speaker (Depth will be 570mm/22.4")
Optional DC Power
-DC12
Price : $171
Add 12V DC power supply (Depth will be 570mm/22.4")
-DC24
Price : $171
Add 24V DC power supply (Depth will be 570mm/22.4")
-DC48
Price : $171
Add 48V DC power supply (Depth will be 570mm/22.4")
-DC110
Price : $357
Add 110V DC power supply (Depth will be 570mm/22.4")
-DC125
Price : $357
Add 125V DC power supply (Depth will be 570mm/22.4")
Optional Touch screen
-TRS
Price : $271
Add 19" Resistive touch screen + Serial controller
-TRB
Price : $271
Add 19" Resistive touch screen + USB controller
-TCS
Price : $457
Add 19" Capacitive touch screen + Serial controller
-TCB
Price : $457
Add 19" Capacitive touch screen + USB controller
Optional Quad display
-QUAD DISPLAY Please check model  *** LCD1U19-016 ***
