1U Rack KVM Tray with Keyboard , Video Monitor and Mouse :
Model #  LCD1U17-31



NOVA Dual-Slide 1U Rackmount 17" Full HD 1080p LCD KVM Console with LED-backlit
Assembled in uSA & TAA Compliant , Optional DB-15 KVM / DVI KVM / Multi-User Matrix KVM
                    Optional 1 / 2 / 3 / 4 Simultaneous Users by Local / Remote Access VIA CAT6 or Over IP

    Dual Slide Rack KVM Console LCD1U17-31-n


*click on photo for enlarged view

   Drawer Features & Display Benefits    Options
  • 3G / HD / SD-SDI Broadcast-grade input ( with speaker )
  • HDMI ( w/ speaker ) or Audio input
  • 250V , 125V , 110V , 48V, 24V or 12V DC power
LCD Screen

LCD Type

Industrial Grade Full HD , 1080p Widescreen TFT LCD Panel

Display Size

17.3 inch diagonal

Resolutions

1,920 x 1,080

Backlight

LED

Contrast ratio

600 : 1

Brightness

400 cd/ m2

Active area

382 x 215 (mm)

Panel color

16.7 M, 8-bit

Viewing angle

160 x 140

Signal Input

VGA , DVI-D
LCD MTBF

50,000 hrs

Keyboard & Pointing Device

Model n / b

Standard Windows Keyboard  with Numeric Keypad & Touchpad or Trackball

Model Mn / Mb
(MAC)

Optional MAC Keyboard with Hot-Keys , Numeric Keypad & Touchpad or Trackball

Power
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption Max. 48 Watt, Standby 5 Watt
Environmental
Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity 5~90%, non condensing
Shock 10G peak acceleration (11ms duration)
Vibration 5~500Hz, 1G RMS random vibration
Mechanical

Product Dimension

441.6(W) x 650(D) x 44(H) mm /
17.4(W) x 25.6(D) x 1.73(H) inch

Product Weight 26.2lbs / 11.9kg (Single Port KVM console)
28.4lbs / 12.9kg (MultiPort KVM console)
Regulatory Approval
  Safety : FCC & CE certified
Environmental :
RoHS2 , REACH & Assembled in USA & TAA Compliant
                              SUN VERSION / SUN KVM
LCD1U17-46 is the SUN Solaris version which supports native SUN resolution and with built-in SUN Keyboard , click here for details.

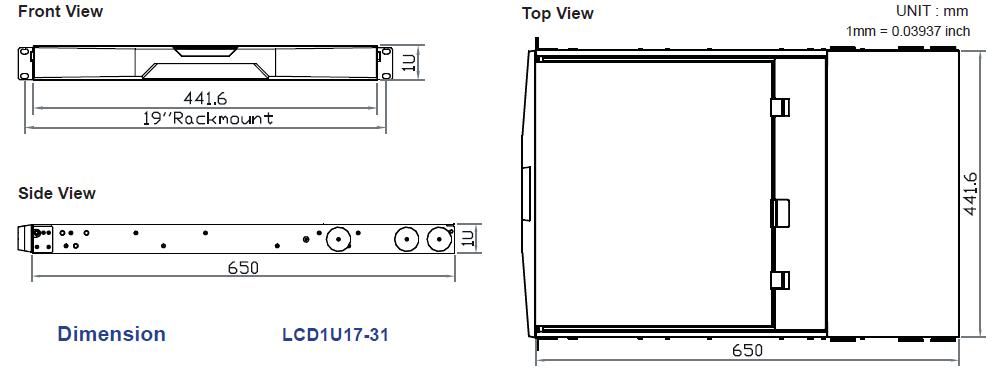

    Dimension

*click on above pictures for enlarged view

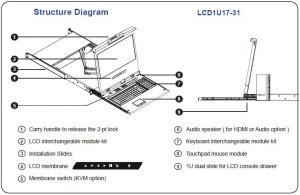

     Construction

*click on above pictures for enlarged view

  Product Sheet
Download Product Sheet
  User Manual
Download User Manual

Free Ground Shipping *Click for details


More Photos, click on the following for enlarged view:




Back to top

DB-15 KVM
Port Type KVM No. of Port Cascade Capacity Number of Console Download
DB-15 PS/2 KVM 8 Up to 8 level 1 x Local Console KVM Connection Diagram User Manual
DB-15 Combo USB PS/2 KVM 8 / 16 Up to 8 level 1 x Local Console KVM Connection Diagram User Manual
DB-15 Combo USB PS/2 KVM 8 / 16 Up to 8 level 1 x Local Console +
1 x CAT 6 Remote Console
KVM Connection Diagram User Manual
DB-15 Combo USB PS/2 KVM 8 / 16 Up to 8 level 1 x Local Console +
1 x IP Remote Console
KVM Connection Diagram User Manual
CAT6 KVM ( 1 Active User )
Cat6 CAT6 KVM 8/16/32 Up to 8 level 1 x Local Console User Manual
Cat6 CAT6 KVM 8/16/32 Up to 8 level 1 x Local Console +
  1 x Remote Console( Via CAT6 )
User Manual
Cat6 CAT6 KVM 8/16/32 Up to 8 level 1 x Local Console +
  1 x Remote Console ( Over IP )
User Manual
DVI-D KVM
DVI-D USB & Audio KVM 12 1 level 1 x Local Console KVM Connection Diagram User Manual
Matrix KVM ( 2~4 Active / SImultaneous Users )
DB-15 Matrix Combo KVM 8 / 16 Up to 8 level 1 x Local Console  + (1, 2 or 3) x CAT 6 Remote Console
KVM Connection Diagram User Manual
DB-15 Matrix Combo KVM 8 / 16 Up to 8 level ** 1 x Local + 1 x CAT 6 Remote + 1 x IP Consoles
** 1 x Local + 2 x CAT 6 Remote + 1 x IP Consoles
** 1 x Local + 1 x CAT 6 Remote + 2 x IP Consoles
KVM Connection Diagram User Manual

Back to top



Optional Peripheral & Accessory
- S-Video + Composite Video (BNC or RCA) / DVI-D - Cables & Dongles
- DC Power Input ( 12V / 24V / 48V / 110V / 125V / 250V )
Customer who ordered this product may also order these :
- Server Rack Cabinet                  - Wall Mount Rack - KVM Switch                - Rack Mount Keyboard
- 2 Post / 4 Post Steel Rack - Rack Shelf                  - Rack Light
- 2 Post / 4 Post Aluminum Rack - Intellignet Rack Cabinet Door Lock Handle
- PDU / Power Distribution Unit - Remote / Network Control for Rack Cabinet Access
- Rack / Cabinet / Wall Mount Cooling Fans - Data Center Environmental Monitoring



 ORDERING INFORMATION FOR NOVA  LCD1U17-31  :
1U RACK 17" FULL HD 1080p INDUSTRIAL GRADE LCD KVM CONSOLE WITH DRAWER WITH VARIOUS KVM OPTIONS

DB-15 KVM : 1 Active User
Local Console & Optional Remote Console ( either Via CAT6 or Over IP)
 LOCAL CONSOLE ONLY
No. of Console /
KVM Choice
No. of
KVM port
 KVM Cable Keyboard Part Number Price
1 Local Console / Single Port Combo KVM 1
 1 x Combo KVM cable
Touchpad LCD1U17-31-n $1053
Trackball  LCD1U17-31-b
1 Local Console / MultiPort PS2 KVM 8
 8 x  PS/2 KVM cable
Touchpad LCD1U17-31-8KVM-n $1332
Trackball  LCD1U17-31-8KVM-b
1 Local Console / MultiPort Combo KVM 8
8 x Combo KVM cable
Touchpad LCD1U17-31-8KVM-n-u $1413
Trackball

LCD1U17-31-8KVM-b-u

16
16 x Combo KVM cable
Touchpad LCD1U17-31-16KVM-n-u $1602
Trackball

LCD1U17-31-16KVM-b-u

 LOCAL CONSOLE + REMOTE CONSOLE ( Either Via CAT6 or Over IP )
No. of Console /
KVM Choice
No. of
KVM port
 KVM Cable Keyboard Part Number Price
1 Local Console + 1 Remote Console (Via CAT6 ) / MultiPort Combo KVM 8
 8 x  Combo KVM cable
Touchpad LCD1U17-31-8KVM2-n $1627
Trackball  LCD1U17-31-8KVM2-b
16
16 x Combo KVM cable
Touchpad LCD1U17-31-16KVM2-n $1816
Trackball  LCD1U17-31-16KVM2-b
1 Local Console + 1 Remote Console (Over IP) /
MultiPort Combo KVM
8
 8 x  Combo KVM cable
Touchpad LCD1U17-31-8KVM2IP-n $1777
Trackball  LCD1U17-31-8KVM2IP-b
16
16 x Combo KVM cable
Touchpad LCD1U17-31-16KVM2IP-n $1966
Trackball  LCD1U17-31-16KVM2IP-b
CAT 6 KVM : 1 Active User
Local Console & Optional Remote Console ( either Via CAT6 or Over IP)
 LOCAL CONSOLE ONLY
No. of Console /
KVM Choice
No. of
KVM port
Dongle Keyboard Part Numbecomer Price
1 Local Console / MultiPort CAT6 KVM 8
Optional
VGA-USB dongle
Part # LCD-2001 /
VGA-PS2 dongle
Part # LCD-2002 /
DVI-USB dongle
Part # LCD-2003
Touchpad LCD1U17-31-U8KVM-n $1480
Trackball  LCD1U17-31-U8KVM-b
16
Optional
Touchpad LCD1U17-31-U16KVM-n $1558
Trackball

LCD1U17-31-U16KVM-b

32
Optional
Touchpad LCD1U17-31-U32KVM-n $1751
Trackball

LCD1U17-31-U32KVM-b

 LOCAL CONSOLE + REMOTE CONSOLE ( Either Via CAT6 or Over IP )
No. of Console /
KVM Choice
No. of
KVM port
Dongle Keyboard Part Numbecomer Price
1 Local Console + 1 Remote Console (Via CAT6 ) / MultiPort Combo KVM 8
Optional
Touchpad LCD1U17-31-U8KVM2-n $1694
Trackball  LCD1U17-31-U8KVM2-b
16
Optional
Touchpad LCD1U17-31-U16KVM2-n $1773
Trackball

LCD1U17-31-U16KVM2-b

32
Optional
Touchpad LCD1U17-31-U32KVM-n $1965
Trackball

LCD1U17-31-U32KVM2-b

1 Local Console + 1 Remote Console (Over IP) /
MultiPort Combo KVM
8
Optional
Touchpad LCD1U17-31-U8KVM2IP-n $1844
Trackball  LCD1U17-31-U8KVM2IP-b
16
Optional
Touchpad LCD1U17-31-U16KVM2IP-n $1923
Trackball

LCD1U17-31-U16KVM2IP-b

32
Optional
Touchpad LCD1U17-31-U32KVM2IP-n $2115
DVI KVM : 1 Active User
 LOCAL CONSOLE ONLY
No. of Console /
KVM Choice
No. of
KVM port
 KVM Cable Keyboard Part Number Price
1 Local Console / MultiPort DVI-D KVM 12
 6 x  DVI-D KVM cable
Touchpad LCD1U17-31-12DVI-n $1830
Trackball  LCD1U17-31-12DVI-b
Matrix DB-15 KVM : 2~4 Active Users
Local Console & Remote Consoles ( either Via CAT6 or Over IP)
 2 ACTIVE USERS
No. of Console /
KVM Choice
No. of
KVM port
 KVM Cable Keyboard Part Number Price
1 Local Console + 1 Remote Console (Via CAT6 ) /
Matrix DB-15 KVM
8
 8 x  Combo KVM cable
Touchpad LCD1U17-31-M82-n Call for price
Trackball  LCD1U17-31-M82-b
16
16 x Combo KVM cable
Touchpad LCD1U17-31-M162-n Call for price
Trackball  LCD1U17-31-M162-b
 3 ACTIVE USERS
No. of Console /
KVM Choice
No. of
KVM port
 KVM Cable Keyboard Part Number Price
1 Local Console + 2 Remote Consoles (Via CAT6 ) /
Matrix DB-15 KVM
8
 8 x  Combo KVM cable
Touchpad LCD1U17-31-M83-n Call for price
Trackball  LCD1U17-31-M83-b
16
16 x Combo KVM cable
Touchpad LCD1U17-31-M163-n Call for price
Trackball  LCD1U17-31-M163-b
1 Local Console + 1 Remote Console (Via CAT6 ) + 1 Remote Console (Over IP) /
Matrix DB-15 KVM
8
 8 x  Combo KVM cable
Touchpad LCD1U17-31-M83IP-n Call for price
Trackball  LCD1U17-31-M83IP-b
16
16 x Combo KVM cable
Touchpad LCD1U17-31-M163IP-n Call for price
Trackball  LCD1U17-31-M163IP-b
 4 ACTIVE USERS
No. of Console /
KVM Choice
No. of
KVM port
 KVM Cable Keyboard Part Number Price
1 Local Console + 3 Remote Consoles (Via CAT6 ) /
Matrix DB-15 KVM
8
 8 x  Combo KVM cable
Touchpad LCD1U17-31-M84-n Call for price
Trackball  LCD1U17-31-M84-b
16
16 x Combo KVM cable
Touchpad LCD1U17-31-M164-n Call for price
Trackball  LCD1U17-31-M164-b
1 Local Console + 2 Remote Consoles (Via CAT6 ) + 1 Remote Console (Over IP) /
Matrix DB-15 KVM
8
 8 x  Combo KVM cable
Touchpad LCD1U17-31-M84IP-n Call for price
Trackball  LCD1U17-31-M84IP-n
16
16 x Combo KVM cable
Touchpad LCD1U17-31-M164IP-n Call for price
Trackball  LCD1U17-31-M164IP-b
1 Local Console + 1 Remote Console (Via CAT6 ) + 2 Remote Consoles (Over IP) /
Matrix DB-15 KVM
8
 8 x  Combo KVM cable
Touchpad LCD1U17-31-M84IP2-n Call for price
Trackball  LCD1U17-31-M84IP2-b
16
16 x Combo KVM cable
Touchpad LCD1U17-31-M164IP2-n Call for price
Trackball  LCD1U17-31-M164IP2-b
Optional Keyboard & Pointing Devices
-Mn
Price : $189
Change Standard Windows Keyboard to MAC keyboard with touchpad
-Mb
Price : $189
Change Standard Windows Keyboard to MAC keyboard with trackball
Optional Video/Audio Inputs
-HDMI
Price : $171
Add HDMI (w/speaker on HDMI only)
-SDI
Price : $486
Add SDI (w/speaker on SDI only)
-SPK
Price : $171
Add Audio
Optional DC power
-DC12
Price : $271
Add 12V DC Power Input
-DC24
Price : $271
Add 24V DC Power Input
-DC48
Price : $271
Add 48V DC Power Input
-DC110
Price : $357
Add 110V DC Power Input
-DC125
Price : $357
Add 125V DC Power Input
-DC250
Call for price
Add 250V DC Power Input
Optional Dongles
LCD-A2001
Price : $43
VGA-USB Dongle
LCD-A2002
Price : $43
VGA-PS/2 Dongle
LCD-A2003
Price : $68
DVI-USB Dongle
Optional Cables
LCD-A3004
Price : $20
6-ft DVI Console Cable
(Server side : DVI-D + USB , KVM Console side : DVI-D + DB-15 (Keyboard + Mouse) without audio function)
LCD-A3005
Price : $20
6-ft DVI KVM Cable
(Server side : DVI-D + USB + audio , KVM Console side : DVI-D + USB)
LCD-A3006
Price : $29
15-ft DVI KVM Cable
LCD-A3001
Price : $13
6-ft Combo PS/2 USB KVM Cable
LCD-A3002
Price : $20
10-ft Combo PS/2 USB KVM Cable
LCD-A3003
Price : $26
15-ft Combo PS/2 USB KVM Cable
LCD-A1014
Price : $13
6-ft USB 3-in-1 KVM Cable
LCD-A1015
Price : $20
10-ft USB 3-in-1 KVM Cable
LCD-A1016
Price : $26
15-ft USB 3-in-1 KVM Cable
LCD-A1004
Price : $13
6-ft PS/2 3-in-1 KVM Cable
LCD-A1005
Price : $20
10-ft PS/2 3-in-1 KVM Cable
LCD-A1006
Price : $26
15-ft PS/2 3-in-1 KVM Cable

Back to top


Toll Free : 1-888-865-6888    Fax : 510-226-8968    Email :  sales@RackmountMart.com




Home    |   Buy Online    About Us  |    Contact Us    |    Site Map

Product images may be generic and may not reflect actual item purchased. Synergy Global Technology  Inc is not responsible for any typographical errors. Specifications subject to change without notice.  Legal.
