1U Rackmount 17" FULL HD LCD Monitor Drawer:
Part #  LCD1U17-018


                               1U Rackmount 17" FULL HD TFT LCD with LED-backlit panel Monitor Drawer
                                        Optional 3G / HD / SD-SDI input , Touchscreen , HDMI or Audio input , DC power
   1U LCD Drawer LCD1U17-018

    Drawer Features & Display Benefits
  • 1U 17" widescreen LCD drawer with DVI-D / VGA input
  • Support Full HD with 1080p resolution
  • Green LED-backlit panel technology
  • Enhanced aesthetics with molded front panel and two point lock
  • Short depth design of 480mm ( 18.9" ) only

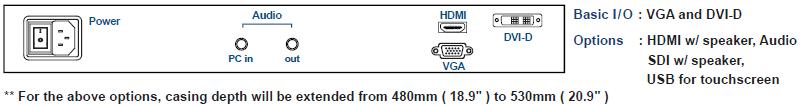

    Options
  • 3G / HD / SD-SDI Broadcast-grade input ( w/ speaker )
  • 17" Touchscreen : Resistive
  • HDMI ( w/ speaker ) or Audio input
  • DC power : 12V / 24V / 48V / 110 ~ 125V

                     General Information

Form Factor

1U Rack mounting on slide-out rails

                          LCD Screen

LCD Type

17.3 inch widescreen TFT LCD Panel

Backlight

LED

Display Size

17.3 inch diagonal

Resolutions

1920 x 1080

Contrast ratio

600 : 1

Brightness

400 cd/ m2

Active area(mm) 382 x 215

Panel color

16.7M, 8-bit

Viewing angle

160° x 140°

Signal Input

VGA / DVI-D

LCD MTBF

50,000 hrs

                          Power Supply
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption Screen on : Max. 25 Watt
Power saving mode : Max 4 Watt
Power button on : Max 1 Watt
                     Environmental

Storage temp.

-20ēC to 60ēC

Operating temp.

0ēC to 55ēC

Relative Humidity

5 ~90%, non condensing

Shock

10G peak acceleration (11ms duration)

Vibration

5~500Hz 1G RMS random vibration

Package Content

LCD1U17-018 unit X 1 , 6ft VGA cable X 1, Power cord X 1 , M6 screw, cage nut & cup washer X 8
                          Mechanical
Dimension: 441.6 x 480 x 44 mm / 17.4 x 18.9 x 1.73 inch
Product Weight 11 kgs / 24.2 lbs
                              Regulatory Approval
  Safety : FCC & CE certified
Environmental : RoHS2 & REACH compliant
    Dimension

*click on above pictures for enlarged view

    Construction

*click on above pictures for enlarged view

 Download Product Sheet
 Download User Manual

Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7

        Free Ground Shipping *Click for details


More Photos, click on the following for enlarged view:





Back to top

Optional Peripheral & Accessory
- S-Video + Composite Video (BNC or RCA) / DVI-D - HDMI
- Touch screen - DC Power Input ( 12V / 24V / 48V )
 Customer who ordered this product may also order these :
- KVM Switch - Rack Shelves
- Rack Mount Keyboard - Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan
- Wall Rack Mount



ORDERING INFORMATION FOR LCD1U17-018  - 1U 17" FULL HD WIDESCREEN LCD MONITOR DRAWER
Part Number  Description
LCD1U17-018
Price : $833
 1U Rack-mount 17" FULL HD TFT LCD  Monitor Drawer, one 6-ft long VGA cable included , (VGA + DVI-D)
Optional Video/Audio Inputs
-SDI
Price : $486
with VGA + DVI-D + HDMI w/ speaker + SDI            Download Spec Sheet
(Depth will be 550mm/21.7")
-HDMI
Price : $171
with VGA + DVI-D + HDMI w/ speaker(speaker on HDMI only) (Depth will be 550mm/21.7")
-SPK
Price : $171
with VGA + DVI-D + Audio (Depth will be 550mm/21.7")
Optional Touch Screen
-TRS
Price : $243
Add 17" Resistive touch screen + Serial controller
-TRB
Price : $243
Add 17" Resistive touch screen + USB controller
Optional DC power
-DC12
Price : $215
Add 12V DC power supply (Depth will be 550mm/21.7")
-DC24
Price : $215
Add 24V DC power supply (Depth will be 550mm/21.7")
-DC48
Price : $215
Add 48V DC power supply (Depth will be 550mm/21.7")
-DC110
Price : $357
Add 110V DC power supply (Depth will be 550mm/21.7")
-DC125
Price : $357
Add 125V DC power supply (Depth will be 550mm/21.7")
