    17 Inches RACK MOUNTED  INDUSTRIAL LCD / DRAWER / KEYBOARD  / KVM

                              FREE GROUND SHIPPING  *** Click for details

         1U 17" Industrial LCD Keyboard KVM
Part # / Photo / Price Resolution Depth Contrast
Ratio / Brightness/
Viewing angle
Keyboard KVM Options Features & Options
LCD1U17-38

Price : $699
up to 1600 x 900

14.5"/
368mm
400:1 /
200 cd/m2
membrane keyboard and touch-pad mouse
  • Single port KVM
  • 1U design with 17.3" TFT LCD
  • Built-in amplified speakers
  • USB available on certain model
  • Work with standard PCI-E video
  • DVI inputs on certain models
  • Options with touch pad, standard PS/2 mouse or rubber keyboard
  • TAA Compliant
  • LCD1U17-37

    Price : $680
    up to 1280 x 1024

    16.25"/
    413mm
    700:1 /
    300 cd/m2
    membrane keyboard and touch-pad mouse
  • Single port KVM
  • 1U design with 17" TFT LCD
  • Built-in amplified speakers
  • USB available on certain model
  • DVI inputs on certain models
  • TAA Compliant
  • * Dual Rail, Full HD       LCD1U17-36

    Price: $1130.10
    1920 x 1080 21.2"/
    539.6mm
    650:1
    / 300 cd/m²
    106 key PS/2 keyboard with touch pad
  • Single port KVM
  • 8 / 16 / 32 ports
  • DVI-D KVM
  • Combo USB PS2 KVM
  • DB-15 KVM / CAT5 KVM
  • IP KVM
  • Local / IP + Local Remote
  • 1920 x 1080 full HD resolution
  • front USB port to easy data access
  • Various keyboard options
  • Upgrade options: Analog KVM switch, IP KVM switch, CAT5 KVM switch
  • TAA Compliant

  • Optional :
  • DVI-D input
  • SUN Hot Keys
  • Cherry Trackball Keyboard
  • Touch screen (USB or RS232)
  • 125V , 110V , 48V, 24V or 12V DC power
  • * Full HD resolution       LCD1U17-35

    Price: $973.90
    1920 x 1080 20.8"/
    582mm
    650:1
    / 300 cd/m²
    106 key PS/2 keyboard with touch pad
  • Single port KVM
  • 8 / 16 / 32 ports
  • DVI-D KVM
  • Combo USB PS2 KVM
  • DB-15 KVM / CAT5 KVM
  • IP KVM
  • Local / IP + Local Remote
  • 1920 x 1080 full HD resolution
  • front USB port to easy data access
  • Various keyboard options
  • Upgrade options: Analog KVM switch, IP KVM switch, CAT5 KVM switch
  • TAA Compliant

  • Optional :
  • DVI-D input
  • SUN Hot Keys
  • Cherry Trackball Keyboard
  • Touch screen (USB or RS232)
  • 125V , 110V , 48V, 24V or 12VDC power
  • * Dual Rail,

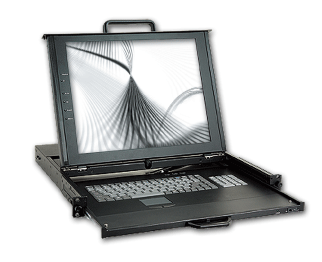

    * Sun native resolution     LCD1U17-34

    Price: $1101.70
    1280 x 1024 or 1152 x 900 18.1"/
    459.6mm
    1000:1
    / 250 cd/m²
    106 key PS/2 keyboard with touch pad
  • Single port KVM
  • 8 / 16 / 32 ports
  • DVI-D KVM
  • Combo USB PS2 KVM
  • DB-15 KVM / CAT5 KVM
  • IP KVM
  • Local / IP + Local Remote
  • Bright Active TFT display
  • OSD function for LCD display and KVM switch
  • Panel protected by tempered glass
  • Integration with more than 18 models of KVM switches
  • Customers can create 15 models of KVM Switch from 5 basic models
  • TAA Compliant

  • Optional :
  • DVI-D input
  • SUN Hot Keys
  • Cherry Trackball Keyboard
  • Touch screen (USB or RS232)
  • 125V , 110V , 48V, 24V or 12VDC power
  • * Scalable KVM Console     LCD1U17-33

    Price: $945.50
    1280 x 1024

    OR

    1152 x 900
    ( SUN Native Resolution)
    18.5"/
    470.1mm
    1000:1
    / 250 cd/m²
    106 key keyboard with touch pad
  • Single port KVM
  • 8 / 16 / 32 port
       USB PS/2
       Combo OR
        CAT 5 KVM
  • USB Hub KVM
  • Remote IP KVM
  • Remote CAT 5
       KVM
  • Dual consoles

  • Scalable 1U KVM console
  • Easy Maintenance with detachable KVM
  • Easy and Economical Upgrade options
  • Eco-Friendly
  • Panel protected by tempered glass
  • TAA compliant

  • Optional :
  • DVI-D input
  • SUN Hot Keys
  • Cherry Trackball Keyboard
  • Touch screen (USB or RS232)
  • 125V , 110V , 48V, 24V or 12VDC power
  •  LCD1U17-32

    Price : $845
    up to 1920 x 1080 14.5"/
    368mm
    650:1 /
    300 cd/m2
    membrane keyboard and touch-pad mouse
  • Single port KVM
  • 1U design with 17.3" TFT LCD
  • 16:9 - 1080p HD LCD monitor
  • Built-in amplified speakers
  • USB or PS/2 connector
  • Work with standard PCI-E video
  • DVI-D or VGA signals
  • TAA Compliant

  • Quallity touch pad keyboard
  •  Fulll HD, Dual Slides
     LCD1U17-31

    Price : $1053
    up to 1920 x 1080 25.6"/
    650mm
    600:1 /
    400 cd/m2 / 160/140(H/V)
    Regular / SUN / MAC keyboard integrated with touchpad or trackball
  • Single port KVM
  • 8 / 16 ports
  • DVI-D KVM
  • Combo USB PS2 KVM
  • DB-15 KVM
  • IP KVM
  • Matrix KVM
  • Local / Local + Remote console
  • 1U dual slide 17" widescreen LCD console drawer
  • Support Full HD with 1080p resolution
  • 104-key keyboard with touchpad
  • SUN Micro or MAC keyboard options available
  • New enhanced aesthetics with molded front handle
  • TAA Compliant

  • Optional :
  • 3G / HD / SD-SDI Broadcast-grade input
  • HDMI or Audio input
  • 12V/24V/ 48V /110V / 125V / 250V DC
  •  Full HD
     LCD1U17-30

    Price : $907
    up to 1920 x 1080   18.9"/
     480mm
    600:1 /
    400 cd/m2 / 160/140(H/V)
    Regular / SUN / MAC keyboard integrated with touchpad or trackball
  • Single port KVM
  • 8 / 16 ports
  • DVI-D KVM
  • USB HUB KVM
  • Combo USB PS2 KVM
  • DB-15 KVM
  • IP KVM
  • Matrix KVM
  • Local / Local + Remote console
  • 1U 17" widescreen LCD console drawer with VGA and DVI-D
  • Support Full HD with 1080p resolution
  • New enhanced aesthetics with molded front handle
  • Short depth design of 480mm ( 18.9" )
  • Front USB port for device access ( USB Hub KVM only )
  • TAA Compliant

    Optional :
  • SDI input
  • HDMI
  • Audio input
  • 12V/24V/ 48V /110V / 125V / 250V DC
  • * Full HD Sunlight Monitor   LCD1U17-29
    Price : $1932  Buy Online>>



    1920 x 1080

      18.9"/
     480mm
    600:1 /    1000 nits / 170/160(H/V) 104 key KB with full Numerical pad & Touchpad or Trackball
  • Single port KVM
  • MultiPort KVM
  • DVI-D KVM
  • USB HUB KVM
  • -Sunlight Viewable LCD w/ LED Technology
  • 1000cd/m
  • Full HD 1080p
  • TAA compliant

    Optional :
  • 3G / HD / SD-SDI Broadcast-grade input
  • 2 post rack mounting
  • HDMI , Audio, Speaker
  • 12V/24V/ 48V / 110V ~ 125V /250V DC
  •  Dual Slides
    High Resolution 1920 x 1200

     LCD1U17-26

    Price : $1474
    up to 1920 x 1200 25.6"/
    650mm
    600:1 /
    210 cd/m2 / 130/110(H/V)
    Regular / SUN / MAC keyboard integrated with touchpad or trackball
  • Single port KVM
  • DVI-D KVM
  • 1U dual slide 17" widescreen LCD console drawer
  • 1920 x 1200 native WUXGA Ultra high resolution
  • Support Full HD with 1080p resolution
  • Optional 12-port DVI-D + audio KVM switch
  • TAA Compliant

  • Optional :
  • SDI Broadcast-grade input
  • HDMI
  • Audio input
  • 12V/24V/ 48V /110V / 125V / 250V DC
  • Composite Video (BNC / RCA) + S-video

  • High Resolution 1920 x 1200

     LCD1U17-25

    Price : $1292
    Buy Online>>
    up to 1920 x 1200   18.9"/
     480mm
    600:1 /
    210 cd/m2 / 130/110(H/V)
    Regular / SUN / MAC keyboard integrated with touchpad or trackball
  • Single port KVM
  • DVI-D KVM
  • USB HUB KVM
  • 1920 x 1200 native WUXGA Ultra high resolution
  • Support Full HD with 1080p resolution
  • PIP & Picture by Picture viewing efficiency
  • 12-port DVI-D + audio KVM switch
  • Front USB port for device access
  • 2 post rack mounting available
  • TAA Compliant

  • Optional :
  • SDI Broadcast-grade input
  • HDMI
  • Audio input
  • 12V/24V/ 48V /110V / 125V / 250V DC
  • Composite Video (BNC / RCA) + S-video
  •  Sun & Solaris Compatible
     LCD1U17-24




    1280 x 1024 OR
    1152 x 900 @66 / 76Hz

      17.7"/
     449mm
    450:1 /
    250 nits / 130/105(H/V)
    106 Key KB
    w/ Touchpad
    & Numeric Key Pad Or Cherry Trackball Keyboard
    - Single port KVM
    - Combo USB PS2 KVM
    - 8 / 16  ports
    - 8 port DVI KVM




    -Separate sliding screen &
      keyboard using unique
       Dual rails  design
    - SUN &  Solaris Solution
    - Auto detection of SUN server
      1152 x 900 resolution
    - Built-in SUN Hotkeys
    - Fits all current SUN racks
    17 "LCD Flat Panel in 1U space
    -  Temper glass protection
    -  UL Listed & TAA Compliant

    Optional :
    - Touch screen
    - DVI Input , Speakers
    - 12V/24V / 48V /110V / 125V DC power
     Sun & Solaris Compatible
     LCD1U17-23




    1280 x 1024 OR
    1152 x 900 @66 / 76Hz

      19.8"/
     504mm
    450:1 /
    250 nits / 130/105(H/V)
    106 Key KB
    w/ Touchpad
    & Numeric Key Pad Or Cherry Trackball Keyboard
    - Single port KVM
    - Combo USB PS2 KVM
    - 8 / 16  ports
    - 8 port DVI KVM






    - SUN &  Solaris Solution
    - Auto detection of SUN server
      1152 x 900 resolution
    - Built-in SUN Hotkeys
    -Fits all current SUN racks
    -
    19 "LCD Flat Panel in 1U space
    - Temper glass protection
    - UL Listed & TAA Compliant

    Optional :
    - Touch screen
    - DVI Input , Speakers
    - 12V/24V / 48V/ 110V / 125V DC power
     LCD1U17-22

    Combo 8 KVM Model -



    1280 x 1024

      19.8"/
     504mm
    450:1 /
    250 nits / 130/105(H/V)
    106 Key KB
    w/ Touchpad
    & Numeric Key Pad Or Cherry Trackball Keyboard
    - Single port KVM
    - Combo USB PS2 KVM
    - 8 / 16  ports
    - 8 port DVI KVM




    - Combo PS/2 or  USB input
    -
    17 "LCD Flat Panel in 1U space
    - Temper glass protection
    - UL Listed & TAA Compliant

    Optional :
    - Sun Hot Key
    - Touch screen
    - DVI Input
    - Speakers
    - 12V/24V / 48V/ 110V / 125V DC power
    * Sun  Solaris Compatible
    * Dual Rails
    LCD1U17-21

    Price: $1038  Buy Online>>
    1280 x 1024 OR
    1152 x 900 @66 / 76Hz
    25.6"/
    650mm
    1000:1
    / 250 nits
    104 keys notebook KB w/ numerical keypad & Touchpad & SUN Hot Key
  • Single port KVM
  • 8 / 16 / 32 ports
  • DVI-D KVM
  • Combo USB PS2 KVM
  • DB-15 KVM / CAT6 KVM
  • IP KVM
  • Matrix KVM
  • Local / Local + Remote console
  • 1U dual slide 17" LCD console drawer
  • Direct Support for SUN Micro 1152 x 900 native resolution
  • Secure remote user access across the world wide web
  • 104-key keyboard with SUN hotkeys
  • Enhanced aesthetics with new molded front panel and two point lock
  • TAA Compliant

  • Optional :
  • 12V/24V/ 48V /110V / 125V / 250V DC
  • * Dual Rails
    LCD1U17-20


    Price : $848  Buy Online>>
    1280 x 1024 25.6"/
    650mm
    1000:1 / 250 nits / 160 / 160 (H/V) 104 key Notepad KB with full Numerical pad & Touchpad or Trackball
  • Single port KVM
  • 8 / 16 / 32 ports
  • DVI-D KVM
  • Combo USB PS2 KVM
  • DB-15 KVM / CAT6 KVM
  • IP KVM
  • Matrix KVM
  • Local / Local + Remote console
  • 1U dual slide 17" LCD console drawer
  • 104-key keyboard with touchpad
  • Enhanced aesthetics with new molded front panel and two point lock
  • Combo interface either PS/2 or USB for single console drawer
  • TAA Compliant

  • Optional :
  • S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D ( either one )
  • 12V/24V/ 48V /110V / 125V / 250V DC
  • *  Sunlight Monitor
    LCD1U17-19


    Price : $1561  Buy Online>>



    1280 x 1024

      17.3"/
     440mm
    1000:1 /    1000 nits / 170/160(H/V) 104 key Notepad KB with full Numerical pad & Touchpad or Trackball
  • Single port KVM
  • 8 / 16 / 32 ports
  • DVI-D KVM
  • USB HUB KVM
  • Combo USB PS2 KVM
  • DB-15 KVM / CAT6 KVM
  • IP KVM
  • Matrix KVM
  • Local / Local + Remote console
  • -Sunlight Viewable LCD w/ LED Technology
  • 1000cd/m for 19" LCD
  • Lower power consumption
  • High shock & vibration resistance
  • Short depth design of 440mm
  • 2 post rack mounting available
  • TAA Compliant

    Optional :
  • S-Video + Composite Video/ BNC / RCA
  • HDMI
  • DVI-D Video Input
  • 12V/24V/ 48V /110V / 125V / 250V DC
  • Touch Screen / Speaker
  • Sun & Solaris Compatible
    LCD1U17-16

    Price : $947  Buy Online>>
    1280 x 1024 OR
    1152 x 900 @66 / 76Hz
    19.7"/
    500mm
    1000 : 1 /
    250 nits /
    160 / 160 (H/V)
    104 key Notepad KB with Full Numerical pad & SUN Hot key with Touchpad or  Trackball

  • Single port KVM
  • 8 / 16 / 32 ports
  • DVI-D KVM
  • Combo USB PS2 KVM
  • DB-15 KVM / CAT6 KVM
  • IP KVM
  • Matrix KVM
  • Local / Local + Remote console
  • 1U 17" LCD console drawer
  • Direct Support for SUN Micro 1152 x 900 native resolution
  • Secure remote user access across the world wide web
  • 104-key keyboard with SUN hotkeys
  • Short depth design of 500mm ( 19.7" )
  • Enhanced aesthetics with molded front handle and two point lock
  • TAA Compliant

  • Optional :
  • 12V/24V/ 48V /110V / 125V / 250V DC power
  • LCD1U17-15

    Price : $758  Buy Online>>
    1280 x 1024 19.7"/
    500mm
    1000 : 1 /
    250 cd/ m2 /
    160° x 160° (H/V)
    104 key Notepad KB with full Numerical pad & Touchpad or Trackball
  • Single port KVM
  • 8 / 16 / 32 ports
  • DVI-D KVM
  • Combo USB PS2 KVM
  • DB-15 KVM / CAT6 KVM
  • IP KVM
  • Matrix KVM
  • Local / Local + Remote console
  • 1U 17" LCD console drawer
  • 104-key keyboard with either touchpad or trackball
  • Short depth design of 500mm ( 19.7" )
  • Enhanced aesthetics with molded front handle and two point lock
  • TAA Compliant

  • Optional :
  • S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D ( either one )
  • 12V/24V/ 48V /110V / 125V / 250V DC power
  • Sun & Solaris Compatible
    LCD1U17-13

    Price: $917  Buy Online>>
    1280 x 1024
    OR
    1152 x 900 @66 / 76Hz
    18.1"/
    460mm
    1000 : 1 /
    250 nits /
    160 x 160 (H/V)
    104 key  KB with Numerical pad & Touchpad / Trackball &  SUN Hot key
  • Single port KVM
  • 8 / 16 / 32 ports
  • DVI-D KVM
  • USB HUB KVM
  • Combo USB PS2 KVM
  • DB-15 KVM / CAT6 KVM
  • IP KVM
  • Matrix KVM
  • Local / Local + Remote console
  • Direct Support for SUN Micro 1152 x 900 native resolution
  • Secure remote user access across the world wide web
  • 104-key keyboard with SUN hotkeys
  • Short depth design of 460mm
  • New enhanced aesthetics with molded front handle
  • Front USB port for device access ( USB Hub KVM only )
  • 2 post rack mounting available
  • TAA Compliant

  • Optional :
  • 12V/24V/ 48V /110V / 125V / 250V DC
  •  *Real Mouse
    LCD1U17-09


    Price: $788 Buy Online>>
    1280 x 1024 25.6"/
    650mm
    1000 : 1 / 250 nits / 160/160(H/V) Notebook
    KB w/ Mini Optical Mouse


    *supporting
    Real Mouse

  • Single port KVM
  • 8 / 16 / 32 ports
  • DVI-D KVM
  • Combo USB PS2 KVM
  • DB-15 KVM / CAT6 KVM
  • IP KVM
  • Matrix KVM
  • Local / Local + Remote console
  • 1U 17" LCD console drawer
  • 104-key keyboard with a true optical mouse
  • Enhanced aesthetics with molded front handle and two point lock
  • Combo interface either PS/2 or USB for single console drawer
  • TAA Compliant

  • Optional :
  • S-Video + Composite ( BNC ) & Audio input
  • HDMI or DVI-D ( either one )
  • 12V/24V/ 48V /110V / 125V / 250V DC
  •  LCD1U17-08
     Made in USA



    Price: $1042  Buy Online>>



    1280 x 1024

     20.8"/
     528mm
    1000:1 Cherry or Standard   Keyboard w/   Trackball or Touchpad Single PS2 or USB port
    -
    Short Depth
    -17" LCD Flat Panel
    -Made in USA, TAA Compliant

    Optional :
    -USB Interface
    - Light Gray color available
    -Lexan Shield Protection
    - S-Video & Composite video &
      ARGB or DVI input(either one)
    - Lock - Retainers
    * Dual Rails                 LCD1U17-07



    Price: $1087.50



    1280 x 1024

     17.5"/
     443mm
    450:1 /    250 nits 106 keys
    keyboard w/ Numeric key pad  & Touchpad OR Cherry keyboard w/ Trackball
    -Single / 8 / 16 port
    -  PS2 & USB Combo

    - 8 port DVI KVM

    -Separate sliding screen &
      keyboard using unique
       Dual rails  design
    for 17" LCD
    -Tempered  glass protection
    - UL Listed & TAA Compliant


    Optional :
    - Speaker
    - DVI Input
    - Hot Sun keys
    - 12V/24V /48V /110V /125V DC Input adapter
     LCD1U17-06




    1280 x 1024

      17.3""/
     440mm
    1000:1 /  250 nits / 160/160(H/V) Notebook KB
    w/ Touchpad or  Trackball
    -Single port
    -Combo PS/2 & USB
    -Short Depth fits 23.6" /600mm
      deep cabinet rack
    -17" Industrial LCD Panel
    -Combo PS/2 or  USB input
    -TAA Compliant


    Optional :
    - S-Video + Composite Video / BNC
       / DVI-D Video Input
    - 12V/24V/48V/110V/125V DC power Input
    - Touch Screen / Speaker
     LCD1U17-05
     Made in USA

    Price: $1021   Buy Online>>



    1280 x 1024

     29"/
     736.6mm
    1000:1 Cherry TM  or Solidtek Keyboard w/ Touchpad or Keyboard w/  Trackball Single PS2 or USB port
    -17" LCD
    -Made in USA, TAA Compliant

    Optional :
    -USB Interface  - Light Gray color available
    -Lexan Shield Protection
    - S-Video & Composite video &
      ARGB & DVI inputs
    - Optical mouse
    - Lock - Retainer
    *Real Mouse
    LCD1U17-04
     Made in USA


    Price:$1021  Buy Online>>



    1280 x 1024

      25.2"/
     640mm
    1000:1 Mechanical
    88 key w/ Mouse area

    -supporting
    Real Mouse


    Single PS2 or USB port
    -
    User can store and use a Real Mouse
    -Grade A 17" LCD
    -Made in USA , TAA compliant

    Optional :
    -USB Interface
    - S-Video & Composite video &
      ARGB & DVI inputs
    - Optical mouse
    - Lock - Retainer
    LCD1U17-01

    Price : $727
    Buy Online>>
    1280 x 1024 18.1"/
    460mm
    1000 : 1 /
    250 nits /
    160 x 160(H/V)
    Notebook KB
    w/ Touchpad or  Trackball
    OR
    Cherry TM KB w/ Trackball
  • Single port KVM
  • 8 / 16 / 32 ports
  • DVI-D KVM
  • USB HUB KVM
  • Combo USB PS2 KVM
  • DB-15 KVM / CAT6 KVM
  • IP KVM
  • Matrix KVM
  • Local / Local + Remote console
  • 1U 17" LCD console drawer
  • Support Windows 7 / Vista / XP / Linux / Mac OS X
  • 104-key keyboard with either touchpad or trackball
  • Short depth design of 460mm
  • New enhanced aesthetics with molded front handle
  • Front USB port for device access ( Optional with USB Hub KVM only )
  • 2 post rack mounting available
  • TAA Compliant

  • Optional :
  • DVI-D, S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D ( either one )
  • 12V/24V/ 48V /110V / 125V / 250V DC power
  •           1U 17" LCD Monitor Drawer                                                                Back to top >>
    Part # / Photo / Price/
    Buy Online
    Resolution Depth Contrast
    Ratio / Brightness/ Viewing Angel
    Features Options
     New
    LCD1U17-018

    Price: $780  Buy Online>>



    1920 x 1080



    18.96"/
     480mm
    600:1 /
    400 nits /
    160 x 140
  • 1U 17" widescreen LCD drawer
  • with DVI-D / VGA input
  • Support Full HD with 1080p resolution
  • Green LED-backlit panel technology
  • Enhanced aesthetics with molded front panel and two point lock
  • Short depth design of 480mm ( 18.9" )
  • TAA Compliant
  • 3G / HD / SD-SDI input
  • 17" Touchscreen : Resistive
  • HDMI ( w/ speaker ) or Audio input
  • 12V/24V/ 48V /110V / 125V / 250V DC
  •  New
    High Resolution 1920 x 1200

    LCD1U17-017

    Price: $1073  Buy Online>>



    1920 x 1200



    18.96"/
     480mm
    600:1 /
    210 nits /
    130 x 110
  • TAA Compliant
  • with DVI-D / VGA input
  • 1920 x 1200 native WUXGA Ultra high resolution
  • Support Full HD with 1080p resolution
  • Green LED-backlit panel technology
  • Enhanced aesthetics with molded front panel and two point lock
  • Short depth design
  • 3G / HD / SD-SDI input
  • 17" Touchscreen : Capacitive, Resistive
  • HDMI or Audio input
  • 12V/24V/ 48V /110V / 125V / 250V DC power
  •  New
    LCD1U17-016


    Price: $1250

    Buy Online>>





    1280 x 1024



    23.6"/
     600mm
     1000:1 /
    300 nits / 160/160(H/V)

    *Quad Display
    *standard VGA input
    *S-Video, Alarm I/O,VCR in/out
    *TAA Compliant
    - 12V/24V/ 48V /110V / 125V / 250V DC
      power
     High Brightness
    LCD1U17-015

    Price: $1470

    Buy Online>>



    1280 x 1024



    19.7"/
    500mm
    1000:1 /
    1000 nits / 170/160(H/V)

  • High brightness 1000 cd/m
  • Short depth design of 500mm ( 19.7" )
  • Green LED-backlit panel technology
  • Installation slides for easy
  • Enhanced aesthetics with molded front panel and two point lock
  • Sliding LCD allowing LCD to remain open when the rack door is closed
  • TAA Compliant
  • S-Video + Composite Video/BNC Video Input
  • 12V/24V/ 48V /110V / 125V / 250V DC power Input
  • Touch Screen
  • HDMI / Audio
  • LCD1U17-014

    Price: $727  Buy Online>>
    1280 x 1024 OR
    1152 x 900 @66 / 76Hz
    19.7"/
    500mm
    1000:1 / 250 nits / 160/160 (H/V)
  • TAA Compliant
  • Direct Support for SUN Micro 1152 x 900 native resolution
  • Short depth design of 500mm ( 19.7" )
  • Depth will suit a 600mm rack application
  • Sliding LCD allowing LCD to remain open when the rack door is closed
  • Installation slides for easy, quick installation
  • 12V/24V/ 48V /110V / 125V / 250V DC
  • LCD1U17-013
           Price: $621  Buy Online>>



    1280 x 1024



      18.9"/
     480mm
     1000:1 /
    300 nits / 160/160(H/V)
    *Short depth design to fit
      600mm rack application

    *
    TAA Compliant
    *Slide away flip-up monitor
    *Allowed viewing through closed
      glass cabinet door
    *Adjustable mounting brackets
      from 390 to 680mm
    *Slid rails have fixed position to
      prevent movement of screen
    *All mounting hardware included
    - S-Video & RCA
    - DVI or BNC
    - Touch Screen
    - 12V/24V/ 48V /110V / 125V / 250V DC
      Input adapter
    - Speaker
      LCD1U17-012
      Made in USA

      White is also available
    Price: $1006 Buy Online>>



    1280 x 1024



      19"/
     483mm
     1000:1 /
      250 nits
    *17" LCD Panel
    *Light weight & space saving
    *Slide away flip-up monitor
    *Allowed viewing through closed
      glass cabinet door
    *TFT surface protected by Lexan
      shield
    *All mounting hardware
      include
    *Made in USA, TAA Compliant
    - Front Lock to lock
      unit in rack
    - Front Retaining
      screws
    - 2 Post Telco rack
      mounting brackets
    - Touch screen
    LCD1U17-011

    Price: $621  Buy Online>>



    1280 x 1024



    19.7"/
    500mm
    1000:1 /
    250 nits / 160/160(H/V)
  • TAA Compliant
  • Short depth design of 500mm ( 19.7" )
  • Depth will suit a 600mm rack application
  • Sliding LCD allowing LCD to remain open when the rack door is closed
  • Installation slides for easy, quick installation
  • Enhanced aesthetics with molded front panel and two point lock
  • 17" Touchscreen
  • S-Video + Composite ( BNC )
  • HDMI or Audio input
  • 12V/24V/ 48V /110V / 125V / 250V DC power
  •            17" Industrial Monitor Flat Panel                                                                Back to top >>
    Part # / Photo / Price/
    Buy Online
    Resolution Depth Contrast
    Ratio / Brightness/ Viewing Angel
    Features Options
    LCDR8U17-H05

    1280 x 1024

      1000:1 /
    1000 nits
  • Sunlight Readable TFT Display
  • LED-enhanced Backlighting
  • Integration of light management films
  • Rugged Black Powder-Coated Aluminum Chassis
  • Energy Efficient, Low Power Consumption
  • RoHS Compliant
  • A multitude of Video Inputs: HD15(F), BNC, S-video
  • Anti-Reflective Protective Window
  • Made in the USA, TAA Compliant
  • Touch Screen
  • 12VDC or 24VDC Power
  • HD15(M) to 5xBNC(F) Interface Cable
  • Integrated Heaters & Thermostat
  • Inputs: Component Video YPbPr/SD or Component Video YCbCr
  • LCDR8U17-04


    1280 x 1024

      500:1 /
    300 nits

    *8U in height
    *High Contrast Ratio

    *BNC, S-Video & RCA input
     -N/A
    LCDR8U17-03

    Price: $1182 Buy Online>>



    1280 x 1024



    160 (H) / 160 (V)  1000:1 /
    300 nits / 160/160(H/V)
    * 17" Industrial LCD
       QUAD Monitor
    * 8U in height
    * AV + BNC + VGA , Alarm I/O
    * 4: 3 ratio
    *TAA Compliant

    - 12V, 24V & 48V DC input power
    LCDR7U17-10

    4:3 / 1280 x 1024
    or
    16:9 / 1440 x 900
      500:1 /
      400 nits

  • OSD function
  • Easy-Mount Handle
  • 7U Height Rack Mount, 17" display Size
  • Standard 4:3 LCD Panel
  • Brightness(cd/m): 400
  • Input: VGA, DVI
  • Support Windows 2000/XP/Vista/7, Linux, Unix, Novell and Sun
  • Dimension: 435 x 44 x 450 mm
  • N / A
    LCDR7U17-09
    Made in USA

    Price: $548  Buy Online>>

    1280 x 1024

      1000:1 /
      250 nits
    170 (H) / 160 (V) * 17 TFT LCD display in only 7U of
      rack space.
    * LCD panel features wide viewing angles
    * 1000:1 Static contrast ratio for superior detail.
    * Fast video response time provides sharp text and crisp motion.
    *TAA Compliant
    - Lexan Shield
    - Touch screen
     New
    LCDR7U17-08
    Made in USA

    Price: $720  Buy Online>>

    1280 x 1024

      450:1 /
    300 nits
    * 17" LCD
    *7U in height
    *High Contrast Ratio

    *BNC, S-Video & RCA input
    *Made in USA
     -N/A

    LCDR7U17-07

    Made in USA





    1280 x 1024



     155 (H) /135 (V) 500:1 /
    270 nits
    *17" LCD
    *7U in height
    *High Contrast Ratio

    *VGA & DVI Digital input
    *Made in USA
    - Lexan Shield
    LCDR7U17-05
    Made in USA

    Price: $796  Buy Online>>
    1280 x 1024 1000:1 /
    280 nits
    1000:1 /
    280 nits
    * 17" LCD
    *7U in height
    *Display surface protected
      by a LEXAN shield

    *Made in USA
    - N/A
    LCDR7U17-04

    Price: $1364  Buy Online>>



    1280 x 1024



    170 (H) / 160 (V) 1000:1 /
    1000 cd/m2
  • high brightness 1000 cd/m2
  • Green LED-backlit panel technology
  • Ideal for CCTV security & industrial control
  • TAA Compliant
  • Multi-display control solution
  • 17" Touchscreen
  • S-Video + Composite (BNC) or Audio input
  • HDMI or DVI-D (either one)
  • 48V, 24V or 12VDC power
  • MIL-type or lockable connector
  • LCDR7U17-03

    Price : $644  Buy Online>>
    1280 x 1024 OR
    1152 x 900 @66 / 76Hz
    160 (H) / 160 (V) 1000:1 / 250 nits
  • 7U 17" rackmount LCD with DVI-D / VGA input
  • Direct Support for SUN Micro 1152 x 900 native resolution
  • Ideal for CCTV security & industrial control
  • TAA Compliant
  • 48V, 24V or 12VDC power
  • LCDR7U17-02

    Price: $515 Buy Online>>



    1280 x 1024



    160 (H) / 160 (V) 1000:1 / 250 nits
  • 17" Industrial LCD
  • 7U in height
  • Great for CCTV Security and industrial control
  • Rackmount LCD with DVI-D / VGA input
  • TAA Compliant
  • 3G / HD / SD-SDI input
  • Multi-display control
  • Touch screen
  • S-Video + Composite Video (RCA or BNC )
  • HDMI / DVI-D
  • 12V, 24V & 48V DC power input
  • MIL-type or lockable connector
  •  High Brightness
    High Resolution 1920 x 1080

    LCDR6U17-03

    Buy Online>>



    1920 x 1080



    160 (H) / 140 (V)  600:1 /
     1000 nits
  • 6U rackmount 17" widescreen LCD
  • Support Full HD with 1080p resolution
  • Green LED-backlit panel technology
  • Ideal for CCTV security & industrial control
  • High brightness 1000 cd/m
  • TAA Compliant
  • SDI input
  • Multi-display control
  • Touch screen
  • S-Video + Composite ( BNC )
  • DC input power
  • MIL-type / lockable connector
  • HDMI or Audio input

  • High Resolution 1920 x 1080

    LCDR6U17-02

    Buy Online>>



    1920 x 1080



    160 (H) / 140 (V)  600:1 /
     400 nits
  • 6U rackmount 17" widescreen LCD
  • Support Full HD with 1080p resolution
  • Green LED-backlit panel technology
  • Ideal for CCTV security & industrial control
  • Modern touch controls
  • TAA Compliant
  • SDI input
  • Multi-display control
  • Touch screen
  • S-Video + BNC / RCA, TV, HDMI or Audio
  • DC input power
  • MIL-type / lockable connector
  • Digital TV tuner

  • High Resolution 1920 x 1200

    LCDR6U17-01

    Buy Online>>
    1920 x 1200 130 (H) / 110 (V)  600:1 /
     210 nits
  • 6U rackmount 17" widescreen LCD
  • 1920 x 1200 native WUXGA Ultra high resolution
  • Support Full HD with 1080p resolution
  • PIP & Picture by Picture viewing efficiency
  • Green LED-backlit panel technology
  • 8-bit colors
  • Built-in HDMI, DVI-D, VGA, S-Video + BNC & Audio
  • TAA Compliant
  • SDI input
  • Multi-display control
  • Touch screen
  • 48V, 24V or 12VDC input
  • MIL-type / lockable connector
  •           2U 17" LCD Keyboard KVM                                                               Back to top >>
    Part # / Photo / Price Resolution Depth Contrast
    Ratio / Brightness/
    Viewing angle
    Keyboard KVM Options Features & Options
     LCD2U17-08


    1920 x 1080

      18.9"/
     480mm
    600:1 / 400 nits Windows Keyboard w/ Touchpad or Trackball

    Optional MAC Keyboard

    - Single port combo KVM
    - Multiport DB-15 KVM
    - Multiport CAT6 KVM
    - Local & Remote Access
    - Matrix KVM
    - Separate sliding screen &
      keyboard using Dual  Slide Rail
      design

    - Full HD 1080p 17" LCD in 2U
    - TAA Compliant

    Optional :
    - 12V/24V/ 48V /110V /125V/250V DC Input power

     LCD2U17-07


    1920 x 1200

      18.9"/
     480mm
    600:1 / 210 nits Windows Keyboard w/ Touchpad or Trackball

    Optional MAC Keyboard

    - Single port combo KVM
    - Multiport DB-15 KVM
    - Local & Remote Access
    - Matrix KVM
    - Separate sliding screen &
      keyboard using Dual  Slide Rail
      design

    - 1920 x 1200 native WUXGA Ultra High
      Resolution
    - TAA Compliant

    Optional :
    - 12V/24V/ 48V /110V /125V/250V DC Input power


     LCD2U17-06
     Made in USA

    Price: $1139 Buy Online>>



    1280 x 1024



     13.25" 1000:1 / 280 nits 88 Key with mouse use area beside keyboard

    ** Single PS2 or USB
        port

    *Available with either
      built-in PS/2 or USB
      connector
    *17" LCD Panel
    *Short Depth Version
    *Made in USA , TAA Compliant
    -Optional Retainer, Lock
    -Optional S-Video &
      Composite video

     LCD2U17-05
     Made in USA

    Price: $1139 Buy Online>>



    1280 x 1024



     13.25" 1000:1 / 280 nits Touchpad or  Trackball

    ** Single PS2 or USB
        port

    *Available with either
      built-in PS/2 or USB
      connector
    *17" LCD Panel
    *Short Depth Version
    *Made in USA , TAA Compliant
    -Optional Retainer, Lock
    -Optional S-Video &
      Composite video
    LCD2U17-03

    Price: $780  Buy Online>>
    1280 x 1024 18.9"/
    480mm
    1000:1 / 250 nits Regular / MAC / SUN KB
    w/ Touchpad or  Trackball
    OR
    Cherry TM KB w/ Trackball
  • Single port KVM
  • 8 / 16 / 32 ports
  • DVI-D KVM
  • Combo USB PS2 KVM
  • DB-15 KVM / CAT6 KVM
  • IP KVM
  • Matrix KVM
  • Local / Local + Remote console
  • 2U dual slide 17" LCD console drawer
  • 104-key keyboard with either touchpad or trackball
  • SUN Micro or MAC keyboard options available
  • Short depth design of 480mm
  • New enhanced aesthetics with molded front handle
  • Front USB port for device access ( USB Hub KVM only )
  • TAA Compliant

  • Optional :
  • S-Video + Composite ( BNC / RCA ) or Audio input
  • HDMI or DVI-D ( either one )
  • 17" Touchscreen
  • 12V/24V/ 48V /110V / 125V / 250V DC power
  •     Sun & Solaris Compatible
     LCD2U17-04


     Price: $970  Buy Online>>
    1280 x 1024
    OR
    1152 x 900 @66 / 76Hz
    23.6"/
    600mm
    700:1 / 300 nits 104-key SUN compatible KB w/ SUN HOT Keys &  3-button Trackball
    - Single port KVM
    - DB-15 KVM OR
      CAT5 KVM /CAT6 KVM
    - IP KVM
    - Matrix KVM
    - Local  &
      Remote access console
    - 8 / 16 / 32 ports



    -Directly compatible w/ SUN
      Microsystems &  Solaris
    -Auto detection of SUN server
      1152 x 900 resolution
    -Built-in SUN Hotkeys
    -Fits all current SUN racks
    -TAA Compliant


    Optional :
    - S-Video & Composite Video /
      BNC or RCA
    - DVI-D Video Input
    - Speakers
    - 12V/24V/ 48V /110V / 125V / 250V DC




     Toll Free : 1-888-865-6888    Fax : 510-226-8968    Email : sales@RackmountMart.com




    Home    |   Buy Online    About Us  |    Contact Us    |    Site Map

    Product images may be generic and may not reflect actual item purchased. SYNERGY GLOBAL TECHNOLOGY INC is not responsible for any typo graphical errors. Specifications & prices subject to change without notice.  Legal.
