    Home >>  Industrial Display >>  Open Frame LCD Monitor >>

Industrial Monitors :   Part #   ID-H19Pw-LED


   19" Industrial Grade Open Frame Widescreen High Brightness LCD with LED backlight , TAA Compliant
LCD with LED Backlight Panel
LCD Type

Industrial Grade 19" High bright Widescreen TFT LCD Panel

Backlight

LED

Resolutions

1440 x 900

Display Color

16.7 M color

Brightness

1000 cd/m2

Contrast ratio

1000 : 1 ( Typical )

Active area (mm)

408 x 255

Viewing angle 160 x 160

LCD MTBF

50,000 hrs

Signal Input

Standard VGA & DVI-D

Power Supply

Input : Auto-sensing 100 to
          240VAC, 50 / 60Hz
Consumption :Max. 84 Watt, Standby 5 Watt
Mounting Universal mount / VESA mount
OPTIONS

Optional Touch Screen

               Details

Optional DC Power

250V / 125V / 110V / 48V / 24V / 12V DC Power    Details

Other Option

- Multi-Display Controller         Details
- HDMI, DVI-D, S-Video + BNC & Audio
- 3G / HD / SD-SDI Broadcast-grade input
- MIL-type or lockable connector
- TV - PAL or NTSC
- Auto / switch dimming

Mechanical
Dimension
( W x D x H )
 19.9 x 2.3 x 13.2 inch /
 505.5 x 59.6 x 335.1 mm
Product Weight  5 kgs ( 11 lbs )
Casing Color  Dark Grey
Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~ 90%, non condensing
Shock 10G acceleration ( 11 ms duration )
Vibration 5 ~ 500Hz 1G RMS random vibration
Regulatory FCC, CE, RoHS Compliant , TAA Compliant
Package Content

Package Content

19" High Brightness LCD display x 1, 6ft VGA Cable x 1, Power adapter x1, Power cord x 1

  Front View of  ID-H19Pw-LED

  Construction


   Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view


 Download Product Sheet
 Download User Manual

Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7 If you do not find the driver required, please contact us.




   DISPLAY BENEFITS :
  • 19" widescreen LCD with high brightness 1000 cd/m
  • Green LED-backlit panel technology
  • Rugged construction against external impact


   0PTIONS :
  • HDMI, DVI-D, S-Video + BNC & Audio
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • HW19" Touchscreen : Capacitive or Resistive, 10-poiny Multi-touch also avalable
  • 250V , 125V , 110V , 48V , 24V or 12V DC power
  • MIL-type or lockable connector
  • Auto / switch dimming
  • TV - PAL or NTSC

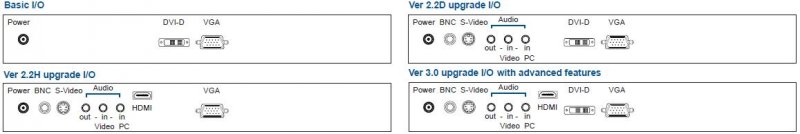

    Diagram for  I/O Outlet

Ordering information :
Part # Description
ID-H19Pw-LED
Price : $1062
19" Open Frame Widescreen High Brightness LCD with LED-backlit Panel Display with DVI-D + VGA input
ID-H19Pw-BNC-LED
Price : $1197
19" Open Frame Widescreen High Brightness LCD with LED-backlit Panel Display,
with VGA + DVI-D + BNC + S-Video + Audio + remote controller
ID-H19Pw-AV-LED
Price : $1197
19" Open Frame Widescreen High Brightness LCD with LED-backlit Panel Display,
with VGA + DVI-D + BNC with RCA adapter + S-Video + Audio + remote controller
ID-H19Pw-HDMI-LED
Price : $1197
19" Open Frame Widescreen High Brightness LCD with LED-backlit Panel Display,
with VGA + HDMI with speakers + BNC +S-Video + Audio + remote controller
Optional Video/Audio Inputs
-SDI
Price : $461
With VGA + DVI-D + HDMI + BNC + S-Video + audio + remote controller + SDI Download Spec Sheet
-MC
Price : $88
Add Multi-Display Controller Download Spec Sheet
Optional Touch Screen
-TRS
Price : $257
Add Resistive Touch Screen with Serial Controller
-TRB
Price : $257
Add Resistive Touch Screen with USB Controller
-TCS
Price : $434
Add Capacitive Touch Screen with Serial Controller
-TCB
Price : $434
Add Capacitive Touch Screen with USB Controller
-TPC10
Price : $508
Add Projected Capacitive 10-point multi-touch + USB controller
** casing dimension will be changed if multi-touch is applied
Optional Dimming
-DA
Price : $95
Add Auto Dimming
-DS
Price : $95
Add Dimming switch
** casing dimension will be changed if -DS is applied
Optional DC power
-DC12
Price : $203
Add 12V DC Power
-DC24
Price : $203
Add 24V DC Power
-DC48
Price : $203
Add 48V DC Power
-DC110
Price : $339
Add 110V DC Power
-DC125
Price : $339
Add 125V DC Power
-DC250
Call for pricing
Add 250V DC Power
Optional Connectors For DC power only
-MD
Price : $88
Add MIL-type DC lockable jack, male
-MA
Price : $136
Add MIL-type VGA lockable jack, male
-LD
Price : $34
Add Lockable DC jack, male
-LS
Price : $34
Add Lockable USB jack
