    Home >>  Industrial Display >>  Open Frame LCD Monitor >>

Industrial Monitors :   Part #   ID-H17P-LED


             17" Industrial Grade Open Frame High Brightness LCD with LED backlight , TAA Compliant
LCD with LED Backlight Panel
LCD Type 17" Industrial Grade High bright TFT LCD Panel

Backlight

LED

Resolutions

1280 x 1024

Display Color

16.7 M

Brightness

1000 cd/m2

Contrast ratio

1000 : 1 ( Typical )

Active area

338 x 270 mm

Viewing angle 170 x 160

LCD MTBF

50,000 hrs

Signal Input

DVI-D / VGA

Power Supply

Input : Auto-sensing 100 to
          240VAC, 50 / 60Hz
Consumption :Max. 84 Watt, Standby 5 Watt

Mounting

Universal mount / VESA mount
OPTIONS

Optional Touch Screen

               Details

Optional DC Power

250V / 125V / 110V / 48V / 24V DC Power         Details

Other Option

- Multi-Display Controller         Details
- HDMI, DVI-D, S-Video + BNC ( or RCA ) & Audio
- Military-type or lockable connector
- Auto / switch dimming

Mechanical
Dimension
( W x D x H )
 17.2 x 2.3 x 13.9 inch /
 436 x 58.2 x 353.6 mm
Product Weight  4.9 kgs ( 10.8 lbs )
Casing Color  Black
Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~ 90%, non condensing
Shock 10G acceleration ( 11 ms duration )
Vibration 5 ~ 500Hz 1G RMS random vibration
Regulatory FCC, CE, RoHS Compliant , TAA Compliant
Package Content

Package Content

17" High Brightness LCD display , 6ft VGA Cable , Power adapter, Power cord

  Front View of  ID-H17P-LED

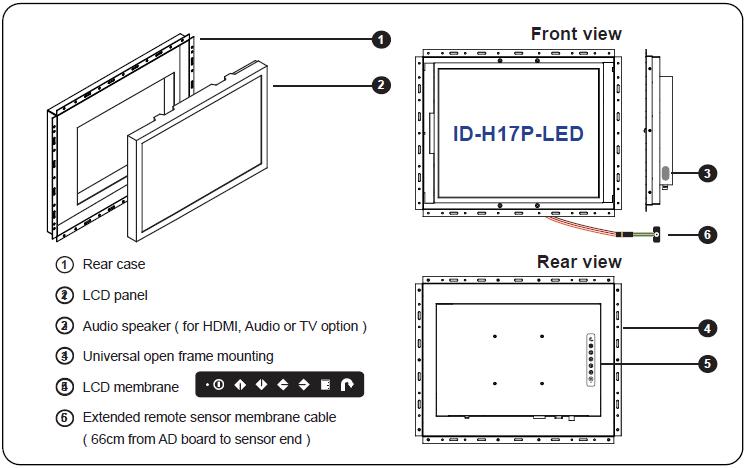

  Construction

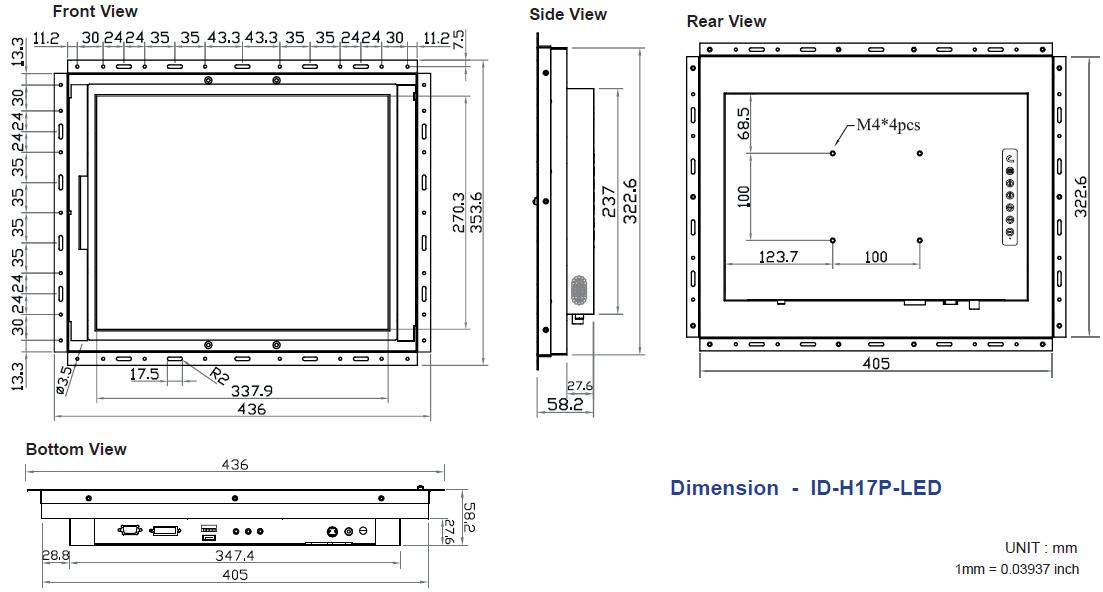

   Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view


 Download Product Sheet
 Download User Manual

Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7 If you do not find the driver required, please contact us.

         Free Ground Shipping * Click for details




DISPLAY BENEFITS :
  • 17" LCD with high brightness 1000 cd/m
  • Green LED-backlit panel technology
  • Rugged construction against external impact
   OPTIONS :
  • Multi-display control solution
  • 17" Touchscreen : Capacitive or Resistive,
    10-point multi-touch available too
  • S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D ( either one for AV2.2 upgrade )
  • MIL-type or lockable connector
  • 250V / 125V / 110V / 48V / 24V or 12V DC power
  • Auto dimming or switch dimming

   Diagram for  I/O Outlet

Ordering information :
Part # Description
ID-H17P-LED
Price : $901
17" Open Frame High Brightness LCD with LED-backlit Panel Display,
with VGA + DVI-D input
ID-H17P-BNC-LED
Price : $1037
17" Open Frame High Brightness LCD with LED-backlit Panel Display,
with VGA + DVI-D + BNC + S-Video + Audio + remote controller
ID-H17P-AV-LED
Price : $1037
17" Open Frame High Brightness LCD with LED-backlit Panel Display,
with VGA + DVI-D + BNC with RCA adapter + S-Video + Audio + remote controller
ID-H17P-HDMI-LED
Price : $1037
17" Open Frame High Brightness LCD with LED-backlit Panel Display,
with VGA + HDMI with speakers + BNC +S-Video + Audio + remote controller
Optional Video/Audio Inputs
-MC
Price : $88
Add Multi-Display Controller            Download Spec Sheet for Multi-Display Controller
Optional Touch Screen
-TRS
Price : $230
Add Resistive Touch Screen with Serial Controller
-TRB
Price : $230
Add Resistive Touch Screen with USB Controller
-TCS
Price : $400
Add Capacitive Touch Screen with Serial Controller
-TCB
Price : $400
Add Capacitive Touch Screen with USB Controller
-TPC10
Price : $393
Add Projected Capacitive 10-point multi-touch + USB controller
** casing dimension will be changed if multi-touch is applied
Optional Dimming
-DA
Price : $95
Add Auto Dimming
-DS
Price : $95
Add Dimming switch
** casing dimension will be changed if -DS is applied
Optional DC power
-DC12
Price : $262
Add 12V DC Power
-DC24
Price : $262
Add 24V DC Power
-DC48
Price : $262
Add 48V DC Power
-DC110
Price : $339
Add 110V DC Power
-DC125
Price : $339
Add 125V DC Power
-DC250
Call for pricing
Add 250V DC Power
Optional Connectors For DC power only
-MD
Price : $88
Add MIL-type DC lockable jack, male
-MA
Price : $136
Add MIL-type VGA lockable jack, male
-LD
Price : $34
Add Lockable DC jack, male
-LS
Price : $34
Add Lockable USB jack
