     Home >>  Industrial Display >>  Panel Mount Monitor / Wall Mount / Bracket Mount Monitor >>

Industrial Monitors:  Part #  ID-E24Aw


                     6mm Aluminum Front Bezel 24" High Resolution Wide Screen LCD Panel Display
LCD Panel
LCD Type

TFT LCD Panel

Backlight

CCFL

Display Size

Wide 24.1 inch diagonal

Resolutions

1920 x 1200

Display Color

1.07 Billion, 10-bit

Brightness

400 cd/m2

Contrast ratio

1000 : 1 (Typical)

Active area (mm)

518 x 324

Viewing angle 178 x 178

LCD MTBF

40,000 hrs

Signal Input

HDMI / DVI-D / VGA / S-Video / RCA

Power Supply

Input : Auto-sensing 100 to
          240VAC, 50 / 60Hz
Consumption :Max. 48 Watt,
                   Standby 5 Watt

Mounting

Panel mount / VESA mount
OPTIONS

Optional Touch Screen

                 Details

Optional Input

3G / HD / SD-SDI Broadcast-grade input

Other Option

- 48V / 24V / 12V DC Power    Details
- Multi-Display Controller         Details
- TV
- NEMA4 / IP65
- MIL-type or lockable connector

Mechanical
Color  Front Panel : Black
 Rear case   : Dark Grey
Dimension
( W x D x H )
 24.4 x 3.4 x 16.8 inch /
 620 x 87 x 426 mm
Product Weight  10 kgs ( 22 lbs )
Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~ 90%, non condensing
Vibration 5 ~ 500Hz 1G RMS random vibration
Regulatory FCC, CE, RoHS Compliant

  Front View of  ID-E24Aw

   Front / Rear / Top / Side Views & Dimensions


*click on above picture for enlarged view

                    Download Product Sheet
                    Download User Manual
                    Download Mounting Guide
Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7

        Free Ground Shipping * Click for details


More Photos, click on the following for enlarged view:




   DISPLAY BENEFITS :
  • 24" widescreen LCD with 1920 x 1200 native WUXGA Ultra high resolution
  • 1.07 Billion true colors, 10-bit
  • Standard with HDMI, DVI-D, VGA, S-Video, RCA, Audio & remote controller


   0PTIONS :
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • 24" Touchscreen : Capacitive, Resistive
  • NEMA4 / IP65 front protective glass
  • MIL-type or lockable connector
  • TV - PAL or NTSC

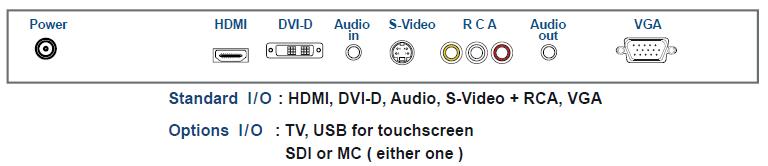

     Diagram for  I/O Outlet

Ordering information :
Part # Description
                                                 WITHOUT NEMA 4 / IP65
ID-E24Aw
Price : $1326
Standard Version  - 6mm Aluminum Front Bezel 24" LCD Wide Screen High Resolution display, with VGA + DVI-D + HDMI + BNC + S-Video + audio + remote controller
                                                  WITH NEMA 4 / IP65
ID-E24AwN
Price : $1442
6mm Aluminum Front Bezel 24" LCD Wide Screen High Resolution display, with VGA + DVI-D + HDMI + BNC + S-Video + audio + remote controller and IP65 / NEMA4 on screen
Optional NEMA4 / IP65
-N
Price : $122
Add NEMA4 / IP65 Protective Glass
Optional Video/Audio Inputs
-SDI
Price : $298
With VGA + DVI-D + HDMI + BNC + S-Video + audio + remote controller + SDI Download Spec Sheet
-MC
Price : $88
Add Multi-Display Controller Download Spec Sheet
Optional Touch Screen
-TRS
Price : $488
Add Resistive Touch Screen with Serial Controller
-TRB
Price : $488
Add Resistive Touch Screen with USB Controller
Optional DC power
-DC12
Price : $420
Add 12V DC Power
-DC24
Price : $420
Add 24V DC Power
-DC48
Price : $420
Add 48V DC Power
-DC110
Price : $644
Add 110V DC Power
-DC125
Price : $644
Add 125V DC Power
Optional Connectors For DC power only
-MD
Price : $88
Add MIL-type DC lockable jack, male Download Spec Sheet
-MA
Price : $136
Add MIL-type VGA lockable jack, male Download Spec Sheet
-LD
Price : $34
Add Lockable DC jack, male Download Spec Sheet
-LS
Price : $34
Add Lockable USB jack Download Spec Sheet
