    Home >>  Industrial Display >>  Open Frame LCD Monitor >>

Industrial Monitors :   Part #   ID-E17Pw


        17" Ultra High Resolution Widescreen Open Frame LCD Panel with LED backlight , TAA Compliant
LCD w/ LED Backlight Panel
LCD Type

17" Industrial Grade Ultra High Resolution TFT LCD Panel

Backlight

LED

Display Size

Wide 17.1 inch diagonal

Resolutions

1920 x 1200

Display Color

1.07 Billion, 10-bit

Brightness

210 cd/m2

Contrast ratio

800 : 1 ( Typical )

Active area (mm)

367 x 230

Viewing angle 178 x 178

LCD MTBF

15,000 hrs

Signal Input

HDMI / DVI-D / VGA / S-Video / RCA

Power Supply

Input : Auto-sensing 100 to
          240VAC, 50 / 60Hz
Consumption :Max. 48 Watt,
                   Standby 5 Watt

Mounting

Universal mount / VESA mount
OPTIONS

Optional Touch Screen

               Details

Optional Input

3G / HD / SD-SDI Broadcast-grade input

Optional DC Power

250V / 125V / 110V / 48V / 24V / 12V DC Power    Details

Other Option

- Multi-Display Controller         Details
- TV
- Military - type or lockable connector

Mechanical
Dimension
( W x D x H )
 18.3 x 2 x 12.9 inch /
 466 x 51 x 328 mm
Product Weight  3.7 kgs ( 8.1 lbs )
Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~ 90%, non condensing
Vibration 5 ~ 500Hz 1G RMS random vibration
Regulatory FCC, CE, RoHS Compliant , TAA Compliant

  Front View of  ID-E17Pw

*click on above picture for enlarged view

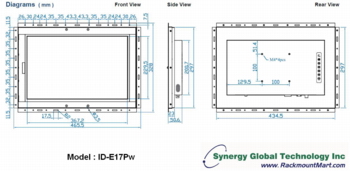

  Construction

   Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view


Download Product Sheet
Download User Manual

Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7 If you do not find the driver required, please contact us.

        Free Ground Shipping * Click for details

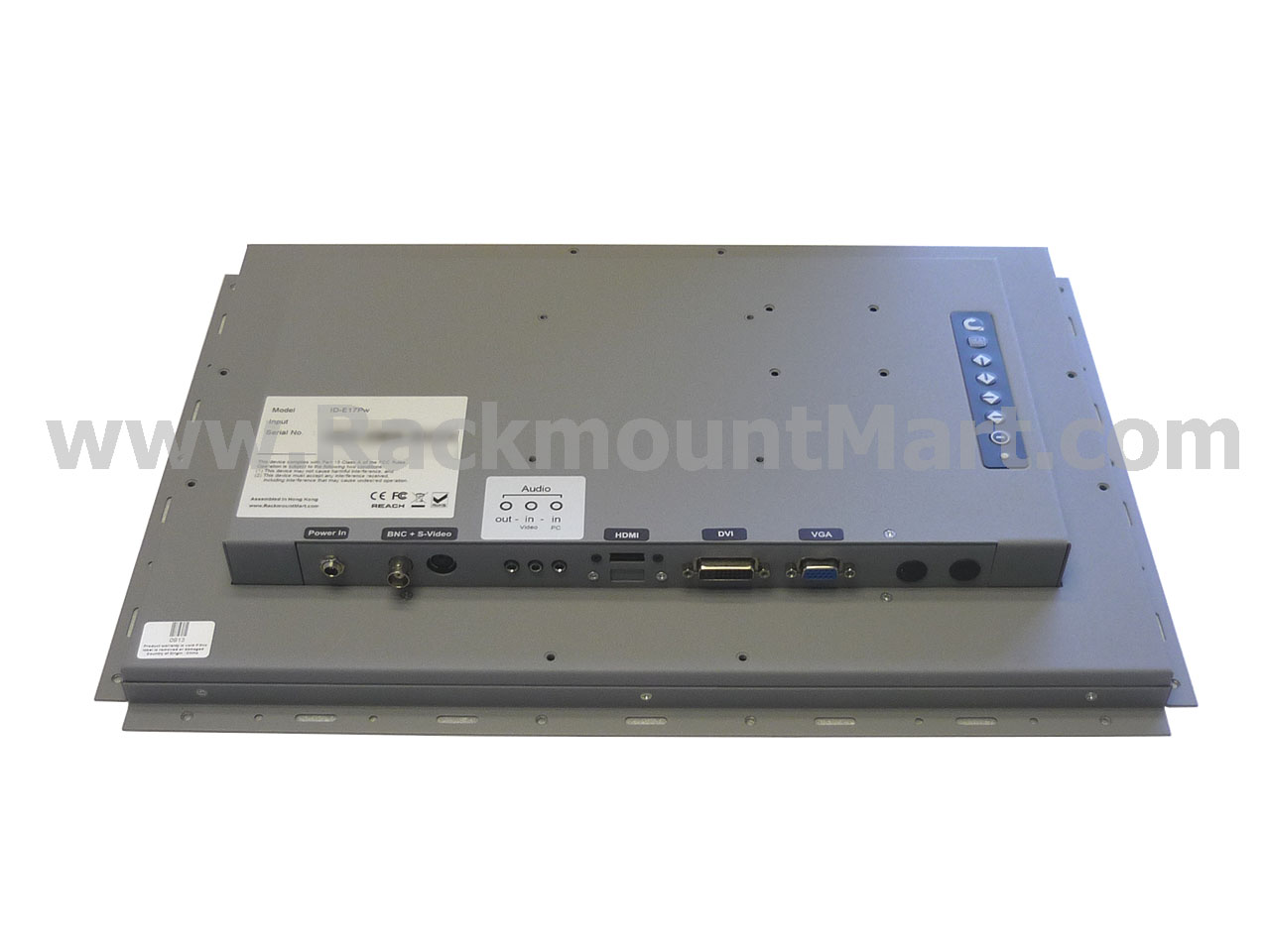

More Photos, click on the following for enlarged view:



   DISPLAY BENEFITS :
  • 17" widescreen LCD with 1920 x 1200 native WUXGA Ultra high resolution
  • Green LED-backlit panel technology
  • 1.07 Billion true colors, 10-bit
  • Standard with HDMI, DVI-D, VGA, S-Video, RCA, Audio & remote controller
   0PTIONS :
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • 17" Touchscreen : Capacitive, Resistive
  • MIL-type or lockable connector
  • 250V , 125V , 110V , 48V, 24V or 12V DC power
  • TV - PAL or NTSC

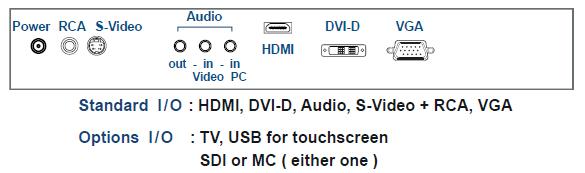

    Diagram for  I/O Outlet

Ordering information :
Part # Description
ID-E17Pw
Price: $875
17" Ultra High Resolution Widescreen LCD Panel with LED-backlit Display,
with VGA + DVI-D + HDMI + BNC + S-Video + audio + remote controller
Optional Video/Audio Inputs
-SDI
Price : $298
With VGA + DVI-D + HDMI + BNC + S-Video + audio + remote controller + SDI Download Spec Sheet
-MC
Price : $88
Add Multi-Display Controller Download Spec Sheet
Optional Touch Screen
-TRS
Price : $230
Add Resistive Touch Screen with Serial Controller
-TRB
Price : $230
Add Resistive Touch Screen with USB Controller
-TCS
Price : $400
Add Capacitive Touch Screen with Serial Controller
-TCB
Price : $400
Add Capacitive Touch Screen with USB Controller
Optional DC power
-DC12
Price : $203
Add 12V DC Power
-DC24
Price : $203
Add 24V DC Power
-DC48
Price : $203
Add 48V DC Power
-DC110
Price : $339
Add 110V DC Power
-DC125
Price : $339
Add 125V DC Power
-DC250
Call for pricing
Add 250V DC Power
Optional Connectors For DC power only
-MD
Price : $88
Add MIL-type DC lockable jack, male Download Spec Sheet
-MA
Price : $136
Add MIL-type VGA lockable jack, male Download Spec Sheet
-LD
Price : $34
Add Lockable DC jack, male Download Spec Sheet
-LS
Price : $34
Add Lockable USB jack Download Spec Sheet
