      Home >>  Industrial Display >>  Chassis Display >>

                             Industrial Displays :   Part #   ID-32Dw
                           1.2mm Aluminum Front Bezel 32" Samsung Wide Screen Chassis Display
                                                  LCD Panel

LCD Type

Samsung Grade A Industrial
              TFT LCD Panel

Display Size

Wide 32 inch (16:9)

Resolutions

1366 x 768

Display Color

16.7M color

Brightness

450 cd/m2

Contrast ratio

1000 : 1 (Typical)

Response Time

Tr=15 / Tf=25ms

Pixel pitch

0.511 x 0.511 mm

Viewing angle

85 / 85 / 85 / 85 (L / R / U / D)  or
170 / 170

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input

  • Input Video Signal : Analog RGB
  • Video Level :  Analog: 0.7Vp-p
  • Sync Type : Separate H/V, Composite
    H/V
  • Input Connector : D-Sub 15 pin VGA
    analog

Power Supply

External type,110 ~ 220 VAC at 50 or 60Hz via
AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE

Mounting

VESA-mount, Panel-mount, Wall-mount &
Bracket mount
                                                  OPTIONS

Video  Input

  • Video Input   :    DVI and S-Video and Composite
  • Input Connectors : RCA, S-video, DVI

Other Option

- Multi-Display Controller         Details

                                  Mechanical

Material

 1.2mm Aluminum (Front panel)
 1.2mm Steel (Rear case)

Finish

 Powder Coating

Color  Front Panel : Silver
 Back          : Dark Grey (RAL7037)
Dimension  814 x 129 x 488 mm (WxDxH)
Product Weight  23.0 kg
                                  Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -10 to 60 Degree Celsius (Storage)
Relative Humidity  5 ~90%, non condensing
Vibration   58~500Hz / .098G
Safety Approval   CE, FCC
                             Package Content

Package Content

LCD Monitor x 1,VGA Cable (Male to Male) x 1,   DC 12V adapter  x1 ,  Power cord x 1,  Mounting Bracket x 1 pair, CD disc, User Manual x 1

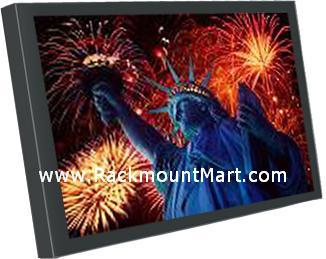

  Front View of  ID-32Dw



  Construction

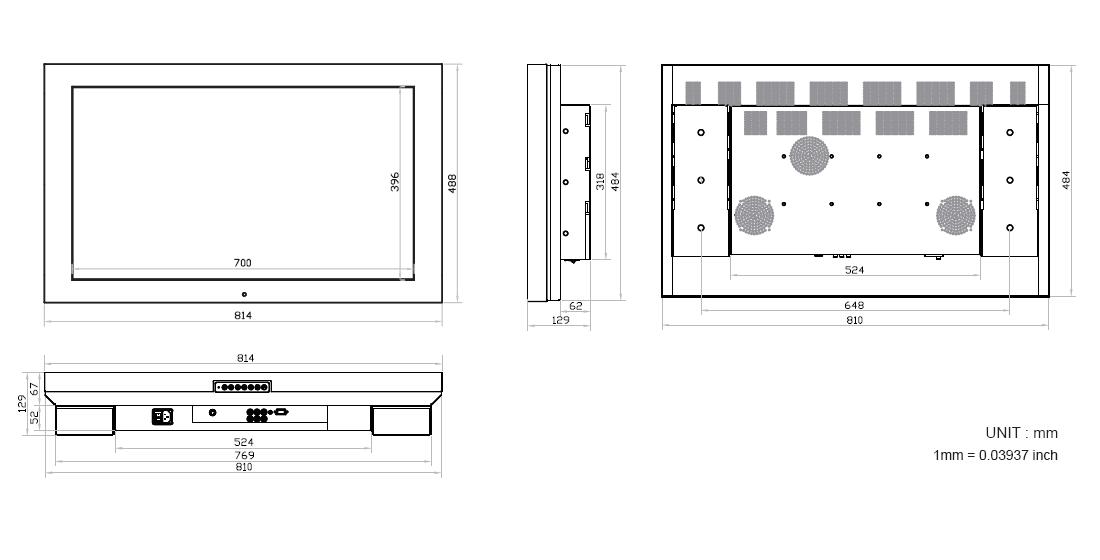

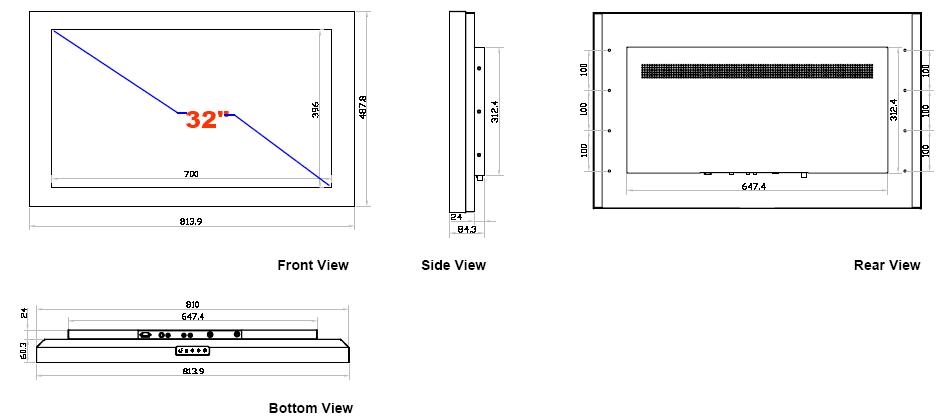

   Front / Rear / Top / Side Views & Dimensions




            *click on above picture for enlarged view






Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7




More Photos, click on the following for enlarged view:



FEATURES :
  • 32"(16:9) industrial TFT LCD panel support 1336 x 768 pixels
  • 1.2mm Aluminum front bezel with 45 degree chamfer
  • Rugged construction and modularized design
  • Low power consumption
  • 450 cd/m2 industrial brightness
  • OSD control keys to optimize the display
  • Optional video input (DVI & S-Video & RCA input)
  • VESA-mount, OEM mounting design

APPLICATIONS :

  • Embedded display Unit
  • Industrial automation LCD panel
  • Gaming, lottery & amusement display
  • Kiosks, arcade games, Hospitality Display, ATM Machines
  • Aviation simulators, Industrial test equipment, and Instrumentation

     Diagram for  I/O Outlet
