     Home >>  Industrial Display >>  Panel Mount Monitor / Wall Mount / Bracket Mount Monitor >>

                                Industrial Monitors :   Part #   ID-26Aw
                     6mm Aluminum Front Bezel 26 " Samsung Panel Mount Wide Screen Industrial  Monitor
                                                  LCD Panel

LCD Type

Samsung Grade A Industrial
              TFT LCD Panel

Display Size

Wide 26 inch (16:9)

Resolutions

1366 x 768

Display Color

16.7M color

Brightness

500 cd/m2

Contrast ratio

1000 : 1 (Typical)

Response Time

Tr=15 / Tf=25ms

Pixel pitch

0.442 x 0.442 mm

Viewing angle

85 / 85 / 85 / 85 (L / R / U / D)  or
170 / 170

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input

-Input Video Signal : Analog RGB
-Video Level :  Analog: 0.7Vp-p
-Sync Type : Separate H/V, Composite H/V
-Input Connector : D-Sub 15 pin VGA analog

Built-in Video  Input

Video Input   :    S-Video and Composite
-Input Connectors : RCA, S-video

Power Supply

External type, 110 ~ 220 VAC at 50 or 60 Hz
via AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE

Mounting

VESA-mount, Panel-mount, Wall-mount &
Bracket mount
                                                  OPTIONS

Optional Video  Input

  • TV Input : TV tuner with audio speaker-out
  • Input Connectors : TV tuner with 3.5mm audio jack
  • DVI Input : DVI-D digital input
  • Input Connectors : DVI-D (male)

Optional DC Power

 48V / 24V / 12V DC Power    Details
Input Range:10~36V(DC-12V, DC-24V model)
                 36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy
: +/- 1% (Max.)
Safety  : Continuous short circuit protection

Other Option

- Multi-Display Controller         Details

                                  Mechanical

Material

 6mm Aluminum (Front panel)
 1.2mm Steel (Rear case)

Finish

 Powder Coating

Color  Front Panel : Black
 Back          : Dark Grey (RAL7037)
Dimension  717 x 128.8 x 443 mm (WxDxH)
Product Weight  15.0 kg
                                  Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -10 to 60 Degree Celsius (Storage)
Relative Humidity  5 ~90%, non condensing
Vibration   5~500Hz 1G RMS random vibration
Safety Approval   CE, FCC
                             Package Content

Package Content

LCD Monitor x 1,VGA Cable (Male to Male) x 1,   DC 12V adapter x1 , Power cord x 1, Mounting Bracket x 1 pair, CD disc, User Manual x 1

  Front View of  ID-26Aw



  Construction

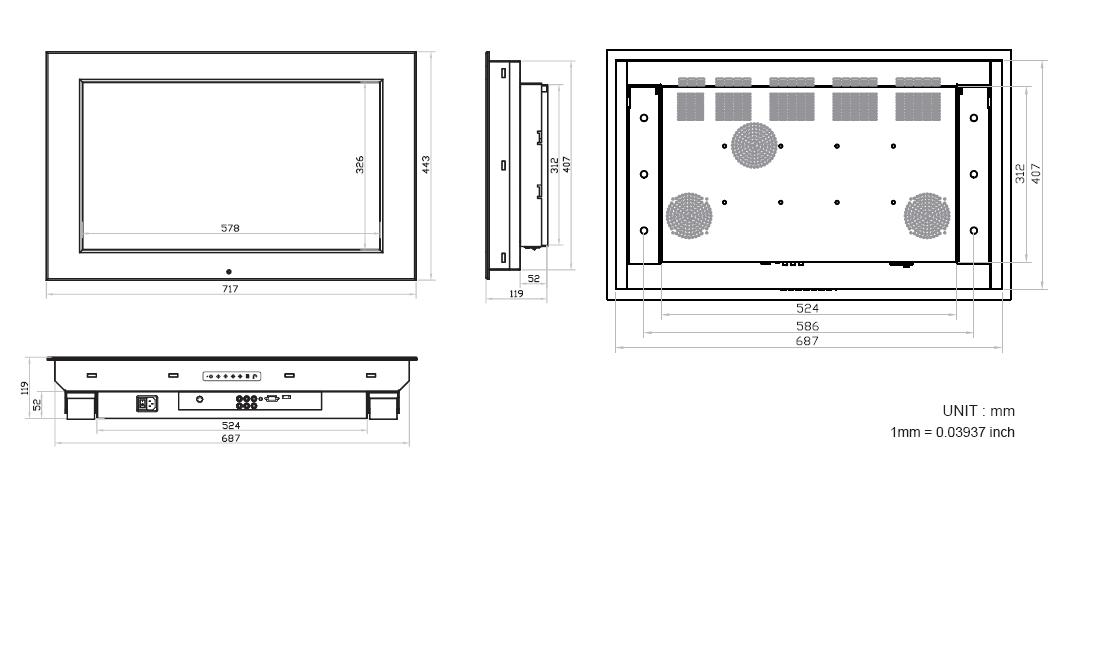

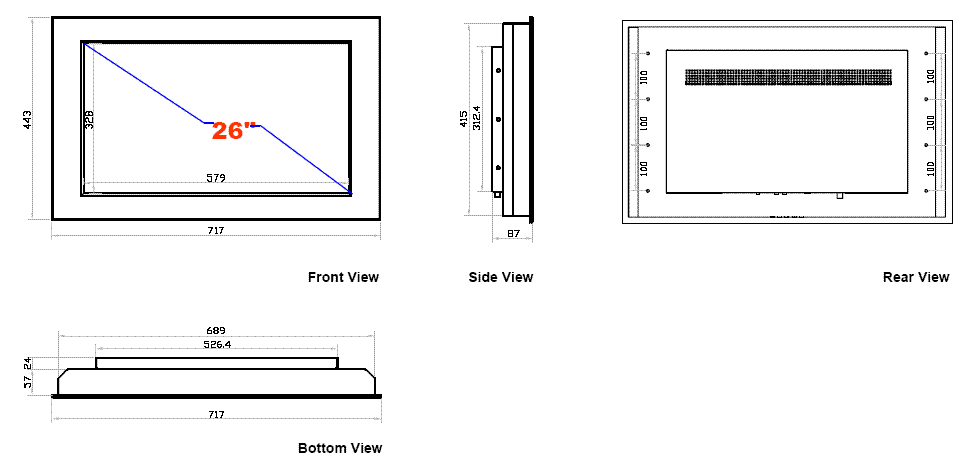

   Front / Rear / Top / Side Views & Dimensions



      *click on above picture for enlarged view







                     ( VESA Mount /  Wall Mount )

Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7



  More photos (click to enlarge )


FEATURES :
  • 26"(16:9) industrial TFT LCD panel support 1440 x 900 pixels
  • 6mm Aluminum front bezel with 45 degree chamfer
  • Rugged construction and modularized design
  • 450 cd/m2 industrial brightness
  • OSD control keys to optimize the display
  • Optional video input (TV tuner & DVI)
  • Optional touch screen, NEMA 4 / IP 65 front protection
  • Wide-ranges Mounting kits
    (VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )

APPLICATIONS :

  • Embedded display Unit
  • Industrial automation LCD panel
  • Gaming, lottery & amusement display
  • Kiosks, arcade games, Hospitality Display, ATM Machines
  • Aviation simulators, Industrial test equipment, and Instrumentation

     Diagram for  I/O Outlet


Ordering information :
Part # Description
                                                 WITHOUT NEMA 4 / IP65
ID-26Aw
Standard Version  - 6mm Aluminum Front Bezel 26" Samsung Industrial display
ID-26AwTV
Version w/option  - 6mm Aluminum Front Bezel 26" Samsung Industrial display +
                           TV Tuner
-TCB
Add Capacitive Touch screen & USB controller
-TCS
Add Capacitive Touch screen & serial controller
-QD
Add Quad display
-MC
Add Multi-Display Controller            Download Spec Sheet for Multi-Display Controller
                                                  WITH NEMA 4 / IP65
ID-26AwN
Standard Version  - 6mm Aluminum Front Bezel 26" Samsung Industrial display +
                           NEMA 4 / IP65
ID-26AwTVN
Version w/option  - 6mm Aluminum Front Bezel 26" Samsung Industrial display +
                           TV Tuner + NEMA 4 / IP65
-TCB
Add Capacitive Touch screen & USB controller
-TCS
Add Capacitive Touch screen & serial controller
-QD
Add Quad display
-MC
Add Multi-Display Controller            Download Spec Sheet for Multi-Display Controller
