Industrial Flat Panel :  Part #   ID-20A


6mm Aluminum Front Bezel 20" Panel Mount Industrial Monitor
optional NEMA 4 / IP65 front protection


                                                  LCD Panel

LCD Type

LG Grade A Industrial TFT LCD Panel

Display Size

20.1" TFT

Resolutions

1600 x 1200

Display Color

16.7M color

Brightness

300 cd/m2

Contrast ratio

800 : 1 (Typical)

Backlight CCFL
Viewing angle 178 x 178 (H/V)
Active area (mm) 408 x 306
LCD MTBF 45,000
Signal Input VGA / DVI-D

Power Supply

Input : Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption : Max. 48 Watt, Standby 5 Watt

Mounting

Panel mount / VESA mount
                                                  OPTIONS

Optional Video  Input

  • Video Input   :    HDMI and S-Video and Composite and BNC
  • Input Connectors : BNC, S-video, HDMI

Optional Touch Screen

                 Details

Optional DC Power

48V / 24V / 12V DC Power     Details
Input Range:10~36V(DC-12V, DC-24V model)
                 36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy
: +/- 1% (Max.)
Safety  : Continuous short circuit protection

Other Option

- Multi-Display Controller         Details

                                  Mechanical
Casing Color Black
Dimension
(W x D x H)
512.5 x 72.1 x 391.6 mm
20.2 x 2.8 x 15.4 inch
Product Weight 7 kgs ( 15.4 lbs )
                                  Environmental
Temperature 0 to 55C Degree(Operation)
-5 to 60C Degree(Storage)
Relative Humidity  5~90%, non condensing
Shock 10G acceleration ( 11 ms duration )
Vibration 5~500Hz, 1G RMS random vibration
Regulatory Safety : FCC & CE certified
Environmental : RoHS2 & REACH compliant

  Front View of  ID-20A


  Construction

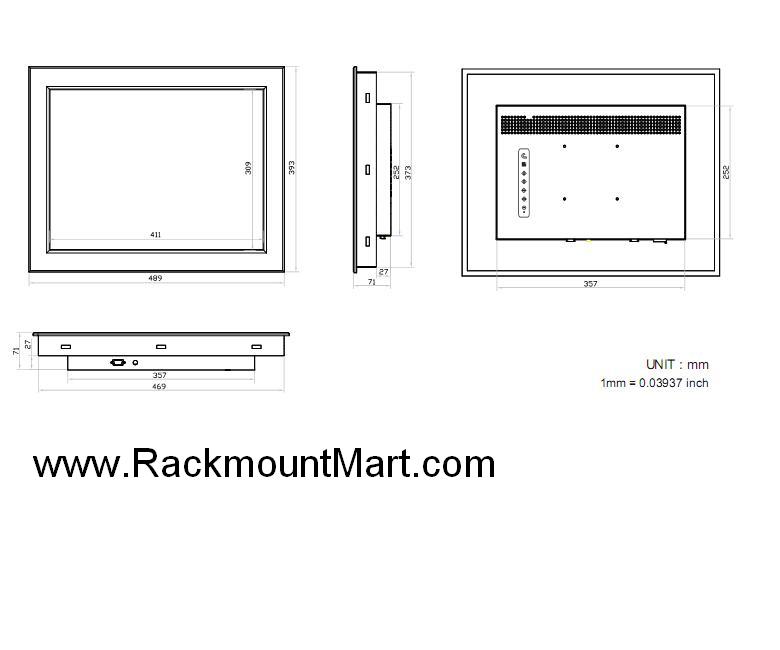

   Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view


 Download Product Sheet
 Download User Manual
 Download Mounting Guide

      Free Ground Shipping * Click for details


  More photos (click to enlarge )

   DISPLAY BENEFITS :
  • 20" LCD with high resolution 1600 x 1200
  • Rugged construction against external impact
  • Protective 3mm glass
   0PTIONS :
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • Resistive ( single point touch )
  • S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D ( either one for Ver 2.2 upgrade )
  • MIL-type or lockable connector
  • DC power : 12V / 24V / 48V / 110 ~ 125V
  • Quad display for CCTV
  • TV - Analog

  Diagram for  I/O Outlet


Ordering information :
Part # Description
ID-20A
Price : $1034
Standard Version  - 6mm Aluminum Front Bezel 20" Samsung Industrial display,
with VGA + DVI-D input
ID-20A-BNC
Price : $1171
6mm Aluminum Front Bezel 20" Samsung Industrial display,
with VGA + DVI-D + BNC + S-Video + Audio + remote controller
ID-20A-AV
Price : $1171
6mm Aluminum Front Bezel 20" Samsung Industrial display,
with VGA + DVI-D + BNC with RCA adapter + S-Video + Audio + remote controller
ID-20A-HDMI
Price : $1171
6mm Aluminum Front Bezel 20" Samsung Industrial display,
with VGA + HDMI (not support HDCP) w/ speaker + BNC + S-Video + Audio + remote controller
ID-20A-BNC-HDMI
Price : $1199
6mm Aluminum Front Bezel 20" Samsung Industrial display,
with VGA + DVI-D + HDMI + BNC + S-Video + Audio + remote controller w/ speaker
ID-20A-SDI
Price : $1500
6mm Aluminum Front Bezel 20" Samsung Industrial display,
with VGA + DVI-D + HDMI, w/ speaker + BNC + S-Video + audio + remote controller + SDI
ID-20AN
Price : $1093
6mm Aluminum Front Bezel 20" Samsung Industrial display, with VGA + DVI-D input and IP65 / NEMA4 on screen
ID-20AN-BNC
Price : $1230
6mm Aluminum Front Bezel 20" Samsung Industrial display, with VGA + DVI-D + BNC + S-Video + Audio + remote controller and IP65 / NEMA4 on screen
ID-20AN-AV
Price : $1230
6mm Aluminum Front Bezel 20" Samsung Industrial display, with VGA + DVI-D + BNC with RCA adapter + S-Video + Audio + remote controller and IP65 / NEMA4 on screen
ID-20AN-HDMI
Price : $1230
6mm Aluminum Front Bezel 20" Samsung Industrial display, with VGA + HDMI (not support HDCP) w/ speaker + BNC + S-Video + Audio + remote controller and IP65 / NEMA4 on screen
ID-20AN-BNC-HDMI
Price : $1258
6mm Aluminum Front Bezel 20" Samsung Industrial display, with VGA + DVI-D + HDMI + BNC + S-Video + Audio + remote controller w/ speaker and IP65 / NEMA4 on screen
ID-20AN-SDI
Price : $1559
6mm Aluminum Front Bezel 20" Samsung Industrial display,
with VGA + DVI-D + HDMI, w/ speaker + BNC + S-Video + audio + remote controller + SDI and IP65 / NEMA4 on screen
Optional Video/Audio Inputs
-SDI With VGA + DVI-D + HDMI, w/ speaker + BNC + S-Video + audio + remote controller + SDI Download Spec Sheet
-QD
Price : $603
Add Quad display
-MC
Price : $89
Add Multi-Display Controller Download Spec Sheet
Optional Touch Screen
-TRS
Price : $343
Add Resistive Touch Screen with Serial Controller
-TRB
Price : $343
Add Resistive Touch Screen with USB Controller
Optional Controller
-TV
Price : $103
Add TV tuner with remote controller (analog)
Optional DC Input Power
-DC12
Price : $206
Add 12V DC Power
-DC24
Price : $206
Add 24V DC Power
-DC48
Price : $206
Add 48V DC Power
-DC125
Call for pricing
Add 125V DC Power
Optional Connectors For DC power only
-MD
Price : $89
Add MIL-type DC lockable jack, male Download Spec Sheet
-MA
Price : $137
Add MIL-type VGA lockable jack, male Download Spec Sheet
-LD
Price : $34
Add Lockable DC jack, male Download Spec Sheet
-LS
Price : $34
Add Lockable USB jack Download Spec Sheet
