Industrial Monitor:   Part #   ID-19A-T


                           6mm Aluminum Front Bezel 19" Panel Mount Industrial Monitor w/ Touchscreen

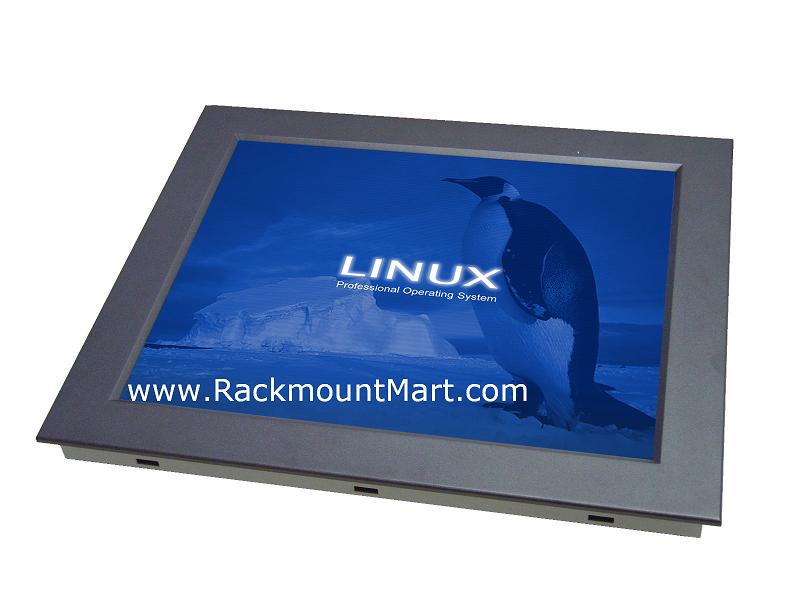

    Front View of ID-19A / ID-19AN

    DISPLAY BENEFITS :
  • 19" LCD with resolution 1280 x 1024
  • Green LED-backlit panel technology
  • Projected Capacitive ( 4-point touch )
    Resistive / Capacitive ( single point touch )
  • Rugged construction against external impact
  • Protective 3mm glass
  • 6mm aluminum front bezel with protective glass & water proof sealed gasket (optional)
    Options
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D ( either one for Ver2.2 upgrade )
  • MIL-type or lockable connector
  • DC power : 12V / 24V / 48V / 110 ~ 125V
  • Quad display for CCTV
  • TV - Analog
                                                  LCD Panel
LCD Type TFT LCD Panel

Display Size

19 inch diagonal (376H x 301V)

Resolutions

1280 x 1024

Display Color

16.7M color

Brightness

250 cd/m2

Backlight

LED

Contrast ratio

1000 : 1 (Typical)

Viewing angle

170 x 160

LCD MTBF

30,000 hrs

Signal Input

DVI-D / VGA

Power Supply

Input : Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption :Max. 48 Watt, Standby 5 Watt

Mounting

Panel mount / VESA mount
                                                  OPTIONS

Optional Video  Input

3G / HD / SD-SDI Broadcast-grade input

Optional Touch Screen

                 Details

Optional DC Power

48V / 24V / 12V DC Power     Details
Input Range:10~36V(DC-12V, DC-24V model)
                 36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy
: +/- 1% (Max.)
Safety  : Continuous short circuit protection

Other Option

- Multi-Display Controller         Details

                                  Speaker

Speaker

 Built-in Dual Stereo Speakers 2W x 2
( Bundled with AV2.2 upgrade )

                                  Mechanical

Material

 6mm Aluminum (Front panel)

Casing Color Black
Dimension 476.5 x 63.6 x 384.1 mm /
18.8 x 2.5 x 15.1 inch
Product Weight 7.7 kgs ( 16.9 lbs )
                                  Environmental
Temperature 0 to 55 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5~90%, non condensing
Shock 10G peak acceleration (11ms duration)
Vibration 5~500Hz, 1G RMS random vibration
Safety FCC & CE certified
Environmental RoHS2 & REACH compliant
                             Package Content

Package Content

19" LCD display X 1, 6ft VGA cable X 1, Power adapter X 1, Power cord X 1, Mounting hardware X 1 pack

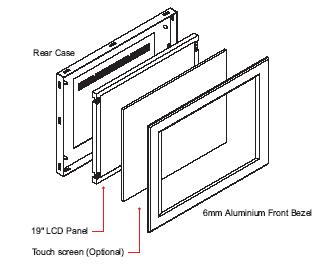

 Construction
*click on above pictures for enlarged view

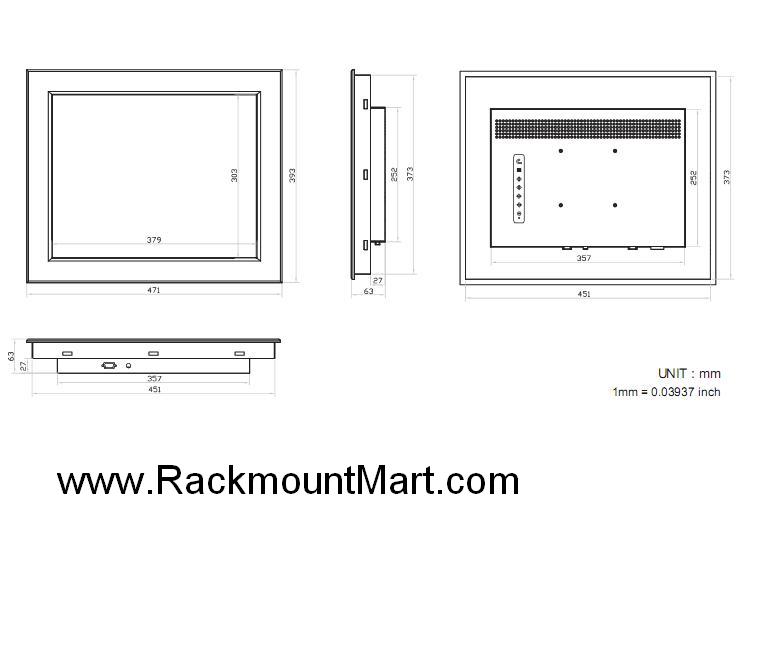

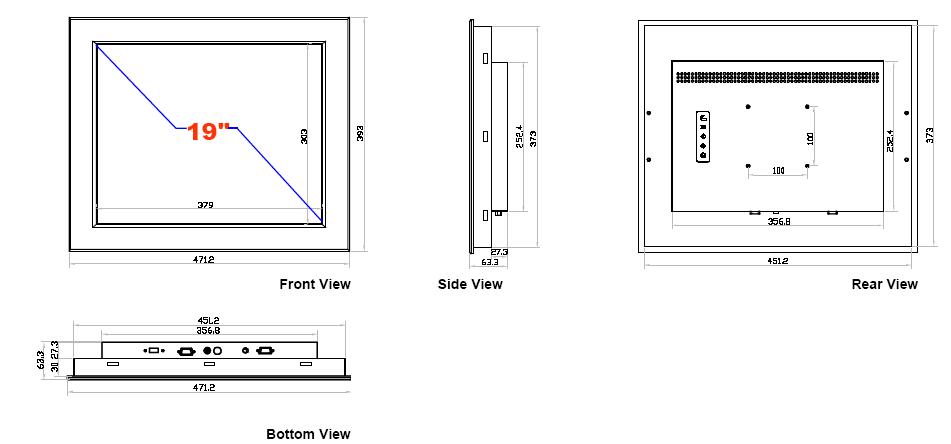

 Front / Rear / Top / Side Views & Dimensions

*click on above pictures for enlarged view

Download Product Sheet

Touchscreen Driver Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7

         Free Ground Shipping * Click for details

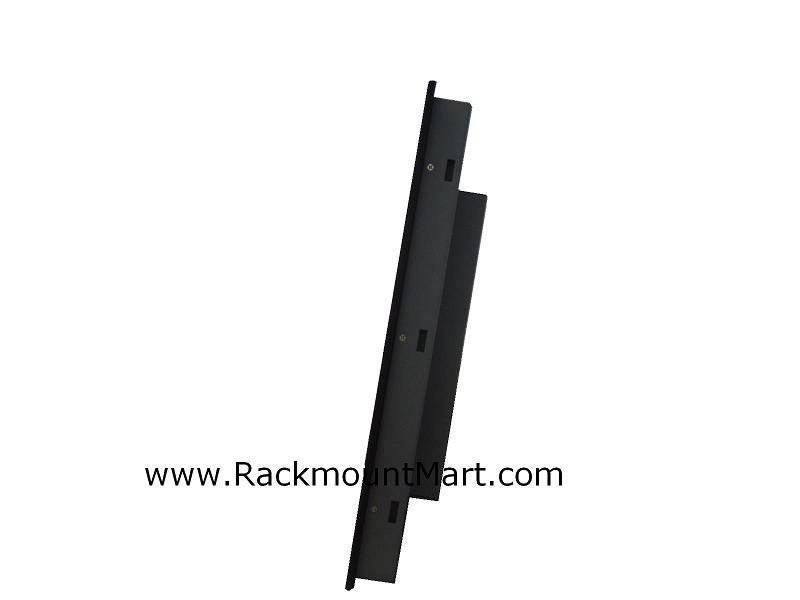

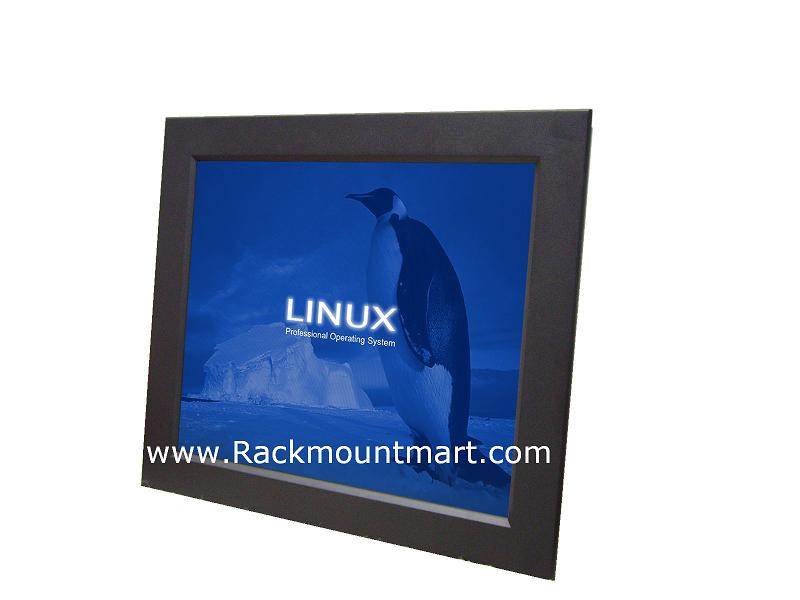

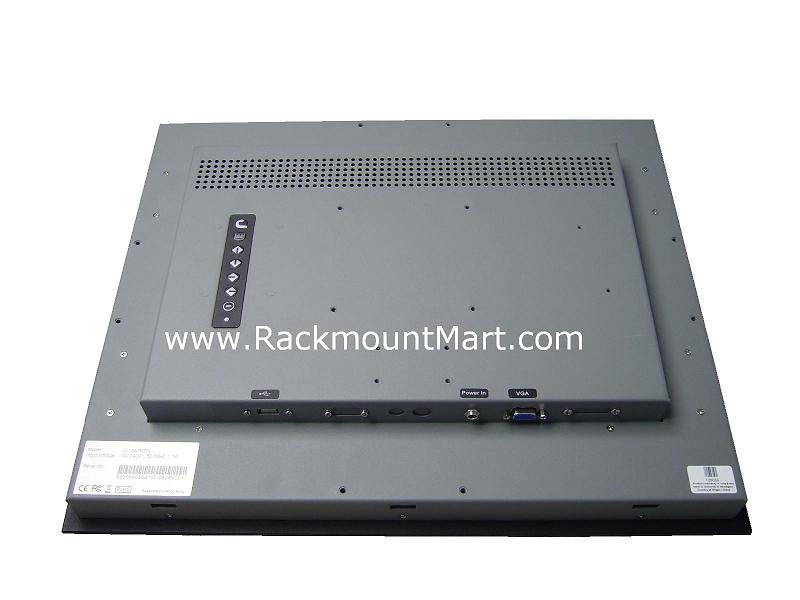

  More photos (click to enlarge )

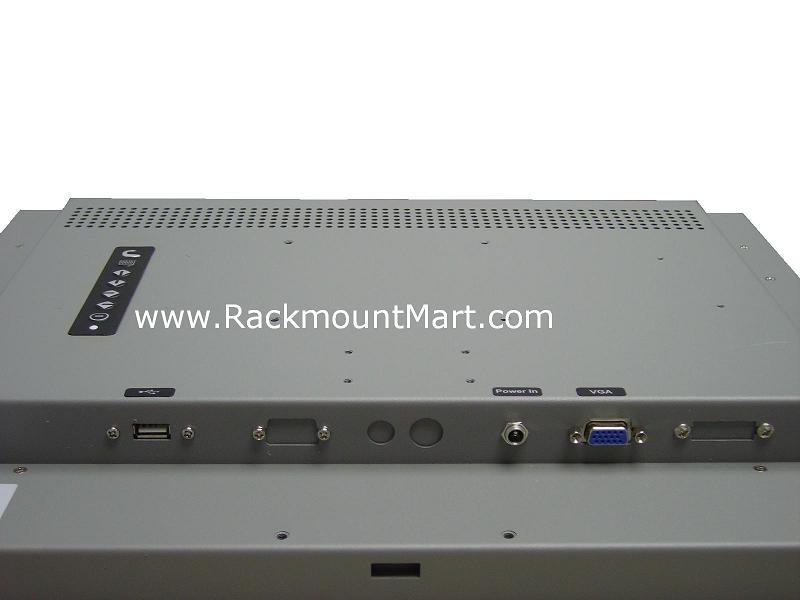

     Diagram for  I/O Outlet


Ordering information :
Part # Description
ID-19A-TRS
Price : $770
6mm Aluminum Front Bezel 19" Industrial display, with VGA + DVI-D input & Resistive Touch Screen with Serial Controller
ID-19A-TRB
Price : $770
6mm Aluminum Front Bezel 19" Industrial display, with VGA + DVI-D input & Resistive Touch Screen with USB Controller
ID-19A-TCS
Price : $945
6mm Aluminum Front Bezel 19" Industrial display, with VGA + DVI-D input & Capacitive Touch Screen with Serial Controller
ID-19A-TCB
Price : $945
6mm Aluminum Front Bezel 19" Industrial display, with VGA + DVI-D input & Capacitive Touch Screen with USB Controller
Optional Video/Audio Inputs
-BNC
Price : $135
Add BNC + S-Video
-AV
Price : $135
Add BNC with RCA adapter + S-Video
-HDMI
Price : $135
Add HDMI with speaker
-SDI
Price : $459
Add 3G / HD / SD-SDI Broadcast grade input Download Spec Sheet
-QD
Price : $594
Add Quad display
-MC
Price : $88
Add Multi-Display Controller Download Spec Sheet
Optional NEMA4 / IP65
-N
Price : $
58
Add NEMA4 / IP65 Protective Glass
Optional Controller
-TV
Price : $101
Add TV tuner with remote controller (analog)
Optional DC Input Power
-DC12
Price : $162
Add 12V DC Power
-DC24
Price : $162
Add 24V DC Power
-DC48
Price : $162
Add 48V DC Power
-DC125
Call for pricing
Add 125V DC Power
Optional Connectors For DC power only
-MD
Price : $88
Add MIL-type DC lockable jack, male Download Spec Sheet
-MA
Price : $135
Add MIL-type VGA lockable jack, male Download Spec Sheet
-LD
Price : $34
Add Lockable DC jack, male Download Spec Sheet
-LS
Price : $34
Add Lockable USB jack Download Spec Sheet
