     Home >>  Industrial Display >>  Industrial Touch Screen LCD >>    Panel Mount Style >>

Industrial LCD Monitors:   Part #  ID-17A-T


                        6mm Aluminum Front Bezel 17" Panel Mount Industrial  Monitor  w/ Touchscreen

                                                  LCD Panel

LCD Type

TFT LCD Panel

Display Size

17 inch diagonal (338H x 270V)

Resolutions

1280 x 1024

Display Color

16.7M color

Brightness

250 cd/m2

Contrast ratio

1000 : 1 (Typical)

Response Time

5ms

Pixel pitch

0.264 x 0.264 mm

Viewing angle

160 x 160

LCD MTBF

50,000 hrs

Signal Input

DVI-D / VGA

Power Supply

Input : Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption :Max. 48 Watt, Standby 5 Watt

Mounting

Panel mount / VESA mount
                                                  OPTIONS

Touch Screen

                 Details

Optional DC Power

48V / 24V / 12V DC Power     Details
Input Range:10~36V(DC-12V, DC-24V model)
                 36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy
: +/- 1% (Max.)
Safety  : Continuous short circuit protection

Other Option

- HDMI, S-Video + BNC & Audio
- 3G / HD / SD-SDI Broadcast-grade input
- MIL-type or lockable connector
- Quad display for CCTV
- TV - Analog
- Multi-Display Controller         Details

                                  Mechanical

Material

 6mm Aluminum (Front panel)
 1.2mm Steel (Rear case)

Color  Front Panel : Black
 Rear case : Dark Grey (RAL7037)
Dimension  439 x 64 x 357 mm /
 17.3 x 2.5 x 14 inch (W x D x H)
Product Weight  5.5 kg ( 12.1 lbs )
                                  Environmental
Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration   (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration
Safety Approval  FCC, CE, RoHS Compliant
                             Package Content

Package Content

17" LCD display X 1, 6ft VGA cable X 1, Power adapter X 1, Power cord X 1, Mounting hardware X 1 pack
  Front View of  ID-17A

  Construction

   Front / Rear / Top / Side Views & Dimensions


*click on above picture for enlarged view

 Download Product Sheet
 Download User Manual
 Download Mounting Guide
Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7

         Free Ground Shipping * Click for details


  More photos (click to enlarge )



   DISPLAY BENEFITS :
  • 17" LCD with resolution 1280 x 1024
  • 17" Touchscreen : Capacitive, Resistive
  • Rugged construction against external impact
  • Protective 3mm glass





   0PTIONS :
  • HDMI, S-Video + BNC & Audio
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • MIL-type or lockable connector
  • 48V, 24V or 12VDC power
  • Quad display for CCTV
  • TV - Analog
APPLICATIONS :

  • Embedded display Unit
  • Industrial automation LCD panel
  • Gaming, lottery & amusement display
  • Touch screen display panel
  • Kiosks, arcade games, Hospitality Display, ATM Machines
  • Aviation simulators, Industrial test equipment, and Instrumentation

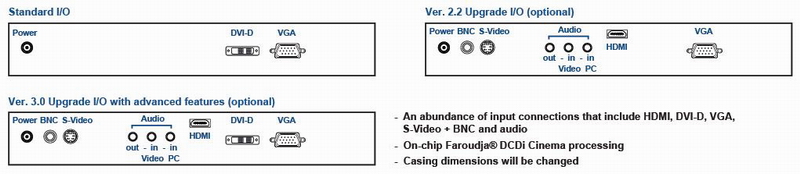

     Diagram for  I/O Outlet


Ordering information :
Part # Description
ID-17A-TRS
Price : $674
6mm Aluminum Front Bezel 17" Industrial display, with VGA + DVI-D input & Resistive Touch Screen with Serial Controller
ID-17A-TRB
Price : $674
6mm Aluminum Front Bezel 17" Industrial display, with VGA + DVI-D input & Resistive Touch Screen with USB Controller
ID-17A-TCS
Price : $842
6mm Aluminum Front Bezel 17" Industrial display, with VGA + DVI-D input & Capacitive Touch Screen with Serial Controller
ID-17A-TCB
Price : $842
6mm Aluminum Front Bezel 17" Industrial display, with VGA + DVI-D input & Capacitive Touch Screen with USB Controller
Optional Video/Audio Inputs
-BNC
Price : $
135
Add BNC + S-Video
-AV
Price : $
135
Add BNC with RCA adapter + S-Video
-HDMI
Price : $
135
Add HDMI with speaker
-MC
Price : $88
Add Multi-Display Controller            Download Spec Sheet for Multi-Display Controller
-QD
Price : $594
Add Quad display
Optional NEMA4 / IP65
-N
Price : $
58
Add NEMA4 / IP65 Protective Glass
Optional Controller
-TV
Price : $101
Add TV tuner with remote controller (analog)
Optional DC power
-DC12
Price : $162
Add 12V DC Power
-DC24
Price : $162
Add 24V DC Power
-DC48
Price : $162
Add 48V DC Power
-DC125
Call for pricing
Add 125V DC Power
Optional Connectors For DC power only
-MD
Price : $88
Add MIL-type DC lockable jack, male
-MA
Price : $135
Add MIL-type VGA lockable jack, male
-LD
Price : $34
Add Lockable DC jack, male
-LS
Price : $34
Add Lockable USB jack
