Industrial Flat Panel Monitor
Model
ID-15D
1.2mm Aluminum Front Bezel 15" Chassis
Display
|
LCD Panel |
|
LCD Type
|
Grade A Industrial
TFT LCD Panel
|
|
Display Size
|
15 inch diagonal
(304.13H x 228.1V)
|
|
Resolutions
|
1024 x 768
|
|
Display Color
|
16.2M color
|
|
Brightness
|
Min. 250
cd/m2
|
|
Contrast
ratio
|
700
: 1 (Typical)
|
|
Response Time
|
Tr=2 / Tf=6ms
|
|
Pixel
pitch
|
0.297 x 0.297 mm
|
|
Panel
color
|
16.2 million display colors
|
|
Viewing
angle
|
75 / 75 / 70 / 65
(L / R / U / D) or
150 / 135
|
|
OSD Control
|
Brightness,
Contrast, Phase & Color, H & V
position,
Auto-tune & Recall
|
|
LCD MTBF
|
50,000
hrs |
|
Signal Input
|
|
|
Power Supply
|
External type,
110 ~ 220 VAC at 50 or 60 Hz via
AC adapter (12V), 12V DC
Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE
|
|
Mounting
|
VESA-mount, Panel-mount, Wall-mount &
Bracket mount |
|
OPTIONS |
|
Optional Video Input
|
-
Video
Input : DVI and S-Video and Composite and BNC
-
Input Connectors : RCA,
S-video, DVI
|
|
Optional Touch Screen
|
Details
 |
|
Optional DC Power
|
48V / 24V / 12V DC Power
Input Range:10~36V(DC-12V, DC-24V model)
36~75V (DC-48V model)
DC power Output
: DC 12V
Voltage Accuracy: +/- 1% (Max.)
Safety : Continuous short circuit
protection |
|
Mechanical |
|
Material
|
1.2mm
Aluminum (Front panel)
1.2mm Steel (Rear case) |
|
Finish
|
Powder Coating |
|
Color |
Front
Panel : Silver
Back : Dark Grey
(RAL7037) |
|
Dimension |
372 x 52 x 283 mm
(WxDxH) |
|
Product Weight
|
3.5 kg |
|
Environmental
|
|
Temperature
|
0 to 50
Degree Celsius (Operation)
-10 to 60 Degree Celsius (Storage) |
|
Relative Humidity
|
5 ~90%, non
condensing |
|
Vibration |
5~500Hz 1G
RMS random vibration |
|
Safety Approval |
CE,
FCC |
|
Package Content
|
|
Package Content
|
LCD Monitor x 1 , VGA Cable (Male
to Male) x 1, DC 12V adapter x1 , Power
cord x 1, Mounting Bracket x 1 pair, CD disc, User Manual x
1 |
|
|
Front View of ID-15D

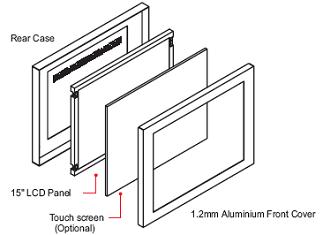

Construction

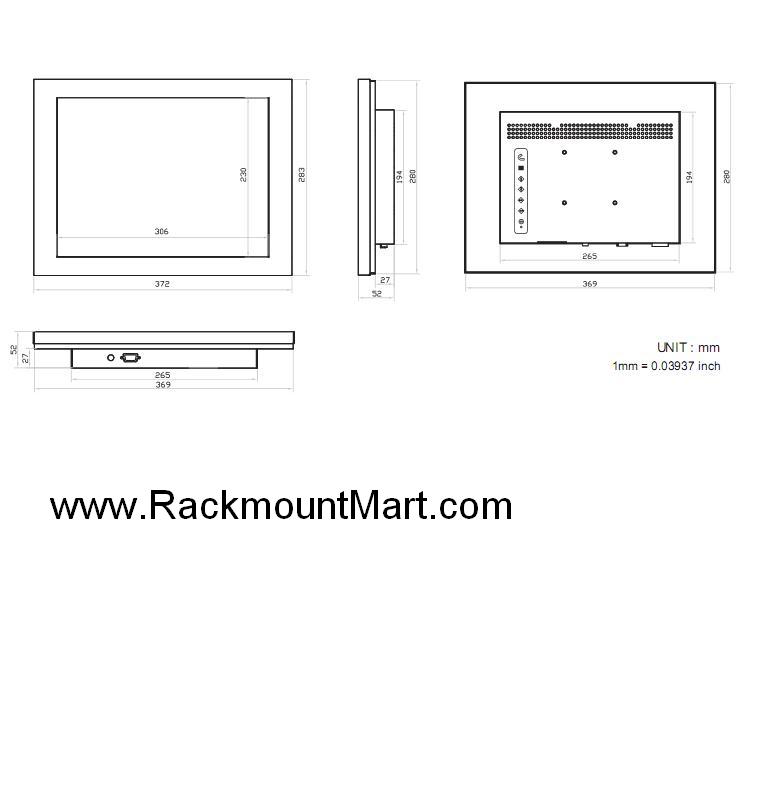

Front / Rear / Top / Side Views & Dimensions
|
|
FEATURES :
- 15" industrial TFT LCD panel support 1024 x 768 pixels
- 1.2mm Aluminum front bezel with 45 degree chamfer
- Rugged construction and modularized design
- Low power consumption
- 250 cd/m2 industrial brightness
- OSD control keys to optimize the display
- Optional DC power input (12 / 24 / 48 VDC)
- Optional video input (DVI & S-Video & RCA input)
- VESA-mount, OEM mounting design.
APPLICATIONS :
- Embedded display Unit
- Industrial automation
LCD panel
- Gaming, lottery & amusement display
- Touch screen display panel
- Kiosks, arcade games, Hospitality Display, ATM Machines
- Aviation simulators, Industrial test equipment, and
Instrumentation
Diagram for I/O Outlet
