       Home >>  Industrial Display >>  Industrial Touch Screen LCD >>  Open Frame Style >>

Industrial Flat Panel Display:   Part #   ID-12P-LED-T


                 12.1" Open Frame TFT LCD with LED backlight Industrial Flat Panel Display w/ Touchscreen

LCD with LED backlight Panel

LED Type

AUO TFT LCD with LED backlight Panel

Display Size

12.1 inch diagonal (246.0H x 184.5V)

Resolutions

800 x 600

Display Color

262,144 color

Brightness

450 cd/m2

Contrast ratio

700 : 1 (Typical)

Viewing angle 160 x 140

LED MTBF

50,000 hrs

Signal Input

VGA

Power Supply

Input : Auto-sensing 100 to
          240VAC, 50 / 60Hz
Consumption :Max. 40 Watt,
                   Standby 5 Watt

Mounting

Universal mount / VESA mount
                                                  OPTIONS

Other Option

- S-Video + BNC & Audio
- TV - Analog

Touch Screen

                 Details

Optional DC Power

 48V / 24V / 12V DC Power    Details
Input Range:10~36V(DC-12V, DC-24V model)
                 36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy
: +/- 1% (Max.)
Safety  : Continuous short circuit protection

                                  Mechanical
Casing Color  Dark Grey
Dimension  342 x 62 x 253 mm /
 13.5 x 2.5 x 10 inch (W x D x H)
Product Weight  3 kgs ( 6.6 lbs )
                                  Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration
 (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration
Safety Approval  FCC, CE, RoHS Compliant

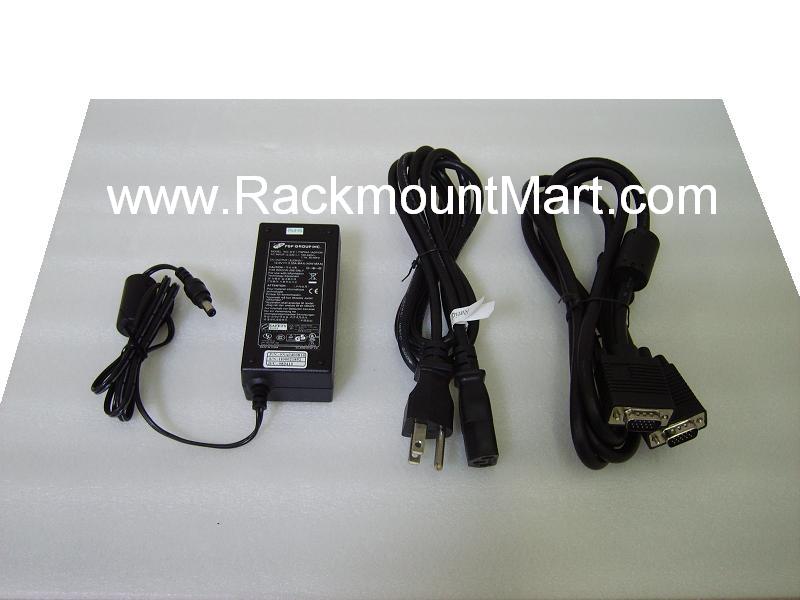

                             Package Content

Package Content

12.1" LCD display X 1, 6ft VGA cable X 1, Power adapter X 1, Power cord X 1

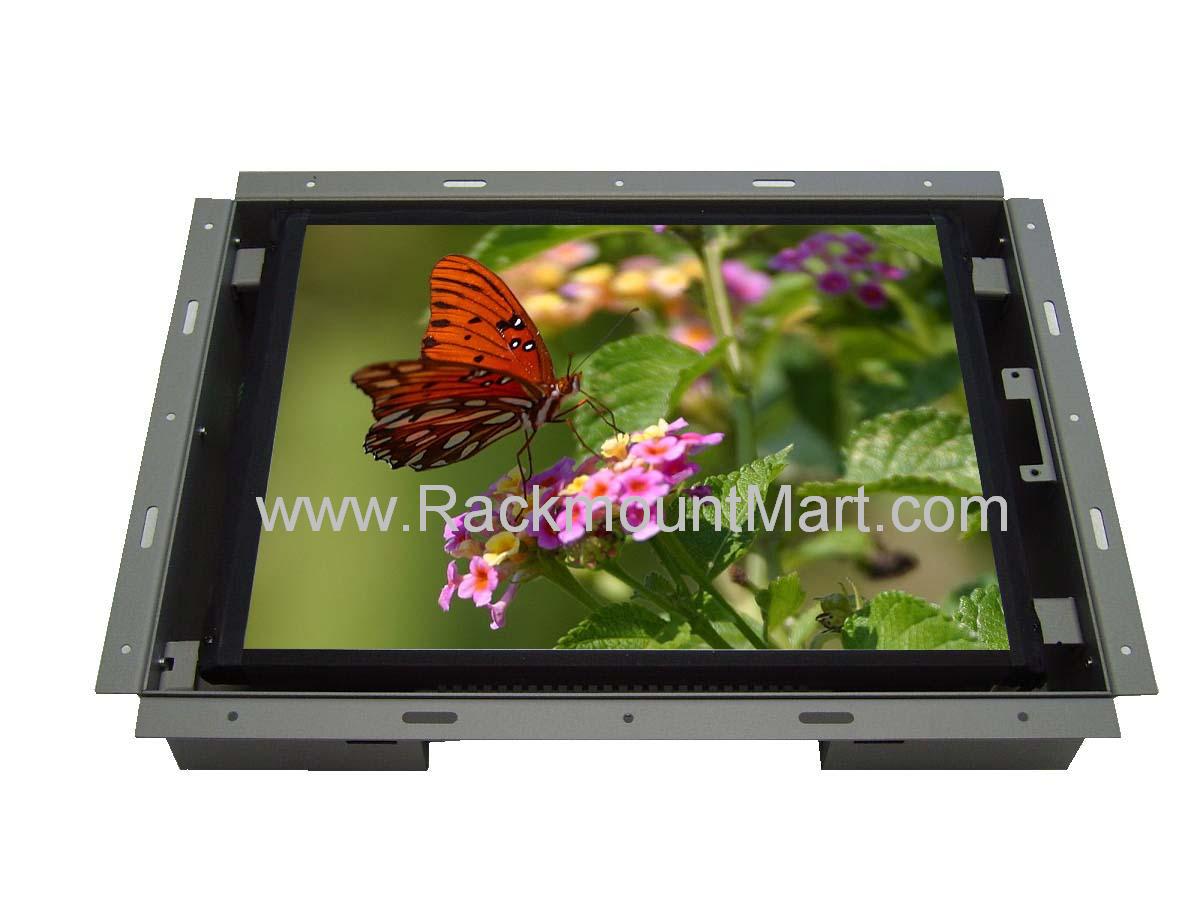

  Front View of  ID-12P-LED

  Construction

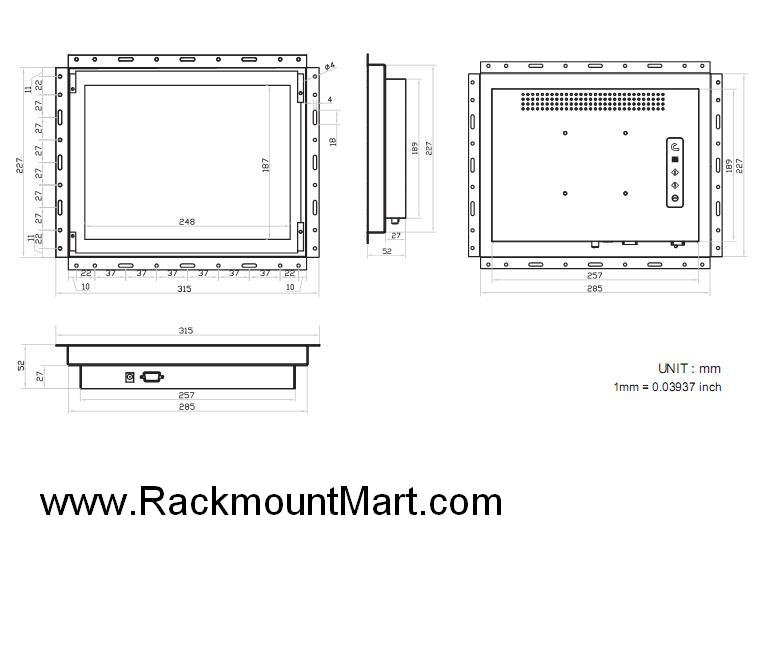

   Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view

 Download Product Sheet
 Download User Manual

Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7

         Free Ground Shipping * Click for details

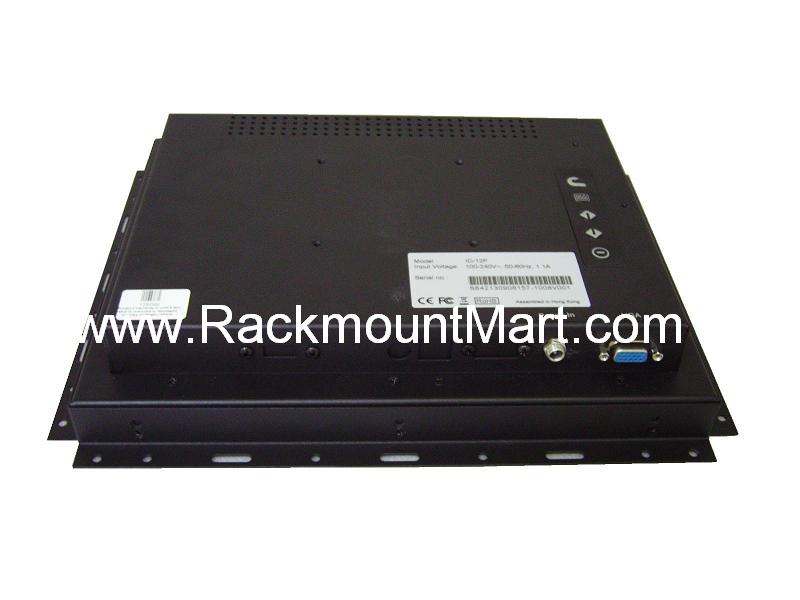

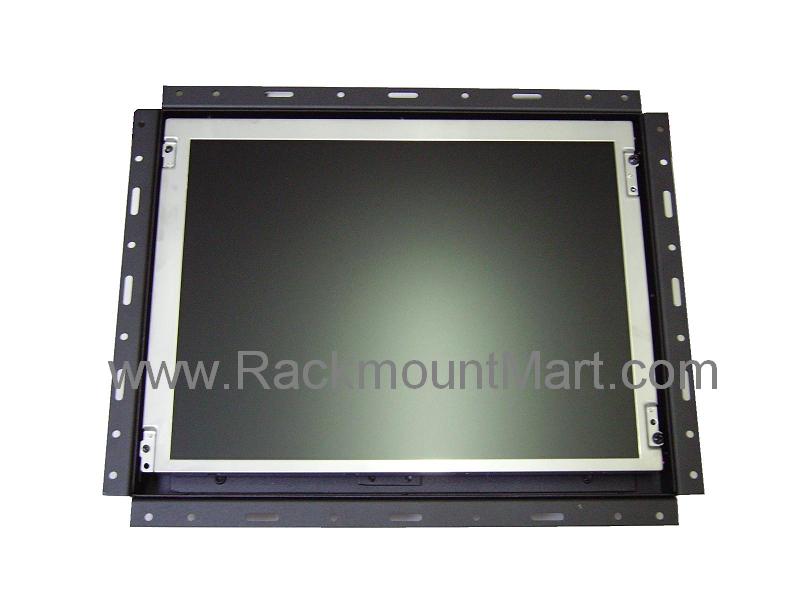

  More photos (click to enlarge )


   DISPLAY BENEFITS :
  • 12.1" LCD with resolution 800 x 600
  • 12.1" Touchscreen : Capacitive, Resistive
  • Green LED-backlit panel technology
  • Rugged construction against external impact
   0PTIONS :
  • S-Video + BNC & Audio
  • 48V, 24V or 12VDC power

APPLICATIONS :

  • Industrial automation LCD with LED backlight panel
  • Embedded display Unit
  • Gaming, lottery & amusement display
  • Touch screen display panel
  • Kiosks, arcade games, Hospitality Display, ATM Machines
  • Aviation simulators, Industrial test equipment, and Instrumentation

     Diagram for  I/O Outlet


Ordering information :
Part # Description
ID-12P-LED-TRS
Price : $643
12.1" Open Frame TFT LCD with LED backlight Display, with VGA input & Resistive Touch Screen with Serial Controller
ID-12P-LED-TRB
Price : $
643
12.1" Open Frame TFT LCD with LED backlight Display, with VGA input & Resistive Touch Screen with USB Controller
ID-12P-LED-TCS
Price : $
731
12.1" Open Frame TFT LCD with LED backlight Display, with VGA input & Capacitive Touch Screen with Serial Controller
ID-12P-LED-TCB
Price : $
731
12.1" Open Frame TFT LCD with LED backlight Display, with VGA input & Capacitive Touch Screen with USB Controller
Optional Video/Audio Inputs
-BNC
Price : $
135
Add BNC + S-Video
-AV
Price : $
135
Add BNC with RCA adapter + S-Video
Optional DC Input Power
-DC12
Price : $101
Add 12V DC Power
-DC24
Price : $101
Add 24V DC Power
-DC48
Price : $101
Add 48V DC Power
-DC125
Call for pricing
Add 125V DC Power
