Industrial Flat Panel Display
Model  ID-12D
                               1.2mm Aluminum Front Bezel 12.1"  Chassis Industrial Flat Panel Display
                                                  LCD Panel

LCD Type

Grade A Industrial TFT LCD Panel

Display Size

12.1 inch diagonal (246.0H x 184.5V)

Resolutions

800 x 600

Display Color

262,144 color

Brightness

400 cd/m2

Contrast ratio

600 : 1 (Typical)

Response Time

Tr=10 / Tf=25ms

Pixel pitch

0.307 x 0.307 mm

Viewing angle

60 / 60 / 40 / 55 (L / R / U / D)  or
120 / 95

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input
  • Input Video Signal : Analog RGB
  • Video Level :  Analog: 0.7Vp-p
  • Sync Type : Separate H/V, Composite
    H/V
  • Input Connector : D-Sub 15 pin VGA
    analog

Power Supply
External type,110 ~ 220 VAC at 50 or 60Hz via
AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE

Mounting

VESA-mount, Panel-mount, Wall-mount &
Bracket mount
                                                  OPTIONS

Optional Video  Input
  • Video Input   :    S-Video and Composite
  • Input Connectors : RCA, S-video
  • Input Connectors : RCA-BNC adapter  Details

    • Optional Touch Screen

                     Details

    Optional DC Power

     48V / 24V / 12V DC Power
    Input Range:10~36V(DC-12V, DC-24V model)
                     36~75V (DC-48V model)
     DC power Output : DC 12V
    Voltage Accuracy    : +/- 1% (Max.)
    Safety  : Continuous short circuit protection
                                      Mechanical

    Material

     1.2mm Aluminum (Front panel)
     1.2mm Steel (Rear case)

    Finish

     Powder Coating
    Color  Front Panel : Black
     Back          : Dark Grey (RAL7037)
    Dimension  289 x 54 x 231 mm (WxDxH)
    Product Weight  3.0 kg
                                      Environmental
       Temperature  0 to 50 Degree Celsius (Operation)
     -10 to 60 Degree Celsius (Storage)
    Relative Humidity  5 ~90%, non condensing
    Vibration   58~500Hz / 0.98G (11 min/cycle)
    Safety Approval   CE, FCC
                                 Package Content

    Package Content

    		 LCD Monitor x 1,VGA Cable (Male to Male) x 1,   DC 12V adapter  x1 ,  Power cord x 1,  Mounting Bracket x 1 pair, CD disc, User Manual x 1

      Front View of  ID-12D

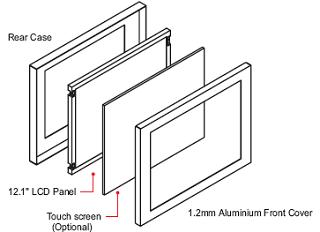

       Construction





       Dimension


















    FEATURES :
    • 12.1" industrial TFT LCD panel support 800 x 600 pixels
    • 1.2mm Aluminum front bezel with 45 degree chamfer
    • Rugged construction and modularized design
    • Low power consumption
    • 300 cd/m2 industrial brightness
    • OSD control keys to optimize the display
    • Optional DC power input (12 / 24 / 48 VDC)
    • Optional video input (S-Video & RCA input)
    • VESA-mount, OEM mounting design

    APPLICATIONS :

    • Embedded display Unit
    • Industrial automation LCD panel
    • Gaming, lottery & amusement display
    • Touch screen display panel
    • Kiosks, arcade games, Hospitality Display, ATM Machines
    • Aviation simulators, Industrial test equipment, and Instrumentation

         Diagram for  I/O Outlet
