Industrial Flat Panel Display:  Model ID-12A-LED-T

                  6mm Aluminum Front Bezel 12.1" Panel Mount  Industrial Flat Panel Display  w/ Touchscreen

LCD with LED backlight Panel

LCD Type

Grade A Industrial TFT LCD with LED backlight Panel

Display Size

12.1 inch diagonal (246.0H x 184.5V)

Resolutions

800 x 600

Display Color

262,144 color

Brightness

450 cd/m2

Contrast ratio

700 : 1 (Typical)

Viewing angle

160° x 140°

LCD MTBF

50,000 hrs

Signal Input

 VGA

Power Supply

 Input : Auto-sensing 100 to
          240VAC, 50 / 60Hz
Consumption :Max. 40 Watt,
                   Standby 5 Watt

Mounting

Panel mount / VESA mount
                                                  OPTIONS

Other Option

- S-Video + BNC & Audio
- TV - Analog

Touch Screen

                 Details

Optional DC Power

 48V / 24V / 12V DC Power     Details
Input Range:10~36V(DC-12V, DC-24V model)
                 36~75V (DC-48V model)
 DC power Output : DC 12V
Voltage Accuracy: +/- 1% (Max.)
Safety  : Continuous short circuit protection
                                  Mechanical

Material

 6mm Aluminum (Front panel)
 1.2mm Steel (Rear case)

Finish

 Powder Coating
Color  Front Panel : Black
 Rear case   : Dark Grey (RAL7037)
Dimension  345 x 68 x 256 mm /
 13.6 x 2.7 x 10.1 inch (W x D x H)
Product Weight  3 kgs ( 6.6 lbs )
                                  Environmental
Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration
 (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration
Safety Approval  FCC, CE, RoHS Compliant
                             Package Content

Package Content

 12.1" LCD display X 1, 6ft VGA cable X 1, Power adapter X 1, Power cord X 1, Mounting hardware X 1 pack

  Front View of  ID-12A-LED

  Construction

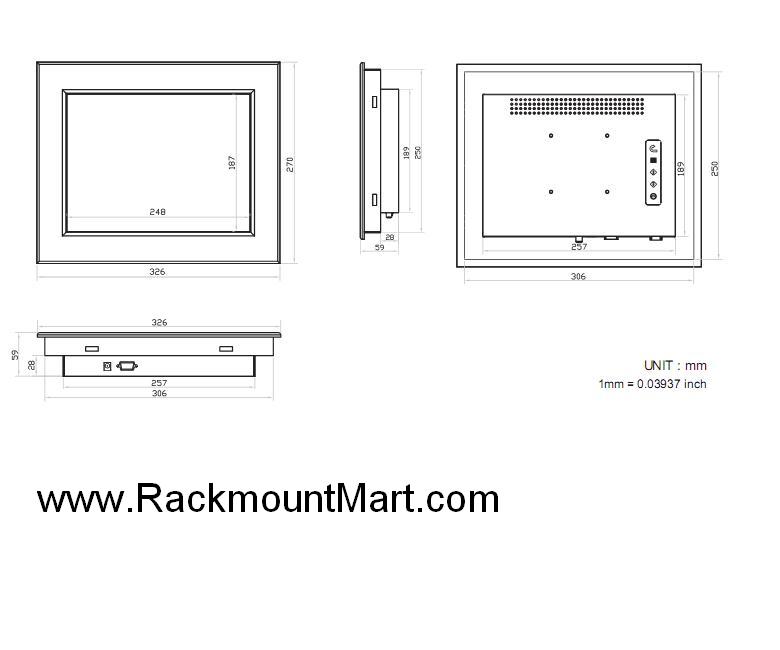

   Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view

 Download Product Sheet
 Download User Manual


         Free Ground Shipping * Click for details


 Gallery


   DISPLAY BENEFITS :
  • 12.1" LCD with resolution 800 x 600
  • Green LED-backlit panel technology
  • 12.1" Touchscreen : Capacitive, Resistive
  • Rugged construction against external impact
  • Protective 3mm glass
  • 6mm aluminum front bezel with protective glass (Optional)
    0PTIONS :
  • S-Video + BNC & Audio
  • 48V, 24V or 12VDC power

APPLICATIONS :

  • Embedded display Unit
  • Industrial automation LCD with LED backlight panel
  • Gaming, lottery & amusement display
  • Touch screen display panel
  • Kiosks, arcade games, Hospitality Display, ATM Machines
  • Aviation simulators, Industrial test equipment, and Instrumentation
