    Home >>  Industrial Display >>  Open Frame LCD Monitor >>

Industrial Monitors :   Part #   ID-10P-LED


                             10.4" Open Frame Industrial Grade LCD with LED backlit , TAA Compliant

LCD with LED Backlight Panel
LCD Type

AUO 10.4" Industrial Grade TFT LCD Panel

Backlight

LED

Resolutions

800 x 600

Display Color

262 K color

Brightness

230 cd/m2

Contrast ratio

500 : 1 ( Typical )

Active area (mm)

211 x 158

Viewing angle 160 x 130

LCD MTBF

30,000 hrs

Signal Input

VGA

Power Supply

Input : Auto-sensing 100 to
          240VAC, 50 / 60Hz
Consumption :Max. 40 Watt,
                   Standby 5 Watt

Mounting

Universal mount / VESA mount
OPTIONS

Optional Touch Screen

               Details

Optional DC Power

48V / 24V / 12V DC Power   Details

Other Option

- S-Video + BNC & Audio & Remote controller
- S-Video + RCA & Audio & Remote controller

Mechanical
Dimension
( W x D x H )
 11.1 x 2.2 x 8.6 inch /
 282 x 57 x 219 mm
Product Weight  2.5 kgs ( 5.5 lbs )
Casing Color  Dark grey
Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~ 90%, non condensing
Shock 10G acceleration ( 11 ms duration )
Vibration 5 ~ 500Hz 1G RMS random vibration
Regulatory FCC, CE, RoHS Compliant , TAA Compliant
                             Package Content

Package Content

10.4" LCD display , 6ft VGA cable , Power adapter , Power cord

  Front View of  ID-10P-LED

  Construction


   Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view

 Download Product Sheet
 Download User Manual

Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7 If you do not find the driver required, please contact us.

         Free Ground Shipping * Click for details



   DISPLAY BENEFITS :
  • 10.4" LCD with resolution 800 x 600
  • Green LED-backlit panel technology
  • Rugged construction against external impact


   0PTIONS :
  • S-Video + BNC ( or RCA ) & Audio & Remote controller
  • 10.4" Touchscreen : Capacitive or Resistive,
    2-point multi-touch available too
  • 48V, 24V or 12VDC power

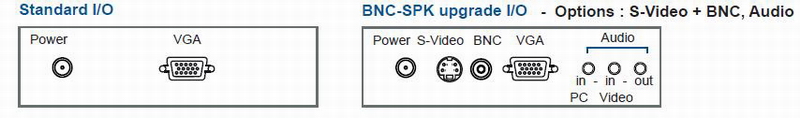

    Diagram for  I/O Outlet

Ordering information :
Part # Description
ID-10P-LED
Price : $455
10.4" Open Frame LCD with LED-backlit Panel Display, with VGA input
ID-10P-BNC-LED
Price : $
536
10.4" Open Frame LCD with LED-backlit Panel Display,
with VGA + BNC + S-Video + audio + remote controller
ID-10P-AV-LED
Price : $
536
10.4" Open Frame LCD with LED-backlit Panel Display,
with VGA + BNC with RCA adapter + S-Video + audio + remote controller
Optional Touch Screen
-TRS
Price : $169
Add Resistive Touch Screen with Serial Controller
-TRB
Price : $169
Add Resistive Touch Screen with USB Controller
-TCS
Price : $264
Add Capacitive Touch Screen with Serial Controller
-TCB
Price : $264
Add Capacitive Touch Screen with USB Controller
-TPC
Price : $271
Add Projected Capacitive 2-point multi-touch + USB controller
** casing dimension will be changed if multi-touch is applied
Optional DC Input Power
-DC12
Price : $138
Add 12V DC Power
-DC24
Price : $138
Add 24V DC Power
-DC48
Price : $138
Add 48V DC Power
-DC125
Call for pricing
Add 125V DC Power
