     Home >>  Industrial Display >>  Industrial Touch Screen LCD >>    Panel Mount Style >>

Industrial Monitors:  Part #  ID-08A-LED-T


                6mm Aluminum Front Bezel 8.4" LCD w/ LED Backlight Panel Mount Monitor w/ Touchscreen

LCD w/ LED Backlight Panel
LCD Type

TFT LCD Panel

Backlight

LED

Display Size

8.4 inch diagonal

Resolutions

800 x 600

Display Color

262 K color

Brightness

250 cd/m2

Contrast ratio

600 : 1 (Typical)

Active area (mm)

170 x 128

Viewing angle 160 x 140

LCD MTBF

30,000 hrs

Signal Input

VGA

Power Supply

Input : Auto-sensing 100 to
          240VAC, 50 / 60Hz
Consumption :Max. 40 Watt, Standby 5 Watt

Mounting

Panel mount / VESA mount
OPTIONS

Touch Screen

                 Details

Optional DC Power

48V / 24V / 12V DC Power    Details
Input Range:
  10~36V(DC-12V, DC-24V model)
  36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy
: +/- 1% (Max.)
Safety :
  Continuous short circuit protection

Other Option

- S-Video + BNC & Audio
- TV - PAL or NTSC

Mechanical
Dimension  10.4 x 2.5 x 7.6 inch /
 264.7 x 62.8 x 192 mm ( WxDxH )
Product Weight  2.4 kgs ( 5.3 lbs )
Casing Color  Black front panel
 Dark grey rear case
Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~ 90%, non condensing
Shock 10G acceleration ( 11 ms duration )
Vibration 5 ~ 500Hz 1G RMS random vibration
Regulatory FCC, CE, RoHS Compliant
Package Content

Package Content

8.4" LCD Display x 1, 6ft VGA Cable x 1, Power cord x 1, Power Adapter x 1

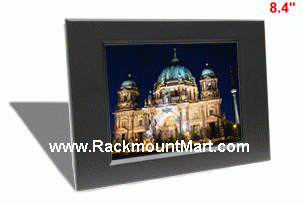

  Front View of  ID-08A-LED

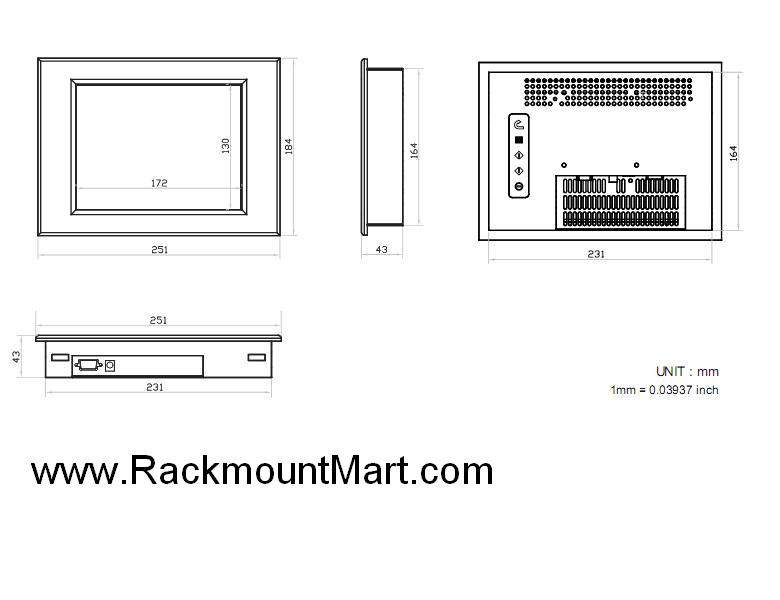

   Front / Rear / Top / Side Views & Dimensions


*click on above picture for enlarged view

                      Download Product Sheet
                      Download User Manual
                      Download Mounting Guide

Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7

         Free Ground Shipping * Click for details

More photos (click to enlarge )

   DISPLAY BENEFITS :
  • 8.4" LCD with resolution 800 x 600
  • Green LED-backlit panel technology
  • 8.4" Touchscreen : Capacitive, Resistive
  • Rugged construction against external impact
  • Protective 3mm glass
   0PTIONS :
  • S-Video + BNC & Audio
  • 48V, 24V or 12VDC Power

     Diagram for  I/O Outlet

Ordering information :
Part # Description
ID-08A-LED-TRS
Price : $592
6mm Aluminum Front Bezel 8.4" LCD w/ LED Backlight Panel Display, with VGA input & Resistive Touch Screen with Serial Controller
ID-08A-LED-TRB
Price : $
592
6mm Aluminum Front Bezel 8.4" LCD w/ LED Backlight Panel Display, with VGA input & Resistive Touch Screen with USB Controller
ID-08A-LED-TCS
Price : $
700
6mm Aluminum Front Bezel 8.4" LCD w/ LED Backlight Panel Display, with VGA input & Capacitive Touch Screen with Serial Controller
ID-08A-LED-TCB
Price : $
700
6mm Aluminum Front Bezel 8.4" LCD w/ LED Backlight Panel Display, with VGA input & Capacitive Touch Screen with USB Controller
Optional Video/Audio Inputs
-BNC
Price : $
82
Add BNC + S-Video
-AV
Price : $
82
Add BNC with RCA adapter + S-Video
Optional NEMA4 / IP65
-N
Price : $
40
Add NEMA4 / IP65 Protective Glass
Optional DC Input Power
-DC12
Price : $101
Add 12V DC Power
-DC24
Price : $101
Add 24V DC Power
-DC48
Price : $101
Add 48V DC Power
-DC125
Call for pricing
Add 125V DC Power
