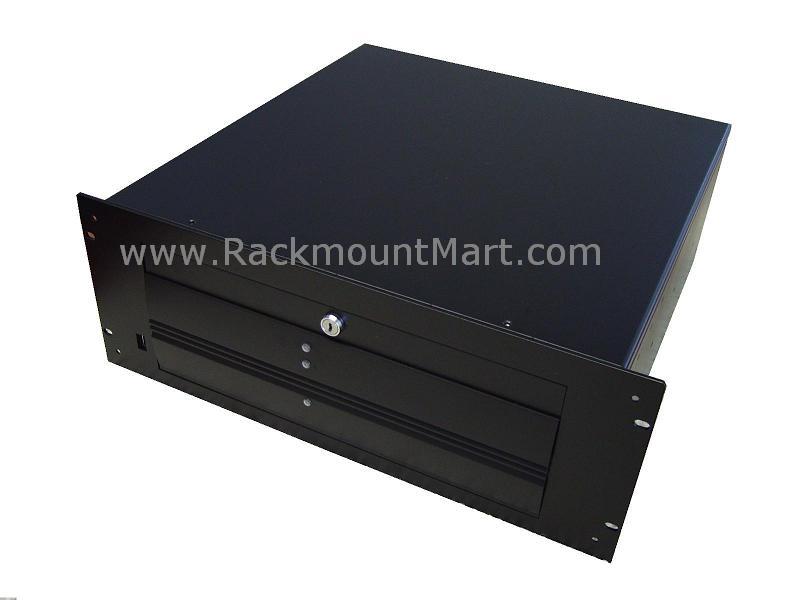

  4U Rackmount Chassis :  Part # RM4022  ( Military Grade )



    *Click to enlarge





*Click to enlarge


Product Sheet




                      19" Rackmount Standard
Construction:
Material of Front Bezel Military Type - 1.6mm SECC Coated Steel
Material of Handle Military Type - 1.6mm SECC Coated Steel
Material of Main Chassis Military Type - 1.6mm SECC Coated Steel
Color: Black
RoHS Compliance : Yes
Motherboard Size: Support 12" x 10" ATX M/B
Drive Bays: 1 x 3.5" Open Bay (FDD) & 1 x 3.5" Hidden Bay (HDD) & 3 x 5.25" Open Bay (CD-ROM Drive)
Power Supply: Single or  Redundant power supply
Cooling Units: 1 x 120mm  Fan
Switches: Power ON/OFF, System & Alarm Reset
Indicators: LEDs for Power ON/OFF, HDD, Fan & Alarm
Front  connector: Front USB 2.0 x 2 Connector
Air Filter: Removable & Washable
Speaker: 0.4W Built-In
Security:
Front Bezel
Dimensions: 19 x 7 x 17.8 inch (W x H x D )



Introduction

This Military RM4022  rackmount chassis is designed to withstand the toughest and compact environment. It is 4U height with only 17" in depth and special features of front USB access, ball-bearing cooling fan, and system sensor board to enhance functionality and usability for critical missions and applications.

Features

  • Compact 4U Rackmount 17" Depth
  • 1.6mm Steel Body Chassis
  • Spill-proof Bezel with Lock
  • Shock Absorbing Drive Cage
  • Expansion Card Center Lock Crowbar
  • Front Access USB2.0 x2
  • 120mm x1 Cooling Fan
  • Power and HDD LED
  • Removable Air Filter
  • Power and Alarm Reset Switch
  • Fan and Temperature Monitor Option
  • Optional 14 Slots Backplane

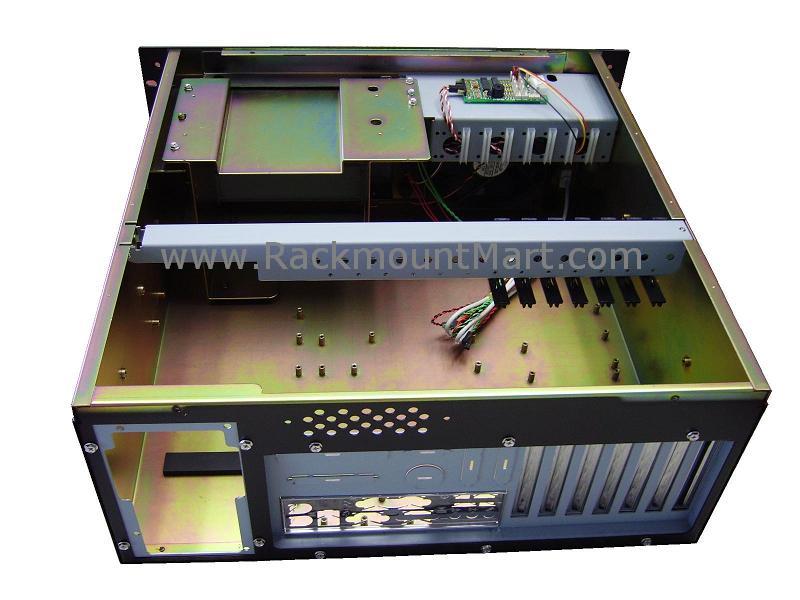

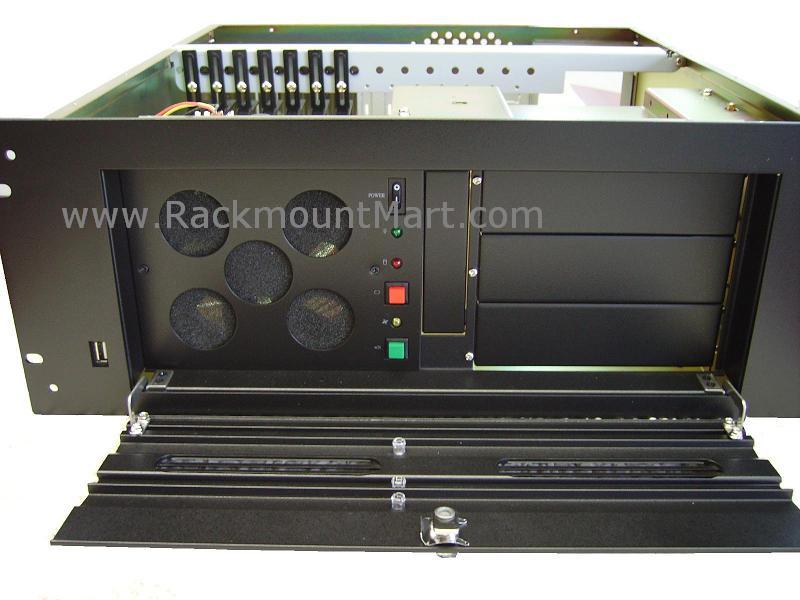

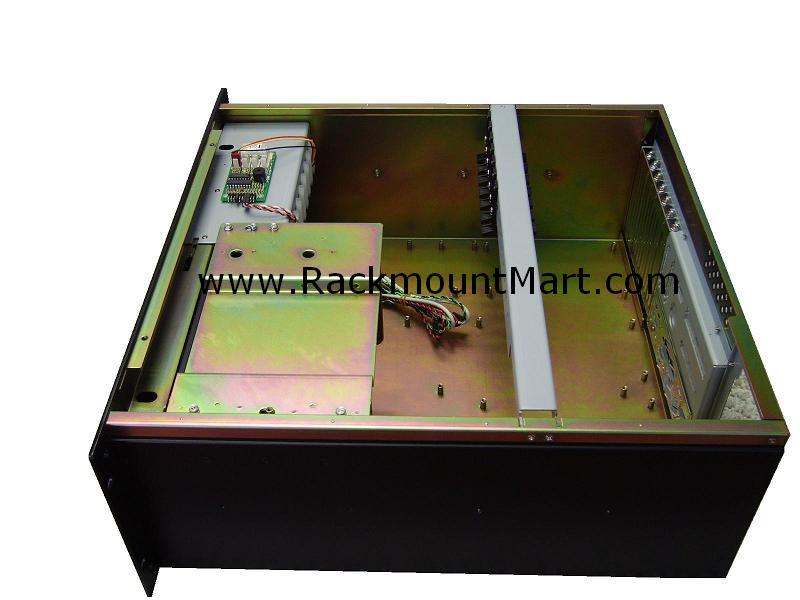

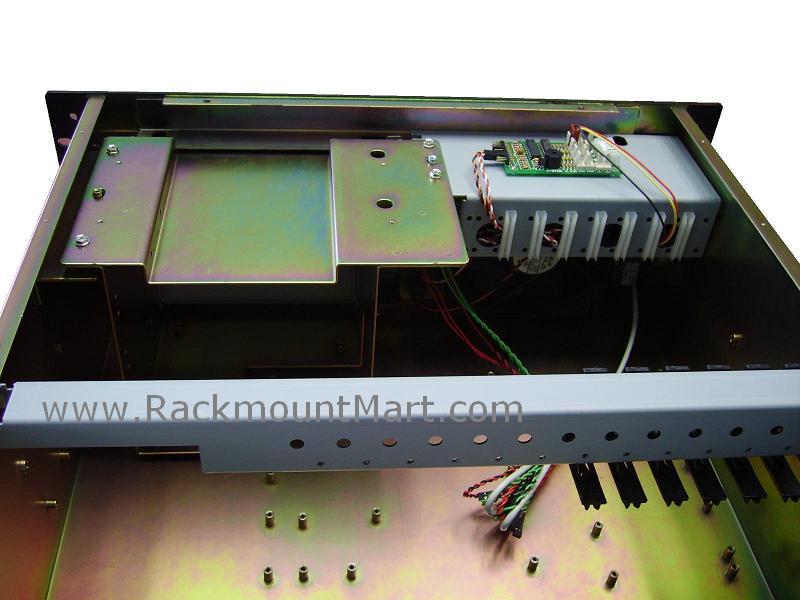

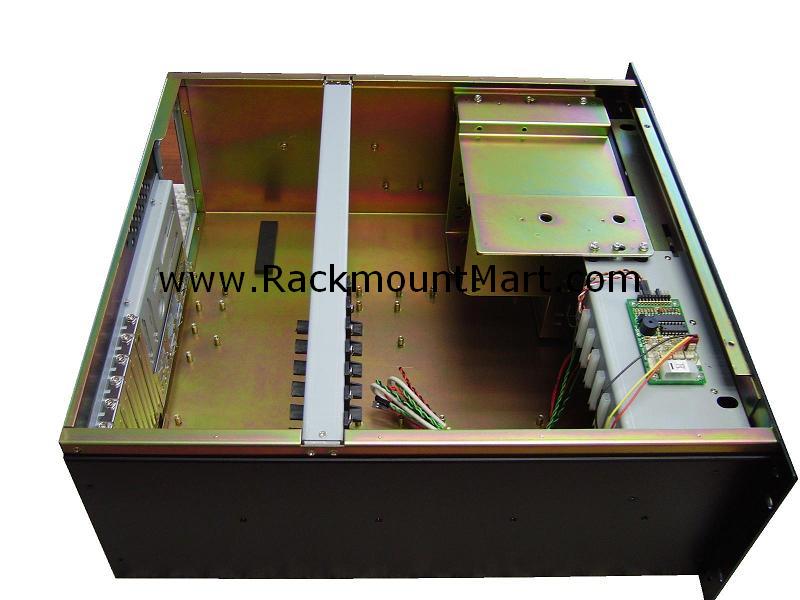

  For more pictures , click on the following for enlarged view:
