2 U Rackmount Chassis :  Part # RM2009





          * Click on the above picture for enlarged view

 EIA RS-310C 19" Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black, Beige, or Custom Design
System Boards:

Dual Opteron , Dual Xeon, Pentium 4,  based boards
Motherboard Size: Support ATX M/B (Max. 12" x 13" )
Drive Bays: 12 x 3.5" Swappable SATA HDD Trays
Power Supply: (Rear Chassis Installation) 2U Single or Redundant 460W ATX power supply (optional)
Front USB ports: 0
Cooling Units: 4 x 8cm Ball Bearing Fans, 42.5CFM/Each
Expansion Slot: Version A : 3 Horizontal Slots
Version B : 7 Vertical Slots
Indicators: LEDs for Power ON/OFF, HDD, Fan, & Temperature
Thermal Management Card: Installed
Buttons: Power On/Off, Fan Alarm & System Reset

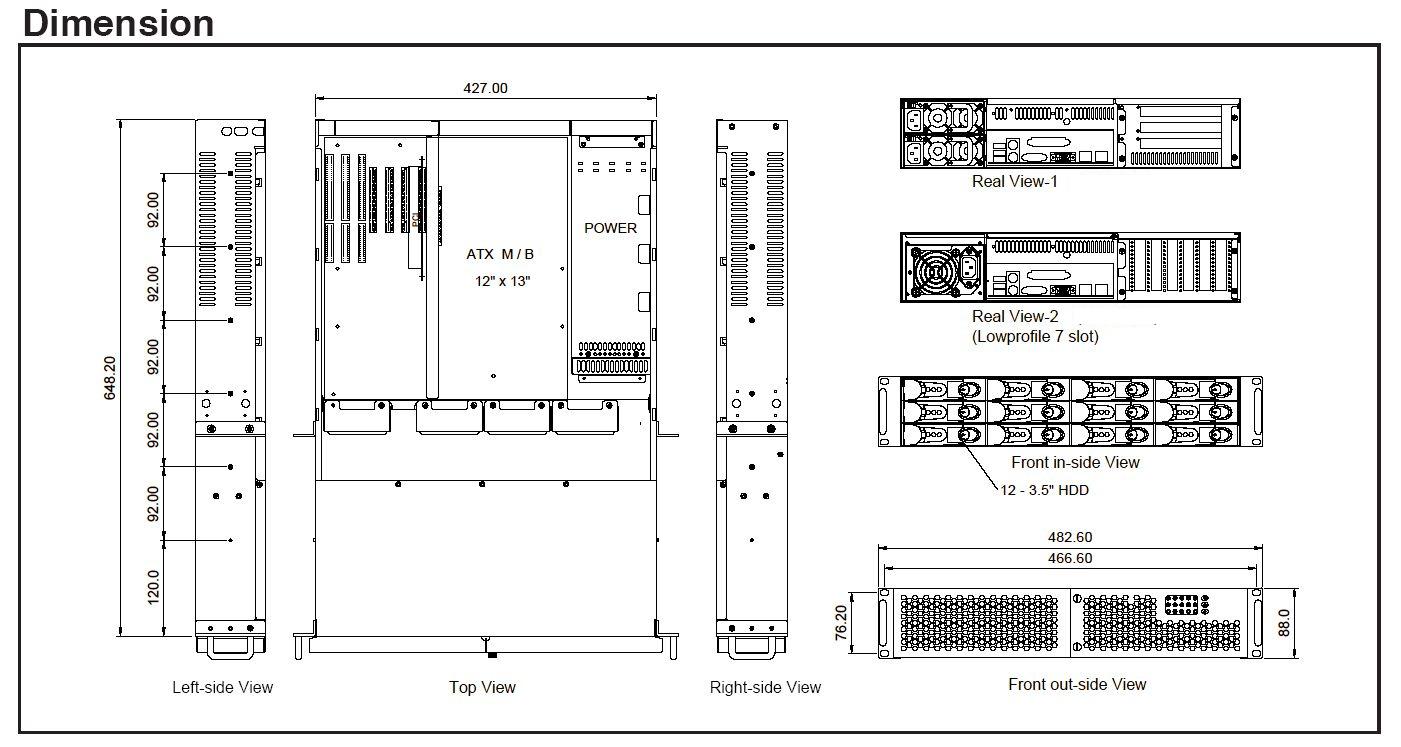

Dimensions: 483(W) x 88(H) x 650(D)mm (19" x 3.5" x 25.6")
Product Applications: RAID Server, File Server, Web Server







More photo - (click on the picture for enlarged view)









Ordering information
Part Number  Description
RM2009-SATA-46  2U Rackmount Chassis, 12x SATA, Black, with 460W EPS 12V (24 + 8 ) pin Power supply
RM2009-SATA-48  2U Rackmount Chassis, 12x SATA, Black, with 480W EPS 12V (24 + 8 ) pin Power supply
RM2009-SATA-R46  2U Rackmount Chassis, 12x SATA, Black, with 460W EPS 12V mini redundant Power supply
