          1 U Rackmount Server with FOUR Motherboards :  Part # RM1103








    **Click on photos above for enlarged views


 19" 1U  Rackmount Server with FOUR Motherboards
Color: Black
Material: SECII
Processor:

-Supports VIA C3/EDEN 376 PIN EBGA type
-Front Side Bus 100/133 MHz
-VIA Eden series processor 533 , 800 or 1G MHz
Power Consumption: - 5W (low voltage)
-Integrated full-speed 192KB L1/L2 cache
Drive Bays: 4 x 2.5 HDD
System Chipset: -Motherboard chipset : VIA VT8601A and VT82C686B
-VGA chipset: VT8601A integrated Trident graphics
-Sound chipset: Realtek ALC 201A AC97 Sound
-LAN chipset: 3 x 10/100Mbps Realtek LAN
Memory: Support PC133/100 SDRAM DIMM. One DIMM socket up to 512MB (32M x N)
Graphics: -Integrated graphics controller with VT8601A Trident VGA
-64-bit single cycle 2D/3D graphic engine
-Supports 2M to 8Mbyte of frame buffer
-Extended screen resolutions up to 1600x1200
Sound: AC97 2.1 compliant
Power: -110V~220V AC IN or DC 12V Input
-
Internal Silent PSU's with in dependent power switches on systems
-Slim CD Adapter included
I/O: PS/2 for keyboard and mouse, 4x USB, 4x COM ports, 2x Parallel, 12x LAN ports
Dimensions: 44.5 (H) x 500 (W) x 550 (D) mm
Operating System : Supports Linux, Windows 9X / 2000 / XP /CE

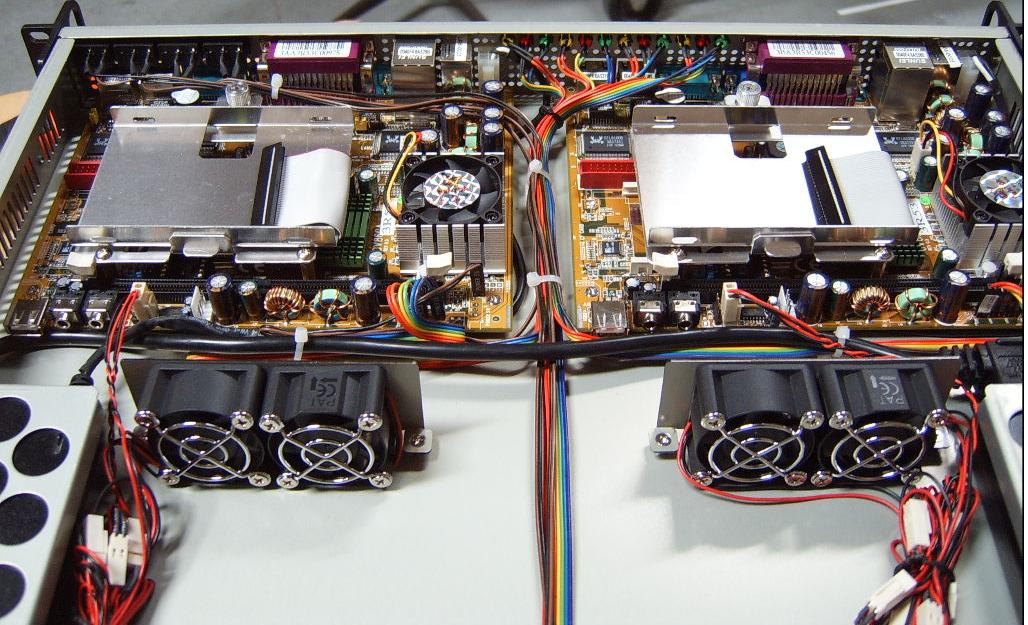

 More photos - (click on the photos for enlarged views)

                                     (MB)


FEATURES :

  • 4 Motherboards
  • 168 pin DIMM socket - SDRAM
  • 2.5" IDE connector and cable
  • 2.5" hard drive mounting bracket
  • 3.5" IDE connector
  • Onboard Compact Flash socket
  • Onboard DiskOnChip socket
  • 12 x 10/100Mbit network interface
  • Onboard power supply

Ordering information
Part Number  Description
RM1103-533  1U Rackmount Super Server System w/ FOUR motherboards , VIA EDEN 533 MHz CPU, 12 x 10/100 Realtek LAN
RM1103-800  1U Rackmount Super Server System w/ FOUR motherboards , VIA EDEN 800 MHz CPU, 12 x 10/100 Realtek LAN
RM1103-1000  1U Rackmount Super Server System w/ FOUR motherboards , VIA EDEN 1000 MHz CPU, 12 x 10/100 Realtek LAN
