          REDUNDANT POWER SUPPLY: PART # PS3008

2U Type 460 + 460W  N+1 Redundant Power Supply







  FEATURES :

  • Compact size Module Design
  • Quick Removable Application
  • Active power Factor Correction
  • Universal Power Input
  • Current Sharing on +5V, +3.3V and +12V
  • Remote DC Sense on +5V, +3.3V and +12V
  • Front panel LED to Indicate Power Status
  • Power Fault Alarm Signals
  • Over Voltage Protection
  • Over Current Protection
  • Over Power Protection
  • Short Circuit Protection
  • MTBF >100,000 Hour



SPECIFICATIONS

  • Input Range: 100 to 240 VAC, +/-10%
  • Input Current: 8A@115VAC, 4A@230VAC
  • Input Frequency: 47~63Hz
  • Power Factor: 0.98 minmum
  • Efficiency: 65% minimum, at full load
  • Hold up Time: 20mS minimum, at full load
  • PSON (Remote ON/OFF): TTL compatible
  • Power Good: 200 to 500 mS, TTL compatible
  • Cooling Fan: 40x40x28 mm (SANYO DENKI)
  • Operating Temperature: 0 to 50 degree
  • Operating Humidity: 20 to 90% RH
  • Harmonic: Meet EN61000-3-2
  • EMI/EFI: CE, FCC class B
  • Safety: UL, cUL, TUV, CB
Output Specification:
Output
+5V
+3.3V
+12V
-5V
-12V
5VSB
Max. output(A)
30A
30A
30A
--
0.8A
2A
Min. output(A)
1A
0A
1A
--
0A
0A
Load Regulation
+5/-4%
-5/-3%
+5/-4%
+/-10%
+/-10%
+/-5%
Cross Regulation
+5/-4%
-5/-3%
+5/-4%
+/-10%
+/-10%
+/-5%
Line Regulation
+/-1%
+/-1%
+/-1%
+/-1%
+/-1%
+/-1%
Ripple&Noise
50mV
50mV
50mV
100mV
120mV
50mV
  • Note 1: +5V & +3.3V combine output shall not exceed 220W.
  • note 2: +5V, +3.3V and +12V combinr output shall not exceed 440W.
  • Note 3: Noise Bandwidth is from DC to 20MHz.

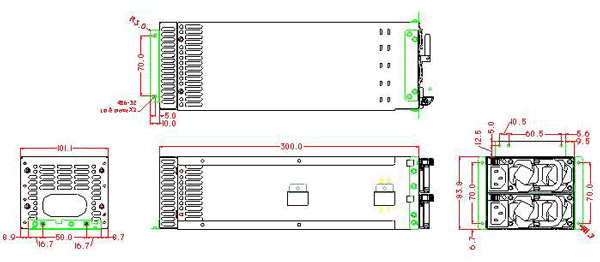

  Dimensions (unit : mm) :
