1U / 2U /3U SWITCHING POWER SUPPLY :

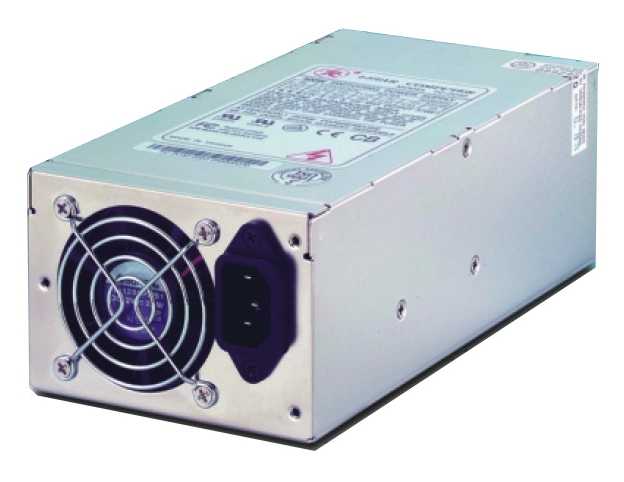

PART # PS2001

                                      ATX Switching Power Supply for 2U IPC with 460W Output (EPS 12V)


Click on photo for enlarged view 		 AC Input:
  • VOLTAGE: 90～132 or 180～264V, (115/230 auto)
  • FREQUENCY: 47/63Hz
  • INPUT CURRENT: 8A/4A For 115/230VAC
  • INRUSH CURRENT: 60A/80A MAX FOR 115/230

Download Product Sheet

Features
  • TEMPERATURE RANGE: Operation 0℃~50℃
  • HOLD UP TIME: 16ms at maximum load & normal input voltage
  • EFFICIENCY: 70% TYPICAL(Normal Line)
  • ATX 12V / EPS 12V
  • POWER GOOD SIGNAL: Should be asserted high to indicate that+5VDC and +3.3VDC output are above the low voltage thresholds. Compatible signal out with 100ms to 500ms.
  • OVER POWER PROTECTION:The power supply shall shout down output power exceeds 130% to 160%
  • OVER VOLTAGE PROTECTION: Standard on +5.0V, set at 6.25VDC ± 0.75VDC
  • SHORT CIRCUIT PROTECTION: A short circuit placed between the DC return and the output shall cause no damage and the power supply shall shutdown.
  • EMI: FCC part 15, subpart B, Class B, EN55022 CISPR22 Class B.
  • AGENCY APPROVALS: UL60950, CAN/CSA22.2 No.60950, TUV(IEC60950)
  • MTBF OF POWER SUPPLY ELECTRONNIS: 100,000 hours at 25℃. LIFE EXPCTANCY OF FAN 40,000 hours at 40℃
  • COOLING: By forced air 2x60mm Fan
  • DIMENSION: D200 X W100 X H70mm
DC Output
OUTPUT
VOLTAGE		 OUTPUT CURRENT REGULATION OUTPUT
MIN(A) MAX(A) LOAD LINE RIPPLE & NOISE
MAX.[P-P]
+5V
3 40 ±5% ±1% 50mV
+12V
2
 24 ±5% ±1% 120mV
-5V
0.1 0.3 ±10% ±1% 150mV
-12V
0.1 0.8 ±10% ±1% 150mV
+3.3V
1 20 ±5% ±1% 50mV
+5VSB
0.1 2 ±5% ±1% 50mV

  * The combined output power +5V&+3.3V shall not exceed 200W.
  * The total power shall not exceed 460W.

Connectors
