Wall Mount  Computer / LCD :  Part # WM1001



Construction: Heavy Duty Cold Rolled Electroplated Steel
Mounting: Desktop or Wall Mount
Color: Black (Standard), Beige or Custom
System Boards: Support 8-slot Passive Backplane
Drive Bays: 2 x 5.25 + 1 x 3.5 open + 1 x 3.5 hidden
Power Supply (Optional): PS/2 Size Single 250~400W or Redundant 230~400W P/S(Rear Installation) Max. Depth 190mm
Cooling Units: 1x (120mm = 90CFM ea.) Fan
Thermal Management Card: Installed
Air Filter: Inside Front Panel (Washable)
Connector Port (Front): 2x USB Ports (Optional)
Front Door: Single Door With 1 Thumbscrew
Expansion Slot: 8x Slots
Indicators: LEDs for Power ON/OFF, HDD Activity, Fan, Temperature
Switch: Power ON/OFF, System Reset, Buzzer Reset
Hold Down Bar: Flexible Hold Down Bar Designed
Dimensions: 350(W) x 177(H) x 421(D) mm (13.8" x 7" x 16.6")
Humidity: 5% - 95% Non-condensing

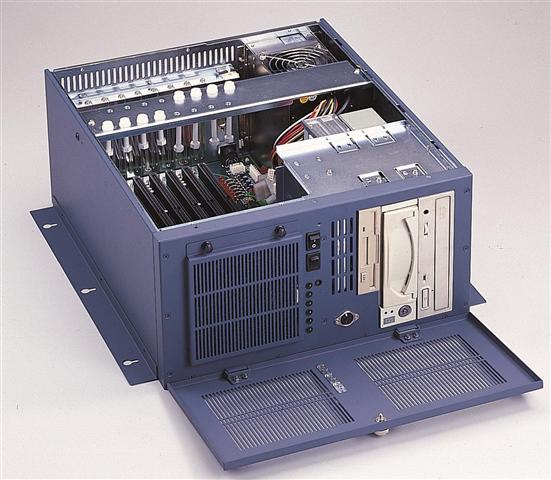

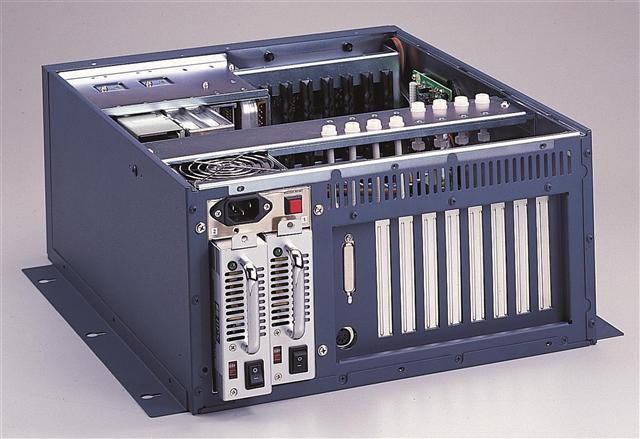

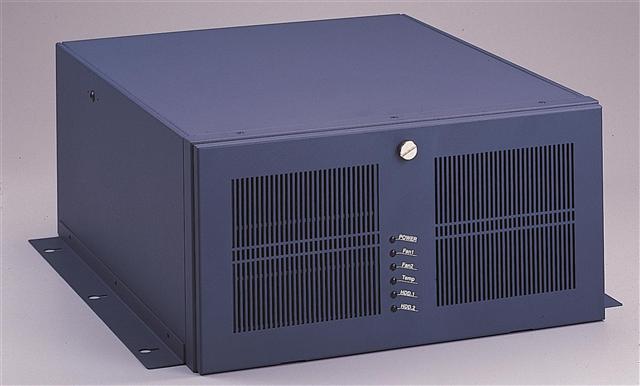

More photo - (click on the picture to enlarge)
