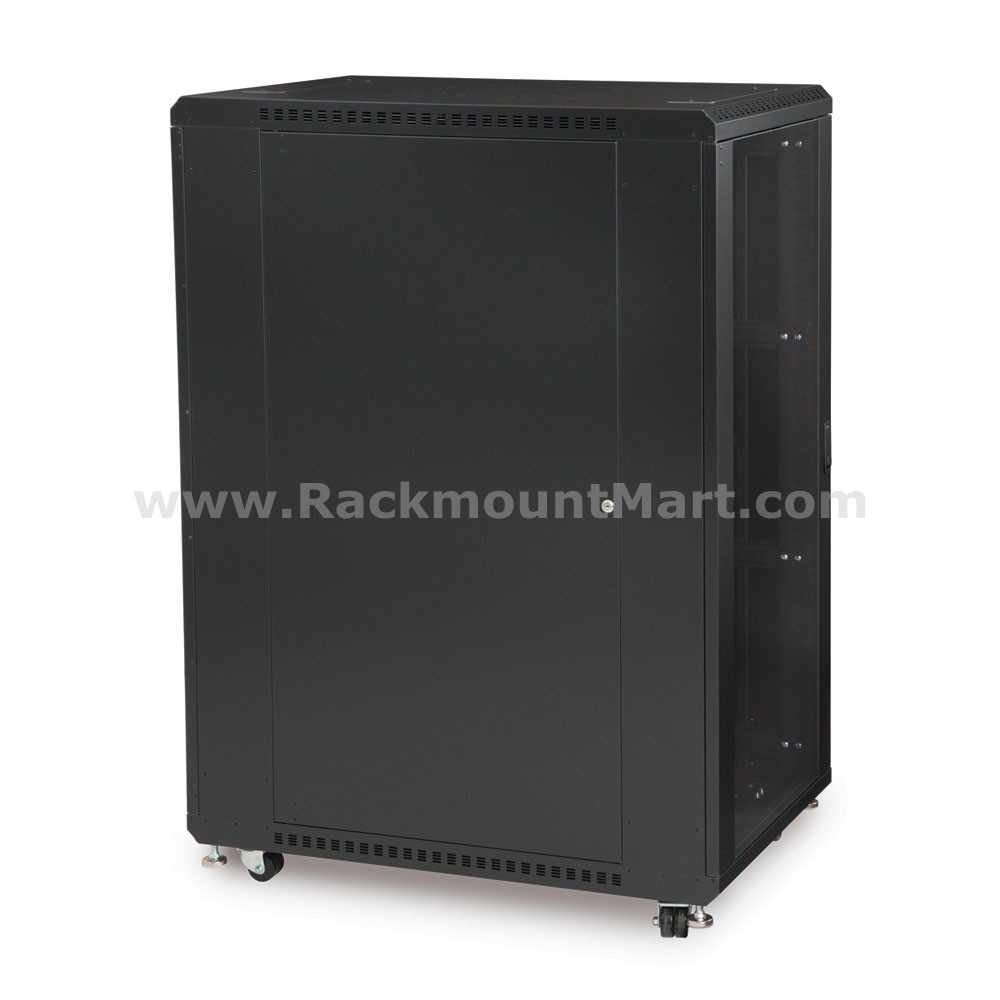

27U Server Cabinet : Glass / Glass Doors - 37.72" Overall Depth
Model CR1205-G/G
TAA Compliant


                                                                                     MADE IN THE USA

*click for enlarged view

This Server Cabinet is suitable for network servers, battery backups, switching banks, and other larger network equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options.
  • Includes two locking tempered glass doors
  • Removable locking side panels
  • 36” inside depth (Also available with a 24” depth)
  • Other sizes available: 22U, 37U, 42U
  • 1300 lb. weight capacity (Holds 800 lbs. on casters)

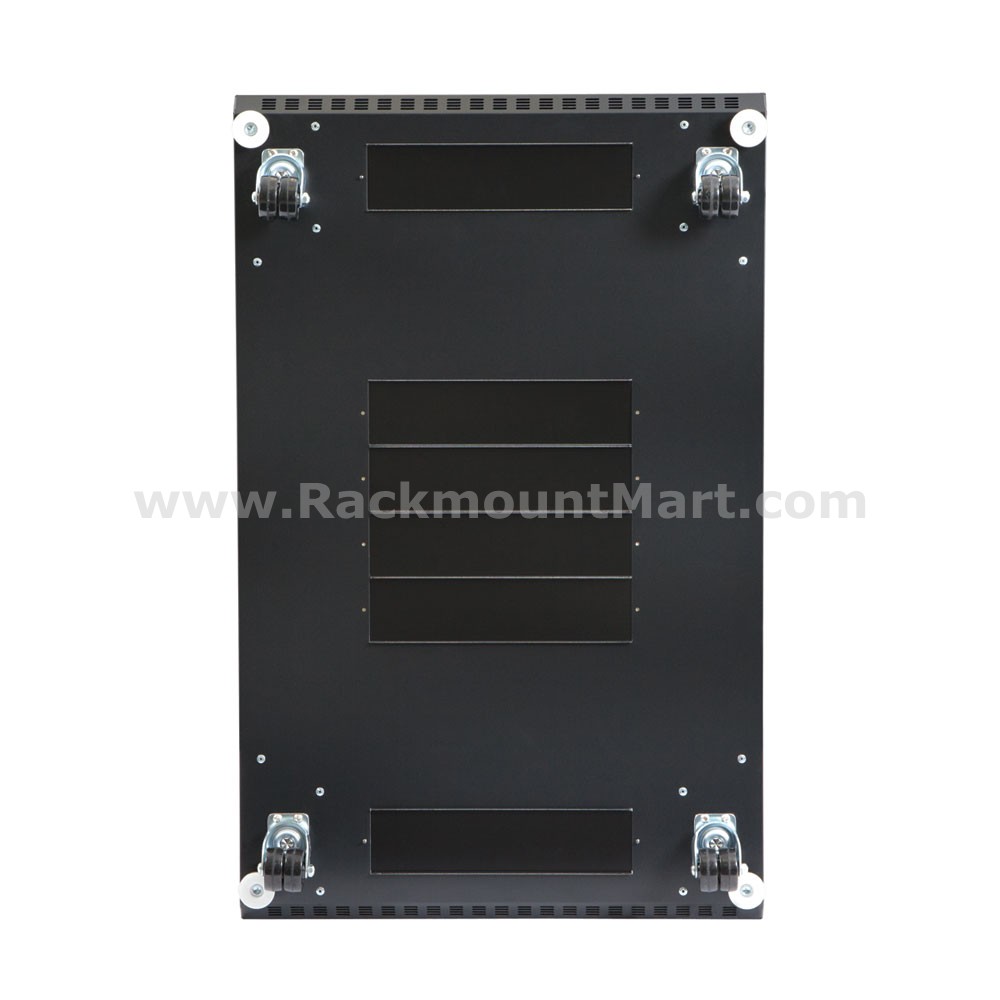

  • Includes preinstalled casters and levelers
  • Includes two sets of adjustable cage nut style mounting rails
  • Top includes removable laser knockouts
  • 19” EIA 310-D compliant
  • Made in the USA




Features
Easy Installation   Casters and levelers are preinstalled to allow you to easily move and load your system into the desired location. (Rack hardware not included.)
Removable Cable Access Panels   The top of the server cabinet includes removable laser knockouts for cable access and added versatility.
Locking, Removable Side Panels   For a completely different look, the side panels are both removable and lockable giving you the option to create the cabinet that best suits your needs.
Adjustable Rails   Includes two sets of adjustable, vertical rails which extend to a maximum depth of 36” for versatile mounting options.
Secured System   Both doors are equipped with locks to help protect and secure your valuable equipment.
Locking Tempered Glass Doors   The locking tempered glass doors allow installers to easily access and view their network equipment.
Specifications
  • Width : 24"(Overall)  19"(Inside)
  • Depth : 37.72"(Overall)  36"(Inside)
  • Height : 54.25"(Overall)
  • Color : Black
  • Weight : 177.00 lbs.
Package Content
  • Qty 1 - 27U Server Cabinet - Glass/Glass Doors
Download
Download Cut Sheet

Gallery


Optional Vertical Rail Kit
Height Cage Nut 10-32 Tapped
27U PT-SRL-27U-KH PT-SRL-27U-KH-T

 Ordering Information

Part Number Description
 CR1205-G/G 27U Server Cabinet - Glass/Glass Doors - 36" Inside Depth (37.72" overall depth)
Options
 CR1205
27U Server Cabinet - Glass/Vented Doors - 36" Inside Depth
 CR1205-A
27U Server Cabinet - No Doors/No Side Panels - 36" Inside Depth
 CR1205-C
27U Server Cabinet - No Doors - 36" Inside Depth
 CR1205-G/S
27U Server Cabinet - Glass/Solid Doors - 36" Inside Depth
 CR1205-C/G
27U Server Cabinet - Convex/Glass Doors - 36" Inside Depth
 CR1205-S/C
27U Server Cabinet - Solid/Convex Doors - 36" Inside Depth
 CR1205-C/C
27U Server Cabinet - Convex/Convex Doors - 36" Inside Depth
 CR1205-S/V
27U Server Cabinet - Solid/Vented Doors - 36" Inside Depth
 CR1205-V/V
27U Server Cabinet - Vented/Vented Doors - 36" Inside Depth
 CR1205-S/S
27U Server Cabinet - Solid/Solid Doors - 36" Inside Depth
 CR1205-C/V
27U Server Cabinet - Convex/Vented Doors - 36" Inside Depth
