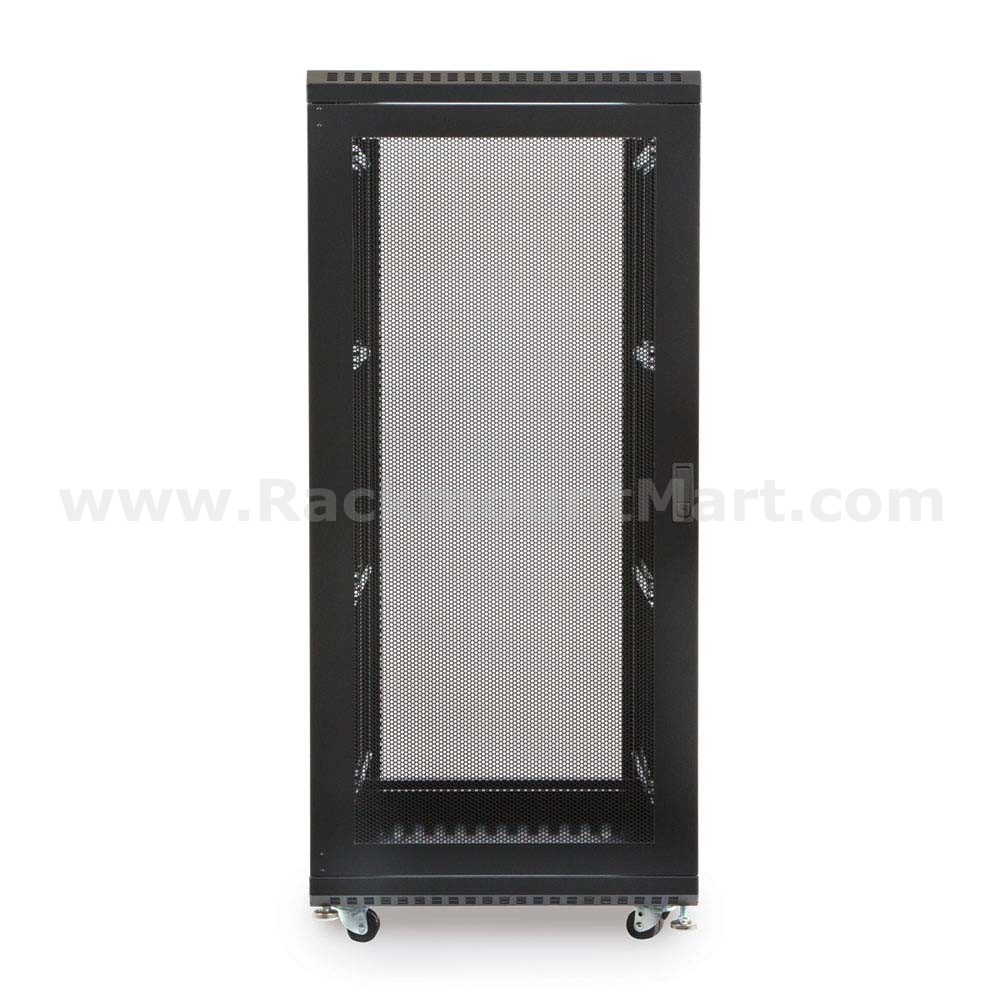

27U Server Cabinet : Glass/Vented Doors - 37.72" Overall Depth
Model  CR1205
TAA Compliant


MADE IN THE USA

*click for enlarged view

  • 2 sets of adjustable mounting rails
  • Removable locking side panels
  • Cage nut style mounting rails
  • Top and bottom removable cable slots
  • Locking tempered glass front door
  • Locking vented rear door
  • Includes casters and levelers
  • 19" EIA compliant




Features
The full size rack is our entry level cabinet. This rack comes with a glass door on the front and a vented rear door. Each rack has 2 sets of vertical rails, adjustable in 1 inch increments, lockable/removable side panels, casters and levelers. The top of the cabinet has cut-outs allowing you to install up to four 4 inch fans while there are removable cable slots for easy installation for all your network communication lines.
Specifications
  • Width : 24"(Overall)  19"(Inside)
  • Depth : 37.72"(Overall)  36"(Inside)
  • Height : 54.25"(Overall)  47.25"(Inside)
  • Color : Black
  • Weight : 171.00 lbs.
Package Content
  • Qty 1 - 27U Server Cabinet (Glass Front/Vented Rear)
Download
Download Cut Sheet

Gallery


Optional Vertical Rail Kit
Height Cage Nut 10-32 Tapped Height Cage Nut 10-32 Tapped
22U PT-SRL-22U-KH PT-SRL-22U-KH-T 27U PT-SRL-27U-KH PT-SRL-27U-KH-T
37U PT-SRL-37U-KH PT-SRL-37U-KH-T 42U PT-SRL-42U-KH PT-SRL-42U-KH-T

 Ordering Information

Part Number Description
 CR1205   27U Server Cabinet - Glass/Vented Doors - 36" Inside Depth (37.72" overall depth)
Options
 CR1205-A
27U Server Cabinet - No Doors/No Side Panels - 36" Inside Depth
 CR1205-C
27U Server Cabinet - No Doors - 36" Inside Depth
 CR1205-G/S    27U Server Cabinet - Glass/Solid Doors - 36" Inside Depth
 CR1205-C/G
27U Server Cabinet - Convex/Glass Doors - 36" Inside Depth
 CR1205-G/G
27U Server Cabinet - Glass/Glass Doors - 36" Inside Depth
 CR1205-S/C
27U Server Cabinet - Solid/Convex Doors - 36" Inside Depth
 CR1205-C/C
27U Server Cabinet - Convex/Convex Doors - 36" Inside Depth
 CR1205-S/V
27U Server Cabinet - Solid/Vented Doors - 36" Inside Depth
 CR1205-V/V
27U Server Cabinet - Vented/Vented Doors - 36" Inside Depth
 CR1205-S/S    27U Server Cabinet - Solid/Solid Doors - 36" Inside Depth
 CR1205-C/V
27U Server Cabinet - Convex/Vented Doors - 36" Inside Depth
