SERVER CASE

    Part #
 SC1001

Material :  All Aluminum
Drive Bay :
8x 5.25" and 1x 3.5" exposed
Mainboard Size:
Up to 12" x 10"
Dimensions:
17"(H) X 8.5"(W) X 21"(D)
Cooling Fan:
4x8cm fan
Weight:
20 LBS

Remarks :
Four rolling wheels with four breakers.
Or four plastic flat feet stand
PSII or Mini Redundant or Full size Redundant power supply

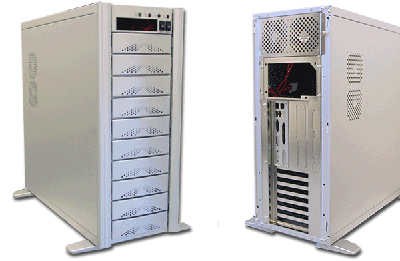

Rear View

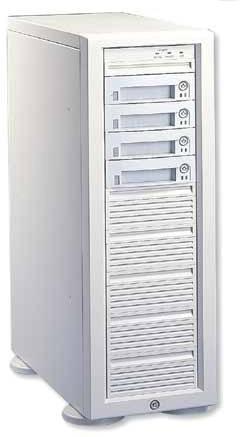

SC1002

*click on photo to enlarge

Material :  Heavy Duty Cold Rolled Electroplated Steel
Drive Bay :
8 - 12 x 5.25"
Mainboard Size:
Dimensions:
24"(H) X 7.9"(W) X 17.1"(D)
Cooling Fan:
2 x 9cm (51CFM) Heavy Duty Ball Bearing Fans
Weight:
36 LBS
Remarks :
Power Supply : (Rear Chassis Installation) Redundant 300~400W AT P/S (Optional)
Expansion Slot : SCAM Compliant Support SE, LVD & U2 SCSI Ultra 160 System, Transfer Rate up to 80MB/sec. With Universal Terminator on Board to Allow Mixed LVD, HVD or SE Mode Drives
Indicator : LED for Power & Failed HDD
Buttons : Power On/Off & System Reset
Special : 4 x Height Adjustable Circular Footings breakers.
More Views ..

SC1005 Drive Bay :   Six 5.25" and Two 3.5"exposed , and Seven 3.25" hidden drive bays
Mainboard Size:
Up to 12" x 13"
Dimensions:
13.75"(H) x 13.5"(W) x 18"(D)
Weight:
25 LBS



SC1006 Drive Bay : 10x 5.25" and 1x 3.5" exposed and 5x 3.25" hidden drive bays
Mainboard Size:
Up to 12" x 13"
Dimensions:
18.4"(H) x 14.8"(W) x 20.4"(D)
Weight:
45 LBS



SC1007 Drive Bay : 15 x 5.25"
Mainboard Size:
12" x 13" EATX
Dimensions:
410(W) x 416(H) x 710(D)mm ( 16.2" x 16.4" x 28" )
Weight:
34 kgs / 75 lbs

SC1008 Drive Bay : 23 x 5.25"
Mainboard Size:
16" x 13"
Dimensions:
410(W) x 600(H) x 710(D)mm (16.2" x 23.6" x 28")
Weight:
44 kgs / 97 lbs
