                                SAS / SATA JBOD : Part # TS8002

                    Tower JBOD 8x3.5" SAS/SATA-II HDDs, Disk Array Enclosure with 300W







 **Click on pictures to enlarge
 **Click here to Accessories




  Introduction

  The TS8002 is a Tower storage array system that houses four (8) 3.5” SAS/SATA Disks. With a built-in MultiLane bridge board that supports both SAS & SATA II disks, the unit is versatile as RAID or JBOD and is ideal for storage expansion to an advanced TS8002 XP RAID storage system or to an existing storage server.

  Technology

  The Tower JBOD Series was built on the latest I/O technology, the TS8002 connectivity , for multiple-disk configurations and superior airflow. The Tower JBOD comes with highly reliable, thumb screw type cable/connector that combines up to eight (8) low-cost SATA or high reliable SAS disks to the broadband high performance computing environments. Available in 8 or 4 -port configurations, the Tower JBOD Series is the only and coolest external desktop storage array helped resellers and integrators to offer more cost/effective storage solution to the end customers.
  Power & Cooling

  The Tower JBOD Series was built on the latest I/O technology, the TS8002 connectivity , for multiple-disk configurations and superior airflow. The Tower JBOD comes with highly reliable, thumb screw type cable/connector that combines up to eight (8) low-cost SATA or high reliable SAS disks to the broadband high performance computing environments. Available in 8 or 4 -port configurations, the Tower JBOD Series is the only and coolest external desktop storage array helped resellers and integrators to offer more cost/effective storage solution to the end customers.

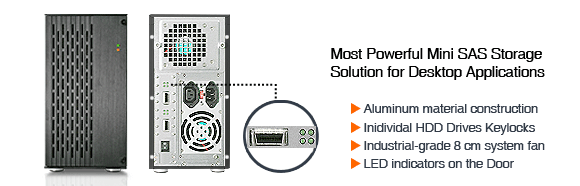

  Key Feature Include

  • Aluminum material construction
  • Eight hot-swappable HDD drive trays with individual keylock
  • Built-in SAS/SATA II compatible backplane
  • One hot-swappable enclosure fan facilitates regular maintenance
  • One thumbscrew enabled front door with optical LED indicators
  • Fan-fail LED and alarm with mute button
  • Power & Status LED indicators on the door
  Product Overview

  A Pioneer and leader in hybrid I/O technologies, Enhance Technology introduces the Tower JBOD Series, a host card (HBA) dependent, desktop storage array product line, developed for OEM, VAR, & storage solution providers. Supporting both SAS or SATA I/II hard disks, the Tower JBOD TS8002 Series features a new generation host connectivity capable of sustaining data rates up to 450MB/Sec. Constructed with aluminum material and hot-swappable cooling fan, the TS8002 Series is the coolest storage system on the market with a host of hot-swap components, empowering users with capabilities normally found in enterprise-class SCSI systems.

                                             Technical Specification
  Form Factor   Compact 8-Drive Tower
  HDD Interface   SAS / SATA II 3Gb

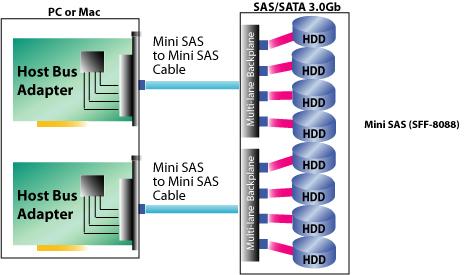

  Host Interface   Mini-SAS (SFF-8088)
  External Channel   2 x Mini-SAS Cable
  Number of Disks   Up to 8
  Performance   Up to 450 MB/Sec
  AC Input   115-240v ~5/2A 50~60Hz
  Output   +12V/8A +5V/20A
  Power Supply   Single 300 Watt or 2x 350 Wartt Redundant
