SAS / SATA JBOD : Part # TA5001

                    Tower JBOD 5x3.5" SATA HDDs, Dual-channel Disk Array Enclosure with 150W





 **Click on pictures to enlarge
 **Click here to Accessories


  Product Overview

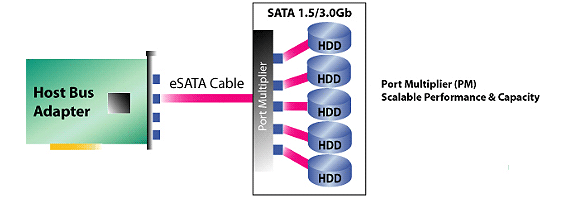

  A Pioneer and leader in hybrid I/O technologies, TA5001 Port Multiplier storage system, a host card (HBA) dependent, desktop storage array product line, developed for OEM, VAR, & storage solution providers. The elegant TA5001 Port Multiplier system is a desktop storage system built on the latest port multiplier technology that wraps five (5) high capacity SATA disks in one enclosure, while connecting to the host system via one external SATA (eSATA) cable. Constructed with aluminum material and hot-swappable cooling fan, the Tower JBOD Series is the coolest storage system on the market with a host of hot-swap components, empowering users with capabilities normally found in enterprise-class SCSI systems.


  Introduction

  The TA5001 is a Tower storage array system that houses four (5) 3.5” SATA Disks. With a built-in Mini-SAS bridge board that supports both SATA & SATA II disks, the unit is versatile as RAID or JBOD and is ideal for storage expansion to an advanced TA5001 XP RAID storage system or to an existing storage server.


  Technology

  The Tower JBOD Series was built on the latest I/O technology, the TA5001 connectivity , for multiple-disk configurations and superior airflow. The Tower JBOD Series comes with highly reliable, thumb screw type cable/connector that combines five (5) low-cost SATA disks to the broadband high performance computing environments. Available in 4 or 5-port configurations, the Tower JBOD Series is the only and coolest external storage array helped resellers and integrators to offer more cost/effective storage solution to the end customers.
  Power & Cooling

  The Tower JBOD Series keeps your workloads and critical applications running with minimum hardware failure interruption through the deployment of user friendly enclosure cooling management, specifically its hot-swappable fan and HDD trays (5). With the enclosed enclosure design, aluminum material and construction, direct airflow engineering, and rear hot-swappable fan implementation, this compact SATA external enclosure manage to outperform the enterprise SCSI class system in a heart beat.

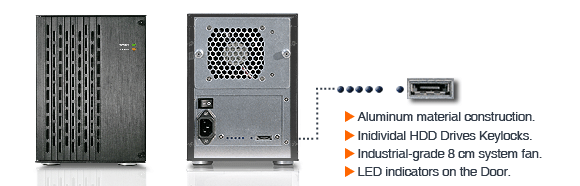

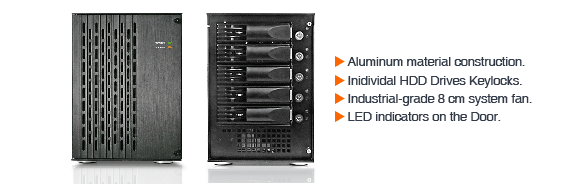

  Key Feature Include

  • Aluminum material construction
  • Five hot-swappable HDD drive trays with individual keylock
  • Built-in SATA II compatible backplane
  • One hot-swappable enclosure fan facilitates regular maintenance
  • One thumbscrew enabled front door with optical LED indicators
  • Energy saving advanced enclosure design
  • Fan-fail LED and alarm with mute button
  • Power & Status LED indicators on the door
                                             Technical Specification
  Form Factor   Compact 5-Drive Tower
  HDD Interface   SATA II 3Gb
  Storage IC   Silicon Image 3726
  RAID Feature   Non-RAID
  Number of Disks   Up to 5
  Performance   Up to 200 MB/Sec
  AC Input   115-230v ~6/3A 60~50Hz
  Output   +12V/5A +5V/30A
  Power Supply   Single 150 Watt
