SATA JBOD : Part #SS3004 16-Bays Rackmount SAS exapnder JBOD system
**Click on pictures to enlarge
 |
| Key Components
|
- 6.0 Gb/s SAS drives compatible
- One SAS JBOD down link expansion port to include more drives
- Front-end: Two Host wide ports for servers/RAID controllers
- RAID management through iStoragePro RAID subsystem or top of the line external PCI-E RAID controller
|
| Enclosure Monitoring
|
- S.E.S. support for standard enclosure management
- System LED indications (a) System status (b) Host ports status
- FAN speed monitoring
- Redundant 550W power supply monitoring
- System voltages monitoring
- System temperatures monitoring
- System alarm for failure events
|
|
| Introduction |
SS3004 Rackmount SAS Expander JBOD System is equipped with a high performance SAS expander technology. It can be connected to SS3004 Subsystem by a single cable which is capable of providing high performance & expandability. This efficient interface setup provides cost effective without compromising performance. SS3004 is expandable with iStoragePro subsystem total up to 80 hard disk drives.
|
| Features |
- Up to 32TB of Disk Capacity & Higher
- 16 hot-swap disk modules, supporting 3.5 inch SATA II / SAS drives
- Dual Redundant Universal 120-240VAC 550W power supply
- 2 x 12 Gbps miniSAS (SFF 8088) host wide ports
- 1 x 12 Gbps miniSAS (SFF 8088) JBOD expansion wide port
- With iStoragePro Subsystem, up to 4 JBOD systems can be cascaded
- Disk auto spindown support
- Hot-Sawp cooling fan ensures data protection
|
Compatible with Popular Video Software
& Operating System
|
|
The SS3004 Rackmount SAS JBOD can easily be connected to a PCIe host controller, providing RAID5 level protection, yet is fast enough for a single 16-drive SAS RAID unit to support multi-track Audio with Protools and multi-stream video formats, including: DV, HDV, DVCPRO HD, ProRes 422 , uncompressed SD, uncompressed 8-bit HD, uncompreseed 10-bit HD & 2K Capture and Playback Mode. Its Speed exceeds 700MB/Sec and over. The SS3004 SAS JBOD is the Best storage solution for digital content creators, digital audio & music Production, Video Post-Production, graphic design, Digital Photography, Pre-press, D2D backup, Video Survilance and game programing.
|
| Host and Drive Connection
|
- Two 3Gb SAS 4-lane wide ports
- One 3Gb SAS 4-lane wide port for down link
- Supports up to 16 SAS / SATA drives
- 6Gb SAS drive supported
- Up to 4 JBODs can be cascaded, plus iStoragePro RAID subsystem up to total 80 disks
|
|

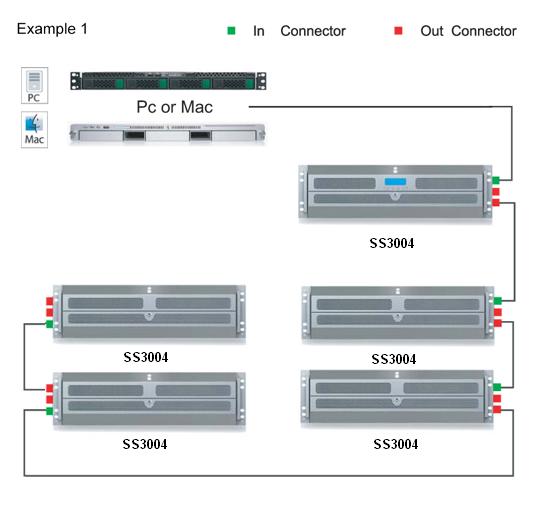

Connection Diagram
**Click on pictures to enlarge
|
| Video Capture & Playback Supported |
- 10 bit Uncompressed HD 1080i
- 8 bit Uncompressed HD 1080i
- 10 bit Uncompressed SD
- 8 bit Uncompressed SD
- DVCPRO HD, HDV, DV & Prores
|
|
Technical Specification |
| HDD
Interface |
SATA II / SAS |
| Data Transfer Rate |
SATA 1.5/3 Gbps / SAS |
| Host Interface |
miniSAS 8088 |
| Power Supply |
Redundant 550W power supply |
| Cooling |
Swap Fan Module
|
| O.S. support |
Mac OS X, Windows, Linux |
|
