SAS / SATA JBOD : Part # SS1003

                    1U - 4bay mini SAS JBOD Chassis





 **Click on pictures to enlarge



  Introduction

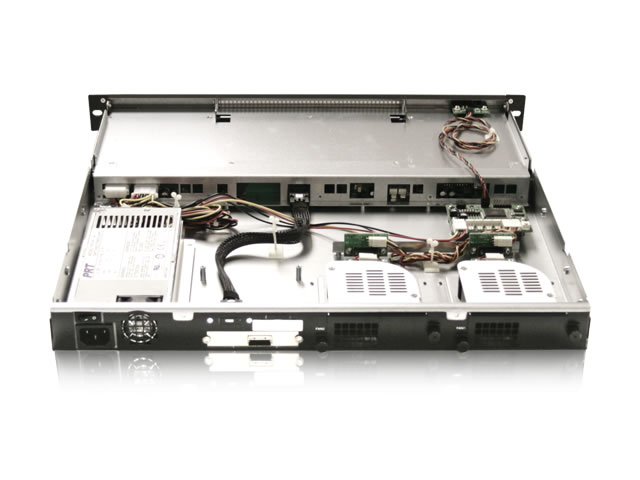

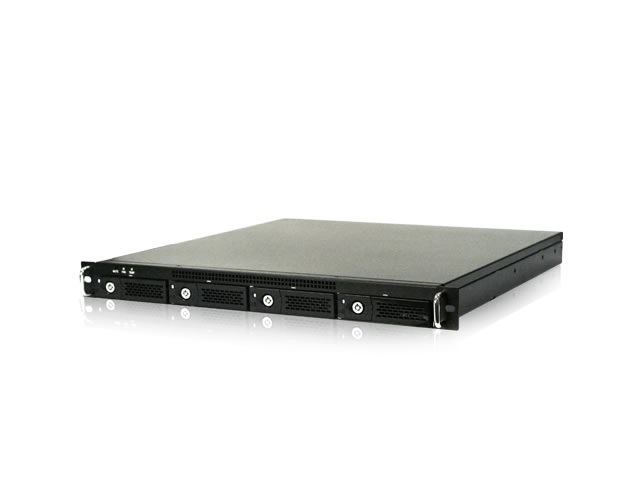

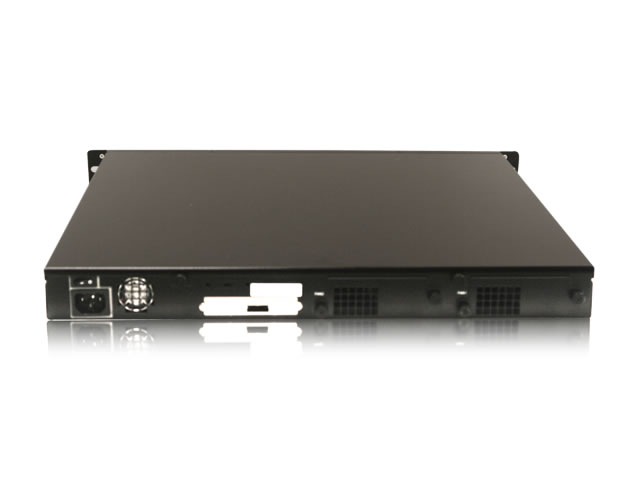

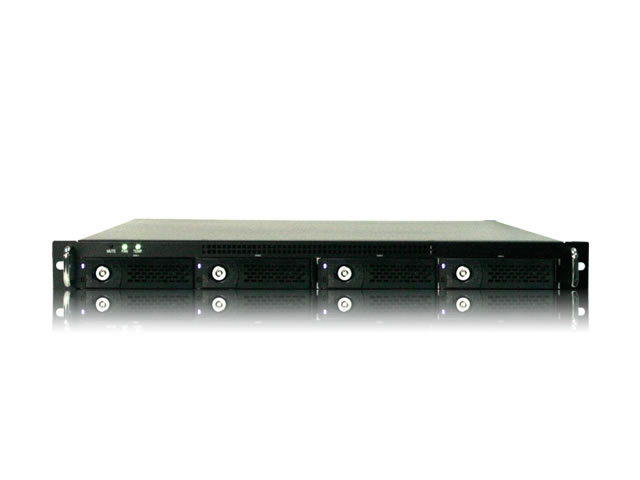

  SS1003 is an external 1U-4 Bay Hot-Swap SAS/SATA Rackmount Enclosure. It provides users a flexible solution for up to 4 SAS or SATA HDD and high performance external data storage solution for HD of 1080i Video Editing or any high resolution video platform. This 1U 4 Bay external SAS/SATA JBOD is designed with one convenient external mini SAS (SFF8088) interface that brings users an easy installation and enjoy fast data transmission experience.


  Features

  • Supports SAS/SATA (3Gbps)
  • mini SAS interface for easy connection
  • Backplane design for up to 4 removable SAS/SATA drive trays
  • Fan cooler for self-contained ventilation
  • Individual key lock of each HDD tray for physical security
  • LED indicators for power and activity on each HDD tray
  • Environmental Monitoring with Power/FAN/TEMP LEDs and mutable buzzer alarm

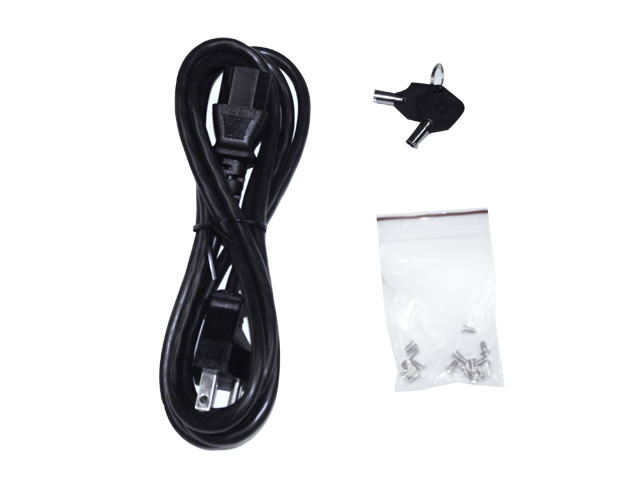

  Package Content

  • Enclosure x 1
  • HDD Tray x 4
  • mini SAS Cable x 1 (Optional)
  • Power Cord x 1
  • Manual CD-ROM x 1
  • Hard Disk Drive mounting screw x 16
  • Key for HDD tray x 2
                                             Technical Specification
  Host Interface   SAS/SATA (mini SAS connector)
  HDD Interface   SAS/SATA
  Data Transfer Rate   SAS/SATA 3 Gbps
  Hot-Swap   Both on Host and Device
  LED Display   Green - Power on indicator Blue - Busy (HDD Accessing) indicator
  LED Display for Environmental Monitoring   POWER on LED - white FAN normal green; fail red (too slow rpm or stop)
  TEMP normal green; over 55C red

   (We strongly recommend customers to replace a new fan ASAP after the fan failed)
  Dimension   (L):45.3cm (W):48.2cm (H):4.4cm
  Material   Heavy-duty cold-rolled steel
  Power Supply   180W Input: 90 230 VAC 50- 60 Hz Output: +5V and +12V DC
  Cooling   Two 75 x 75 x 28 mm Blowers
  O.S. support   OS Independant
